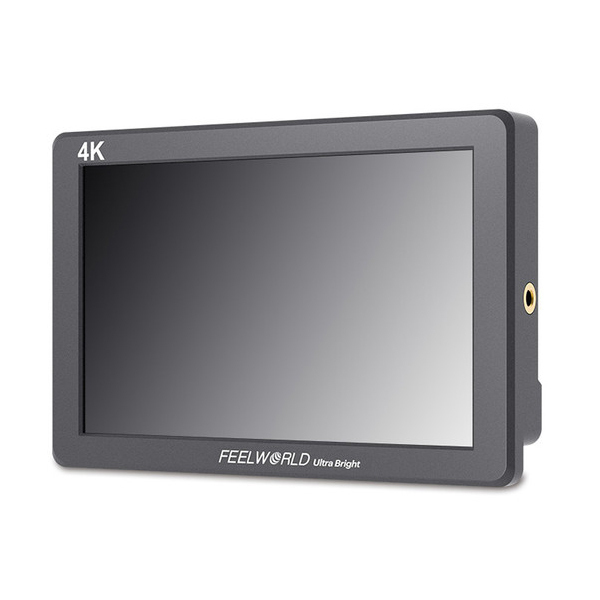

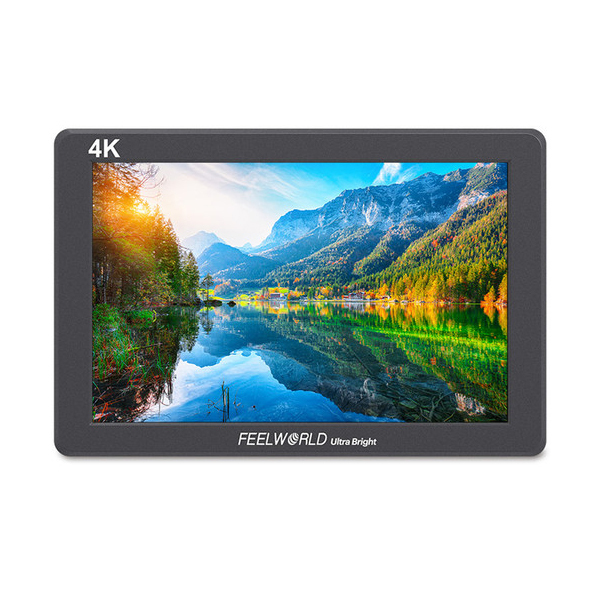

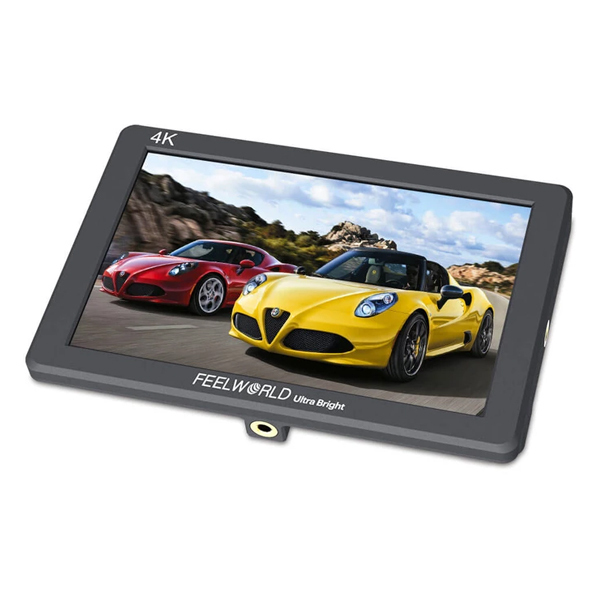

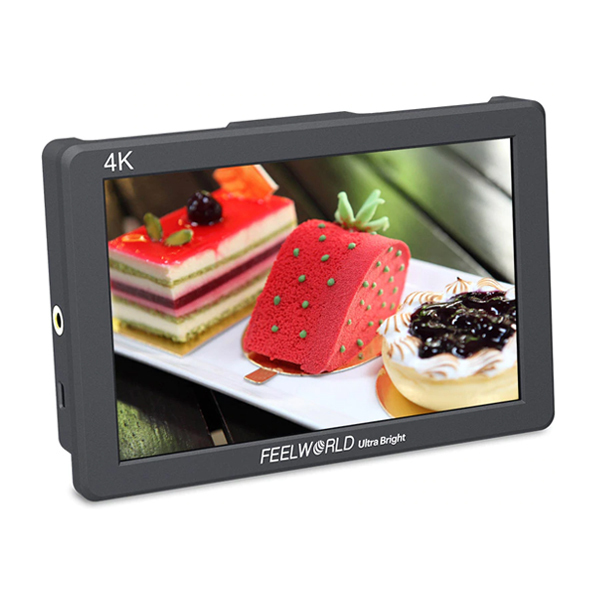

FEELWORLD P7 7'' 4K HDMI 2200NIT CAMERA FIELD MONITOR

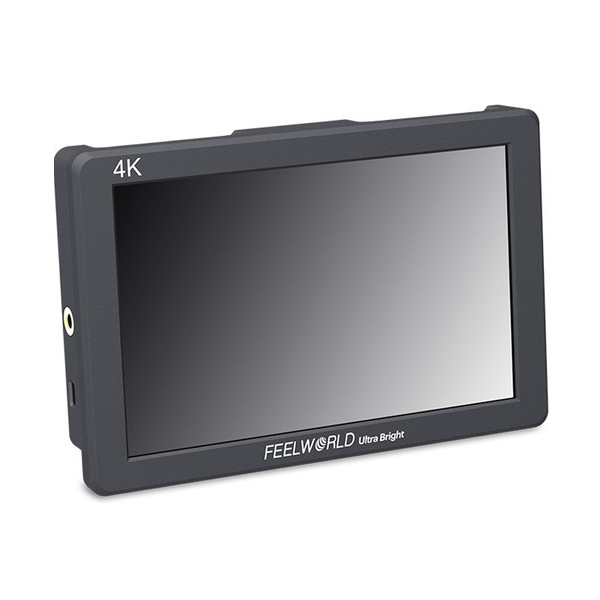

The Feelworld P7 7'' 4K HDMI 2200nit Daylight Viewable Camera Field Monitor provides 7" an 8-bit IPS screen with 1920x1200 resolution, 323ppi pixel density, professional color calibration to overcome natural LCD color drift. The P7 displays sharper images, better text clarity and color reproductions regardless of your shooting conditions. The P7 has a wide viewing angle so that everyone on set can review the action. The high bright 2200nit screen at almost 5 times the brightness of conventional field monitors lets you shoot outdoors without reflections washing out your image. This makes it a great choice for gimbals, Steadicam and director's monitors, delivering a crisp image without the bulk and viewing angle restrictions of a sun hood.
- High Resolution: Full HD 1920x1200
- High Contrast: 1200:1
- Ultra Brightness: 2200cd/m2
- 160 deg. wide viewing angles IPS Panel
- Ultra thin design 25mm thickness
- Histogram
- Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
- False Colors
- Zebra Exposure
- Nine Grid
- Embedded Audio
- Scan Mode (Under Scan, Over Scan)
- Zoom (4x, 9x, 16x)
- Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20x - 2.00x)
- Pixel to Pixel
- Center Marker
- Safe Area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Marker Color (Red, Green, Blue, White, Black)
- Check Field (Red/Green/Blue/Mono)
- Image Flip (H, V, H/V)
- Image Freeze
- Zoom All (0-100 adjustable)
- U/D & L/R Zoom (0-100 adjustable)
- Color Temperature Adjustment

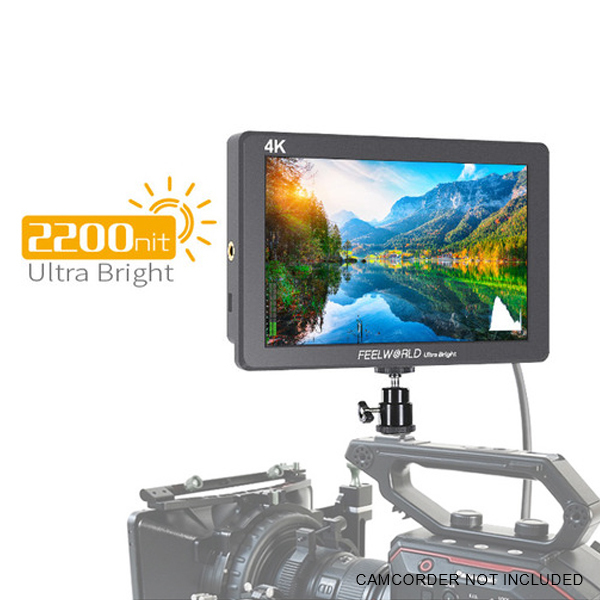

2200NIT HIGH BRIGHTNESS MEET SUNLIGHT CHALLENGE
with its 2200 cd/m² bright backlight, overcomes this environmental difficulty, and delivers a crisp image without the bulk and viewing angle restrictions of a sun hood.
IDEAL FOR PULLING FOCUS FROM AN HD OR 4K SIGNAL
With 1920x1200 resolution, impressive 323 PPI, 1200:1 high contrast, IPS 160 degree viewing angle, Rec.709 professional color calibration to provide a sharp image, ideal for focus pulling and image analysis on set and in the field.
YOUR CAMERAS BEST FRIEND

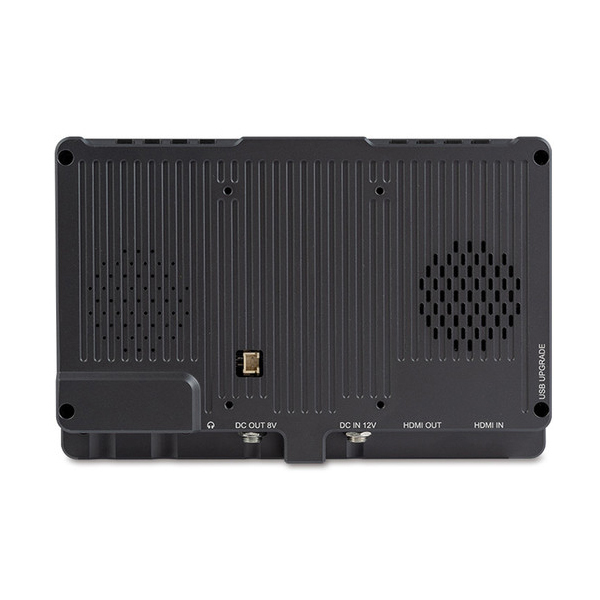

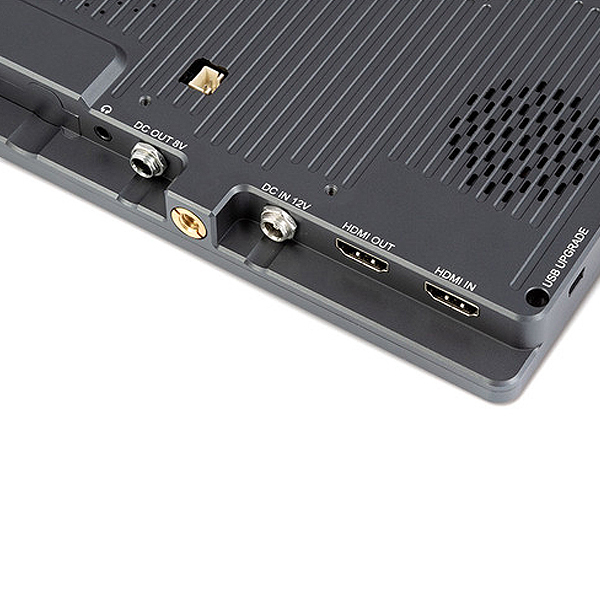

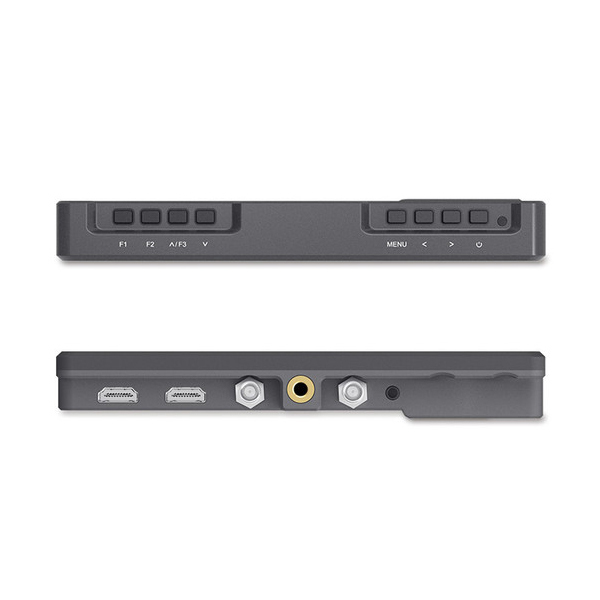

Includes 4K HDMI input and output, you can connect 4K HDMI cameras and DSLRs. The HDMI connection is compatible up to 4Kp30. You can monitor audio using the 3.5mm stereo headphone jack, or the built in speaker.

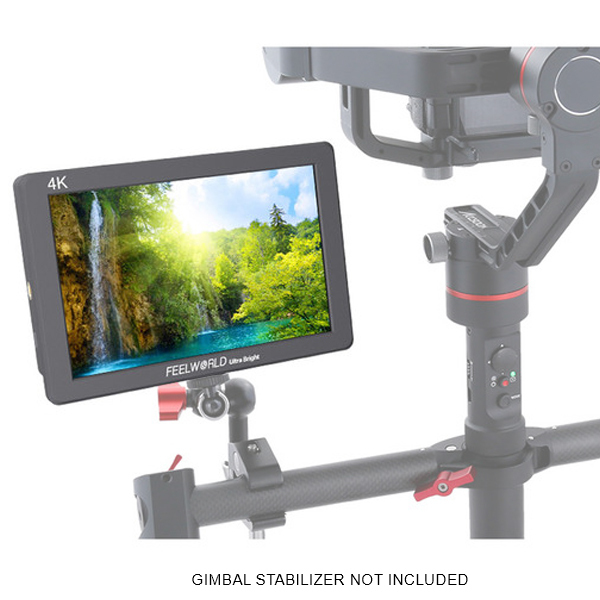

LIGHTWEIGHT DESIGN, EASY TO MOUNT
Compact size and 365g lightweight design are perfect for Steadicam, DSLR rig, Camcorder Kit, Handheld Stabilizer, and Video Camera Crane. Aluminum Metal Frame, Light weight, durable construction. Three standard 1/4"-20 mounting points (left, bottom, right side) offer easy attachment to cameras and rigs.
CREATE THE WONDERFUL SHOTS
Two custom shortcuts can be set as common functions. The professional features are extremely helpful to your filming, like Focus Assist, Histogram, False Colors, Exposure, Aspect Ratio, Image Flip, Nine Grid, Zoom, Anamorphic, Image Flip, Safe Area, etc.
SPECIFICATIONS
Brand | Feelworld |
Model | P7 |
Display Size | 7" |
Panel Type | IPS-Type LCD |
Resolution | 1920x1200 pixels |
Pixel Pitch | 0.07875 (H) x 0.07875 (W) (mm) |
Aspect Ratio | 16:10 |
Brightness | 2200cd/m² |
Contrast Ratio | 1200:1 |
Backlight | LED |
Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
Input | 1 X 4K HDMI |
Output | 1 X 4K HDMI; DC Out |
Audio | 3.5mm Stereo Headphone, Speaker |
HDMI Support Format | 80i/576i/480p/576p; 1080i (60/59.94/50); 720p (60/59.94/50/30/29/25/24/23.98); 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF); 4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz) |
Input Voltage | DC 7 ~24V |
Consumption | ≤18W |
Connector | DC |
Working Temperature | -20°C~55°C |
Storage Temperature | -30°C~65°C |
Install Way | 1/4"-20 Thread Socket (left, right, bottom) |
Battery Plate | F970 (Standard); D28S/D54, LP-E6, U60 (Optional) |
Dimensions (L x H x D) | 180 x 120 x 22 mm |
Weight (with F970 Battery Plate) | 500g |
Weight (without F970 Battery Plate) | 475g |

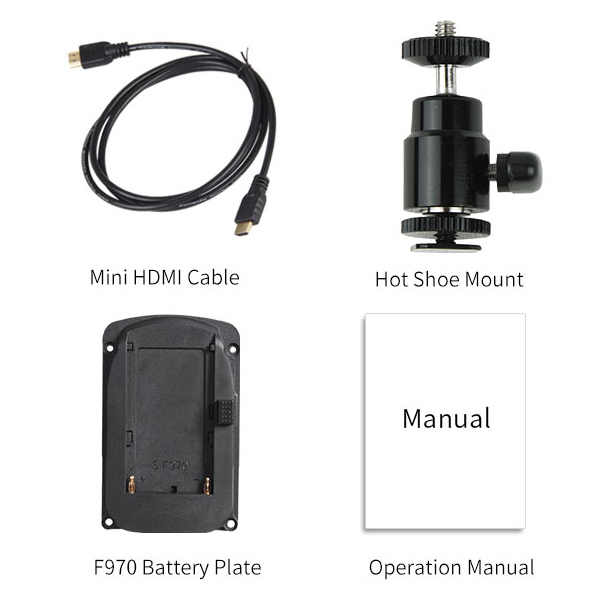

PACKAGE INCLUDES
1 x Feelworld P7 7'' 4K HDMI 2200nit Daylight Viewable Camera Field Monitor
1× Mini HDMI Cable
1× Hot Shoe Mount
1× F970 Battery Plate
1× Operation Manual
