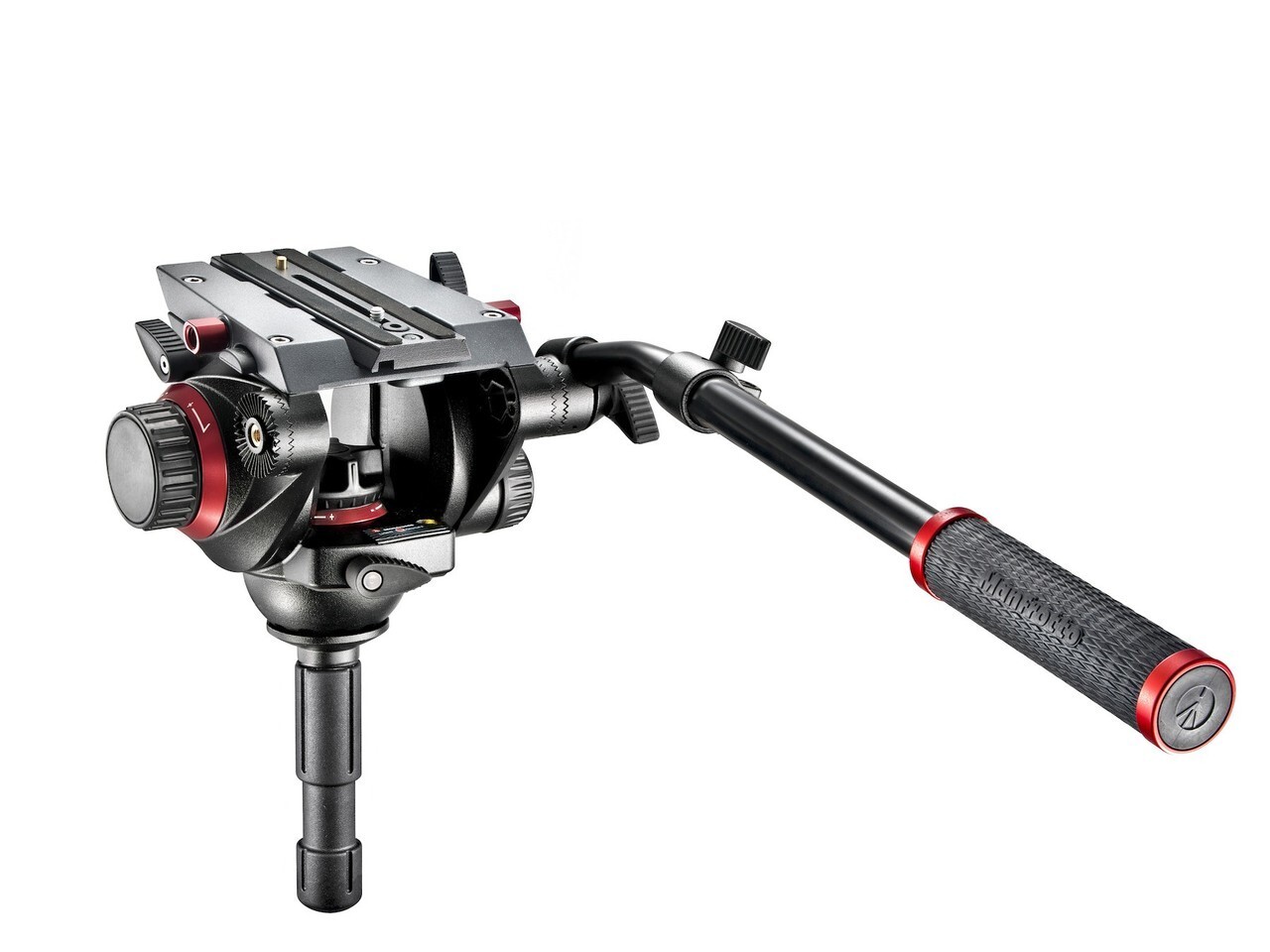

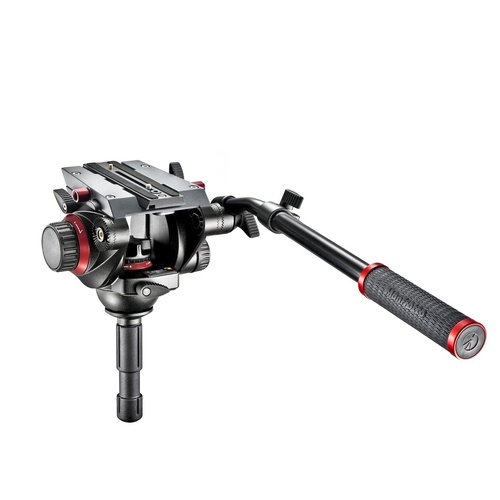

Manfrotto 504HD Fluid Video Head with 75 mm half ball
A perfect balance of design and performance, the Manfrotto 504 fluid video head with incorporated 75mm half ball puts you in control. This gives you the stability, strength and speed to suit any condition. The head is made from durable aluminium. When you’re setting up a shot, the Manfrotto Head offers unrivalled stability thanks to variable fluid drag system in both pan and tilt movement, which allows smooth shooting and a 4-steps counterbalance system up to 7,5 Kg at 55mm C.O.G. The head has a maximum payload of 12 Kg. Easy link 3/8'' thread connections allows an external monitor or other accessory equipment to be fitted. Plus, levelling is simple thanks to the 75mm diameter half ball and backlit levelling bubble.
Features:
- Variable Fluid Drag System on PAN and TILT movements
- 4 step Counterbalance system
- Sliding plate for the fastest camera connection and set up
- Inbuilt Ø75mm levelling half ball
- Illuminated levelling bubble for easy setup
Specifications:
Weight | 2770 g |
---|---|
Collection/Series | 504 |
Material | Aluminum |
Safety Payload Weight | 12 kg |
Counterbalance System | Variable Steps |
Counterbalance Weight | 0, 2.5, 5, 7.5 kg |
Tilt Drag | continuously adjustable from 0 to max level |
Pan Drag | continuously adjustable from 0 to max level |
Plate Type | 504PLONG |
Ball Flat | 75 Ball |
Center of gravity | 55 mm |
Front Tilt | -60° / +90° |
Bubble Spirit Level (No.) | 1 |
Accessory Compatibility | MVAPANBARM; MVAPANBARL;502HLV;509HLV |
Top Attachment | 1/4″ screw, 3/8″ screw |
Powered by (batteries) | Lithium |
Certifications | WEEE; RoHS |
Color | Black |
Easy Link | Yes |
Head Type | Video/Fluid Head |
Maximum Working Temperature | 60 C |
Minimum Working Temperature | -20 C |
Pan Bar Included | Yes |
Panoramic Rotation | 360 |
Quick Release | Yes |
Working Height | 15.5 cm |
(8024221579871)
SKU | 8024221579871 |
Barcode # | 8024221579871 |
Brand | Manfrotto |
Shipping Weight | 2.0000kg |
Shipping Width | 0.150m |
Shipping Height | 0.300m |
Shipping Length | 0.400m |
