Wooden Camera Nikon D810/D800 Unified Accessory Kit (Advanced)
Description
The Nikon D810/D800 Unified Accessory Kit (Advanced) is a camera support package designed for the Canon 1DX and 1DC cameras. The 1DX/1DC accessory package features our Unified DSLR Cage (Large), a form fitting camera cage for secure camera accessory attachment that holds two 15mm Rods (6") at the correct lens height, Unified DSLR 15mm Baseplate, a quick release baseplate that holds two 15mm Rods, Safety Dovetail (8") which interfaces with the ARRI dovetail slot on the bottom of the Unified Baseplate, and our Ultra Arm Monitor Mount (1/4-20 To 1/4-20, 3"), an articulating arm with multiple mounting points for accessories.

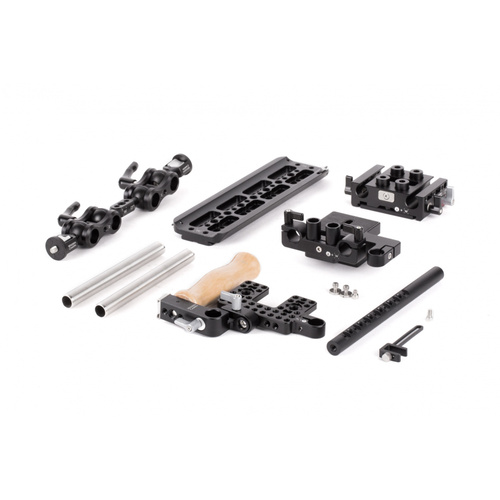

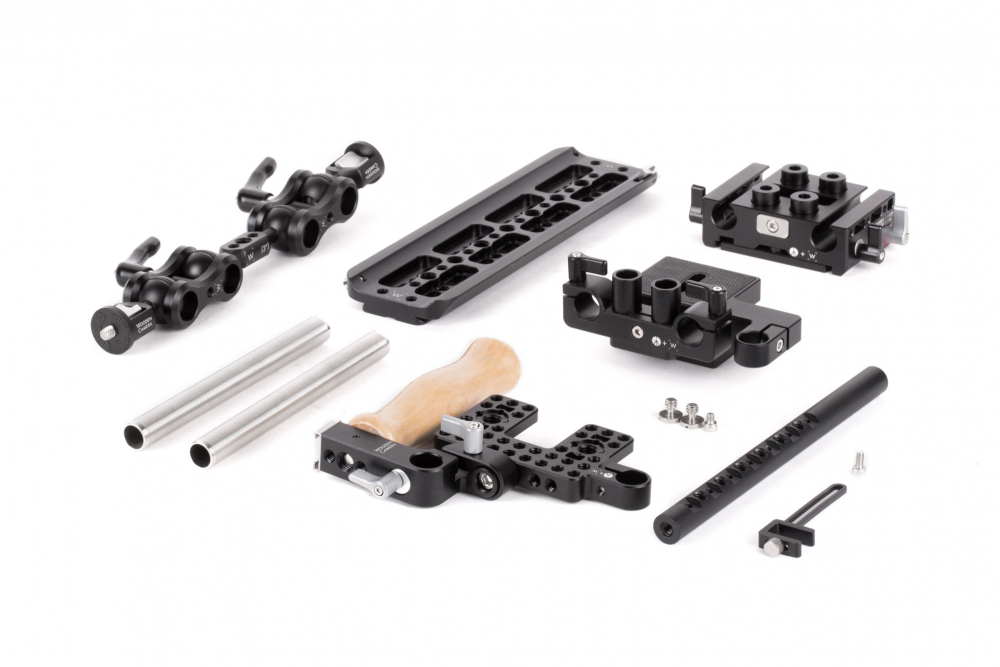

Included Items:
- Unified DSLR Cage (Large)
- Unified DSLR 15mm Baseplate
- 2x 15mm Rod (6")
- Ultra Arm Monitor Mount (1/4-20 To 1/4-20, 3")
- Safety Dovetail (8")
Specifications:
- Weight: 1769.01 g (3.9 lbs)
- Dimensions: 406.4 x 127 x 152.4 mm
Features:
Unified DSLR Cage (Large)
A quick release, height adjustable cage that fits larger DSLR cameras like Canon 1DC, 1DX, 1DX mkII, 1DmkIV, 1DmkIII, Nikon D4, D3x, and many cameras with battery grips installed. The open shoe mount area allows for hot shoe accessories to be installed without obstruction. The minimalist design gives you mounting points on the top and side while leaving all of the camera's vital controls on the right grip and left side easily viewable and accessible.
The cage includes a reversible top handle which can be repositioned over the lens area when an XLR adapter is in use. Built into the handle is a cold shoe mount and a 15mm tube clamp for mounting any of our UVF Mount kits used with 3rd party electronic viewfinders. The handle can also fold down when packing your bag and can even be reconfigured onto the left, vertical 15mm rod for a secondary grip!
Cameras with fold-out LCD screens can be positioned easily and an included HDMI cable clamp can be mounted to the vertical rod to secure video cables and prevent port damage.
The Unified DSLR Cage (Large) includes a height adjustable 15mm lightweight rod clamp for positioning 15mm rods at the correct distance to the centre of the lens, ensuring compatibility with standard matteboxes and follow focus units.
Unified DSLR 15mm Baseplate
A height adjustable baseplate attachment that provides 15mm lightweight rods at the correct lens height for DSLR cameras when combined with Unified DSLR Cage (Small) or Unified DSLR Cage (Medium). The Unified DSLR 15mm Baseplate has a native ARRI dovetail interface for direct mounting to our 2060 Dovetails, Safety Dovetails, or Shoulder Rigs. The included Lower Quick Dovetail portion can be attached to any tripod plate or ARRI standard bridge plate such as Unified Bridgeplate (19mm) or Unified Bridgeplate (15mm Studio) providing studio rods at the correct lens height.
Ultra Arm Monitor Mount (1/4-20 to 1/4-20, 3")
An articulating arm with two sets of 25mm (1 inch) double ball joints which allow a monitor or accessory to be positioned in just about any orientation. Tool-less 1/4-20 knobs on each end with non-slip rubber pads make setup quick and easy. Black centre thumbscrews ratchet to allow for easy positioning. The 3" title refers to the centre extension length but actual length fully extended measures 240mm (9.4 inches).
Safety Dovetail
ARRI standard dovetail with safety catch on one end to prevent accidental camera removal. Threaded 1/4-20 and 3/8-16 holes for accessory mounting and tripod attachment.
15mm Rods
15mm diameter iris rods used for mounting accessories like follow focus, matte box, lens support, servo motors, and more.
(3010112338622)
SKU | 3010112338622 |
Barcode # | 3010112338622 |
Brand | Wooden Camera |
Shipping Weight | 2.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.100m |
Shipping Length | 0.300m |
