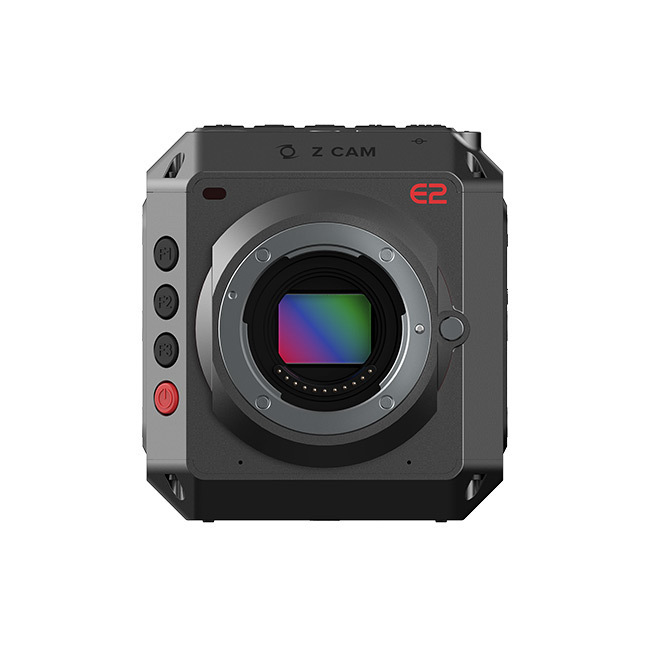

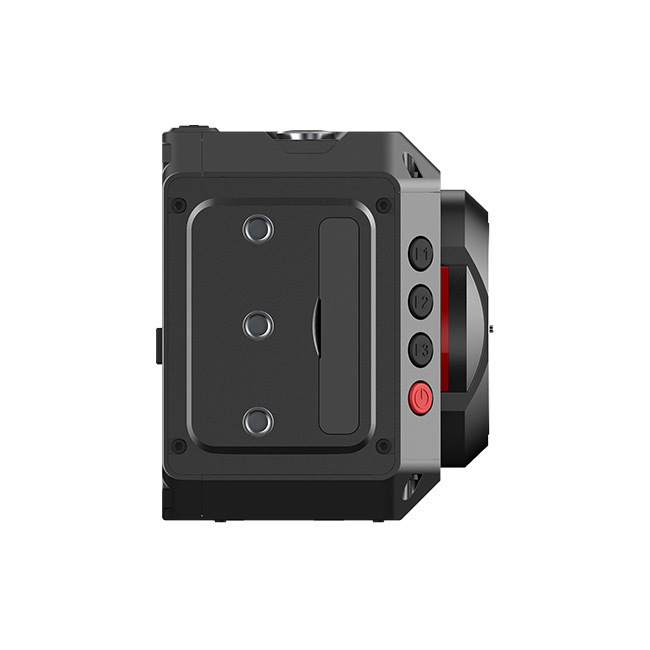

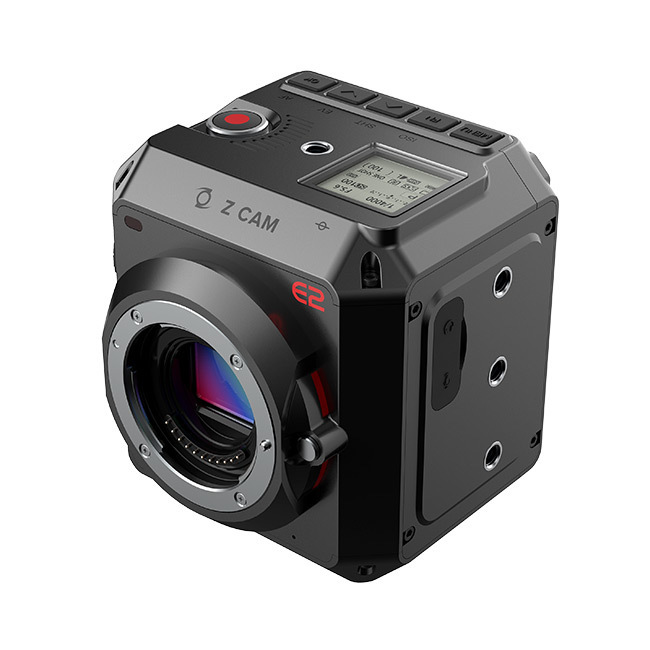

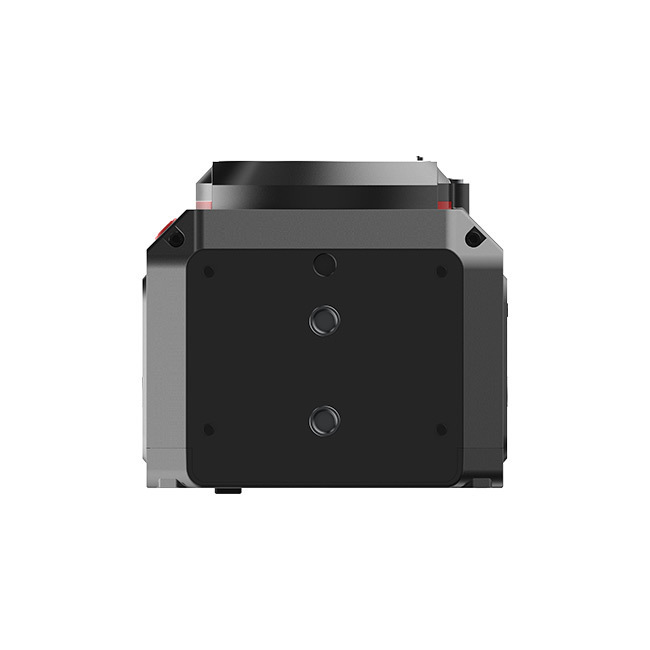

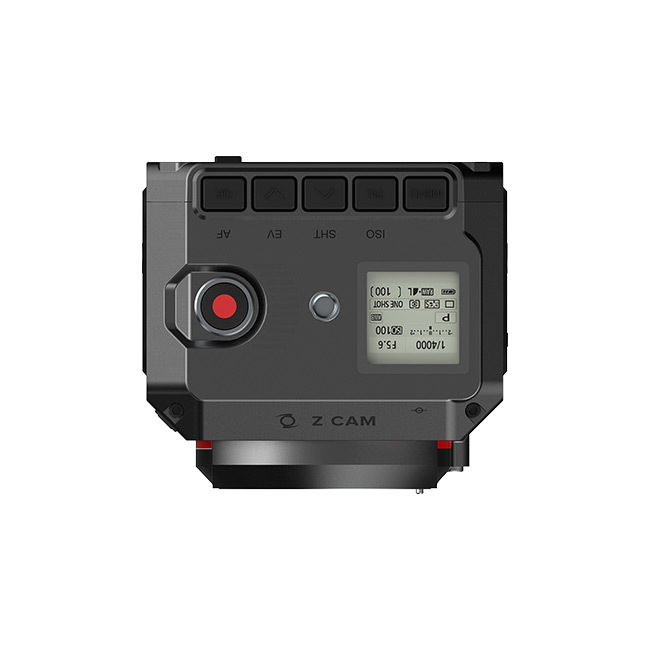

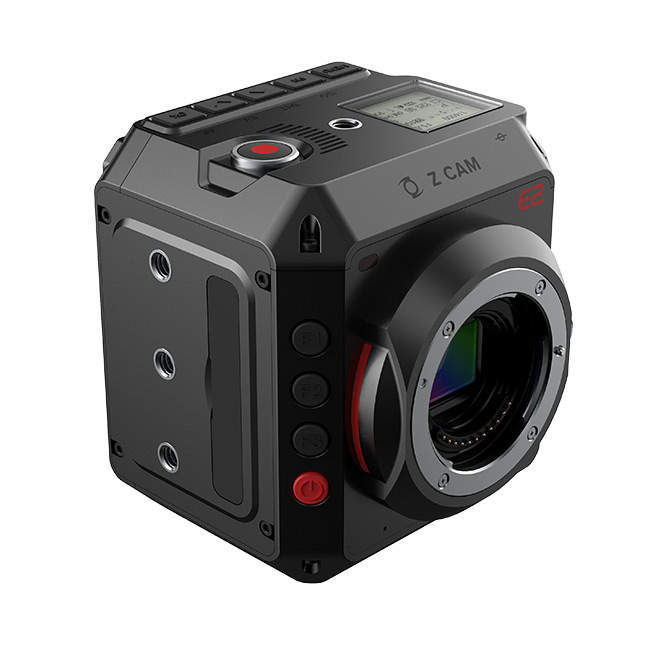

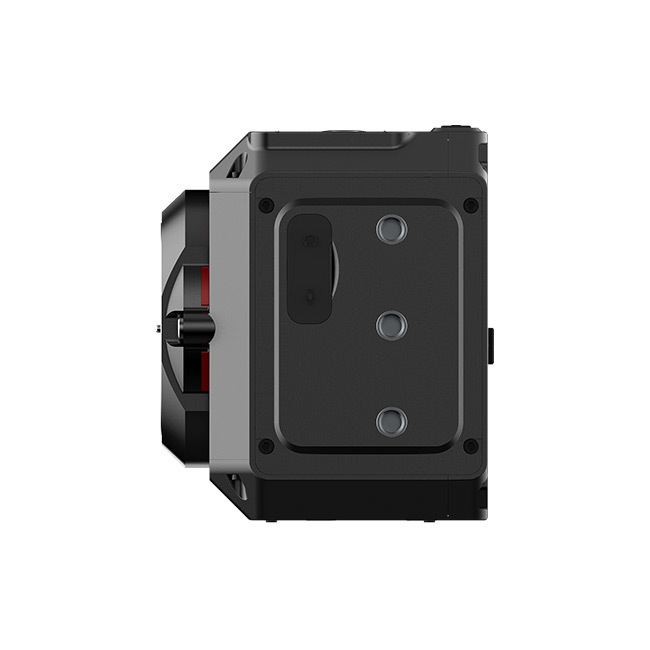

Z-CAM E2 COMPACK 4K Camera
The Z CAM E2 Professional 4K Cinematic Camera shoots DCI and UHD 4K at up to 120 fps, as well as HD up to 240 fps, and records to a CFast 2.0 card (not included). An optional cable enables syncing two E2 cameras together, and the system supports syncing up to 100 cameras. The camera features a 4/3" sensor with 10-bit color support and nominal 13 stops of dynamic range with 16 stops when set to WDR. The camera supports recording in ProRes 422 in 10-bit, as well as H.265 and H.264 codecs for efficient compressing of your image.
An included Gigabit connector provides data transfer and control of the camera, and you can also use an available iOS app to control the camera and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers from an L-series battery (not included) or via the included AC adapter.
4K Capture and Recording
- Unburdened by a recording time limit, you can record DCI/UHD 4K at up to 120 fps or 1080p at up to 240 fps, for up to the limit of your recording media's capacity
- Triple native ISO 80 / 160 / 800
- 13 stops of dynamic range using ZLog, and 16 stops of dynamic range in WDR mode
- Built in multi-frame noise reduction technology to produce clean footage
- H.265 (10-bit color) internal recording on CFast 2.0 card
- 10-bit ProRes recording in 422 HQ, 422, 422 LT, and 422 Proxy is supported
- Video output through HDMI 2.0 is supported (up to DCI 4K @ 60 fps, 10-bit color, YUV 422)
- Full metal housing for efficient heat dissipation

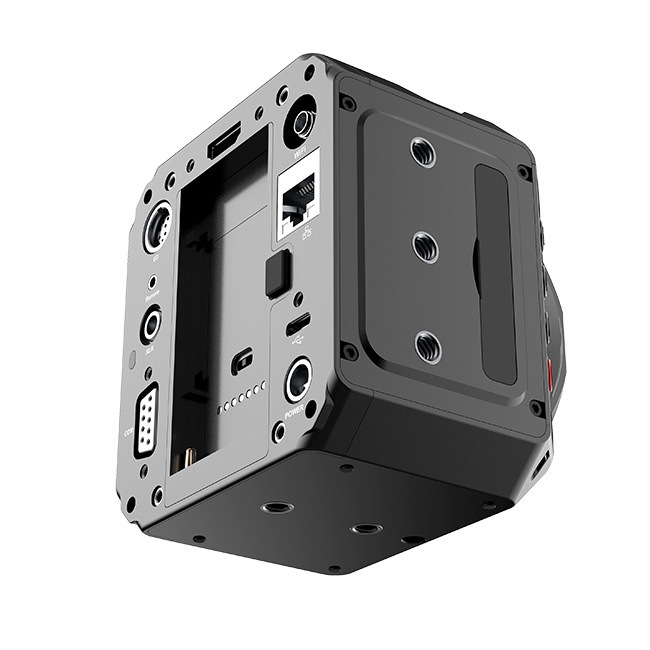

Interfaces and Expandability
- USB Type-C port for live view and control via iOS device with Z Camera app installed
- The USB Type-C port can also be used for external SSD recording
- Ethernet port for live view, control, and file transfer to browser or computer running Z CAM software
- HTTP API and SDK are also available
- COM (RS232) port supports UART protocol
- LANC port for remote control including power on/off
- Pixel-level multicamera sync can be achieved for up to 100 devices—requires optional cable(s)
- iOS App
- Z Camera is a mobile application for camera live preview and control through Wi-Fi/USB cable connection. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview. It can be downloaded from the Apple App Store.
- Specifications:
- Sensor Type: 4/3" WDR CMOS Sensor
- Sensor Size: 19.0 x 13.0 mm
- Effective Pixels: 10.28M
- Dynamic Range: 13~15 Stops (Z-Log2) / 16 Stops (with WDR activated)
- Lens Mount: Micro Four Thirds
- Microphone: Built-in Stereo Microphone
- Resolution: 4096 x 2160 (C4K) / 3840 x 2160 (4K)
- 4096 x 1728 (C4K 2.4:1) / 3840 x 1620 (4K 2.4:1)
3696 x 2772 / 3312 x 2760
2704 x 1600 / 1920 x 1080 - Frame Rate: 59.94 / 50 / 29.97 / 25 / 24 / 23.98 fps
- Max Variable Frame Rate:
- 120 fps for 4096 x 2160 (H.265 only)
120 fps for 3840 x 2160 (H.265 only)
150 fps for 4096 x 1728 (H.265 only)
160 fps for 3840 x 1620 (H.265 only)
160 fps for 2704 x 1600 (H.265 only)
59.94 fps for 3696 x 2772 (Apple ProRes & H.265)
59.94 fps for 3312 x 2760 (Apple ProRes & H.265)
240 fps for 1920 x 1080 (H.265 only)
* Please refer to “Appendix 1” for more detail of the max frame rate for different encoders. - Max Bit Rate:
- H.265 / H.264
300 Mbps for 4096 x 2160 / 3840 x 2160 / 4096 x 1728 / 3840 x 1620 / 3696 x 2772 / 3312 x 2760 / 2704 x 1600
200 Mbps for 1920 x 1080
ProRes
Please check “Apple ProRes White Paper” for the bit rate of ProRes encoding. - Color Bit Depth: 10-bit (H.265 & ProRes) & 8-bit (H.264)
- Video Encoder: ProRes 422 HQ / ProRes 422 / ProRes 422 LT / ProRes 422
- Proxy / H.265 main 10 profile / H.264 high profile
- Audio Format: 24-bit 48 kHz
- Audio Encoder: AAC / PCM (for MOV only)
- File Format: MOV / MP4
- Record Mode: Video / Time Lapse Video
- ISO: Auto, Manual (500 ~ 102400 / 250 ~ 51200 with WDR activated), Native ISO: 250 / 2500 (250 / 1250 with WDR activated)
- Shutter: Shutter Speed: Auto, Manual (1” ~ 1/8000”) or Shutter Angle: Auto, Manual (11.25° ~ 360°)
- White Balance: Auto, Preset, Manual (2300K ~ 7500K)
- Focus Mode: MF / AF / CAF
- Image: Brightness / Contrast / Saturation / Sharpness
- Image Profile: Rec.709 / Z-Log2 / FLAT / HLG
- Audio: Audio In / Out Level
- Time Code: Current Time / Manual Input / External Input
- Media: CFAST 2.0
- File System: exFAT
- HDMI: HDMI 2.0 Type A (video output up to C4K @60fps)
- USB: USB 3.0 Type C for camera control & data transfer only
- I/O: 10-pin LEMO port for synchronisation (requires additional Sync Cable, not included)
- COM:DB-9 connector, supports RS-232
- Remote Control: 2.5 mm jack socket (Sony LANC compatible)
- Audio-in: 3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)
- Audio-out: 3.5 mm stereo jack socket
- Wi-Fi: 802.11n, 2.4G with external antenna port
- Ethernet: Gigabit Ethernet port for control, setting & live streaming
- Battery: Sony NP-F series compatible (Battery not included)
- External Power Supply: DC 12V 5A (4-pin LEMO socket), with LEMO connector and AC/DC power adapter
- Material: Alluminium Alloy
- Weight: 757 g (without lens)
- Dimensions (W x H x D): 91.2 mm x 99.2 mm x 89.1 mm (without lens)
- Storage Temperature: -20 °C ~ 60 °C
- Operation Temperature: 0 °C ~ 40 °C
(841687100061)
SKU | 841687100061 |
Barcode # | 841687100061 |
Brand | Z-Cam |
Shipping Weight | 2.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.300m |
Shipping Length | 0.160m |
