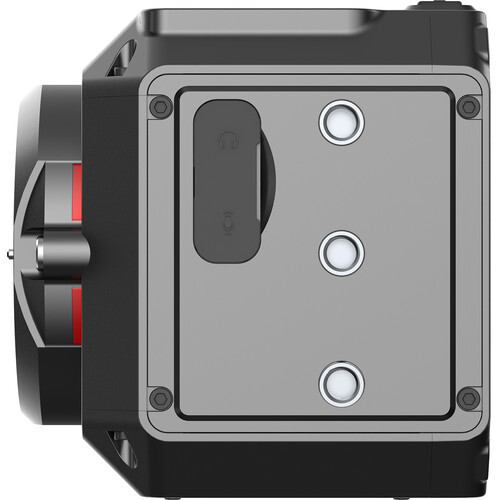

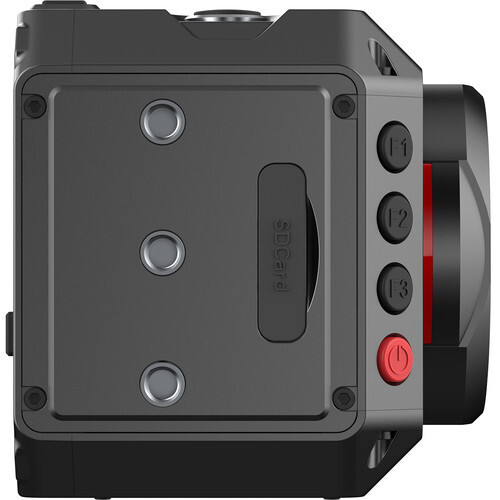

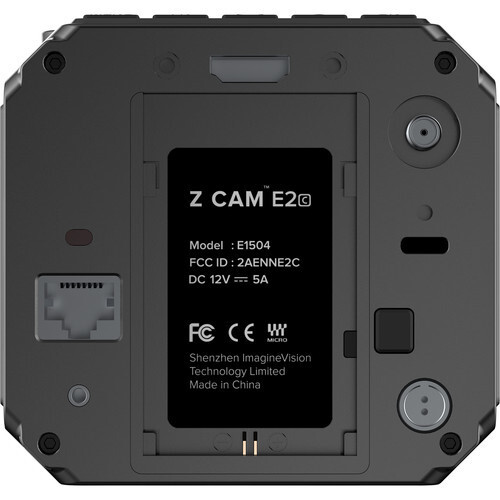

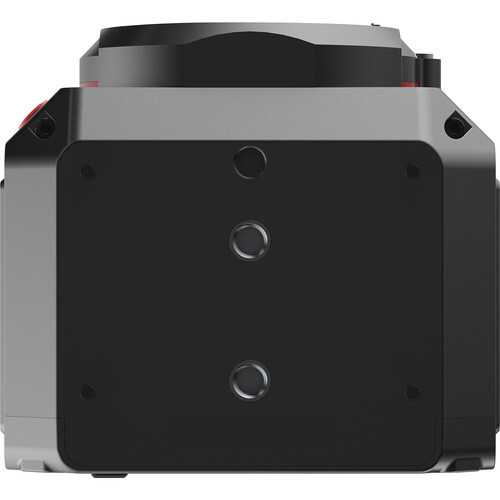

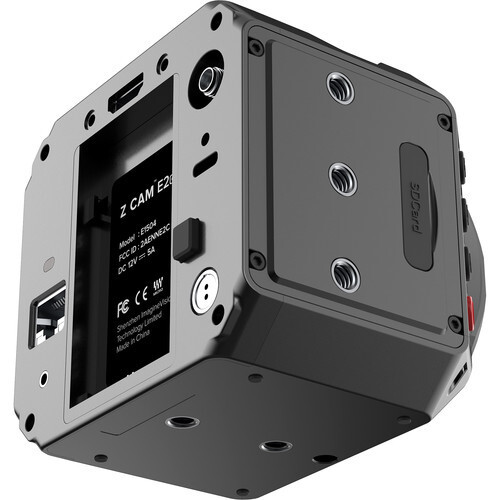

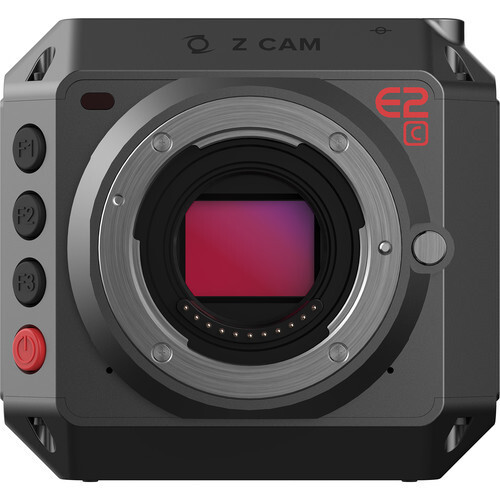

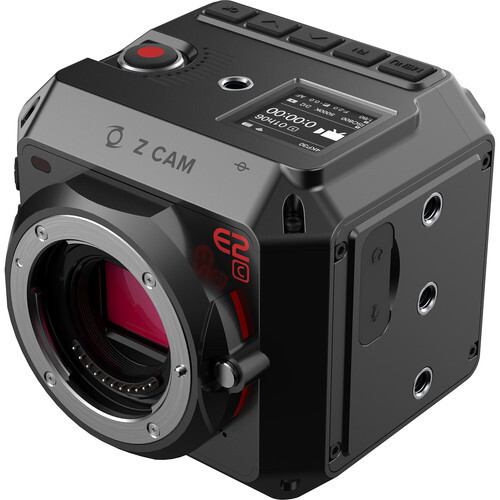

Z CAM E2C 4K CINEMA CAMERA
The Z CAM E2C Professional 4K Cinema Camera shoots UHD 4K at up to 29.97 fps, as well as HD up to 59.94 fps, and records to an SDXC Class 10 card (not included). The camera features a 4/3" sensor with 10-bit color support and nominal 11.5 stops of dynamic range. The camera supports recording video in MOV/MP4 using H.265 for 10-bit recording, while H.264 supports 8-bit recording, and a recent firmware update allows the camera to record in the ZRAW format. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only).
You can use an available iOS app to control the camera via Wi-Fi and to view a live image preview. You can also control it locally by the buttons along the front edge of the camera. The camera powers via PoE, an LP-E6-series battery (not included), or via a DC input port. An included LEMO to D-Tap power cable allows you to power the camera from a D-Tap source. An optional AC to DC power adapter can also power the camera.
Features:
- 4K @ 30fps, 10-bit color
- 4/3" CMOS sensor
- 11.5 stops dynamic range
- Gigabit Ethernet for data, control & live streaming*
- iOS app for control setting & live preview
- POE supported
*Requires Z CAM software running on PC
SUPPORTED LENSES
Panasonic Lumix 14mm f/2.5 G
Panasonic Leica DG Summilux 15mm f/1.7 ASPH
Panasonic Lumix G Vario 7-14mm f/4 ASPH
Panasonic Lumix G Vario 14-140mm f/3.5-5.6 ASPH. POWER O.I.S.
Panasonic Lumix G 25mm f/1.7 ASPH.
Panasonic Lumix G 42.5mm f/1.7 ASPH. POWER O.I.S. Lens
Panasonic Lumix G X Vario 12-35mm f/2.8 II ASPH. POWER O.I.S.
Panasonic Leica DG Vario-Elmarit 8-18mm f/2.8-4 ASPH.
Panasonic Leica DG Macro-Elmarit 45mm f/2.8 ASPH. MEGA O.I.S
Lumix G X Vario 14-42mm f/3.5-5.6 Power O.I.S.
Sigma 19mm F2.8 DN Art
Olympus M.Zuiko Digital ED 8mm f/1.8 Fisheye PRO
Olympus M.Zuiko Digital ED 12mm f/2
Olympus M.Zuiko Digital ED 17mm f/1.2 PRO
Olympus M.Zuiko Digital ED 12-40mm f/2.8 PRO
Olympus M.Zuiko Digital ED 45mm f/1.2 PRO
Olympus M.Zuiko Digital ED 75mm f/1.8 Lens
Olympus M.Zuiko Digital ED 14-42mm f/3.5-5.6 EZ
Olympus M.Zuiko Digital ED 25mm f/1.2 PRO
Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
Olympus M.Zuiko Digital ED 60mm f/2.8 Macro
Olympus M.Zuiko Digital ED 30mm f/3.5 Macro
Olympus M.Zuiko Digital ED 40-150mm f/2.8 PRO
Olympus M.Zuiko Digital ED 7-14mm f/2.8 PRO
Olympus M.Zuiko Digital ED 12-100mm f/4 IS PRO
Olympus M.Zuiko Digital ED 300mm f/4 IS PRO
TECHNICAL SPECIFICATIONS
Camera Features
|
|
Sensor Type | 4/3" CMOS Sensor |
Sensor Size | 17.56 x 13.11mm |
Effective Pixels | 16.83M |
Dynamic Range | 11.5 Stops (Z-Log2) |
Lens Mount | Micro Four Thirds |
Microphone | Built-in Stereo Microphone |
Recording | |
Resolution & Frame Rate | 3840 x 2160 @ 29.97 / 25 / 24 / 23.98 fps |
2880 x 2880 @ 29.97 / 25 / 24 / 23.98 fps | |
1920 x 1080 @ 59.97 / 50 / 29.97 / 25 / 24 / 23.98 fps | |
Color Bit Depth | 10-bit (H.265) / 8-bit (H.264) |
Video Encoder * | H.265 main 10 profile / H.264 high profile |
Audio Format | 24-bit 48 kHz |
Audio Encoder | AAC / PCM (for MOV only) |
File Format | MOV / MP4 |
Record Mode | Video / Time Lapse Video |
Settings | |
ISO | Auto, Manual (800 ~ 25600) |
Shutter | Shutter Speed: Auto, Manual (up to 1/8000”) or |
Shutter Angle: Auto, Manual (1° ~ 360°) | |
White Balance | Auto, Preset, Manual (2300K ~ 7500K) |
Focus Mode | MF / AF / CAF |
Image | Brightness / Contrast / Saturation / Sharpness |
LUT | Rec.709 / Z-Log2 / FLAT / HLG |
Audio | Audio In / Audio Out Level |
Time Code | Current Time / Manual Input |
Storage
|
|
Media | SDXC Class 10 SD card. Recommend to use UHS-I Speed Class 3 (U3) ones for 4K video recording |
File System | exFAT |
Connectivity | |
HDMI | HDMI 2.0 Type A |
USB | USB 3.0 Type C for camera control & data transfer only |
Remote Control | 2.5 mm jack socket (Sony LANC compatible) |
Audio-in | 3.5 mm stereo jack socket for active microphone only |
Audio-out | 3.5 mm stereo jack socket |
Wi-Fi | 802.11n, 2.4G with external antenna port |
Ethernet | Gigabit Ethernet port for control, setting & live streaming, POE supported |
Power | |
Battery | Canon LP-E6 compatible (Battery not included) |
External Power Supply | DC 12V/1.5~5A, with power cable with D-TAP plug & D-TAP/DC connector (AC/DC adapter not included) |
Power Over Ethernet (POE) | 802.3at/af compatible, need CAT5E or above Ethernet cable |
Physical | |
Material | Aluminum Alloy |
Weight | 668 g (without lens) |
Dimensions (W x H x D) | 91.2 mm x 83.9 mm x 89.1 mm (without lens) |
Environment | |
Storage Temperature | -20 °C ~ 60 °C |
Operation Temperature | 0 °C ~ 40 °C |
