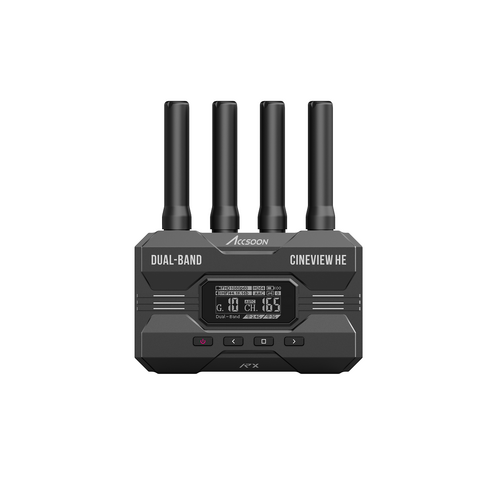

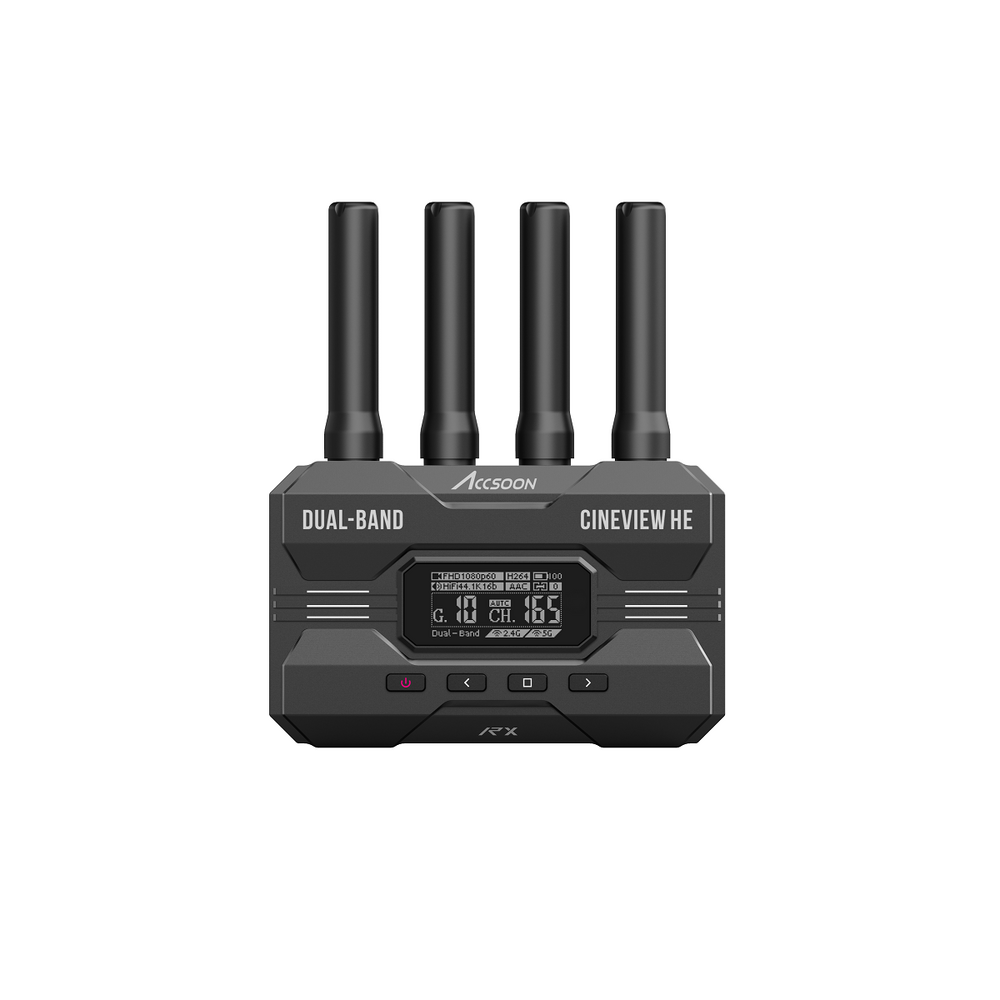

Accsoon CineView HE HDMI Wireless Video Receiver Only
Features
- Wireless Video Receiver
- 1080p60 HDMI Transmission up to 1200'/365.8 m
- iOS/Android App with Zebra & LUT Support
- 2.4 & 5 GHz Dual Band Frequencies
- 1.3" OLED Displays, >60ms Latency
- DC/USB Power, L-Series Battery Support
- Auto Channel Selection, Group Pairing
- Fanless Design, Aluminum Construction
The CineView HE Multi-Spectrum Wireless Video Receiver from Accsoon allows users to receive a 1080p60 camera signal from the Cinview Transmitter. This versatile wireless video transmission system provides a cost-effective way of allowing four people on set to monitor an HDMI camera signal. The transmitter(sold separately) can send signal to a total of four devices simultaneously over distances up to 1200'/365.8 m with only a 60ms delay. You can transmit to any mix of up to four receivers and iOS/Android smartphones and tablets using dual-band wireless signals.
The free-to-download companion app provides image tools such as peaking, zebras, false color for exposure, and .cube 3D LUT overlay. The transmitter features DC and USB Type-C power inputs, and it also support an optional L-series battery that can power the set for up to 12 hours.
Wireless Transmission
- Dual-Band 2.4 and 5 GHz wireless transmission
- Latency less than 0.06s
- Long-distance transmission range of 1200'/365.8 m
- One transmitter can connect up to four devices such as receivers, smartphones, or tablets
- Wireless remote monitoring via Accsoon Go App
- Automatic channel selection for optimal transmission
Video Input/Output
- Loop output on the Receiver
- Up to Full HD 1080p video and high-quality audio transmission
Design
- Fanless design for silent operation
- Power by L-series/NP-F type battery, DC input or USB Type-C
- Group pairing knob
- Bright 1.3" OLED screen
- Compact, lightweight design with durable aluminum construction
Specifications:
Antenna Ports | 4 x RP-SMA |
Video | Transmitter: 1 x HDMI Type A Loop Output |
Embedded Audio | HDMI/USB Type-C |
Audio | None |
Power | 1 x Barrel (16.8 VDC) Input 1 x USB Type-C (2 A / 5 VDC) Input |
Wireless
Wireless Range | 1200' / 365.8 m |
# of Channels | 20 |
Frequency Range | 2412 to 2472 MHz 5180 to 5580 MHz 5660 to 5825 MHz |
Latency | < 60 ms |
RF Power | 17 dBm |
Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
Format Support
Video Format | HDMI/Wireless 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 59.94/50 720p 576p 480p |
Timecode Support | No |
Power
DC Input Power | 7.4 to 16.8 VDC |
Battery Type | Transmitter/Receiver: 1 x L-Series |
Mounting
Mounting | 1 x Cold Shoe 1 x 1/4"-20 Female |
What's in the box:
1 x CineView HE Receiver
1 x Shoe Mount
4 x Antennas
(WIT04-HERX)
SKU | WIT04-HERX |
Barcode # | 664918771775 |
Brand | Accsoon |
Shipping Weight | 0.5000kg |
Shipping Width | 0.150m |
Shipping Height | 0.080m |
Shipping Length | 0.200m |
Shipping Cubic | 0.002400000m3 |
