Accsoon CineView Master 4K60P Triband+DFS HDMI/SDI Wireless Video Transmission System
Features:
- Triband+DFS Technology
- 4K60P HDMI Signal Input
- Transfer distance: Up to 2500m
- Latency: 25ms (0.025s)

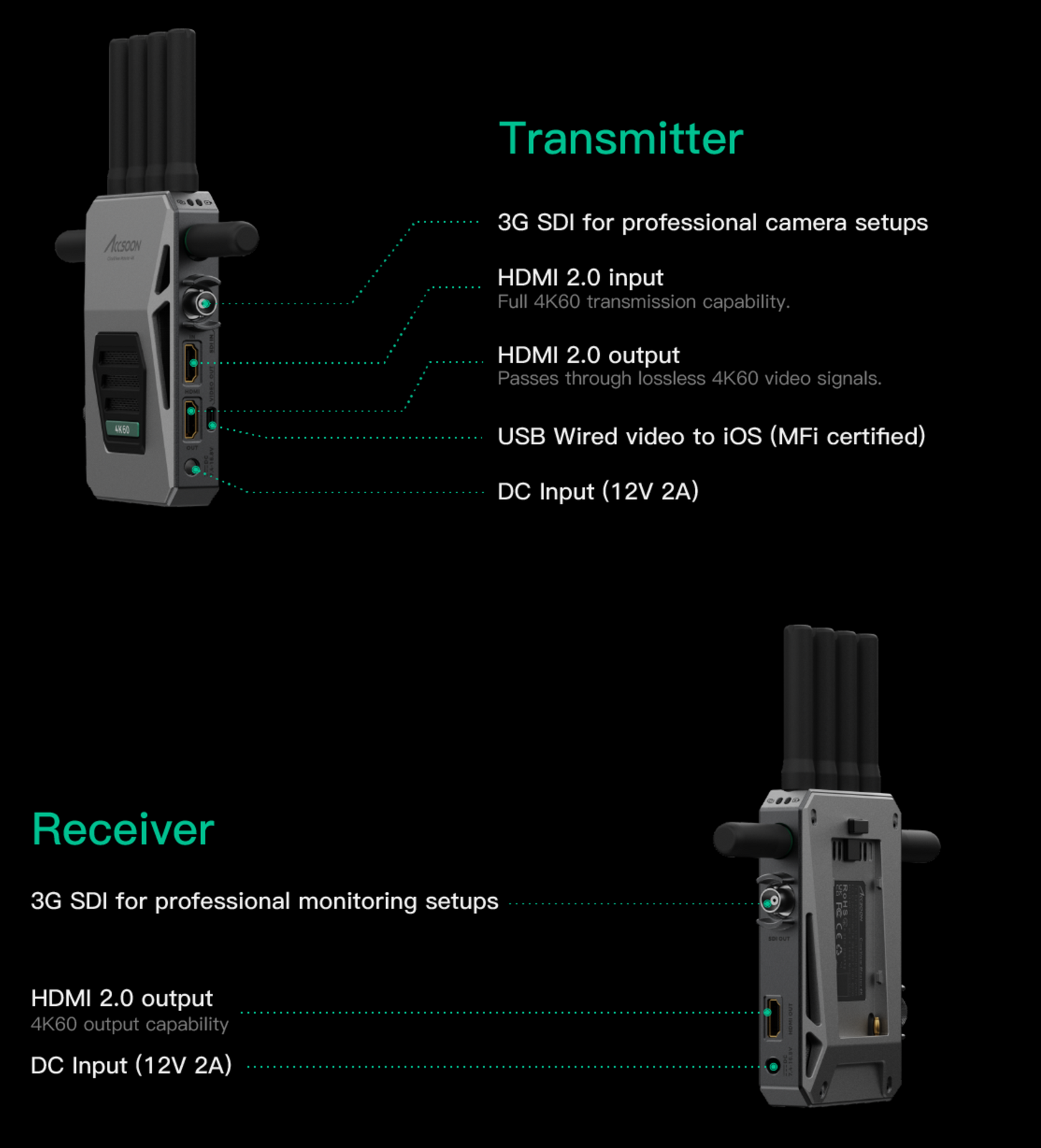

- 3G SDI and HDMI 2.0 Input Ports, 1 x HDMI 2.0 Loop Out
- Support Multi-Power Input (NP-F or DC or V-Mount*)
Specifications
Transmitter | Receiver | |
A/V Processor | 8K High Performance Processor | |
Protocol | Proprietary RTMS 4.0 protocol developed by Accsoon | |
Video Input | HDMI, 3G SDI | |
Video Output | HDMI Loop-Out USB Video Out (to iOS) |
HDMI, 3G SDI |
SDI Input Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i |
|
HDMI Input Format | 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 1080i: 50/59.94/60i |
|
SDI Output Format | 1080p: 24/25/30/50/60p Level A 1080i: 50/60i |
|
HDMI Output Format | 4K (3840*2160): 24/25/30/50/60p 1080p: 24/25/30/50/60p 1080i: 50/60i |
|
HDMI Loop-out Format | Identical to the HDMI video input | |
DC Port | 5.5mmx2.1mm, center positive | |
DC Voltage | 7.4~16.8V | |
Battery | Compatible with NP-F550, NP-F750, NP-F970 battery | |
Power Consumption | 6.5W average *Without powering other devices |
5.0W average |
Audio | HDMI embedded, SDI embedded | |
Latency | 1080p 60 < 25ms 4K 60 < 35ms (Camera latency not included) |
|
Transmission Range | ≥ 2.5 km (No obstacles, no interference) |
|
Operating Environment Temperature |
-10~40℃ | |
Dimensions (Antennas Not Included) |
130mm x 95mm x 32 mm | |
Weight (Antennas Not Included) |
322g | 320g |
(WIT05-Master)
SKU | WIT05-Master |
Brand | Accsoon |
Shipping Weight | 1.0000kg |
Shipping Width | 0.250m |
Shipping Height | 0.150m |
Shipping Length | 0.300m |
Shipping Cubic | 0.011250000m3 |
