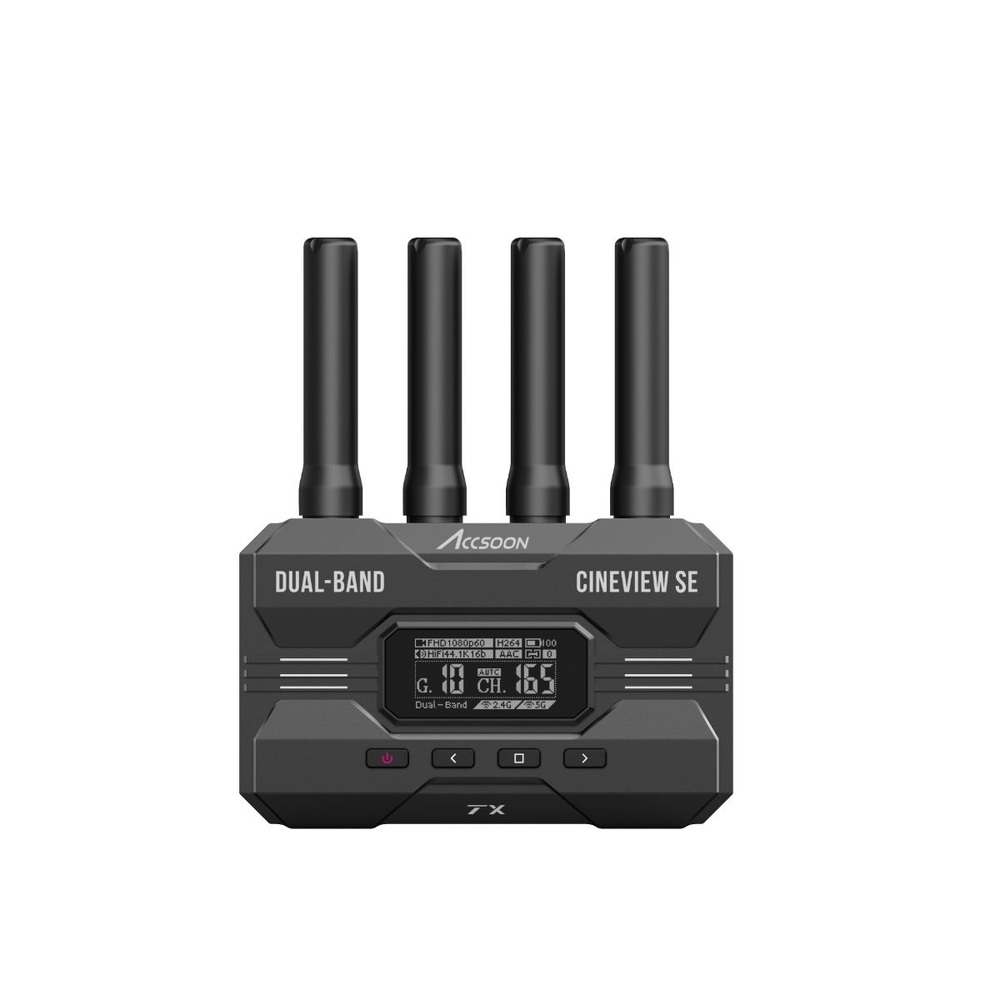

Accsoon CineView SE SDI/HDMI Transmitter Only
Specification | ||
Transmitter | Receiver (Sold Separately) | |
Video Input | SDI/HDMI | |
Video Output | SDI/HDMI | |
SDI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps Level A/B |
|
SDI Output Format | 1080p 24/25/30/50/60fps Level A |
|
HDMI Input Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps | |
HDMI Output Format | 1080p 23.98/24/25/29.97/30/50/59.94/60fps | 1080p 24/25/30/50/60fps |
DC Port | 5.5mmx2.1mm, center positive | |
DC Voltage | 7.4~16.8V | |
Audio | 44.1KHz/48KHz 16bit/24bit PCM | |
Latency | <0.05s (Camera latency not included) |
|
OLED Display | 1.3 inch | 1.3 inch |
Transmission Power | 17~20dBm | |
Transmission Range | 1200ft (No obstacles, no interference) |
|
Power Consumption | 4.5 Watt (Typical) |
3.5 Watt (Typical) |
Operating Environment Temperature |
-10~40℃ | |
Dimensions (Antennas Not Included) |
105mmx66mmx32mm | |
Weight (Antennas Not Included) |
210g | 210g |
(WIT04-SETX)
SKU | WIT04-SETX |
Barcode # | 664918771782 |
Brand | Accsoon |
Shipping Weight | 1.0000kg |
Shipping Width | 0.250m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
Shipping Cubic | 0.007500000m3 |
