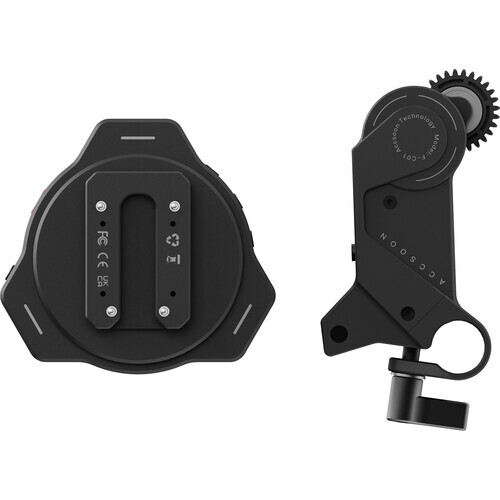

Accsoon F-C01 Wireless Follow Focus System
Features
- Wireless Follow Focus/Zoom Controller
- Focus Wheel, Motor & 15mm Rod Mount
- Control from 328' Away
- 8-Hour Battery Life
- 0.8 MOD Gear, Wired Connection Option
- Works with CineEye & CineView Components
- Lightweight Plastic & Aluminum Housing

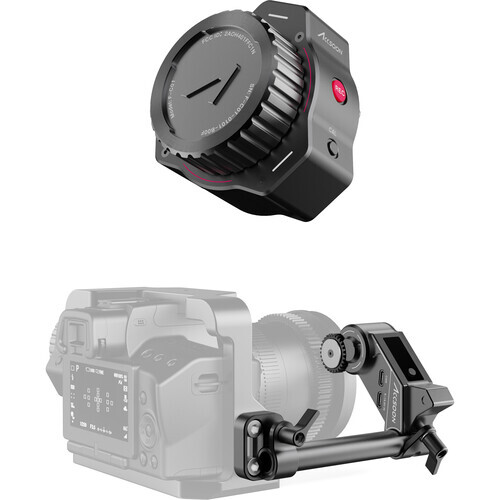

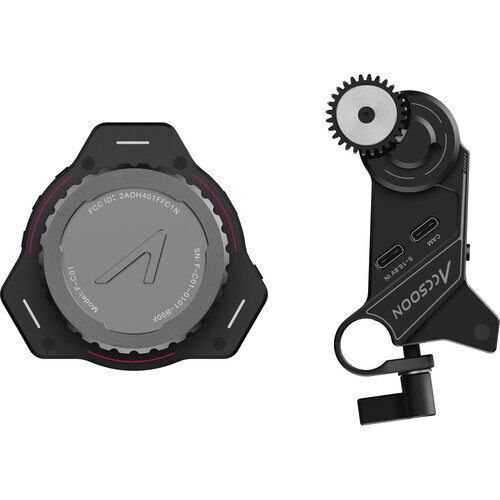

Drawing power from rechargeable batteries, the F-C01 Follow Focus System from Accsoon offers a wireless focus system that eliminates cable clutter on your rig and the option of a fast, wired motor connection. This kit includes a lens motor, a wireless focus controller wheel, a motor mount adapter, a 15mm rod, a 0.8 MOD focus gear ring, and both power and control cables.
The F-C01 is powered using a removable, separately available NP-FW50 battery that can power the handwheel for up to eight hours, and you can alternately power it using the included USB Type-C cable and a separately available power source. The handwheel can wirelessly connect to the motor from up to 328' away, and you can also utilize the USB Type-C cable to control the motor for even finer adjustments. The handwheel allows you to set hard A/B limits, and both units can be automatically or manually calibrated with a single button press. The system is also compatible with all Accsoon CineEye and CineView components.
Accurate and Stable Control
The F-C01 is equipped with a new FHSS system developed in-house by Accsoon. This tech allows the motor and the controller to communicate constantly, switching channels in unison at a speed of hundreds of times per second within the specified frequency range. The result is a stable connection that gives the user increased confidence and outperforms the competition systems.
Fast, Reliable Wireless Focusing Tool
The near real-time response between the motor and controller and high torque of 0.35 Nm provides 1st ACs and focus pullers a smooth and reliable focusing experience.
Quick A/B Point Setting
The F-C01 allows users to effortlessly set convenient A/B focus marks to ensure they hit their mark every time under an impressive 350' control range.
Affordable Power Solution
The F-C01 controller runs on the commonly available NP-FW50 battery. And the F-C01 motor can operate on a wide 5-16.8 VDC power range. Both DC to USB Type-C and D-Tap to USB Type-C cables are included and allow for the additional power required for stiffer, heavier lenses to be driven. When used as an on-camera focus control, the two units can be directly wired together via a USB Type-C cable.
Simple Camera Recording Control
F-C01's compact size pairs perfectly with most camera lenses, and it makes it easy to control camera recording start and stop with a separately available Accsoon camera control cable.
Control over Every Detail

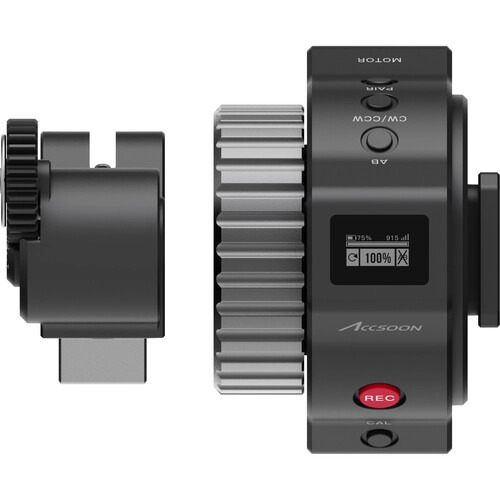

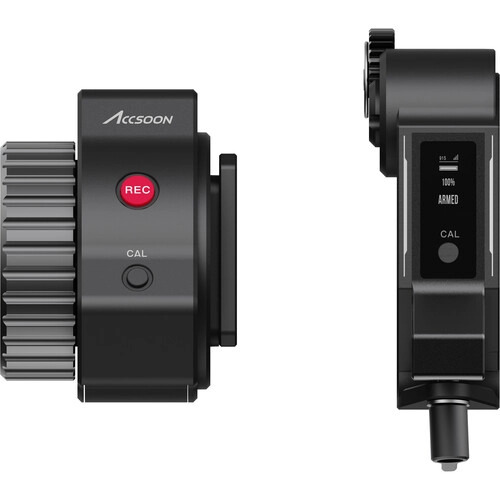

Don't let the petite size of the F-C01 fool you; the system is robust and powerful. It features an OLED display on both the controller and the motor, offering an easy-to-use experience for your remote focus control and monitoring, so users have real-time control at any time over the power level, route bar, etc.
Seamless Integration
Up your on-set focusing game by combining the F-C01 and any of Accsoon's CineEye or CineView wireless transmission systems. The range of the Accsoon's Dual-Band wireless signal, matched with F-C01's FHSS technology ensures a seamless and dependable wireless experience on set.
High-Quality Calibration
F-C01 supports automatic and manual calibration, depending on your camera lens.
Fast Pairing

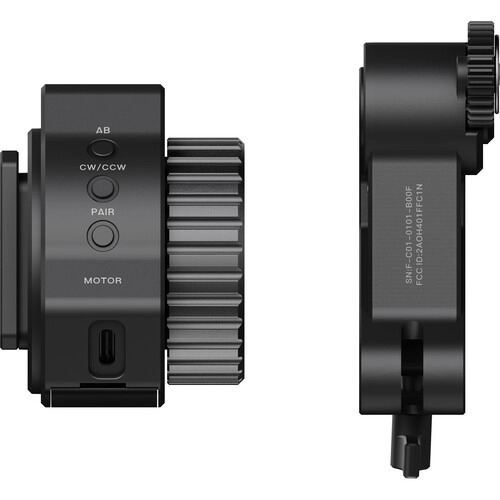

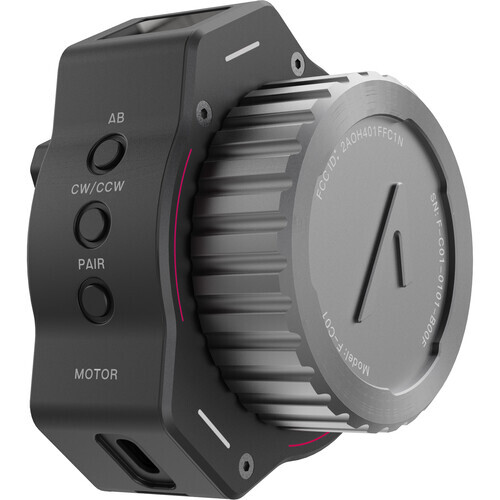

The F-C01 supports fast pairing using a PAIR button on the controller and the motor. The two units automatically and permanently pair with each other.
Powerful Physical Design

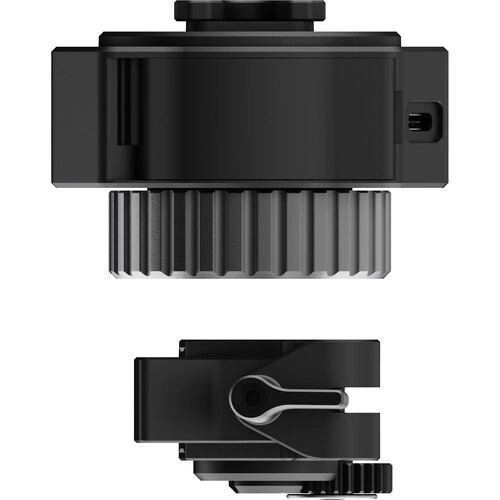

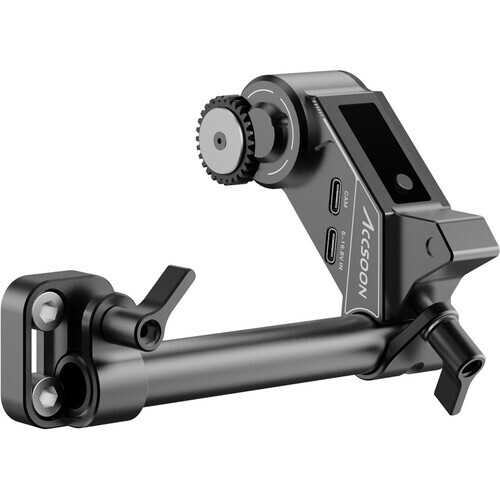

The controller wheel features 320° rotation and is made of durable, lightweight aluminum and plastic. The motor features 0.35Nm high torque and 225 rpm rotation speed, and it can rotate clockwise or counterclockwise. A quick release mounting plate is included with the controller wheel for fast mounting and unmounting.
Specifications:
System
Number of Channels | 20 |
Maximum Range | 328.1' / 100 m |
Wireless Frequency | 2.4 GHz, 5 GHz |
Receiver / Motor
Bluetooth | None |
Included Drive Gear | 0.8 MOD |
Rod Standard | 15 mm Single Rod |
Included Motors | 1 |
Model | F-C01 |
Maximum Peak Torque | 0.35 Nm |
Connectors | 1 x USB Type-C Input |
Battery Type | L-Series |
Estimated Battery Life | 8 Hours |
DC Input Power | 5 to 16.8 VDC |
Operating Current | 105 mA (Typical) |
Maximum Speed | 225 Rev/Sec |
Material of Construction | Aluminum |
Operating Temperature | 14 to 104°F / -10 to 40°C |
Dimensions | 4.1 x 2.1 x 1.3" / 104 x 53.5 x 32 mm |
Transmitter / Controller
Transmission Delay | 10 ms |
Connectors | 1 x USB Type-C Output |
Camera Trigger | Yes |
Battery Type | L-Series |
DC Input Power | 7.4 VDC |
Operating Current | 95 mA |
Material of Construction | Aluminum |
Dimensions | 3.1 x 2.9 x 2.2" / 79 x 73 x 55 mm |
Weight | 3.9 oz / 110 g |
What's in the box:
Please Note, Camera Control Cable is not included in the kit.
1 x Lens Driving Motor
1 x Wirless Controller
1 x Motor Mount Adapter
1 x Controller Mount Adapter
1 x 15mm Rod
1 x Focus Gear Ring (0.8 MOD)
1 x USB Type-C Cable
1 x D-Tap to USB Type-C Cable
1 x DC to USB Type-C Cable
1 x Allen Wrench
1 x 6 x 1/4"-20 Screw
1 x FW-50 Battery
(F-C01)
SKU | F-C01 |
Barcode # | 664918771720 |
Brand | Accsoon |
Shipping Weight | 1.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.500m |
Shipping Cubic | 0.040000000m3 |
