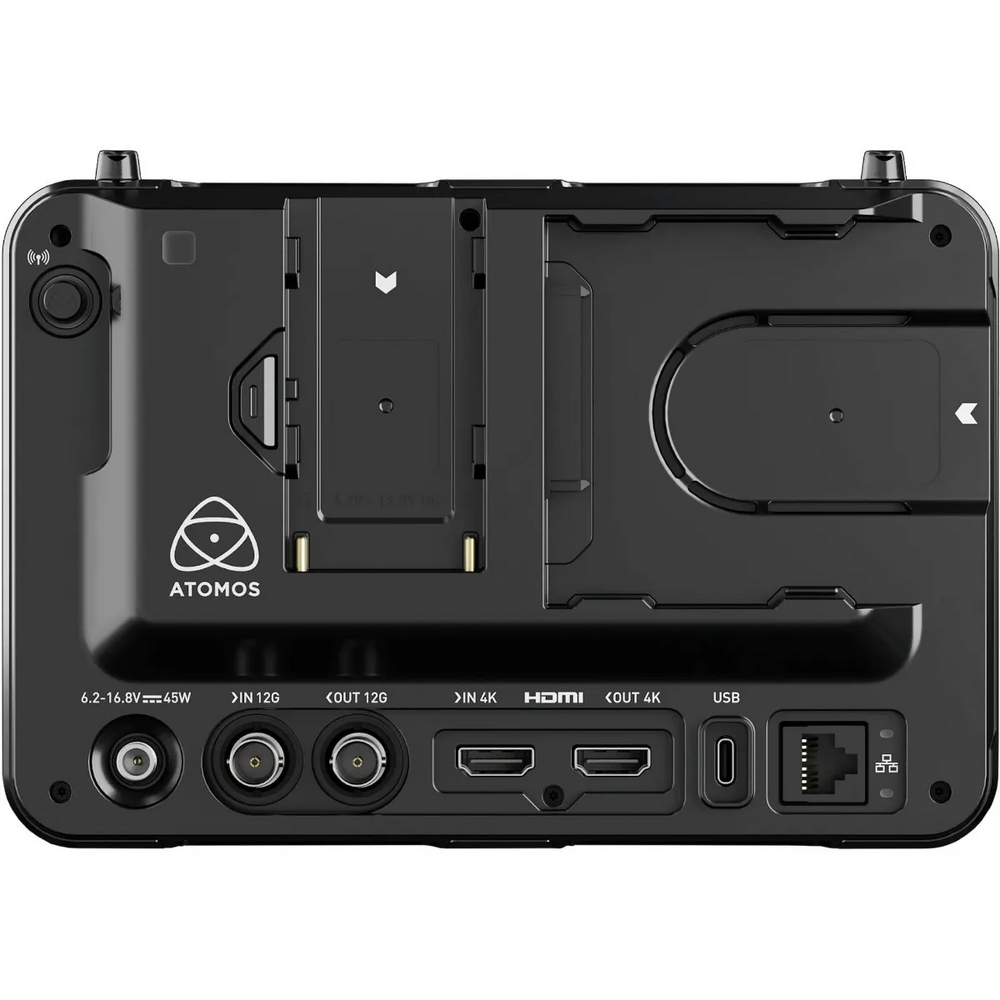

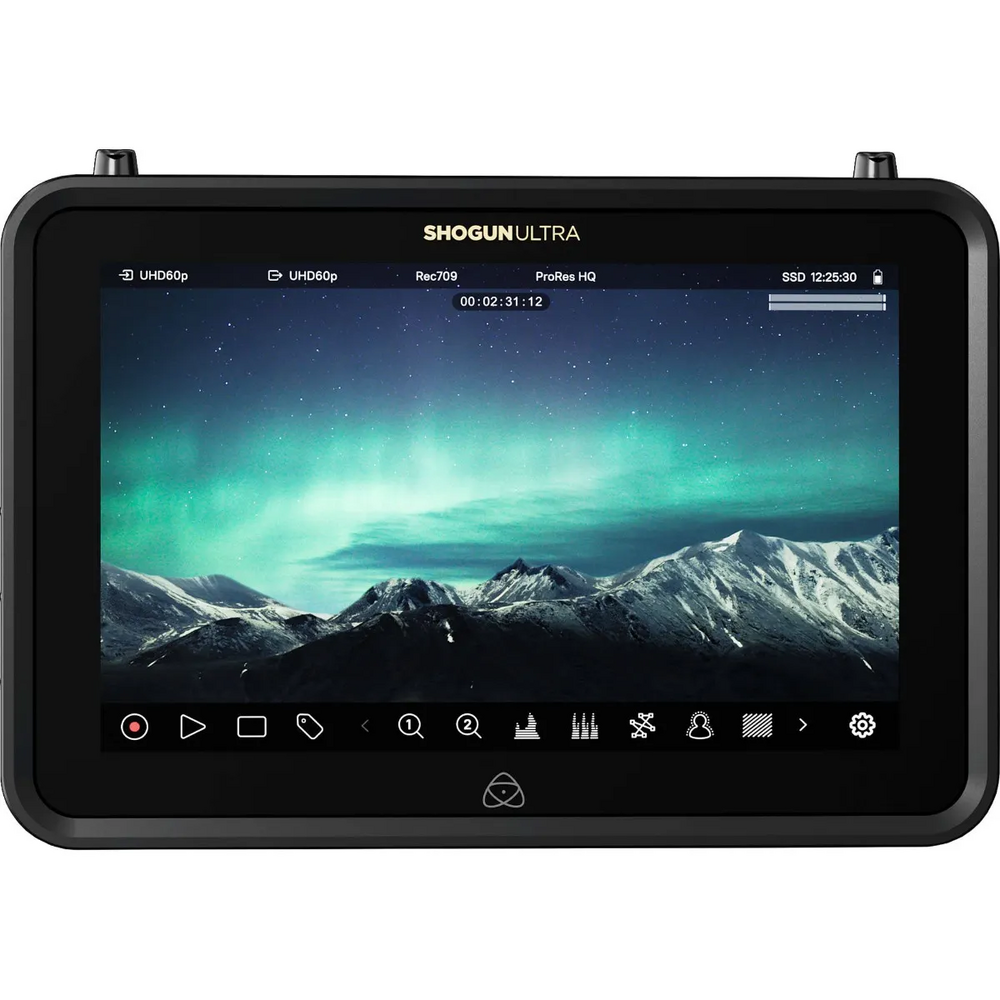

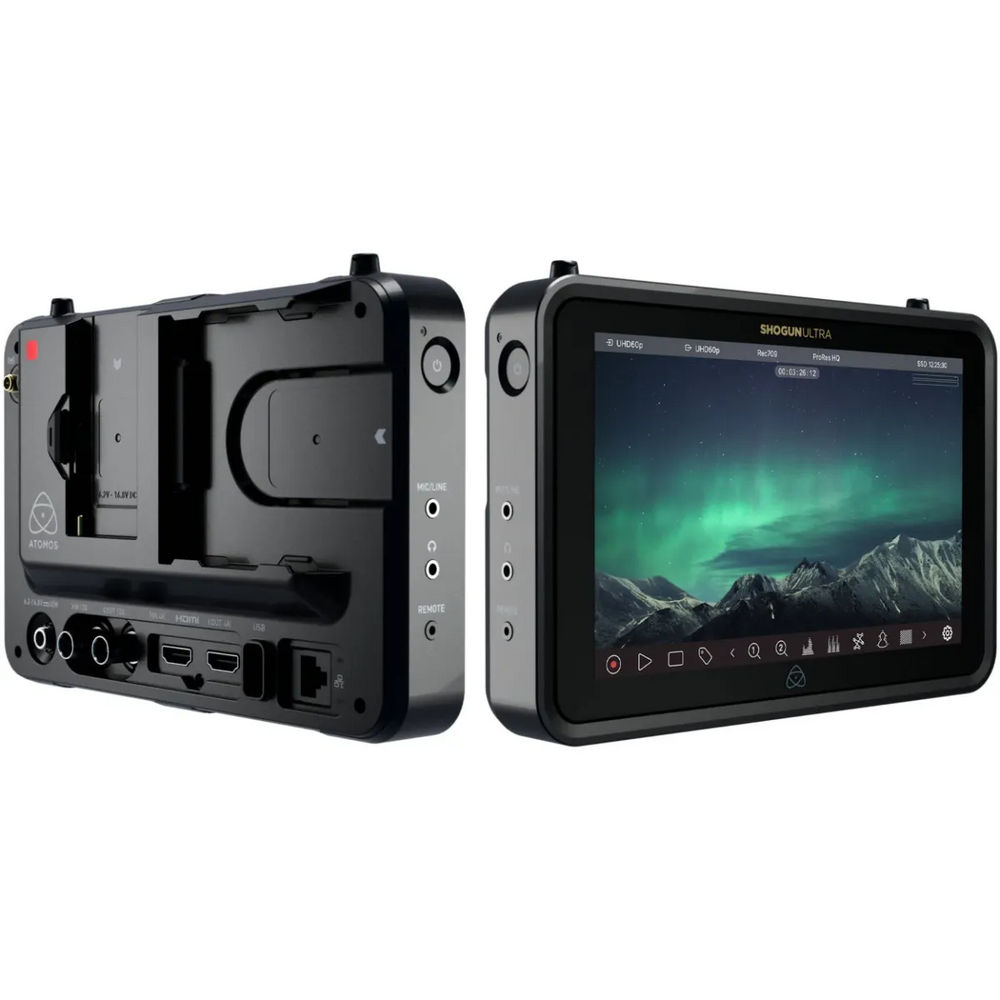

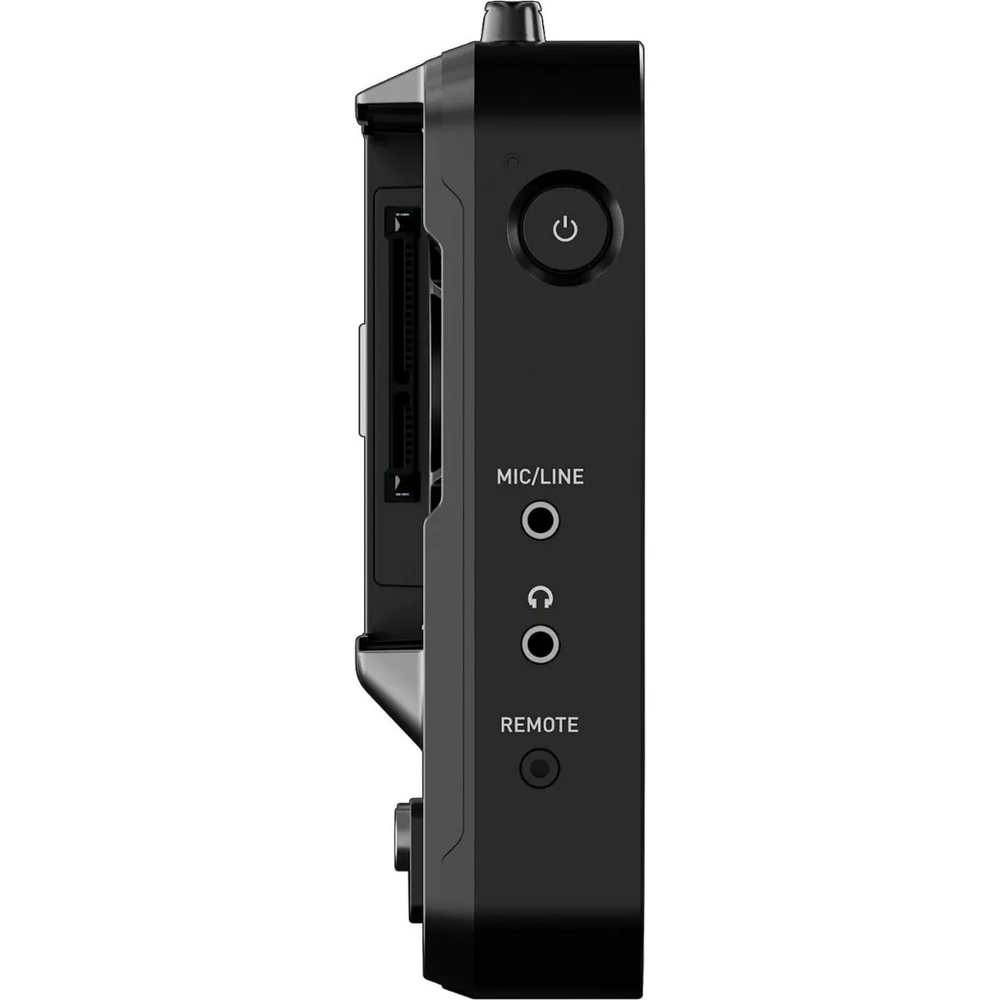

Atomos 7" Shogun Ultra Monitor-Recorder
Features:
- AtomOS 11, 12G-SDI/HDMI Conversion
- 7" 1920 x 1080 Touchscreen
- Records up to 8K Apple ProRes Raw
- ProRes Raw + H.265 Dual Recording
- AirGlu RF Wireless Sync, GigE, 6E Wi-Fi
- 2000 cd/m² Brightness
- ARRI/Canon/RED/Sony Camera SDI Support
- AVID DNX QuickTime
- Atomos RemoteView via Subscription
- NDI 4K TX Pro Mode 1-Off Activation
The Atomos Shogun Ultra Monitor-Recorder, the latest in the ATOMOS line of Shogun onboard camera video monitor-recorders, brings built-in network connectivity to your mirrorless, DSLR, and cine-style capture, enabling fast and productive workflows. Efficient cloud-based workflow options include dual ProRes RAW/H.265 recording for Camera to Cloud, automated matching file names with popular cine-style cameras, and 4K H.265 capture for instant publishing from the cloud. Partnering with industry-leading camera manufacturers ensures that the Shogun Ultra will work seamlessly with an increasingly wide range of cameras.
Key Features of the Atomos Shogun Ultra
- AtomOS 11, 12G-SDI/HDMI Conversion
- 7" 1920 x 1080 Touchscreen
- Records up to 8K Apple ProRes Raw
- ProRes Raw + H.265 Dual Recording
- AirGlu RF Wireless Sync, GigE, 6E Wi-Fi
- 2000 cd/m² Brightness
- ARRI/Canon/RED/Sony Camera SDI Support
- AVID DNX QuickTime
- Atomos RemoteView via Subscription
- NDI 4K TX Pro Mode 1-Off Activation
AtomOS 11
- The 7" Shogun Ultra features the new AtomOS 11 operating system with EL Zone exposure-referenced colourized images, ARRI false colour, and new scheduled recording and playback tools.
- An increased number of standard codecs include up to 8K Apple ProRes Raw, DNxHD, and H.265.
Complete Connectivity
- More Codecs: the 7" Shogun Ultra's additional standard codecs include 8K Apple ProRes Raw, DNxHD, and H.265.
- Dual Recording: the ability to record full-quality Apple ProRes Raw files at rates up to UHD 4K 60p while at the same time recording 1080p 60 to H.265 makes the 7" Shogun Ultra ideal for use with cine-style cameras.
- Matched Files: file name matching provides easier workflows with ARRI, Canon, RED, and Sony cameras.
- Improved Monitoring: improved monitoring functions include EL ZONE System exposure and ARRI false colour.
- RemoteView: this new feature enables you to share live views from your screen over the internet.
NDI TX Option
- Use the optional NDI transmission function to send high-quality video over ordinary networks (including Wi-Fi and mobile) using remarkably low bandwidth requirements.
- NDI is increasingly being used in live production, and now your Shogun can be part of an NDI environment.
- The NDI TX option turns your Shogun into an NDI source, visible to all other authorized devices on the network.
Ultrabright Screen
- The Shogun Ultra's super-bright, large 7" screen is viewable in almost every kind of light: indoors, outdoors, or anywhere you need critical, instantly viewable feedback on your images.
- I2000 cd/m² brightness makes the Shogun Ultra ideal for checking your HDR footage while you’re still on set.
- Play back your recently captured shots on the same pristine screen for reviewing or even uploading to the cloud.
Durable Build
- The Shogun Ultra's durable housing is suitable for use in all environments.
- Use the built-in tally light to quickly see the recording status.
- The solid Wi-Fi and AirGlu RF antennas ensure stable transmission.
- Power the Shogun Ultra using the L-series battery plate on the back of each monitor or optional DC power input.
- Mount this monitor-recorder using the 3/8”-16 threads on the top and bottom or use the included 1/4”-20 adapter.
- The Shogun Ultra has a built-in slot for the included Master Caddy III, an SD card slot that supports cards up to 4TB, and
- CFast II card compatibility using an SSDmini adapter to record as long as your media allows.
- The USB-C port can be used to add options and for future AtomOS updates.
Specs
Display Size |
7.0" / 17.8 cm |
Native Resolution |
1920 x 1200 |
Touchscreen |
Yes |
HDR Support |
Yes, HDR10 |
Video I/O |
1x HDMI 2.0 Input |
Media/Memory Card Slot |
Single Slot: SSDmini/SSD with Master Caddy II/III |
Video Format |
HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC) |
Phantom Power |
No |
Built-In Battery |
No |
Battery Type |
1x L-Series |
Mounting |
3x 1/4"-20 Female |
Display
Panel Type |
IPS-Type LCD |
Display Size |
7.0" / 17.8 cm |
Native Resolution |
1920 x 1200 |
Aspect Ratio |
16:9 |
Touchscreen |
Yes |
Maximum Brightness |
2000 nits / cd/m2 |
Bit Depth / Color Support |
10-Bit (1.07 Billion Colors) |
HDR Support |
Yes, HDR10 |
Pixels Per Inch (ppi) |
325 ppi |
Color Gamut |
100% DCI-P3 |
Real-Time LUT Monitoring |
SDR, HDR |
Image Controls |
Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra |
Inputs / Outputs
Video I/O |
1x HDMI 2.0 Input |
Embedded Audio |
HDMI: 8-Channel |
Audio I/O |
1x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker |
No |
Power I/O |
1x Barrel Input |
Other I/O |
1x 2.5 mm (LANC) |
Media/Memory Card Slot |
Single Slot: SSDmini/SSD with Master Caddy II/III |
File System Support |
exFAT |
Wi-Fi |
Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz) |
Bluetooth |
Yes |
Mobile App Compatible |
Yes: Android & iOS |
Format Support
Video Format |
HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC) |
Gamma Curve |
ARRI Log C, ARRI Log C4, Canon Log, Canon Log 2, Canon Log 3, DCI-P3, DCI-P3+, FLAT, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, JVC J-Log, Nikon N-Log, OM-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, RED IPP2, REDlogFilm, S Cinetone, Sony S-Log 2, Sony S-Log 3, V-Log, V-Log L, Wide DR, Z-Log2 |
Video Signal Conversion |
HDMI to SDI |
Timecode Support |
Yes |
Recording
Pulldown Conversion |
No |
Camera Trigger |
SDI, HDMI |
Pre-Roll Record |
No |
Encoding Formats |
x |
Metadata Tagging |
Yes |
Phantom Power |
No |
Power
Input Power |
6.2 to 16.8 VDC |
Built-In Battery |
No |
Battery Type |
1x L-Series |
Mounting
Mounting |
3x 1/4"-20 Female |
Environmental
Certifications |
No |
Operating Temperature |
72°F / 40°C |
General
Material of Construction |
Aluminum, Polycarbonate |
Dimensions |
7.8 x 5.2 x 1.6" / 198 x 133 x 40 mm |
Weight |
1.6 lb / 730 g |
(ATOMSHGU01)
SKU | ATOMSHGU01 |
Barcode # | 814164022835 |
Brand | Atomos |
Shipping Weight | 1.5000kg |
Shipping Width | 0.230m |
Shipping Height | 0.150m |
Shipping Length | 0.160m |
Shipping Cubic | 0.005520000m3 |
