Atomos Ninja 5.2" 4K HDMI Recording Monitor
Features
- 1920 x 1080 Touchscreen Display
- 10-Bit Exterior Viewable Monitor
- 4K HDMI 2.0 Input/Output
- 6K30 ProRes RAW with Select Cameras
- AtomOS 11 Operating System
- 1000 cd/m² Brightness
- Supports Multiple Log Formats
- ProRes and DNxHR/HD Recording
- Record to Master Caddy II/III Hard Drive
- L-Series Battery Slot, USB-C Port
Ninja is a 5-inch lightweight, compact camera-mounted 10-bit HDR monitor recorder up to 4Kp60 in ProRes, ProRes RAW, Avid DNx, H.265 codec amplifying on monitoring features and connected capabilities.
Built with the AtomIC chipset and a new user interface AtomOS 11 that optimizes its memory management, Ninja sets a new standard in creativity for any kind of creator. AtomOS 11 brings to creators a host of great new and advanced monitoring and recording features like RecordAssist, PlayBackAssist, SegmentPro, ELZone, Arri False color.
Add the Atomos Connect module to Ninja to share what's on your Atomos screen with other connect related devices, iPads, Macs and Apple TV wiresly in the same premises or anywhere in the world in Atomos RemoteView. Make Ninja even more versatile in combination with Atomos Connect to access to cloud workflows like C2C, Atomos Edit and Atomos RemoteView via Atomos Cloud Studio. Connect also features 12G-SDI, AirGlu wireless timecode and control, Wi-Fi 6, and NDI. Atomos’ close partnerships with major camera manufacturers ensure that Ninja works flawlessly with an increasing range of DSLR and mirrorless cameras.
Specs
Display
Panel Type | IPS-Type LCD |
Display Size | 5.2" / 13.2 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Touchscreen | Yes |
Maximum Brightness | 1000 nits / cd/m2 |
Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
HDR Compatibility | Hybrid Log Gamma |
Pixels Per Inch (ppi) | 427 ppi |
Real-Time LUT Monitoring | HDR |
Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
Inputs / Outputs

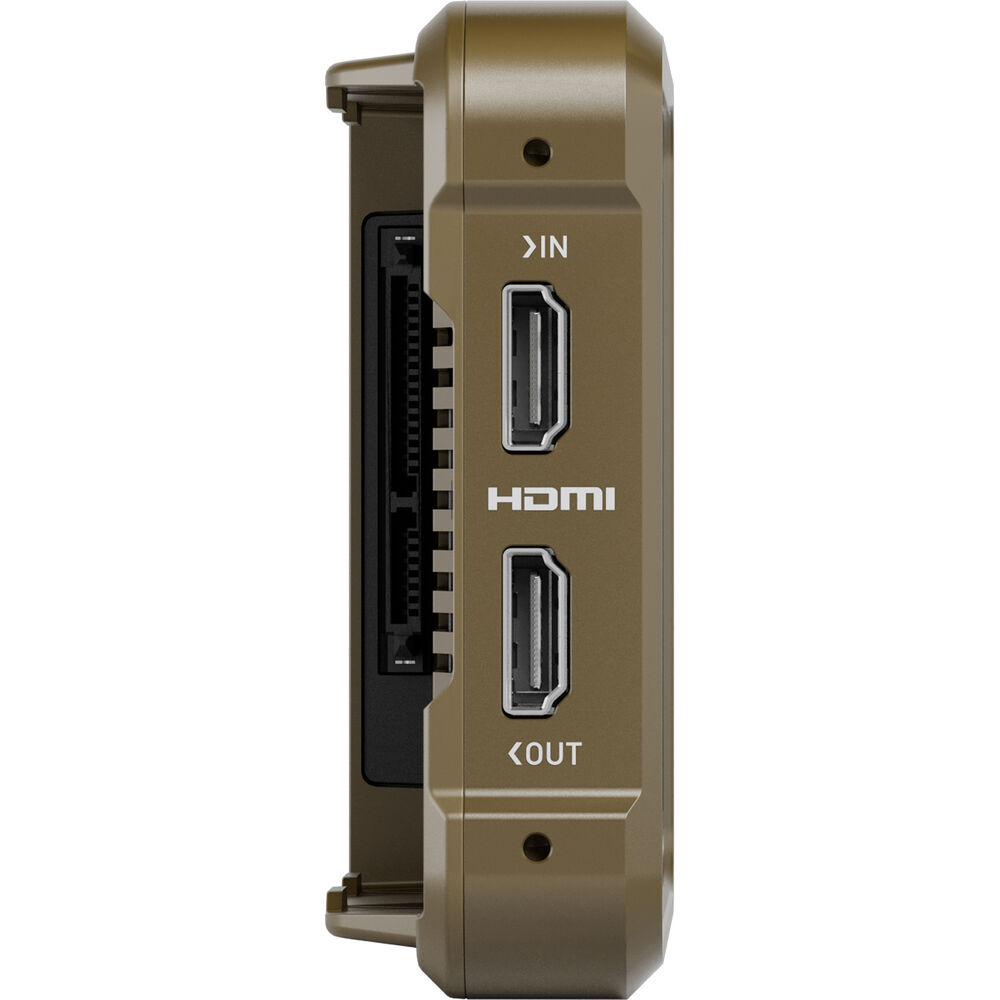

Video I/O | 1 x HDMI 2.0 Input 1 x HDMI 2.0 Output |
HDCP Support | No |
Embedded Audio | HDMI |

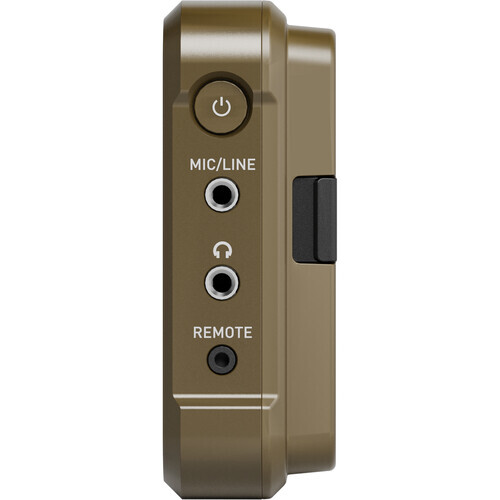

Audio I/O | 1 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | None |
Power I/O | 1 x Barrel Input |
Other I/O | 1 x USB-C |
Media/Memory Card Slot | None |
File System Support | exFAT |
Wi-Fi | None |
Bluetooth | None |
Mobile App Compatible | Yes: iOS Only App Name: AtomRemote *As of August, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support
Video Format | HDMI (8/10/16-Bit 4:2:2) 6K Raw: 30 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF 1080i: 120/100/60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 |
Gamma Curve | ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3 |
Timecode Support | Yes |
Recording
Pulldown Conversion | 2:2, 3:2 |
Camera Trigger | HDMI |
Pre-Roll Record | Full HD: 8 Seconds 4K: 2 Seconds |
Encoding Formats | x DNxHR DNxHD ProRes |
Maximum Audio Tracks | 8 |
Reference Input | None |
Phantom Power | None |
Power
DC Input Power | 6.2 to 16.8 VDC |
Built-In Battery | None |

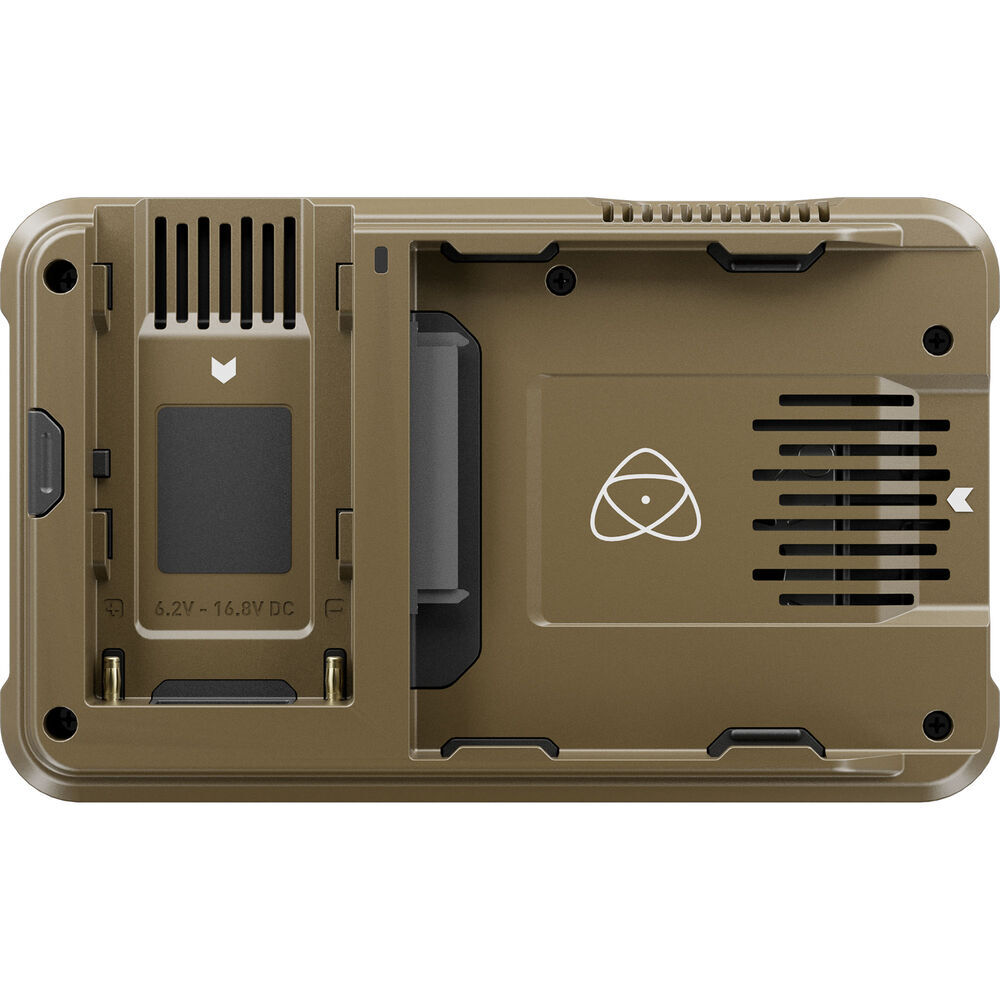

Battery Type | 1 x L-Series |
Power Consumption | 30 W |
Mounting

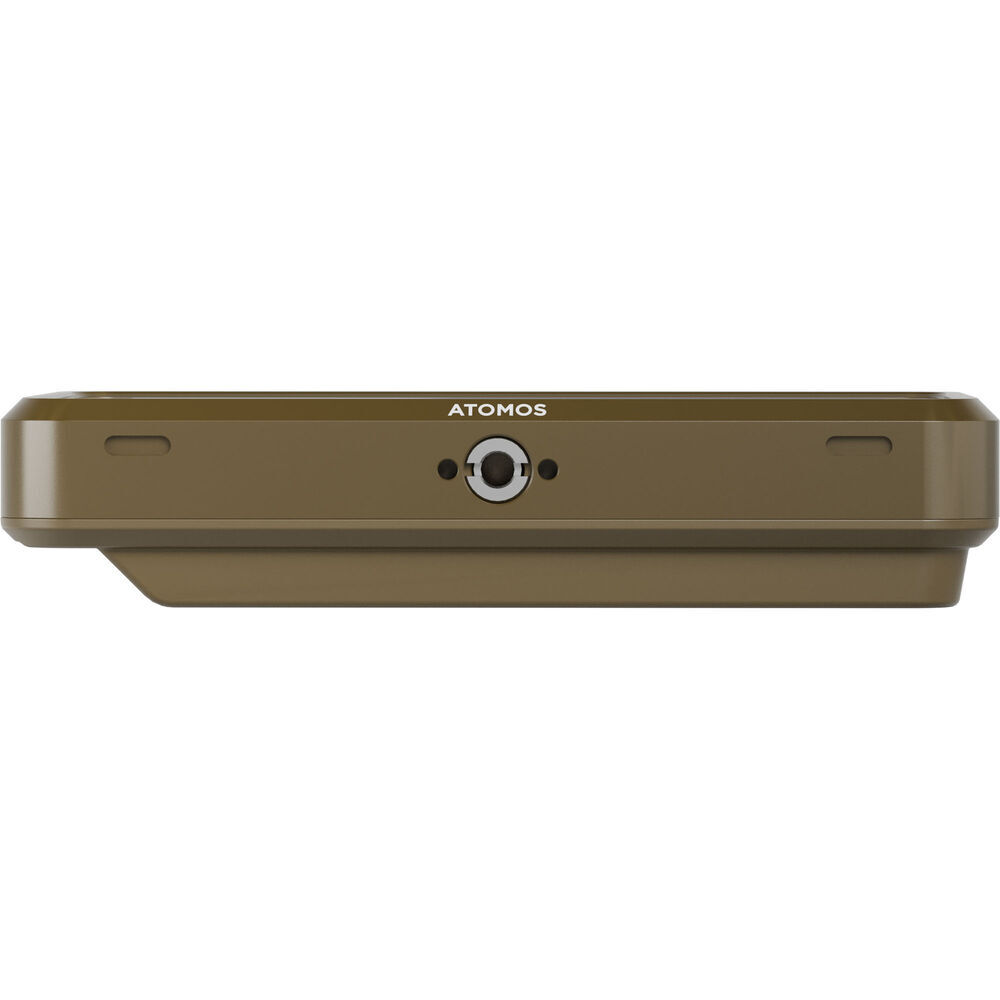

Mounting | 1 x ARRI Anti-Twist 1/4"-20 2 x 3/8"-16 Female |
Environmental
Operating Temperature | 104°F / 40°C |
(ATOMNJA004)
SKU | ATOMNJA004 |
Barcode # | 814164022804 |
Brand | Atomos |
Shipping Weight | 1.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.250m |
Shipping Cubic | 0.011250000m3 |
