Atomos Ninja Ultra 5.2" 4K HDMI Recording Monitor
Features
- 1920 x 1080 Touchscreen Display
- 10-Bit Exterior Viewable Monitor
- 4K HDMI 2.0 Input/Output
- 8K30 ProRes RAW with Select Cameras
- AtomOS 11 Operating System
- 1000 cd/m² Brightness
- Supports Multiple Log Formats
- ProRes and DNxHR/HD Recording
- Record to Master Caddy II/III Hard Drive
- L-Series Battery Slot, USB-C Port
Ninja Ultra is a leap forward in filmaking technology that captures your vision in ProRes RAW up to 8K 30P, 6K 60P & 4K 120P with full codec flexibility choice between ProRes RAW, ProRes, DNxHD & H.265 (HEVC) . Ninja Ultra has been built with a new operating system AtomOS 11 that host new and exclusive monitoring and recording features that bring creativity to live in every project, from cinematic to social media. RecordAssist and PlayBackAssist cover pre-arranged or remote shots , while improved false color tools like Arri False Color or EL Zone fit with today's creators needs. In conjunction with the Atomos Connect, it opens up ultra-efficient cloud workflows, including dual record ProRes RAW/H.265 for Camera to Cloud and 4K H.265 for instant publishing from the cloud, and the SDI Cine feature for automated matching filenames, timecode and record trigger from ARRI, Canon, RED and Sony SDI cameras. Share what’s on your Atomos screen with other Atomos Connect users, as well as with Shogun Connect, iPads, Macs and Apple TVs wirelessly in the same premises or anywhere in the world with full audio comunication between devices in the included feature Atomos RemoteView*. These new features bring even more versatility to the Ninja Ultra, providing professional I/O options for a multitude of cameras 12G-SDI, AirGlu wireless timecode and control and up to 4K NDI– from entry level mirrorless cameras through to the latest compact cinema and high-end professional cameras. Ninja Ultra supports WiFi 6E that boosts cloud video workflows offering more a stable conection. Atomos’ close partnerships with major camera manufacturers ensure that Ninja Ultra works flawlessly with an increasing range of DSLR, mirrorless and cinematic cameras.
What's in the box:
1 x Ninja Ultra,
1 x Battery eliminator,
1 x USB C PD to 2.1mm DC power cable
Specs
Display
Panel Type | IPS-Type LCD |
Display Size | 5.2" / 13.2 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Touchscreen | Yes |
Maximum Brightness | 1000 nits / cd/m2 |
Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
HDR Compatibility | Hybrid Log Gamma |
Pixels Per Inch (ppi) | 427 ppi |
Real-Time LUT Monitoring | HDR |
Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
Inputs / Outputs

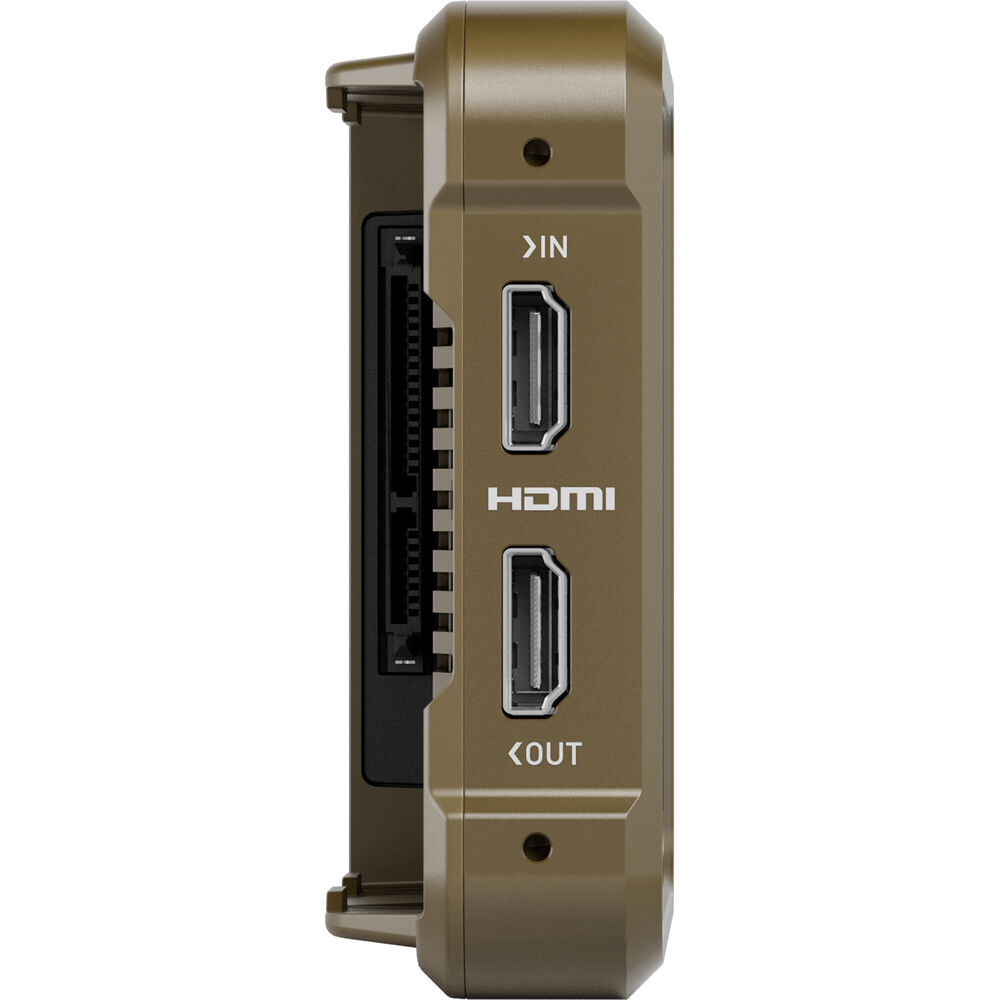

Video I/O | 1 x HDMI 2.0 Input 1 x HDMI 2.0 Output |
HDCP Support | No |
Embedded Audio | HDMI |
Audio I/O | 1 x 1/8" / 3.5 mm Input 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | None |
Power I/O | 1 x Barrel Input |
Other I/O | 1 x USB-C |
Media/Memory Card Slot | None |
File System Support | exFAT |
Wi-Fi | None |
Bluetooth | None |
Mobile App Compatible | Yes: iOS Only App Name: AtomRemote *As of August, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support
Video Format | HDMI (8/10/16-Bit 4:2:2) 8K Raw: 30 6K Raw: 60 3.5K Raw: 60 DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 120/100/60/59.94/50/30/29.97/25/24/23.98 1080PsF 1080i: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50 |
Gamma Curve | ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Log, Rec709, Sony S-Log, Sony S-Log 2, Sony S-Log 3 |
Timecode Support | Yes |
Recording
Pulldown Conversion | 2:2, 3:2 |
Camera Trigger | HDMI |
Pre-Roll Record | Full HD: 8 Seconds 4K: 2 Seconds |
Encoding Formats | x DNxHD DNxHR ProRes |
Maximum Audio Tracks | 8 |
Reference Input | None |
Phantom Power | None |
Power
DC Input Power | 6.2 to 16.8 VDC |
Built-In Battery | None |

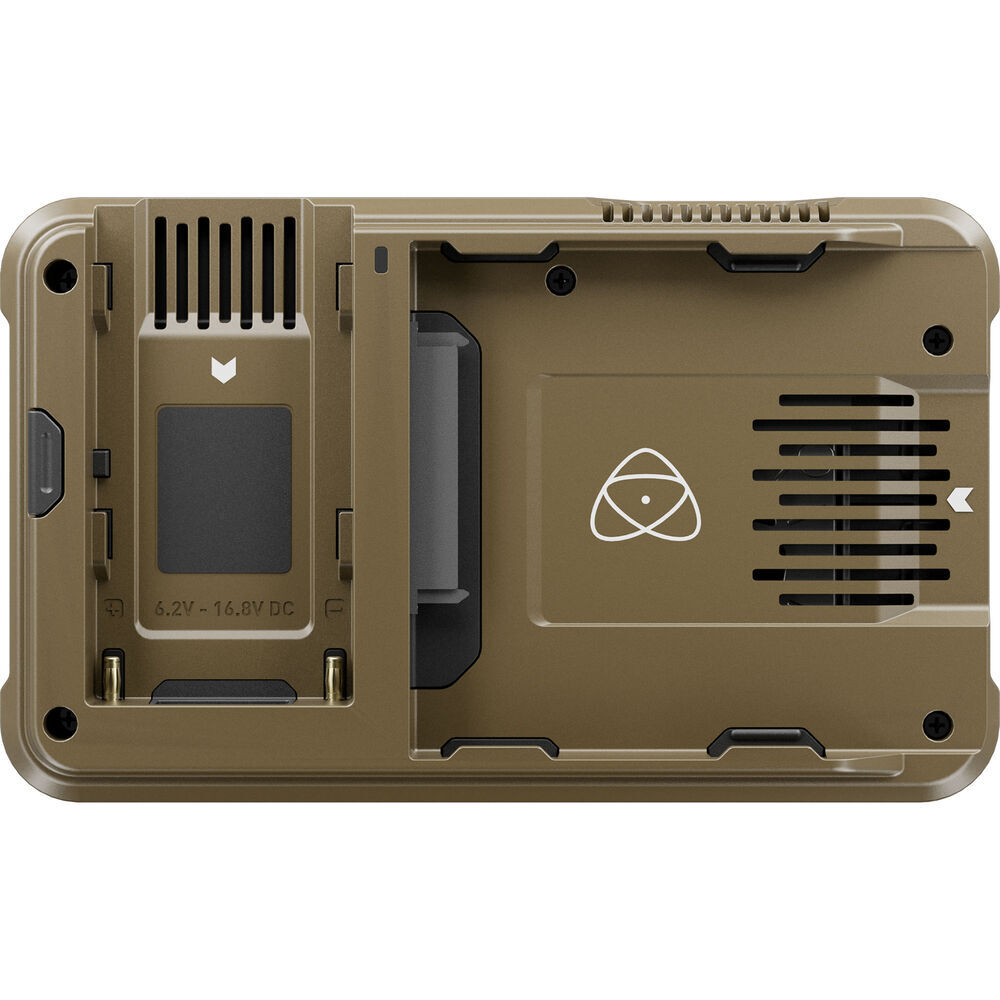

Battery Type | 1 x L-Series |
Power Consumption | 30 W |
Mounting
Mounting | 1 x ARRI Anti-Twist 1/4"-20 2 x 3/8"-16 Female |
Environmental
Operating Temperature | 104°F / 40°C |
(ATOMNJAU01)
SKU | ATOMNJAU01 |
Barcode # | 814164022811 |
Brand | Atomos |
Shipping Weight | 1.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.400m |
Shipping Cubic | 0.018000000m3 |
