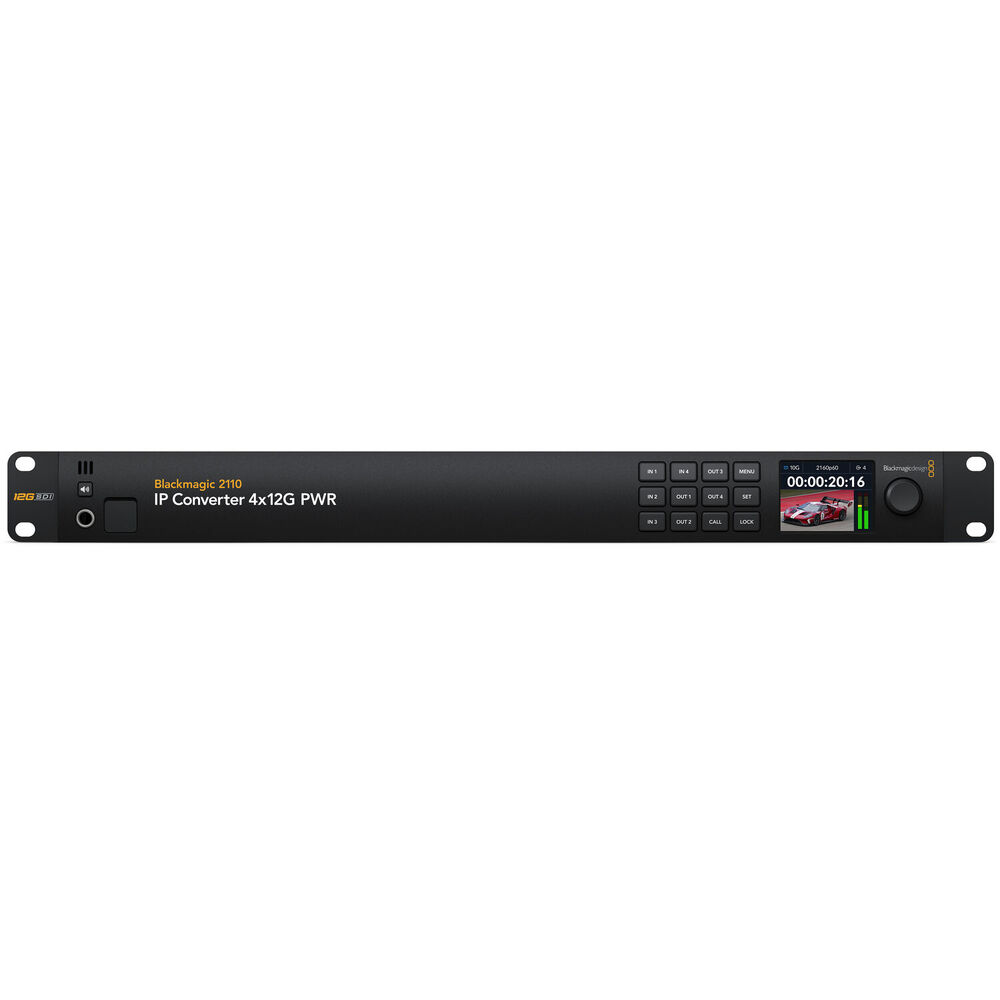

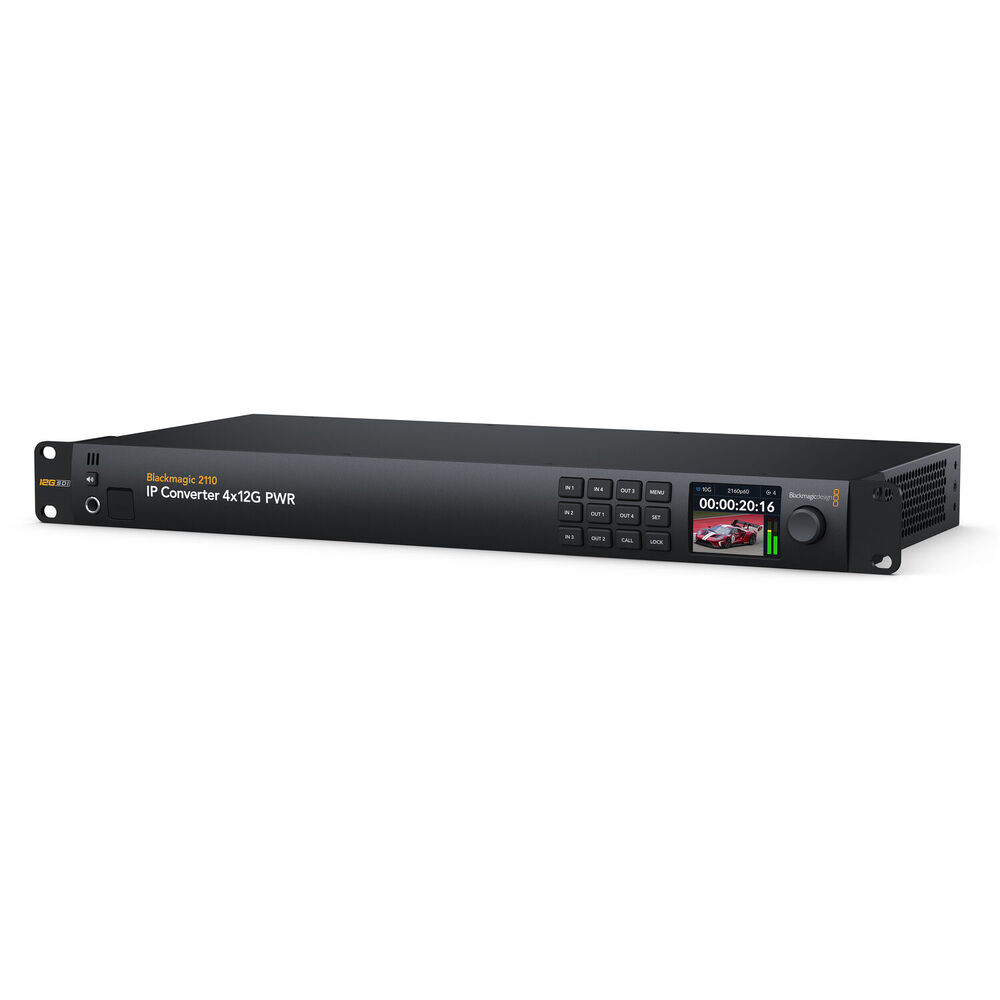

Blackmagic 2110 IP Converter 4 x 12G SDI PWR

$3,275.00



Need Extras?




Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

  • Converts Four 2110 IP Devices to 12G-SDI
  • Simultaneously Powers Devices
  • UHD 4K Resolution Support
  • One 12G-SDI Program Return Feed
  • Redundant Power

Bring your 12G-SDI broadcast gear up to SMPTE-2110 compliance with this 2110 IP Converter 4x12G PWR from Blackmagic Design. The converter provides bidirectional 12G-SDI to SMPTE-2110 IP video conversion connections, and it supports up to four Studio 6K Pro cameras via its 10G Ethernet connections with a 12G-SDI input for each connection. It also supports providing power to the Studio cameras over each 10G Ethernet connection via PoE. Its 1 RU design fits in a standard studio rack, as well as a 12G-SDI return input and redundant power.

Features

  • This converter is designed to add SMPTE-2110 IP video to 12G-SDI broadcast equipment
  • 1 RU design
  • Four independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections
  • It can supply high power to each 10G Ethernet connection guaranteed, so you can connect 4 Blackmagic Studio Camera 6K Pros, all at the same time
  • Each channel has a 12G-SDI input, and there's even a 12G-SDI program return input that sends to all channels

 Specs:

Video I/O

Input
4x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Program)
Output
4x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Loop Output)

Audio I/O

Output
1x 1/4" TRS Stereo Analog Female

Video Resolution

BNC Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps

Wireless

No

OS Compatibility

macOS 13 or Later
Windows 10 to 11

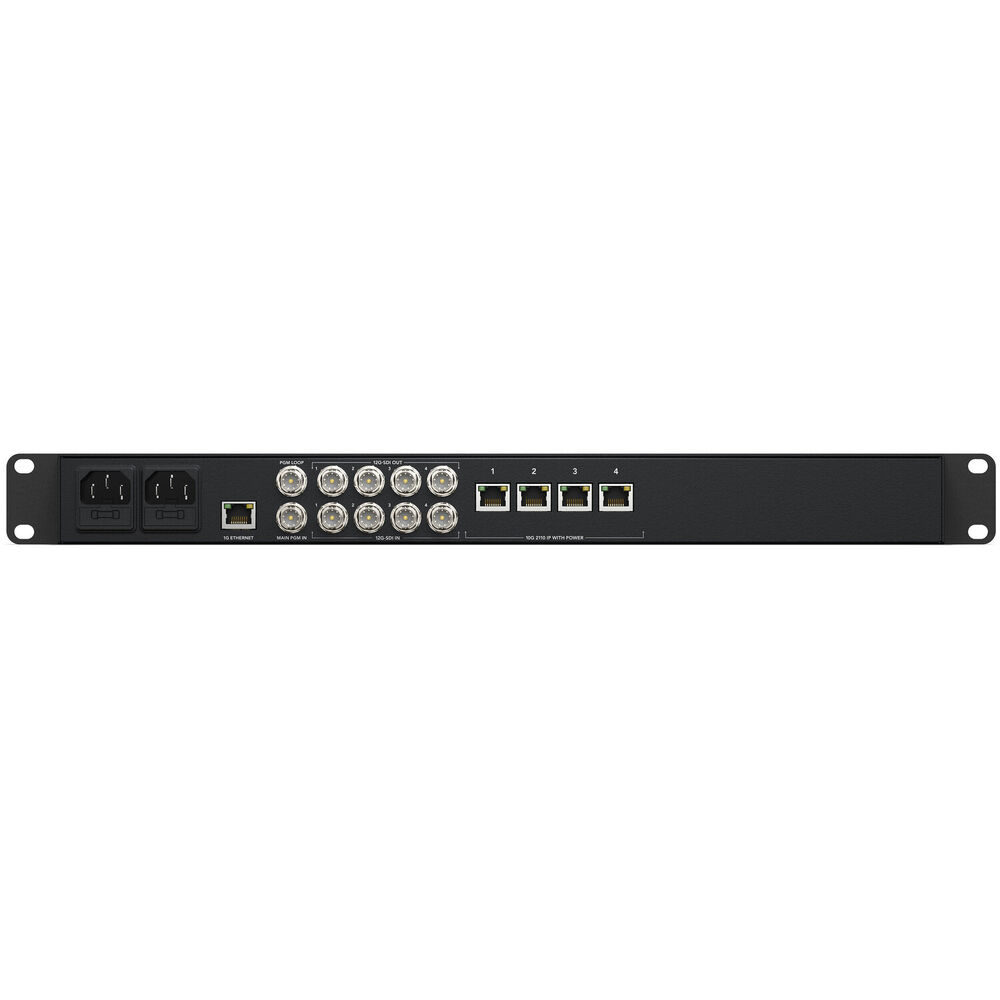

Inputs / Outputs

Video I/O

Input
4x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Program)
Output
4x BNC (12G-SDI) Female
1x BNC (12G-SDI) Female (Loop Output)

Audio I/O

Output
1x 1/4" TRS Stereo Analog Female

Other I/O

Input
1x USB-C 3.0 / 3.1/3.2 Gen 1
Input/Output
4x RJ45 (10 GbE)
Input/Output
1x RJ45 (10/100/1000 Ethernet)

Expansion Slots

No

Format Support

Video Resolution

BNC Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 50/59.94/60 fps
1280 x 720 at 50/59.94/60 fps

Embedded Audio

LAN (RJ45)/SDI

Standards

Video Standard Compliance

SMPTE: ST 2110-20/ST 2110-21

HDCP Support

No

HDR Compatibility

Yes

HDMI CEC

No

Hardware

Wireless

No

OS Compatibility

macOS 13 or Later
Windows 10 to 11

Display

2.2" LCD

Power

Power I/O

2x IEC C14 (100 to 240 VAC) Input

PoE Support

PoE Proprietary

Environmental

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Storage Humidity

0 to 90%

General

Rack Form Factor

1 RU

Dimensions

19 x 9.22 x 1.74" / 48.3 x 23.42 x 4.42 cm

Weight

8.22 lb / 3.73 kg

(CONVNVIPB4-12GPWR)

SKU CONVNVIPB4-12GPWR
Barcode # 9338716009019
Brand Blackmagic Design
Shipping Weight 1.0000kg
Shipping Width 0.250m
Shipping Height 0.150m
Shipping Length 0.250m
Shipping Cubic 0.009375000m3
