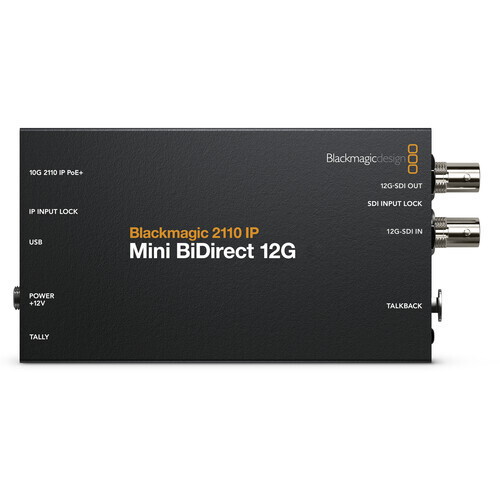

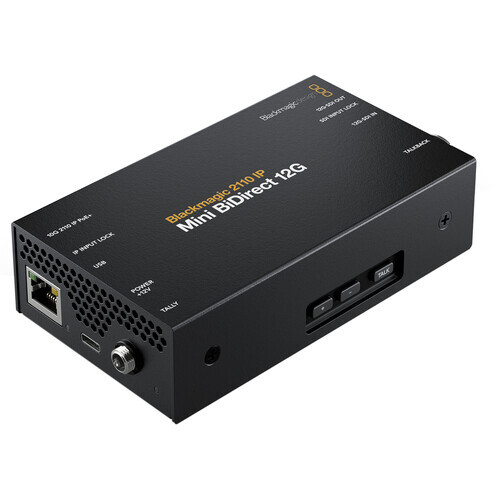

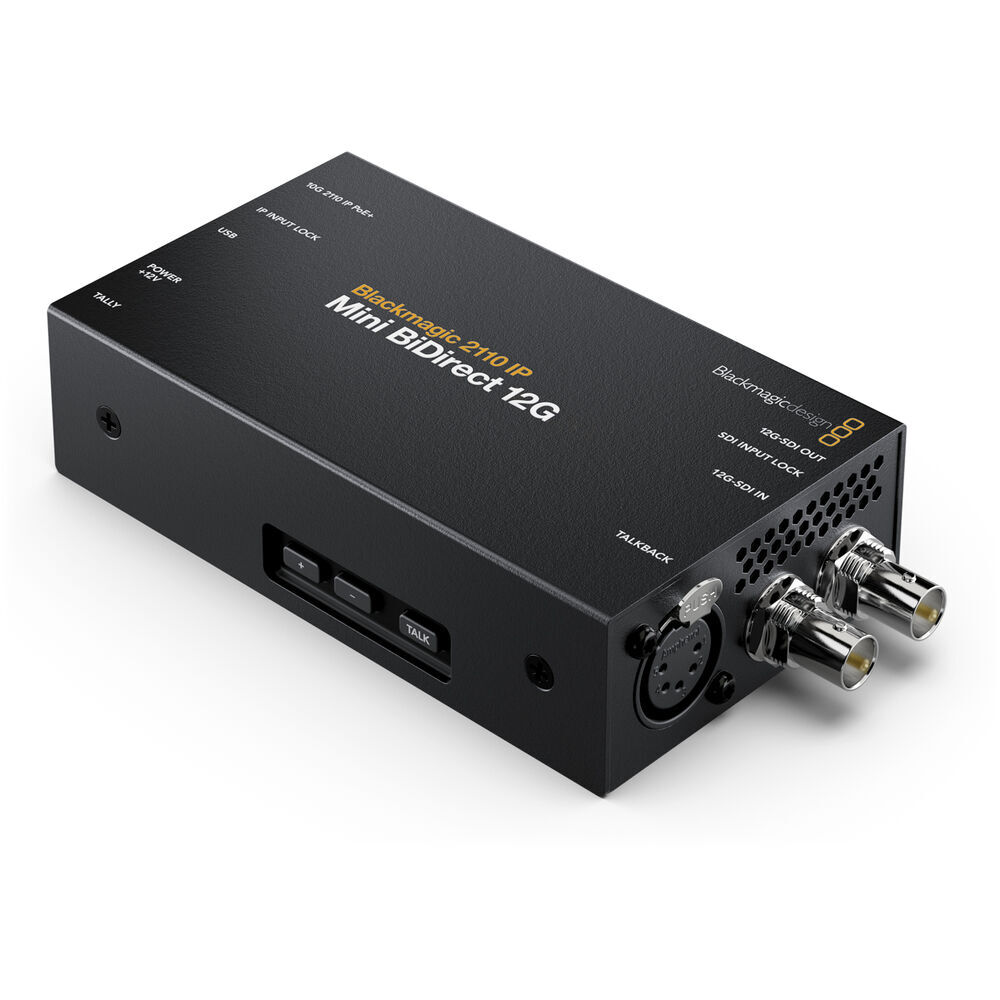

Blackmagic Design 2110 IP Mini BiDirect 12G Converter

$605.00


or 4 payments of $151.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

 Features

  • 12G-SDI to 2110 IP Converter
  • Video Monitoring To/From Studio Camera
  • Supports UHD 4K Video via SMPTE-2110 IP
  • 5-Pin XLR Talkback Control
  • Windows/macOS Software Utility
  • PoE and 10G Ethernet Power

Connect your 12G-SDI broadcast studio camera to SMPTE-2110 IP systems with this 2110 IP Mini BiDirect 12G Converter from Blackmagic Design. The converter allows you to send up to UHD 4K 12G-SDI camera video and program return using the same converter, and it is so compact that it can easily mount onto your camera rig. The converter also features a 5-pin XLR talkback headset and a press-to-talk button to keep communication between camera operators and the broadcast production booth.

Features

  • This converter is bidirectional and allows 12G-SDI cameras to connect to SMPTE-2110 systems
  • Handles the SDI camera feed and SDI program return in the one converter
  • 5-pin XLR talkback headset connection with volume and press to talk buttons
  • Supports all SD, HD, and UHD standards up to 2160p60
  • Includes a 12 VDC power supply



Video I/O

Input
1x BNC (12G-SDI) Female
Output
1x BNC (12G-SDI) Female

Audio I/O

Input
1x XLR 5-Pin Analog Female
Output
1x XLR 5-Pin Analog Female

Video Resolution

SDI Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 25/29.97/30 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps

Wireless

No

OS Compatibility

macOS 13 or Later
Windows 10 to 11

Inputs / Outputs

Video I/O

Input
1x BNC (12G-SDI) Female
Output
1x BNC (12G-SDI) Female

Audio I/O

Input
1x XLR 5-Pin Analog Female
Output
1x XLR 5-Pin Analog Female

Other I/O

Input/Output
1x RJ45 (10 GbE)
Input
1x USB-C (Firmware)
1x USB-C (Device)

Expansion Slots

No

Format Support

Video Resolution

SDI Input/Output (4:2:2 YUV)
4096 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
3840 x 2160 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
2048 x 1080 at 23.98/24/25/29.97/30/47.95/48/50/59.94/60 fps
1920 x 1080p at 23.98/24/25/29.97/30/47.95/48/50/60 fps
1920 x 1080PsF at 25/29.97/30 fps
1920 x 1080i at 25/29.97/30 fps
1280 x 720 at 50/59.94/60 fps
720 x 480i at 59.94 fps
720 x 576i at 50 fps

Embedded Audio

LAN (RJ45)/SDI

Standards

Video Standard Compliance

SMPTE: ST 2110-10

HDR Compatibility

Yes

Hardware

Wireless

No

OS Compatibility

macOS 13 or Later
Windows 10 to 11

Power

Power I/O

1x Barrel (12 VDC) Input

PoE Support

PoE++ 802.3bt

Environmental

Operating Temperature

41 to 104°F / 5 to 40°C

Storage Temperature

-4 to 113°F / -20 to 45°C

Operating Humidity

0 to 90%

Storage Humidity

0 to 90%

General

Dimensions

5.75 x 2.91 x 1.34" / 14.61 x 7.39 x 3.4 cm

Weight

10.41 oz / 295 g

(CONVNVIPFIP12G)

SKU CONVNVIPFIP12G
Barcode # 9338716009033
Brand Blackmagic Design
Shipping Weight 1.0000kg
Shipping Width 0.220m
Shipping Height 0.060m
Shipping Length 0.140m
Shipping Cubic 0.001848000m3
