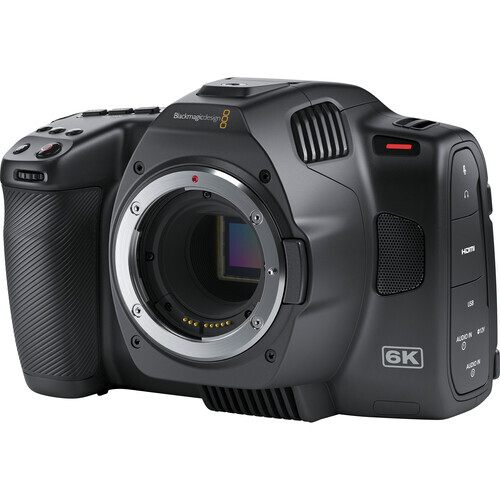

Blackmagic Design Pocket Cinema Camera 6K G2
Features
- Super 35 HDR Sensor, Gen 5 Color Science
- Canon Active EF Mount, Mini XLR Inputs
- 5" Tilting LCD Touchscreen
- Does Not Have Internal ND Filters
- Record 6K 6144 x 3456 up to 50 fps
- Record up to 120 fps Windowed 2.8K/1080p
- CFast 2.0 & SD/UHS-II Card Slots
- Dual Native 400 & 3200 ISO
- Supports Optional Pro EVF
- Supports Optional Pro Battery Grip
The Pocket Cinema Camera 6K G2 is the latest compact Super35 camera to join the Blackmagic Design series. This cine-style camera features the same 6K S35 sensor, recording features, dynamic range, interface ports, and controls as the 6K Pro but pares a few features to create a more affordable form. Features inherited from the 6K Pro include a 5" tilting touchscreen LCD, Pro EVF and battery grip options, dual mini-XLR audio inputs, an NP-F570 L-series battery slot, and the updated Gen 5 color science. By eliminating the internal ND filters and reducing the 1500cd/m² LCD brightness of the 6K Pro, Blackmagic now enables users to choose between two near identical 6K models as best suits their priorities.
The Blackmagic Design 6K G2 camera comes with a DaVinci Resolve Studio activation key plus a 30W power supply, offering simultaneous battery charging, an NP-F570 battery, a lens port cap, and a camera strap.
Firmware Update 7.9
Firmware upgrade 7.9 features include:
- A new focus-assist intensity adjustment slider
- The ability to select between SD and SSD media on the LCD screen itself
- Frame guide color adjustment
- Improved lens control and autofocus features
- Adds support for focus and zoom demands—no longer just for studio cameras
- Gyro sensor information can be recorded into data and DaVinci Pro can use the gyro data to stabilize the footage
Super35 Image Sensor/Dual Native ISO
The Pocket Cinema Camera 6K G2 camera uses a Super35 size sensor, 13 stops of dynamic range, and a dual native 400/3200 ISO up to 25,600 to capture rich images at resolutions up to 6144 x 3456 up to 60 fps
Gen 5 Color
The 6K G2 uses the same advanced Gen 5 color science as the 6K Pro and URSA Mini Pro 12K cameras, making it easy to intercut 6K Pro, 6K, and BMPCC 4K footage.

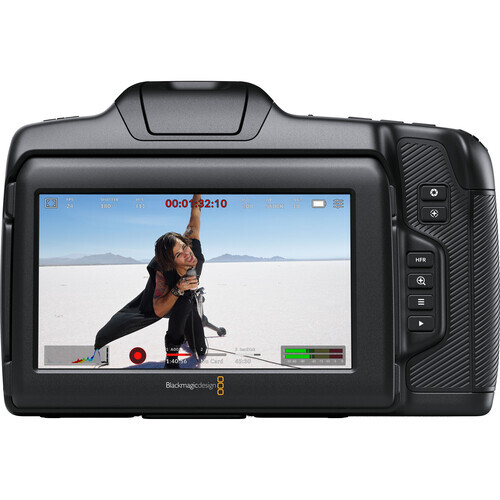

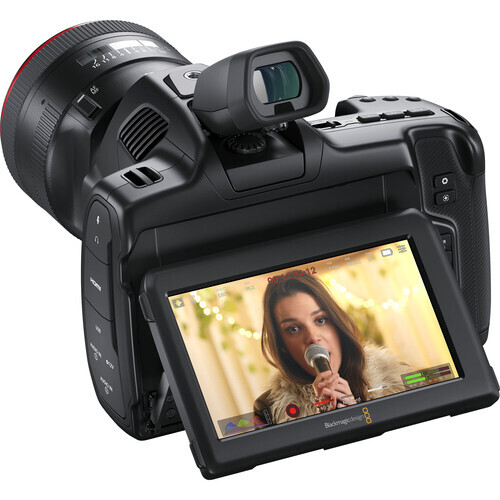

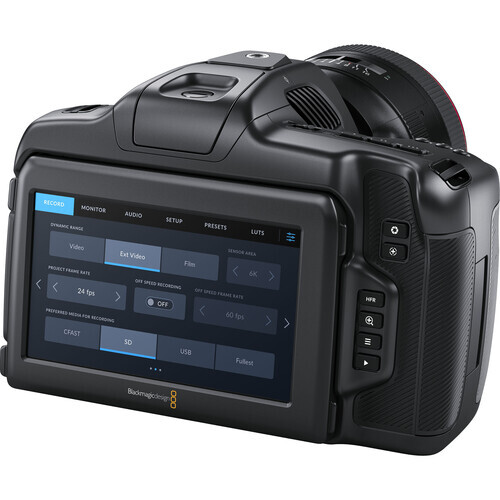

Tilting 5" LCD Touchscreen
The 5" tilting HDR touchscreen LCD makes it easy to view and adjust your settings, even when shooting in high or low modes.

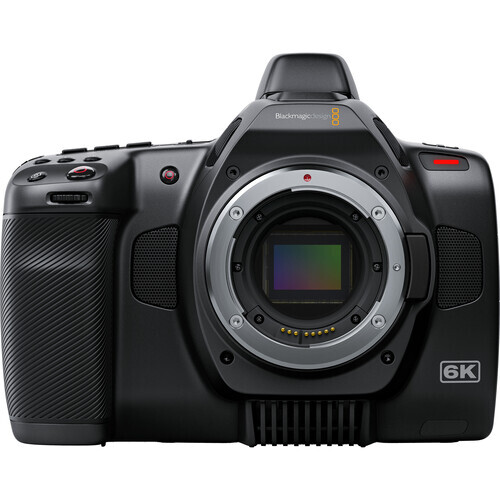

Active Canon EF Mount
- Choose from a wide array of Canon EF/EF-S-mount lenses
- Electronic lens communication with iris, autofocus, and zoom control available with compatible lenses

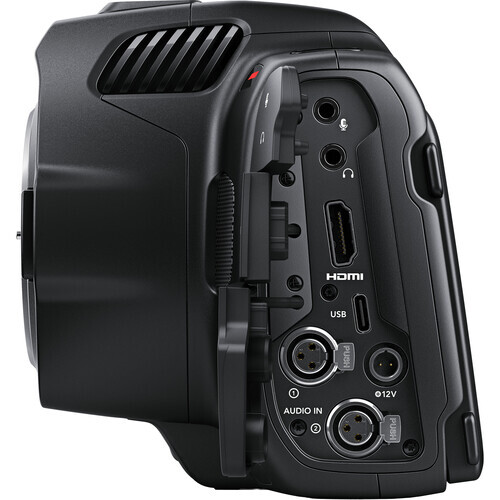

Mini-XLR Audio Inputs
Professional audio support now includes two mini XLR inputs with phantom +48V power, a 3.5mm stereo input, a mono speaker, a headphone output, and a built-in stereo mic system.
L-Series Batteries
Both the 6K G2 camera and the optional battery grip use widely available NP-F570 L-series batteries
Blackmagic Raw and ProRes Recording
Capture in Blackmagic Raw or ProRes 422 options, depending on your project's needs, and record using the internal CFast 2.0 and SD/UHS-II card slots or via the full-size HDMI port to an optional ATEM Mini switcher for live streaming or output via the USB Type-C port to capture longer clips to an external SSD.
Up to 6K Shooting Resolutions
Multiple resolutions include:
- 6144 x 3456 (6K), 6144 x 2560 (6K 2.4:1)
- 5744 x 3024 (5.7K 17:9), 4096 x 2160 (4K DCI)
- 1920 x 1080 (HD)
- Both 2868 x 1512 (2.8K 17:9) and 1920 x 1080 (HD) at rates up to 120 fps
Versatile Media Capture Options
Record internally to CFast 2.0 or SD/UHS-II card slots or capture longer clips using the USB Type-C output to an external SSD
Studio Camera Features
- Like the Blackmagic Studio cameras, the BMPCC 6K G2 has a built-in color corrector that works with the ATEM Mini
- Supports the optional pedestal-style focus and zoom controls
DaVinci Resolve Studio License Included
The 6K G2 is compatible with DaVinci Resolve and includes an activation key for Resolve Studio
Blackmagic Design Pocket Cinema Camera 6K G2 Specs
Imaging
Lens Mount | Canon EF |
Lens Communication | Yes, with Autofocus Support |
Sensor Resolution | Effective: 21.2 Megapixel (6144 x 3456) |
Sensor Type | 23.1 x 12.99 mm (Super35) CMOS |
Image Stabilization | None |
Built-In ND Filter | None |
Internal Filter Holder | No |
Capture Type | Stills & Video |
Exposure Control
Shutter Type | Electronic Rolling Shutter |
ISO Sensitivity | 100 to 25,600 |
Shutter Angle | 5 to 360° |
Advertised Dynamic Range | 13 Stops |
Internal Video Capture
Raw Recording | Raw 6144 x 3456 at 23.98/24.00/25/29.97/50 fps [49 to 483 MB/s] 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94/60 fps [37 to 359 MB/s] 5744 x 3024 up to 23.98/24.00/25/29.97/50/59.94/60 fps [40 to 395 MB/s] 4096 x 2160 at 23.98/24.00/25/29.97 fps [28 to 163 MB/s] 3728 x 3104 at 23.98/24.00/25/29.97 fps [36 to 265 MB/s] 2868 x 1512 at 23.98/24.00/25/29.97 fps [14 to 101 MB/s] |
Recording Modes | ProRes 422/ProRes 422 HQ/ProRes 422 Proxy/ProRes 422LT DCI 4K (4096 x 2160) up to 59.94p UHD 4K (3840 x 2160) up to 59.94p Full HD (1920 x 1080) up to 119.88p |
Sensor Crop While Recording | 6K (6144 x 2560) in 2.4:1 When Recording in Raw 5744 x 3024 When Recording in Raw 4K (4096 x 2160) When Recording in Raw 3728 x 3104 When Recording in Raw 2868 x 1512 When Recording in Raw |
Variable Frame Rates | 6K: Up to 60 fps 1080p: Up to 119.88 fps |
Recording Limit | Unlimited |
Built-In Microphone Type | Stereo |
External Video Capture
Raw Output | USB: 6144 x 3456 at 23.98/24.00/25/29.97/50 fps 6144 x 2560 at 23.98/24.00/25/29.97/50/59.94/60 fps 5744 x 3024 at 23.98/24.00/25/29.97/50/59.94/60 fps |
External Recording Modes | 4:2:2 10-Bit via HDMI |
IP Streaming | None |
Interface
Media/Memory Card Slot | Slot 1: SD/SDHC/SDXC (UHS-II) Slot 2: CFast |
Video I/O | 1 x HDMI Output |
Audio I/O | 2 x Mini XLR Mic/Line (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input 1 x 1/8" / 3.5 mm TRS Stereo Headphone Output |
Power I/O | 1 x Weipu SF610/S2 (12 to 20 VDC) Input |
Other I/O | 1 x USB Type-C (USB 3.2 / 3.1 Gen 1) Control/Video Output 1 x 1/8" / 3.5 mm (Timecode) Input (Shared with Mic/Line Input) |
Wireless | Bluetooth Control |
Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
Size | 5" |
Resolution | 1920 x 1080 |
Display Type | Tilting Touchscreen LCD |
Type | Optional, Not Included |
Focus
Focus Type | Auto and Manual Focus |
Environmental
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General
Battery Type | Sony L-Series |
Tripod Mounting Thread | 2 x 1/4"-20 Female |
Accessory Mount | 1 x 1/4"-20 Female |
Material of Construction | Carbon Fiber, Polycarbonate |

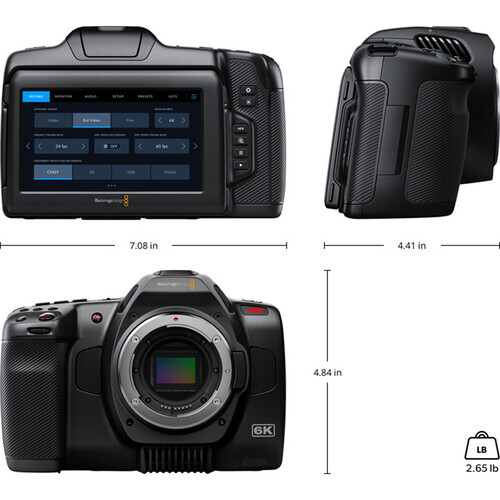

Dimensions (W x H x D) | 17.98 x 12.29 x 11.2 cm |
Weight | 1.20 kg |
(CINECAMPOCHDEF6K2)
SKU | CINECAMPOCHDEF6K2 |
Brand | Blackmagic Design |
Shipping Weight | 2.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.200m |
Shipping Length | 0.300m |
Shipping Cubic | 0.024000000m3 |
