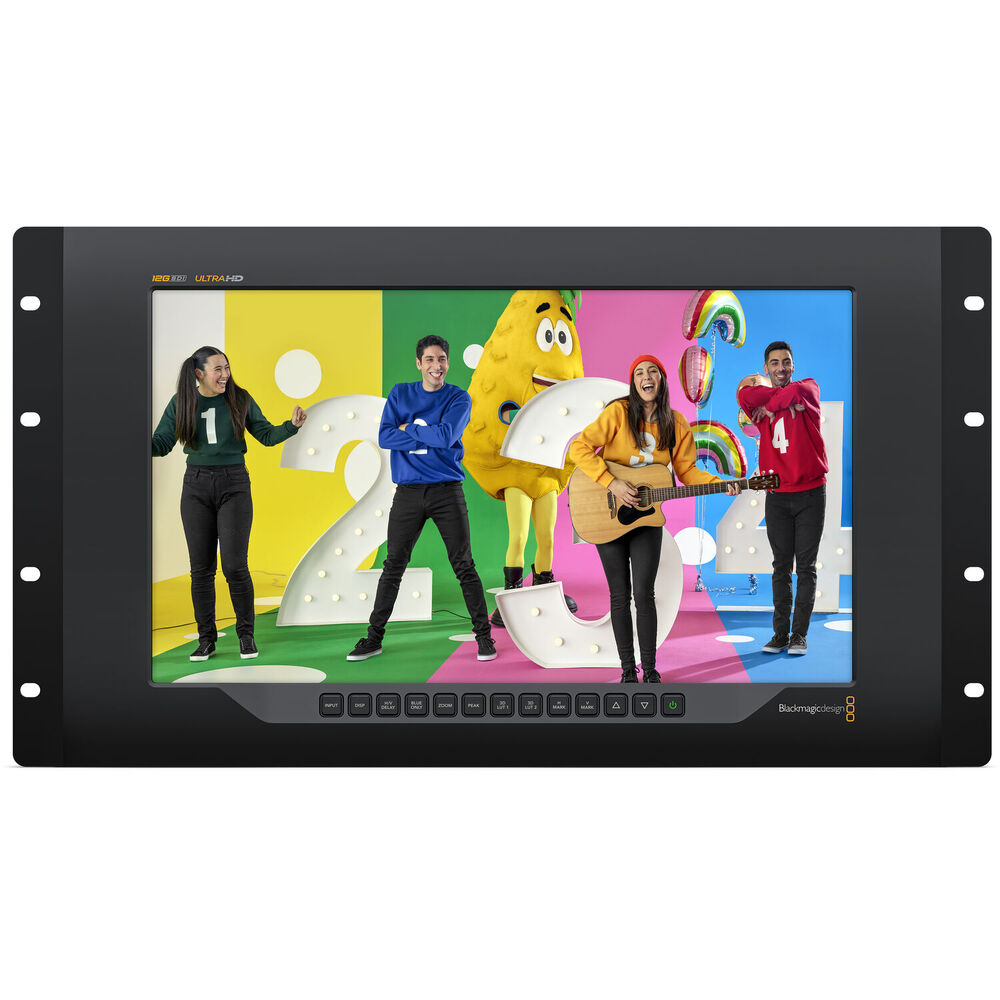

Blackmagic Design SmartView 4K G3 15.6" DCI 4K Broadcast Monitor with SMPTE 2110 (6 RU)
Features
- 15.6" 3840 x 2160 Active-Matrix TFT LCD
- Supports up to DCI 4K60 Video
- SMPTE 2110 IP In via RJ45, Optical Fiber
- 2 x Multi-Rate 12G-SDI Inputs
- 1 x Optical Fiber SDI Socket
- 12G-SDI Loop-Through Output, Tally Input
- SD/HD Upscaling, Dual 3D LUT Support
- Peaking, Zoom & Adjustable Markers
- H/V Delay, Blue Only & Frame Markers
- Front Panel & Ethernet Control
Specs:
Display Size |
15.6" / 39.6 cm |
Resolution |
3840 x 2160 |
Touchscreen |
No |
HDR Compatibility |
Yes |
Video I/O |
2x BNC (12G-SDI) Input |
Media/Memory Card Slot |
No |
Video Format |
SDI (4:4:4/4:2:2) |
Built-In Battery |
Yes |
Power Consumption |
24 W (Maximum) |
Display
Panel Type |
TFT LCD |
Display Size |
15.6" / 39.6 cm |
Resolution |
3840 x 2160 |
Aspect Ratio |
16:9 |
Touchscreen |
No |
Contrast Ratio |
1000:1 |
Bit Depth / Color Support |
8-Bit (16.7 Million Colors) |
HDR Compatibility |
Yes |
Pixels Per Inch (ppi) |
282 ppi |
Response Time |
25 ms |
Color Gamut |
100% Rec. 709 |
Real-Time LUT Monitoring |
SDR, HDR |
Image Controls |
Blue Only, Focus Peaking, H/V Delay, Pixel Zoom |

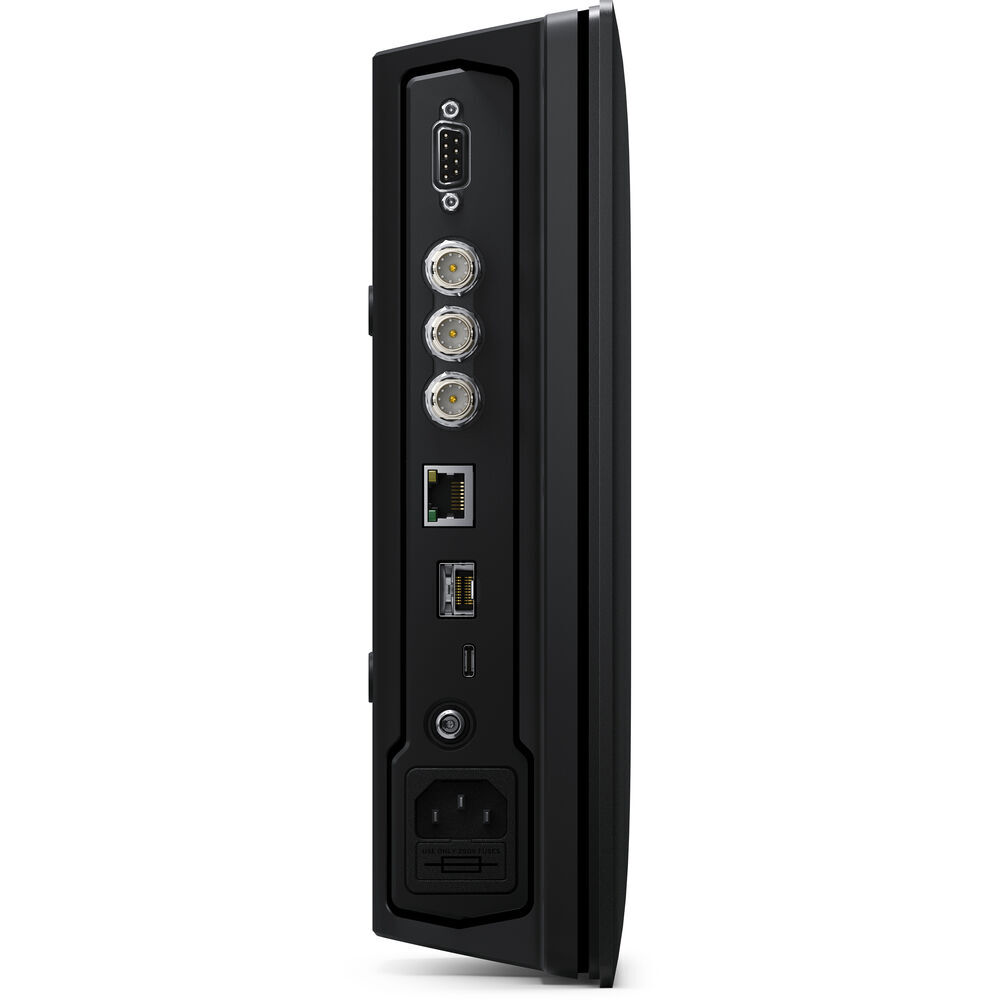

Inputs / Outputs
Video I/O |
2x BNC (12G-SDI) Input |
Embedded Audio |
SDI: 16-Channel |
Audio I/O |
No |
Built-In Speaker |
No |
Other I/O |
1x RJ45 (LAN) [Shared with SMPTE-2110 IP Video Input] |
Expansion Slots |
1x SFP+ Slot |
Media/Memory Card Slot |
No |
Wi-Fi |
No |
Bluetooth |
No |
Mobile App Compatible |
No |
Format Support
Video Format |
SDI (4:4:4/4:2:2) |
Video Standard Compliance |
SMPTE 259M/292M/296M/372M/424M-A/424M-B/425M/2110-30/2110-40/ST 2110-20/ST 2110-21/ST-2082 |
Power
Input Power |
12 to 15 VDC |
Built-In Battery |
Yes |
Power Consumption |
24 W (Maximum) |
Mounting
Rack Form Factor |
6 RU |
Environmental
Operating Temperature |
32 to 104°F / 0 to 40°C |
Operating Humidity |
0 to 90% |
Storage Temperature |
-4 to 140°F / -20 to 60°C |
General
Material of Construction |
Metal |
Dimensions |
18.98 x 10.47 x 2.75" / 48.21 x 26.59 x 6.96 cm |
Weight |
7.94 lb / 3.60 kg |
(SMTV4K12G3)
SKU | SMTV4K12G3 |
Barcode # | 9338716008722 |
Brand | Blackmagic Design |
Shipping Weight | 1.0000kg |
Shipping Width | 0.250m |
Shipping Height | 0.150m |
Shipping Length | 0.250m |
Shipping Cubic | 0.009375000m3 |
