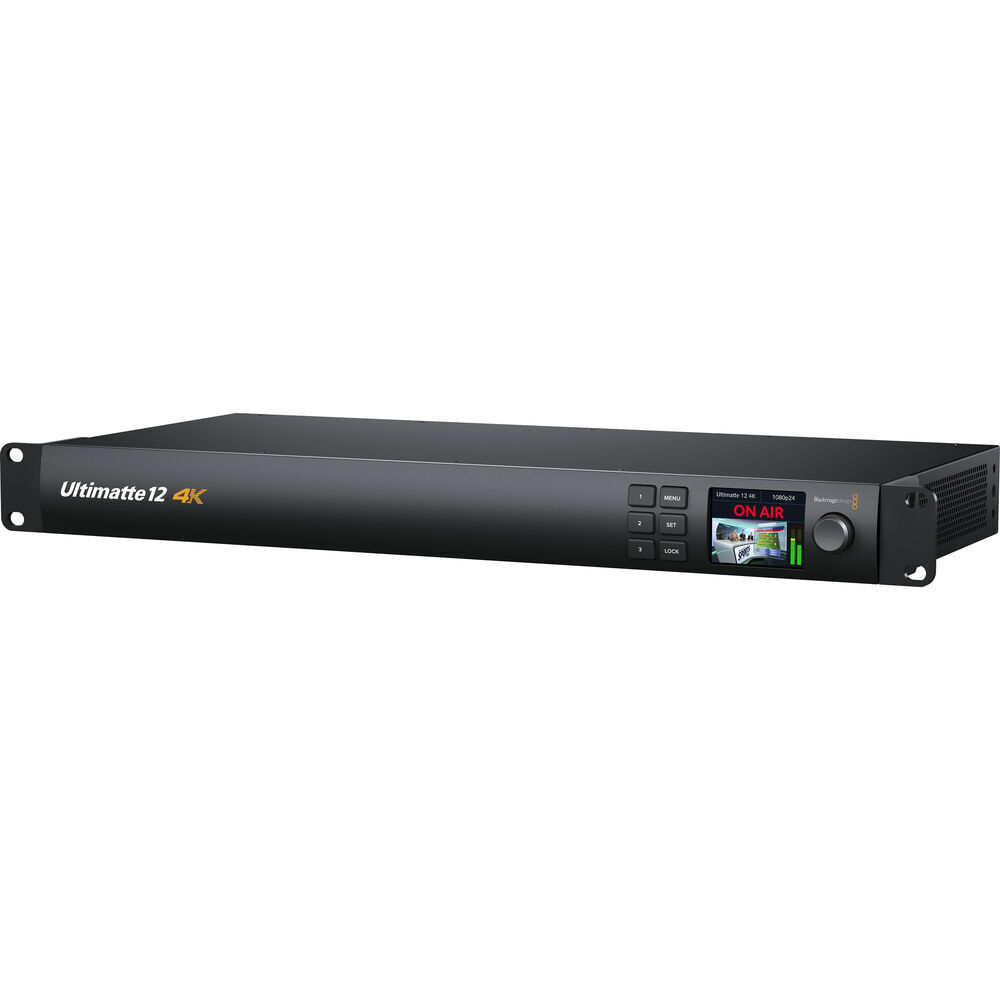

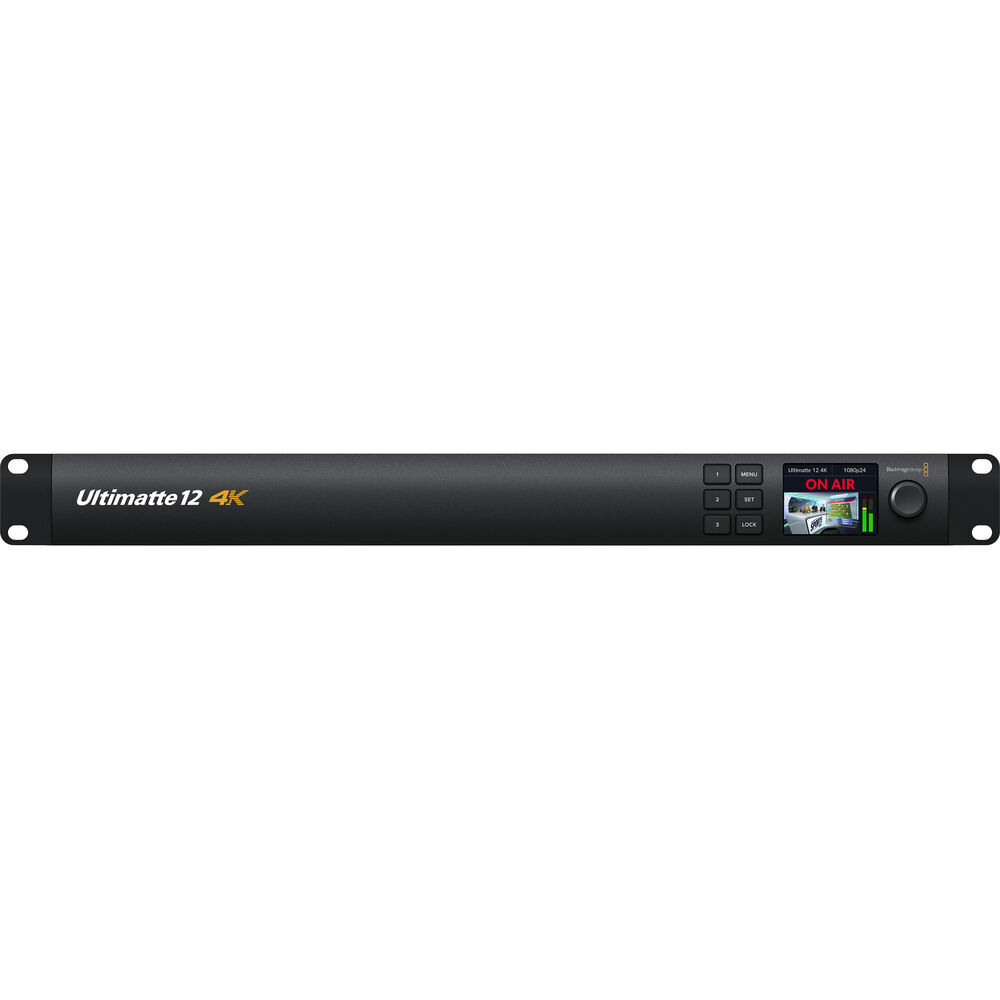

Blackmagic Design Ultimatte 12 4K
Features
- Up to UHD 4K60 via Single 12G-SDI BNC
- 1-Touch Keying, Advanced Compositing
- SD/HD/3G/6G/12G-SDI Support
- Requires Ultimatte Smart Remote 4
- 7 x SDI Inputs & Loop Outputs
- Dedicated Compositing Inputs
- Realistic Augmented Reality with Tinting
- Advanced Algorithms and Color Science
- Better Color Fidelity/Edges/Transitions
- One Rack Size Unit
Upgrade your real-time compositing for keying live action video with the Ultimatte 12 Keyer Advanced Compositing Processor from Blackmagic Design. This latest version of the Ultimatte 12 adds 12G-SDI connectivity to advanced algorithms, improved spill suppression, color science and separation, and excellent color fidelity to help create truly photorealistic composites.
The Ultimatte 12 works in Ultra HD & HD with sub-pixel processing for an improved image. Designed for news, sports, and other types of production, this versatile unit offers realistic augmented reality layers and one-touch auto-keying. This 1 rack unit processor does not include the required Ultimatte Smart Remote 4.
Advanced Real-Time Compositing
Uses new algorithms and color science, improved edge handling, color separation, color fidelity, and spill suppression to create photorealistic composites in UHD 4K and HD, all in real time.
Applications
Designed for news, sports, narrative film and television, and entertainment productions using fixed cameras, static backgrounds, or virtual set systems. The ability to layer augmented reality objects enables talent to pre-visualize virtual sets when using a green screen.
Multicamera Use
New technology enables the Ultimatte 12 to add accurate keying parameters to multiple cameras, accounting for slight variations between the camera positions
Realistic Augmented Reality Layer
A new "realistic" layer compositing mode enables you to add translucent or tinted objects on top of the foreground.
One-Touch Keying
One-touch keying dramatically lessens the time it takes to pull a key, using the auto key to set over 100 parameters once your set is well lit and white balanced.
Advanced Image Processing
Advanced image processing algorithms and an immense color space are used to generate internal mattes, so different parts of the image can be processed separately based on the colors in each area. This processing produces fine detail on hair and smooths color and object transitions with both HD and UHD 4K video.
Highest Color Fidelity
Refined flare, edge, and transition processing enables you to remove the background without affecting the colors you want to retain, faithfully reproducing colors that are impossible on other keyers, such as a bright yellow dress in front of a green screen.
Shadows and Transparencies
Improved flare algorithms can remove green tinting and spill from almost anything, creating true, realistic looking virtual environments, even when using shadows or transparent objects with reflections.

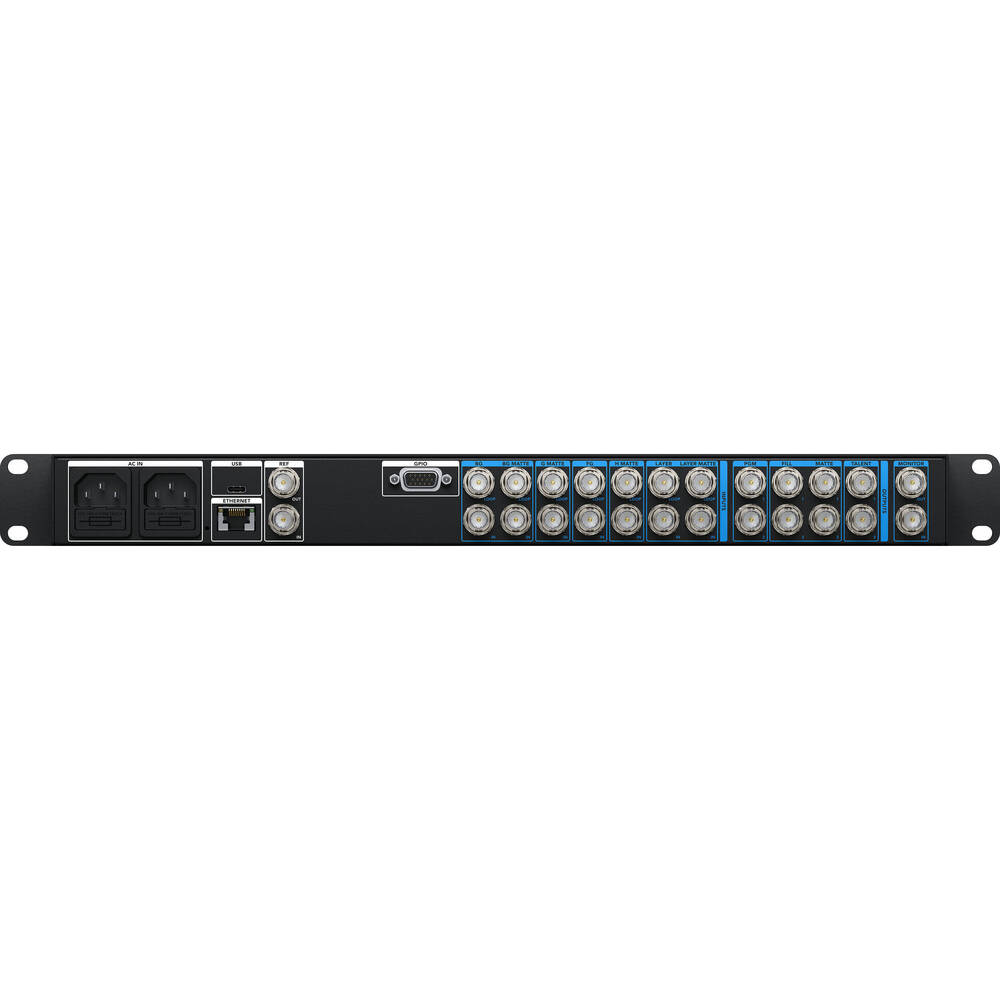

High-Quality Interfaces
High-quality connections include an Ethernet port, a GPI tally trigger, 12G-SDI BNC ports that support up to UHD 4K video, and Program video outputs.
Dedicated Compositing Inputs
Dedicated connectors with loop outputs that are used for compositing include:
Inputs:
- Background
- Background matte
- Garbage matte
- Foreground
- Holdout matte
- Layer
- Layer matte
Output:
- Program out
Specs
SDI Compliance | SMPTE 259, 424, 2081, 2082 |
Video Standards | UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080psf: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 NTSC: 525i 59.94 PAL: 625i 50 |
Video Sampling | 4:2:2 |
Color Precision | 10-Bit |
Color Space | Rec. 601, 709, 2020 |
Inputs / Outputs
USB I/O | 1 x USB-C Female Input |
Video I/O | 7 x BNC (12G-SDI) Input 7 x BNC (12G-SDI) Loop Output 1 x BNC Input 7 x BNC Output |
SDI Rate | Multi-Rate Support: 270 Mb, 1.5, 3, 6, 12 Gb/s |
Ethernet | 1 x RJ45 |
Reference Input | 1 x BNC |
Reference Output | 1 x BNC |
GPIO | 1 x DB15 |
Power
Power Source | AC Input |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Power Consumption | 50 W |
Redundant Power | 2 x IEC (Male) |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Storage Humidity | 0 to 90% (Non-Condensing) |
Physical
Mounting | 1 x Rack Unit |
Color | Black |
Material of Construction | Metal |
Dimensions | 19 x 9.25 x 1.73" / 48.3 x 23.5 x 4.39 cm |
Weight | 5.84 lb / 2.65 kg |
(ULTMKEY12C-4K)
SKU | ULTMKEY12C-4K |
Barcode # | 9338716007626 |
Brand | Blackmagic Design |
Shipping Weight | 1.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
Shipping Cubic | 0.012000000m3 |
