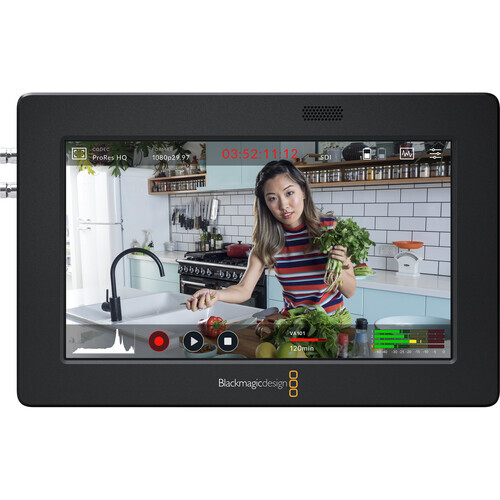

Blackmagic Design Video Assist HDMI/SDI-3G 5" Monitor
Add professional monitoring and high-quality recording to your camera with the Video Assist 3G-SDI/HDMI 5" Recording Monitor from Blackmagic Design. It features a bright 5" 1920 x 1080 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. Firmware update 3.3.1 adds a video output via the USB Type-C port that can be used to convert your connected camera for webcam use. It also enables you to select channels for audio monitoring.

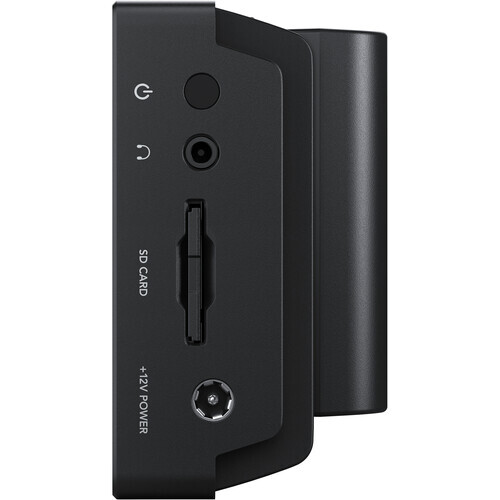

The Video Assist 3G 5" records to an SDXC/SDHC memory card using a single UHS-I SD card slot. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.

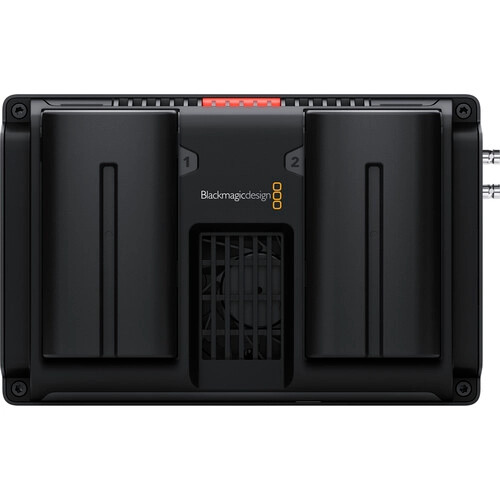

This monitor's touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools. There is also a tally light on top of the monitor to indicate it is operating and recording. Choose from 11 languages for easier use of on-screen text displays and menu options. Power the monitor using the included 12V power adapter or using separately available Sony L-Series type batteries on the dual battery slots.
- Supports video formats up to 1080p60
- Can be used to upgrade viewing and recording options with older cameras
- 5" touchscreen LCD screen with customizable overlays

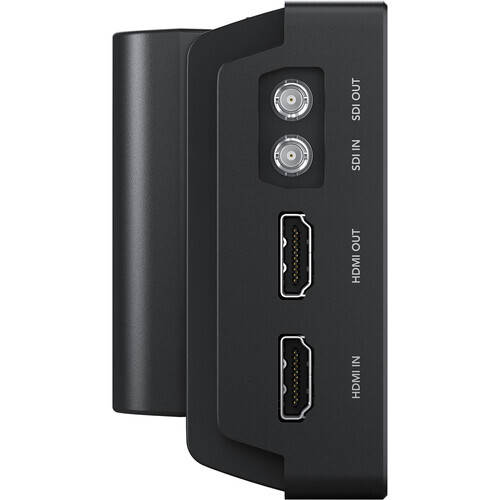

- 3G-SDI and HDMI input ports with loop-through outputs
- 3D LUT support for customized viewing
- Sends a streaming-friendly 1080p video signal to your computer, enabling the use of your connected camera as a webcam
- Direct metadata entry
- Single SD card slot for ProRes recording
- Multiple display tools including focus peaking, zebra, and false color
- Waveform, vector-scope, histogram, and RGB parade
- Ability to select which audio channels you are monitoring
- Minimum Mac-Os System Requirments:
MacOs 10.15 Catalina (USB 2.0 Port)
MacOs 10.14 Mojave (with USB 2.0 Port)
- Minimum MicroSoft System Requirments:
Wondows 10 64Bit with USB 2.0 Port
Support Languages:
- English
- Chinese
- French
- German
- Italian
- Japanese
- Korean
- Portuguese
- Russian
- Spanish
- Turkish
Specifications:
Panel Type |
LCD |
Display Size |
5.0" / 12.7 cm |
Aspect Ratio |
16:9 |
Viewing Angle |
Horizontal: 135° |
Touchscreen |
Yes |
Maximum Brightness |
300 cd/m2 |
Pixels Per Inch (ppi) |
441 ppi |
Color Gamut |
100% Rec. 709 |
Real-Time LUT Monitoring |
SDR |
Image Controls |
Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
Wi-Fi |
None |
Video |
1 x HDMI Type A Input |
HDCP Support |
Yes |
Embedded Audio |
HDMI: 8-Channel |
Audio |
1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker |
1 |
Power |
1 x Barrel Input |
Video Format |
SDI (10-Bit 4:2:2 YUV) |
Pulldown Conversion |
None |
Camera Trigger |
None |
Pre-Roll Record |
None |
Encoding Formats |
Up to 1920 x 1080 |
Maximum Audio Tracks |
16 |
Recording Media |
1 x SDXC (UHS-I) |
Metadata Tagging |
Yes |
Phantom Power |
None |
Battery Type |
2 x L-Series |
Mounting |
6 x 1/4"-20 Female |
Operating Temperature |
32 to 104°F / 0 to 40°C |
Operating Humidity |
0 to 90% |
Storage Temperature |
-4 to 113°F / -20 to 45°C |
Material of Construction |
Aluminum |
Dimensions |
5.83 x 3.54 x 1.44" / 14.81 x 8.99 x 3.66 cm |
Weight |
14.46 oz / 410 g |
Warranty Length |
Limited 1-Year Warranty |
(VIA53G)
SKU | VIA53G |
Barcode # | 9338716006407 |
Brand | Blackmagic Design |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.150m |
Shipping Length | 0.300m |
Shipping Cubic | 0.009000000m3 |
