Blackmagic Design Video Assist HDMI/SDI-3G 7" Monitor

$1,195.00


or 4 payments of $298.75 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

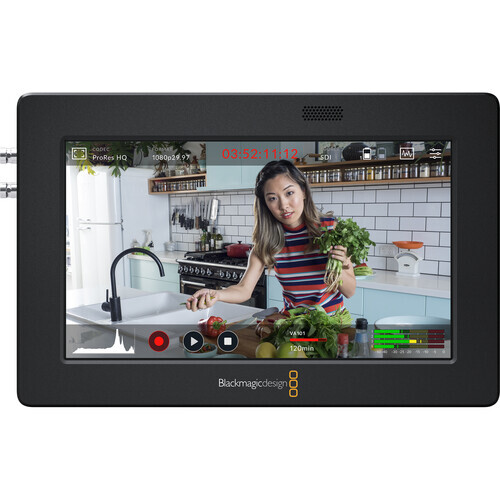

Add professional monitoring and high-quality recording to your camera with the Video Assist 3G-SDI/HDMI 7" Recording Monitor from Blackmagic Design. It features a bright 7" 1920 x 1080 display with 300 cd/m² brightness to help you frame and focus your shots, and it provides 3G-SDI and HDMI inputs for recording the video output from professional and consumer cameras. You can monitor and record video resolutions up to 1080p60 10-bit 4:2:2 and up to 16 channels of embedded 24-bit 48 kHz audio. Firmware update 3.3.1 adds a video output via the USB Type-C port that can be used to convert your connected camera for webcam use. It also enables you to select channels for audio monitoring.

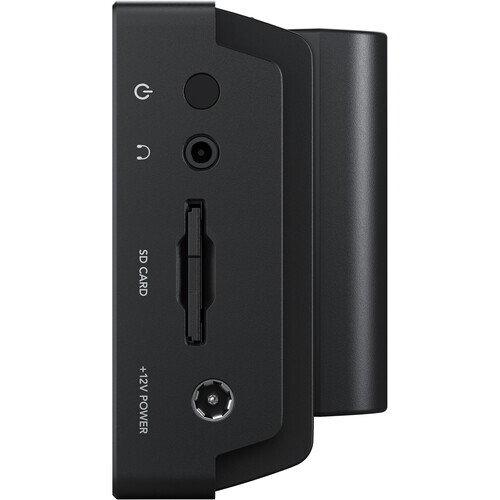

The Video Assist 3G 7" records to an SDXC/SDHC memory card using a single UHS-I SD card slot. Use the USB Type-C port to record for configuring and upgrading the monitor. Video is recorded using industry-standard Apple ProRes (HQ, 422, LT, or Proxy) and Avid DNxHD codecs.

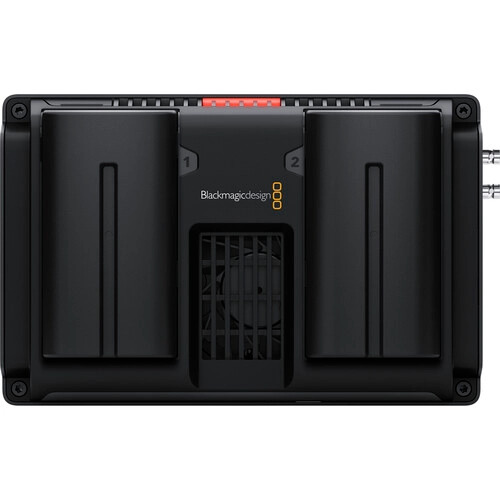

This monitor's touchscreen interface enables you to adjust settings and access monitoring features such as histogram, waveform, RGB parade, vectorscope, and many more scopes and exposure tools. There is also a tally light on top of the monitor to indicate it is operating and recording. Choose from 11 languages for easier use of on-screen text displays and menu options. Power the monitor using the included 12V power adapter or using separately available Sony L-Series type batteries on the dual battery slots.

  • Supports video formats up to 1080p60
  • Can be used to upgrade viewing and recording options with older cameras
  • 7" touchscreen LCD screen with customizable overlays

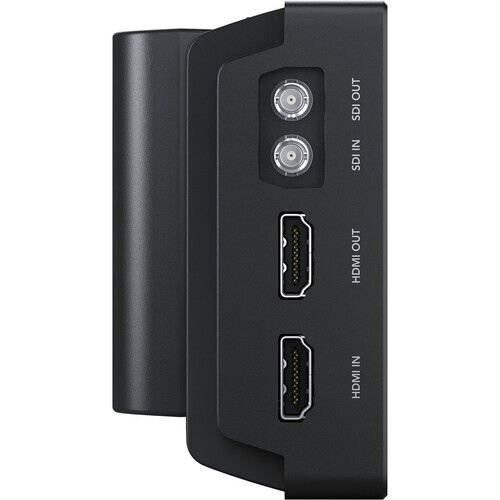

  • 3G-SDI and HDMI input ports with loop-through outputs
  • 3D LUT support for customized viewing
  • Sends a streaming-friendly 1080p video signal to your computer, enabling the use of your connected camera as a webcam
  • Direct metadata entry
  • Single SD card slot for ProRes recording
  • Multiple display tools including focus peaking, zebra, and false color
  • Waveform, vector-scope, histogram, and RGB parade
  • Ability to select which audio channels you are monitoring
  • Minimum Mac-Os System Requirments:

MacOs 10.15 Catalina (USB 2.0 Port)

MacOs 10.14 Mojave (with USB 2.0 Port)

  • Minimum MicroSoft System Requirments:

Wondows 10 64Bit with USB 2.0 Port

Support Languages:

  • English
  • Chinese
  • French
  • German
  • Italian
  • Japanese
  • Korean
  • Portuguese
  • Russian
  • Spanish
  • Turkish

Specifications:



Panel Type

LCD

Display Size

7.0" / 17.8 cm

Aspect Ratio

16:9

Viewing Angle

Horizontal: 135°

Touchscreen

Yes

Maximum Brightness

300 cd/m2

Pixels Per Inch (ppi)

441 ppi

Color Gamut

100% Rec. 709

Real-Time LUT Monitoring

SDR

Image Controls

Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Picture-in-Picture, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra

Wi-Fi

None

Video

1 x HDMI Type A Input
1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Input
1 x HDMI Type A Output
1 x Micro BNC (3G-SDI/HD-SDI/SD-SDI) Output
1 x USB Type-C Output

HDCP Support

Yes

Embedded Audio

HDMI: 8-Channel
SDI: 16-Channel

Audio

1 x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

1

Power

1 x Barrel Input

Video Format

SDI (10-Bit 4:2:2 YUV)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94
HDMI (10-Bit)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576i: 50
480i: 59.94

Pulldown Conversion

None

Camera Trigger

None

Pre-Roll Record

None

Encoding Formats

Up to 1920 x 1080
ProRes 422, 422 HQ, LT, Proxy 10-Bit 4:2:2 at up to 60 fps
DNxHD 145, 145 MXF, 220x, 220x MXF, 45, 45 MXF 10-Bit 4:2:2 at up to 60 fps

Maximum Audio Tracks

16

Recording Media

1 x SDXC (UHS-I)

Metadata Tagging

Yes

Phantom Power

None

Battery Type

2 x L-Series

Mounting

6 x 1/4"-20 Female

Operating Temperature

32 to 104°F / 0 to 40°C

Operating Humidity

0 to 90%

Storage Temperature

-4 to 113°F / -20 to 45°C

Material of Construction

Aluminum

Dimensions

19.3 x 13.06 x 3.68 cm

Weight

14.46 oz / 410 g

Warranty Length

Limited 1-Year Warranty

(VIA73G)

SKU VIA73G
Barcode # 9338716006414
Brand Blackmagic Design
Shipping Weight 2.0000kg
Shipping Width 0.200m
Shipping Height 0.400m
Shipping Length 0.300m
Shipping Cubic 0.024000000m3
