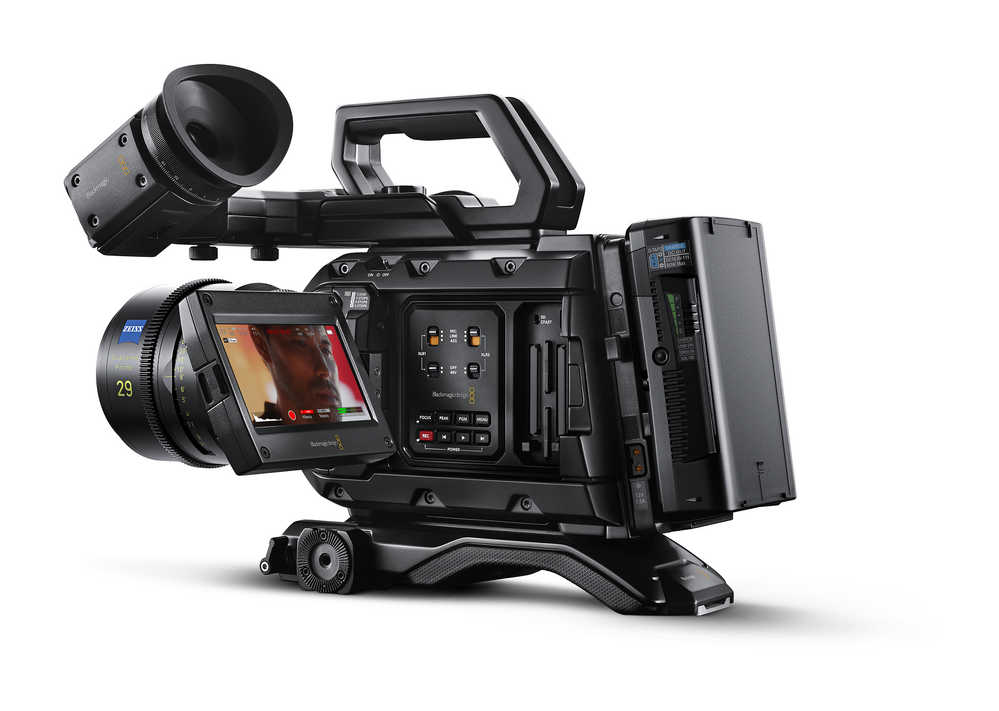

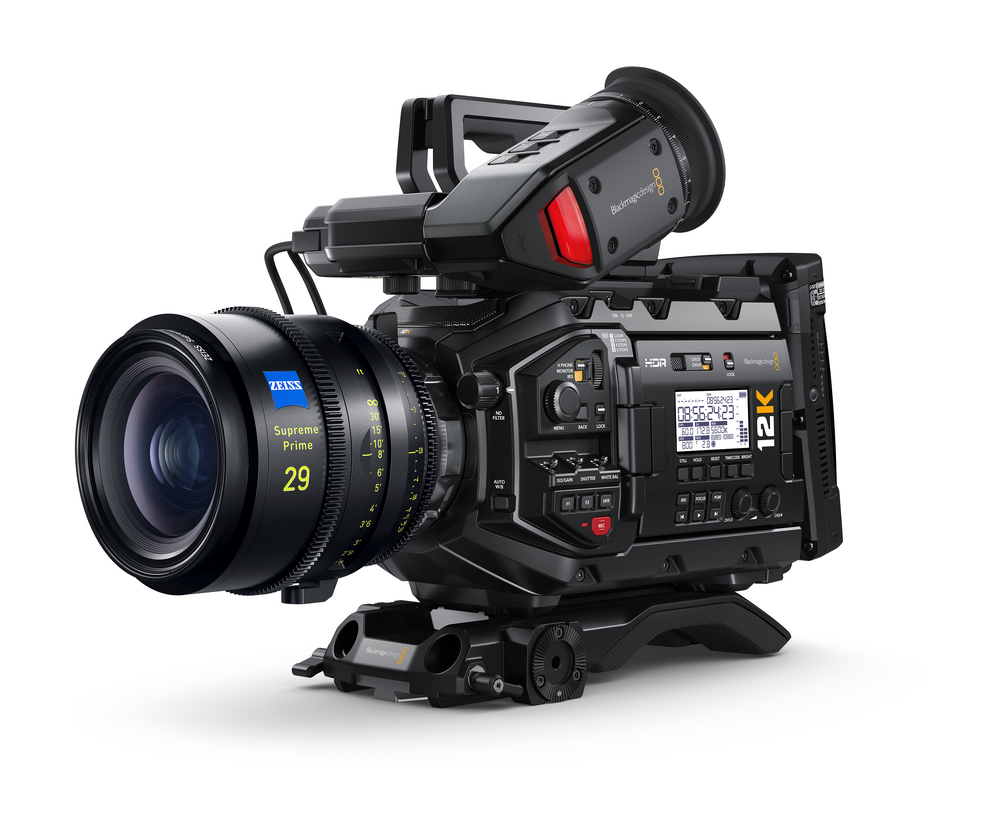

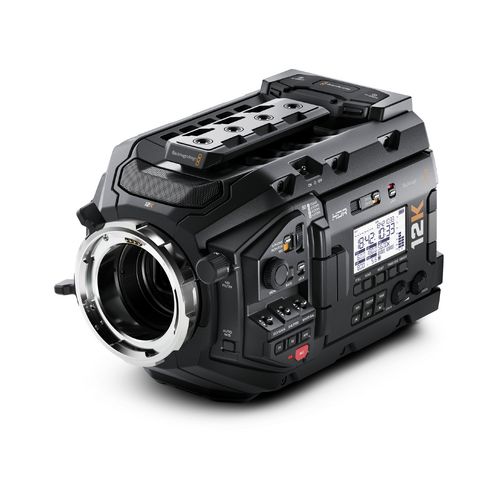

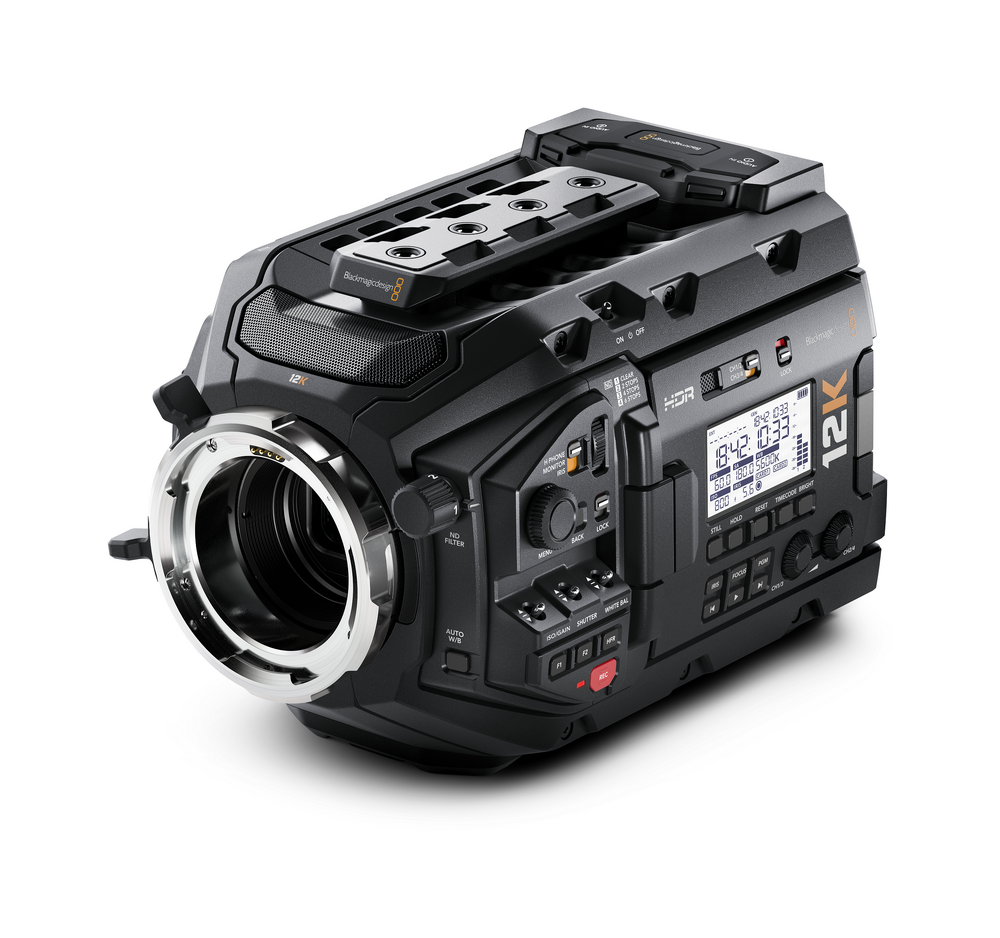

Blackmagic URSA Mini Pro 12K OLPF Camera
Features
- 12,288 x 6480 12K Super 35 sensor.
- High performance OLPF for reduced moire and aliasing in virtual production.
- Use for feature films, VFX and high end TVCs.
- 14 stops of dynamic range and native 800 ISO.
- Blackmagic RAW optimized for Metal, CUDA and OpenCL.
- Generation 5 Color Science with new film curve.
- PL mount included and optional EF and F lens mounts available.
URSA Mini Pro 12K: Digital Film Revolution
Blackmagic URSA Mini Pro 12K is a revolution in digital film with a 12,288 x 6480 12K Super 35 sensor and 14 stops of dynamic range, built into the award winning URSA Mini body. The combination of 80 megapixels per frame, new color science and the flexibility of Blackmagic RAW makes working with 12K a reality. Oversampling from 12K gives customers the best 8K and 4K images with the subtle skin tones and extraordinary detail of high end still cameras. Customers can shoot at 60 fps in 12K, 120 fps in 8K and up to 240 fps in 4K Super 16. URSA Mini Pro 12K features an interchangeable PL mount, as well as built in ND filters, dual CFast and UHS-II SD card recorders, a SuperSpeed USB-C expansion port and more.
When shooting in virtual production environments, the high frequencies of the LED matrix in video walls can cause problems for ultra sharp modern lenses and high resolution sensors, creating interference patterns. Using an optical low pass filter minimizes that interference, which results in a reduction of moire and aliasing. URSA Mini Pro 12K OLPF adds a high performance, optical low pass filter that is precisely matched to the 12K sensor. The OLPF also incorporates updated IR filtering that improves far red color response which, when combined with Blackmagic RAW processing for the URSA Mini Pro 12K OLPF, preserves color and critical image detail for new levels of image fidelity.
URSA Mini Pro 12K’s extreme resolution goes well beyond traditional motion picture film. Customers get the benefits of shooting with film including incredible detail, wide dynamic range and rich, deep color. Perfect for feature films, episodic television and immersive, large format IMAX. The incredible definition around objects makes it ideal for working with green screen and VFX including compositing live action and CGI.
The Blackmagic URSA Mini Pro 12K features a revolutionary new sensor with a native resolution of 12,288 x 6480, which is an incredible 80 megapixels per frame. The Super 35 sensor has a superb 14 stops of dynamic range and a native ISO of 800. The new 12K sensor has equal amounts of red, green and blue pixels and is optimized for images at multiple resolutions. Customers can shoot 12K at 60 fps or use in-sensor scaling to allow 8K or 4K RAW at up to 120 fps without cropping or changing their field of view. URSA Mini Pro’s interchangeable lens mount lets customers choose from the widest range of vintage and modern cinema lenses, so customers can capture every ounce of character and detail from their favorite optics.
The URSA Mini Pro 12K sensor and Blackmagic RAW were designed together to make 12 bit RAW workflows in 12K effortless. As an incredibly efficient next generation codec Blackmagic RAW lets customers shoot 12K and edit on a laptop, a capability that simply isn’t possible with other codecs. The massive resolution of the sensor means you can reframe shots in post for delivery in 8K and 4K. It’s like a multi camera shoot with only one camera. And it’s perfect for great looking vertical and square video, too. The advanced design of the sensor and Blackmagic RAW means that customers can work in any resolution in post production instantly, without rendering, while retaining the full sensor’s color accuracy.
Blackmagic Design URSA Mini Pro 12K Specs
Imaging
Lens Mount | ARRI PL |
Lens Communication | Yes |
Sensor Resolution | Effective: 79.6 Megapixel (12,288 x 6480) |
Sensor Type | 27.03 x 14.25 mm (Super35) CMOS |
Image Stabilization | None |
Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
Capture Type | Stills & Video |
Exposure Control
Shutter Type | Electronic Rolling Shutter |
ISO Sensitivity | 125 to 3200 |
Advertised Dynamic Range | 14 Stops |
Video Capture
Internal Recording Modes | Blackmagic RAW 12-Bit 12288 x 6480 up to 60.00 fps [72 to 578 Mb/s] 11520 x 6480 up to 60.00 fps 12288 x 5112 up to 75 fps 7680 x 6408 8192 x 4320 [32 to 258 Mb/s] 7680 x 4320 8192 x 3408 up to 160 fps 5120 x 4272 up to 160 fps 6144 x 3240 [18 to 145 Mb/s] 4096 x 2160 up to 240 fps [8 to 65 Mb/s] 3840 x 2160 4096 x 1704 up to 160 fps 2560 x 2136 up to 160 fps |
External Recording Modes | Raw via USB 12288 x 6480 8192 x 4320 6144 x 3240 4096 x 2160 |
Sensor Crop Modes | Super35 / APS-C |
Fast-/Slow-Motion Support | Yes |
Broadcast Output | NTSC/PAL |
Built-In Microphone Type | Stereo |
Audio Recording | 2-Channel 24-Bit 48 kHz |
IP Streaming | None |
Still Image Capture
Aspect Ratio | 1:1, 2:1, 4:3, 4:5, 16:9 |
Image File Format | Raw |
Interface
Media/Memory Card Slot | Dual Slot: CFast (CFast 2.0) Dual Slot: SD/SDHC/SDXC (UHS-II) |
Video I/O | 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Output 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output |
Power I/O | 1 x XLR 4-Pin Input 1 x Molex 12-Pin Input/Output 1 x XLR 4-Pin (12VDC) Output |
Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 2) 1 x USB-C Data Input |
Wireless | None |
Mobile App Compatible | Yes *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
Size | 4.0" |
Display Type | Articulating Touchscreen LCD |
Secondary Display | Side: Status Display |
Viewfinder
Type | Optional, Not Included |
Focus
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
Environmental
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 45°C |
Operating Humidity | 0 to 90% |
General
Accessory Mount | 4 x 1/4"-20 Female 1 x ARRI/Hirth Rosette |
Dimensions (W x H x D) | 23.4 x 15.04 x 14.91 cm |
Weight | 2.55 kg |
(CINEURSAMUPRO12KOLPF)
SKU | CINEURSAMUPRO12KOLPF |
Brand | Blackmagic Design |
Shipping Weight | 5.0000kg |
Shipping Width | 0.450m |
Shipping Height | 0.300m |
Shipping Length | 0.300m |
Shipping Cubic | 0.040500000m3 |
