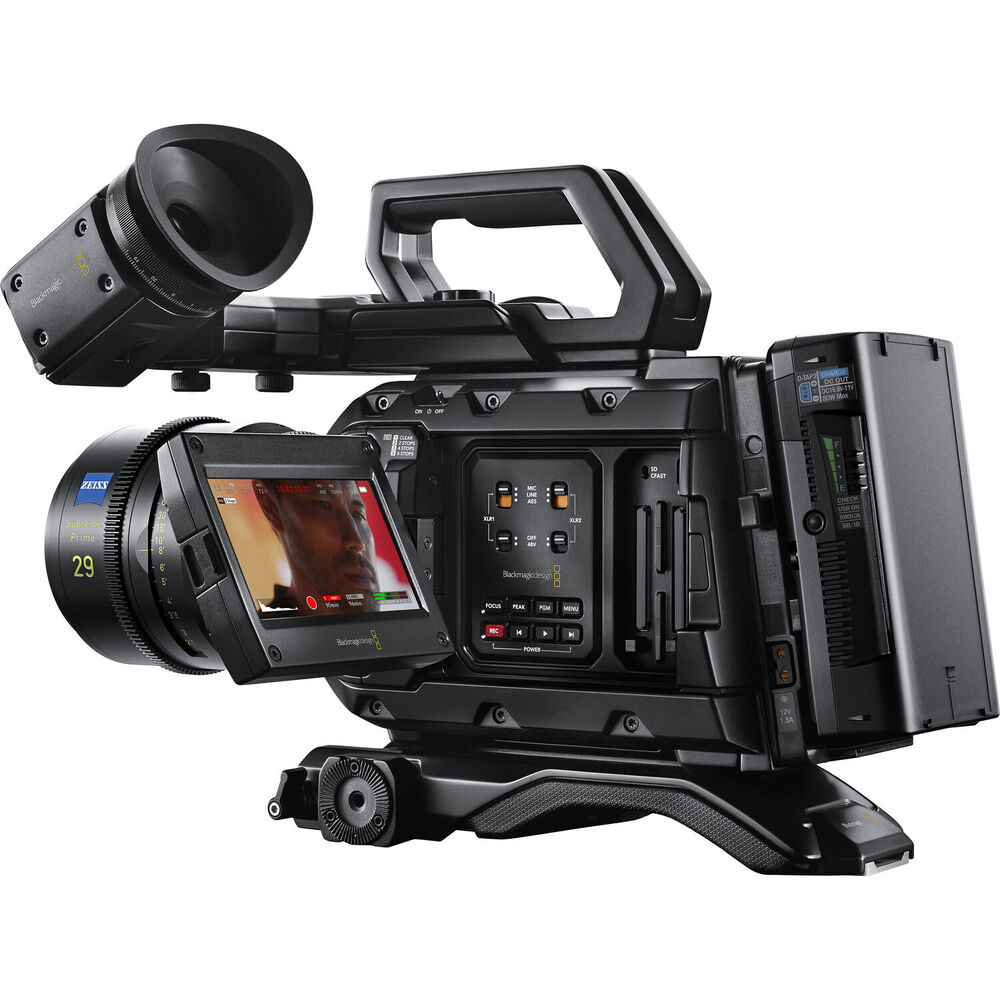

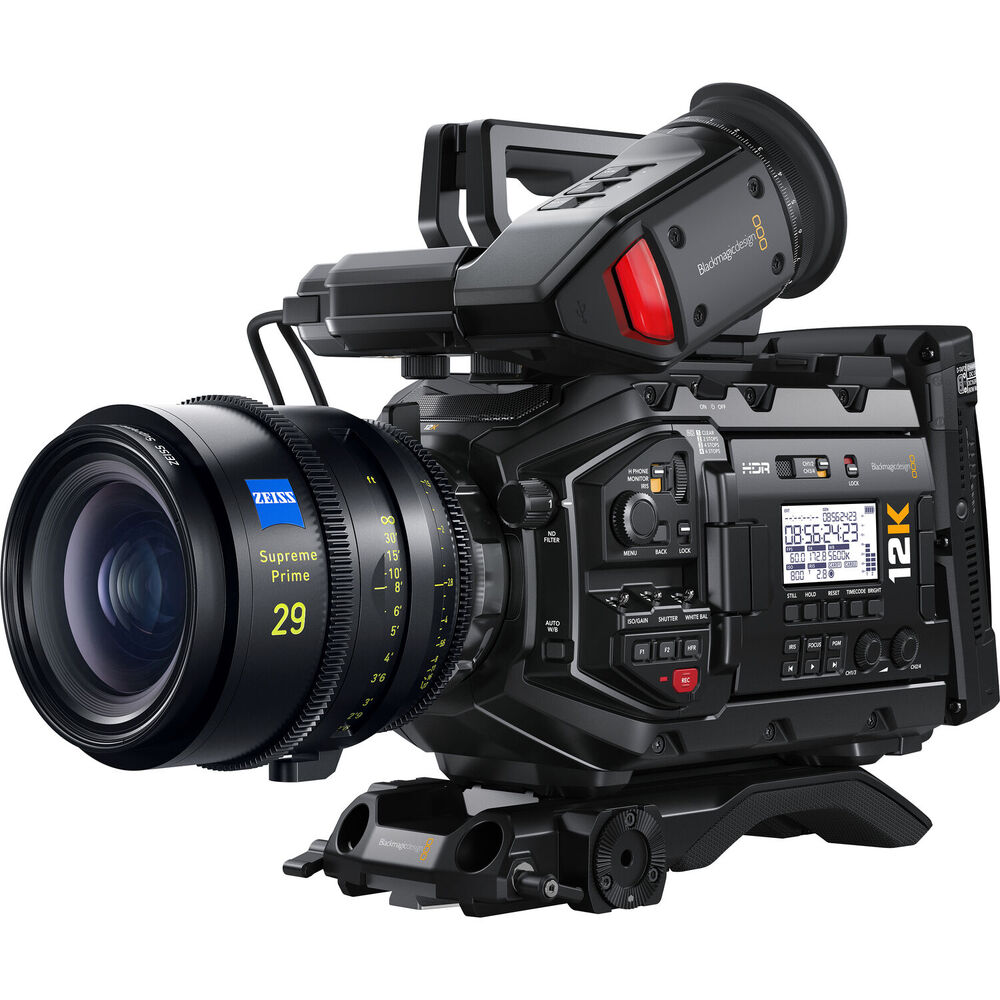

Blackmagic URSA Mini Pro 12K Camera
Features
- 12K Super35 HDR CMOS Sensor
- 12K 17:9 at 60 fps/12K 2.4:1 at 75 fps
- DCI 8K at 120 fps/14 Stops Dynamic Range
- User-Changeable PL Lens Mount
- 4K Super16 up to 220 fps
- 80MP/frame Blackmagic Raw
- Dual CFast 2.0 or SD Card Recording
- USB Type-C Recording to Disk/SSD
URSA Mini Pro 12K: Digital Film Revolution
Step your cine-style video recording up to 12K with the URSA Mini Pro 12K Digital Cinema Camera from Blackmagic Design. This pro video camera uses a 12,288 x 6480 12K Super35 sensor, a new color science, and up to 14 stops of dynamic range to produce extraordinarily detailed images. The URSA Mini Pro 12K records up to 80MP per frame in Blackmagic Raw and offers flexible recording options that include dual CFast 2.0 card capture and high-speed USB Type-C output. Recording rates include up to 60 fps in 12K 17:9 full sensor, up to 75 fps in 12K 2.4:1, 120 fps in 8K, and up to 240 fps in 4K Super16
Rich Film Look with Digital Definition
The URSA Mini Pro 12K's massive resolution gives you the immersive detail, wide dynamic range, and deep color of film combined with an incredible definition around objects that is perfect for chromakeying, VFX, and IMAX imaging. Oversampling from 12K down to 8K or 4K both improves color and eliminates aliasing for an ultra-smooth look.
Super35 12K Sensor Delivers a Cinematic View
The URSA Mini Pro 12K's new sensor has a native resolution of 12,288 x 6480 that produces a whopping 80 MP per frame. This sensor is designed with equal representations of red, green, and blue pixels, an 800 native ISO, and 14 stops of dynamic range. In-sensor scaling provides 8K and 4K rates up to 110 fps without cropping or a change in the field of view. The 12K sensor also enables you to reframe shots in post to get an 8K or 4K multicamera look using a single camera.

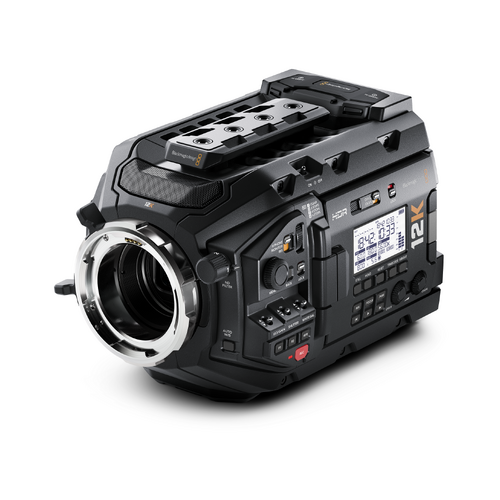

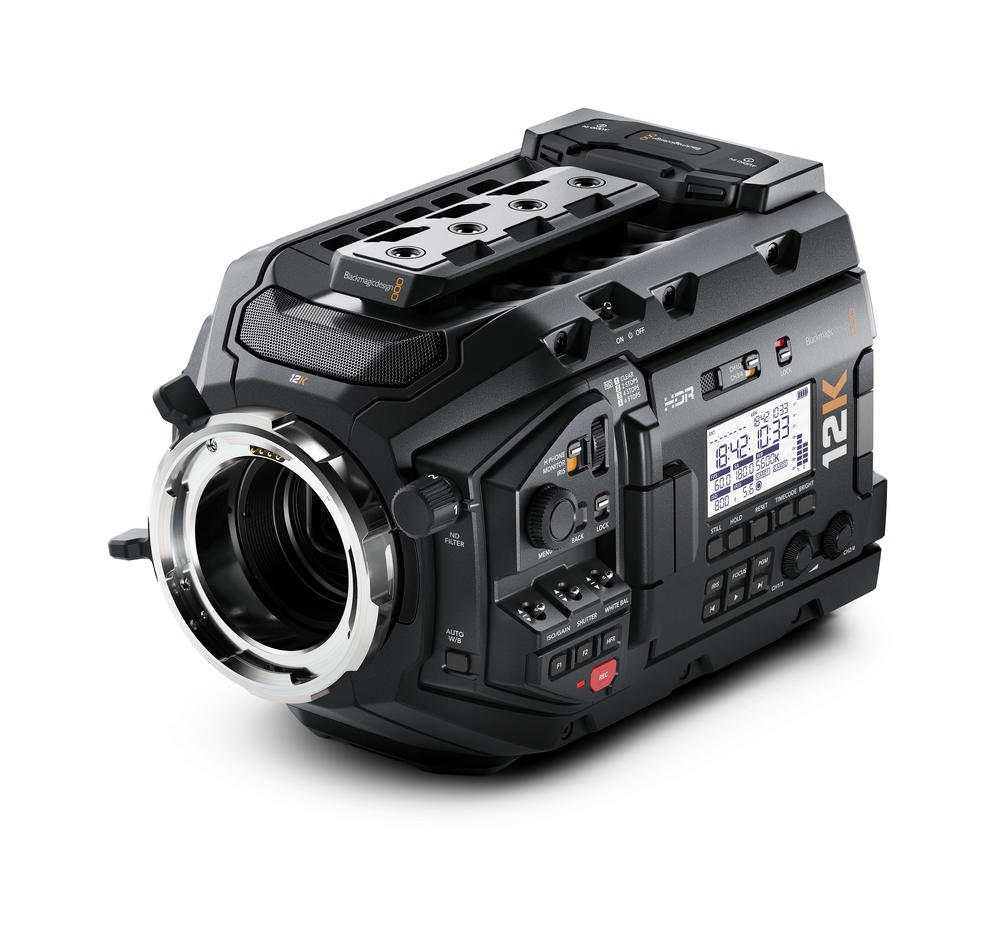

Interchangeable PL Lens Mount
- The front of the URSA Mini Pro 12K sports an interchangeable PL lens mount, enabling you to choose from an array of current and vintage pro cine lenses from multiple manufacturers.
- Canon EF and Nikon F mounts are available separately for shooters who have their own glass.
Generation 5 Color Science
The Gen 5 Color science's new film curve takes advantage of the huge amounts of color data produces by the URSA Mini Pro 12K's sensor. The result is more attractive skin tones and improved color saturation for images like neon signs and car taillights.
Efficient 12-Bit Raw Workflow in 12K with Blackmagic Raw
A new codec enables you to use Blackmagic Raw to edit your URSA Mini Pro 12K footage on a laptop and to edit in any resolution without needing to render before your final version.
Lightweight, Ergonomic Form
- An evenly weighted, lightweight yet robust magnesium alloy design makes the URSA Mini Pro 12K perfect for either handheld work or tripod-based shots.
- Additional camera features include 12G-SDI input and output, a 4" fold-out display, built-in ND filters, ergonomic controls, timecode and reference input, and 48V phantom power XLR audio.
- A digital slate function and lens metadata capture ease your URSA Mini Pro 12K workflow transition from capture to post.
- Camera setup 7.0 includes Blackmagic Raw stills capture and broadcast lens support.
Two Encoding Methods
Choose between Constant Quality and Constant Bitrate encoding as best suits your need. Use constant quality Q0 or Q5 options or the new Q1 and Q3 choices to lock the quality level and enable compression levels to adapt, matching the detail levels of each scene. Turn to Constant Bit Rate 5:1, 8:1, and 12:1 options or the new 18:1 choice when you prefer optimal imaging with predictable and consistent file sizes.
Flexible, High-Bandwidth Recording Options
- Dual built-in CFast 2.0 and UHS-II SD card slots and a SuperSpeed USB Type-C expansion port provide three methods for capturing 12K video.
- A "Record Raw on 2 Cards" option enables you to record across two cards simultaneously at speeds up to an impressive 900 MB/s to two CFast 2.0 cards, or to 500 MB/s to two UHS-II SD cards.
- The third option is capturing to NVMe SSD drives via a USB Type-C 3.2 Gen 2 port at rates up to 10 Gb/s.
Blackmagic Design URSA Mini Pro 12K Specs
Imaging
Lens Mount | ARRI PL |
Lens Communication | Yes |
Sensor Resolution | Effective: 79.6 Megapixel (12,288 x 6480) |
Sensor Type | 27.03 x 14.25 mm (Super35) CMOS |
Image Stabilization | None |
Built-In ND Filter | Mechanical Filter Wheel with Clear, 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64) ND Filters |
Capture Type | Stills & Video |
Exposure Control
Shutter Type | Electronic Rolling Shutter |
ISO Sensitivity | 125 to 3200 |
Advertised Dynamic Range | 14 Stops |
Video Capture
Internal Recording Modes | Blackmagic RAW 12-Bit 12288 x 6480 up to 60.00 fps [72 to 578 Mb/s] 11520 x 6480 up to 60.00 fps 12288 x 5112 up to 75 fps 7680 x 6408 8192 x 4320 [32 to 258 Mb/s] 7680 x 4320 8192 x 3408 up to 160 fps 5120 x 4272 up to 160 fps 6144 x 3240 [18 to 145 Mb/s] 4096 x 2160 up to 240 fps [8 to 65 Mb/s] 3840 x 2160 4096 x 1704 up to 160 fps 2560 x 2136 up to 160 fps |
External Recording Modes | Raw via USB 12288 x 6480 8192 x 4320 6144 x 3240 4096 x 2160 |
Sensor Crop Modes | Super35 / APS-C |
Fast-/Slow-Motion Support | Yes |
Broadcast Output | NTSC/PAL |
Built-In Microphone Type | Stereo |
Audio Recording | 2-Channel 24-Bit 48 kHz |
IP Streaming | None |
Still Image Capture
Aspect Ratio | 1:1, 2:1, 4:3, 4:5, 16:9 |
Image File Format | Raw |
Interface
Media/Memory Card Slot | Dual Slot: CFast (CFast 2.0) Dual Slot: SD/SDHC/SDXC (UHS-II) |
Video I/O | 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output 1 x BNC (3G-SDI) Output |
Audio I/O | 2 x XLR 3-Pin Mic/Line (+48 V Phantom Power) Output 1 x 1/8" / 3.5 mm TRRS Headphone/Mic Input/Output |
Power I/O | 1 x XLR 4-Pin Input 1 x Molex 12-Pin Input/Output 1 x XLR 4-Pin (12VDC) Output |
Other I/O | 1 x USB-C (USB 3.2 / 3.1 Gen 2) 1 x USB-C Data Input |
Wireless | None |
Mobile App Compatible | Yes *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
Global Positioning (GPS, GLONASS, etc.) | None |
Monitor
Size | 4.0" |
Display Type | Articulating Touchscreen LCD |
Secondary Display | Side: Status Display |
Viewfinder
Type | Optional, Not Included |
Focus
Focus Type | Auto and Manual Focus |
Focus Mode | Automatic, Manual Focus |
Environmental
Operating Temperature | 0 to 40°C |
Storage Temperature | -20 to 45°C |
Operating Humidity | 0 to 90% |
General
Accessory Mount | 4 x 1/4"-20 Female 1 x ARRI/Hirth Rosette |
Dimensions (W x H x D) | 23.4 x 15.04 x 14.91 cm |
Weight | 2.55 kg |
(CINEURSAMUPRO12K)
SKU | CINEURSAMUPRO12K |
Brand | Blackmagic Design |
Shipping Weight | 5.0000kg |
Shipping Width | 0.450m |
Shipping Height | 0.300m |
Shipping Length | 0.300m |
Shipping Cubic | 0.040500000m3 |
