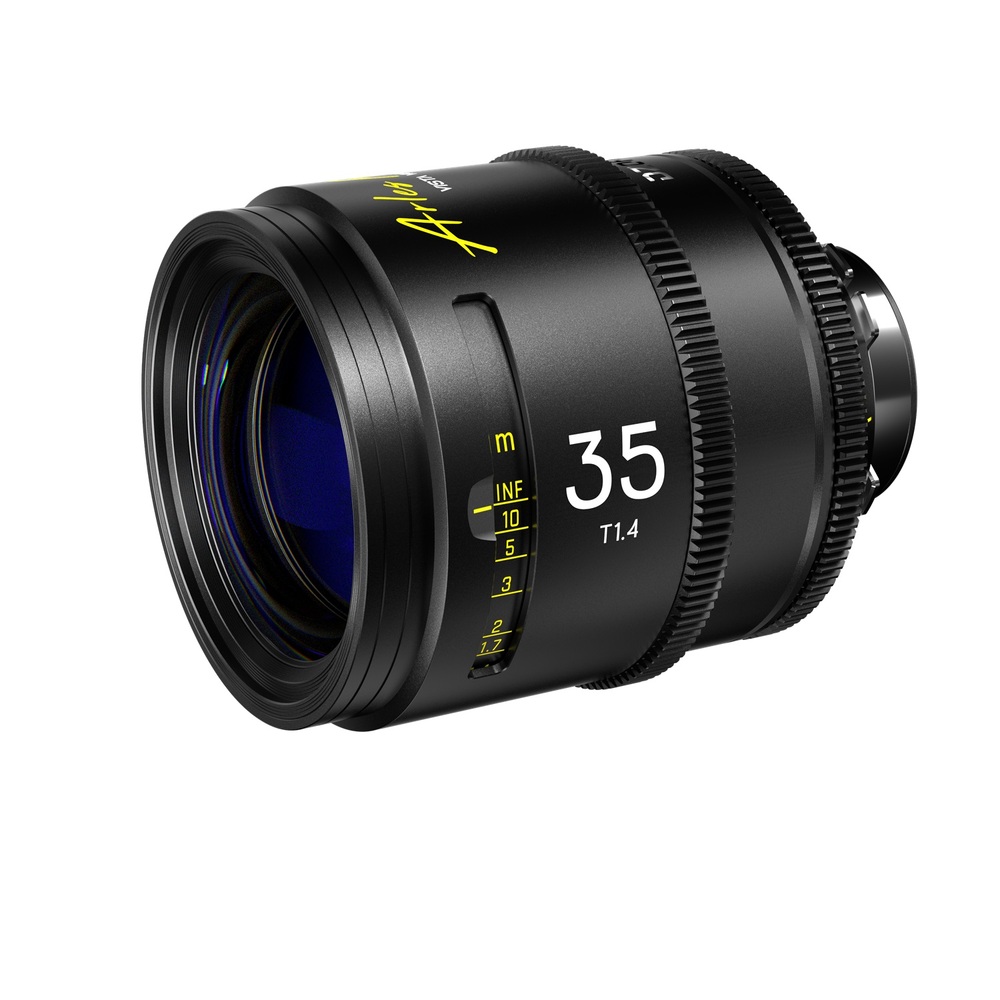

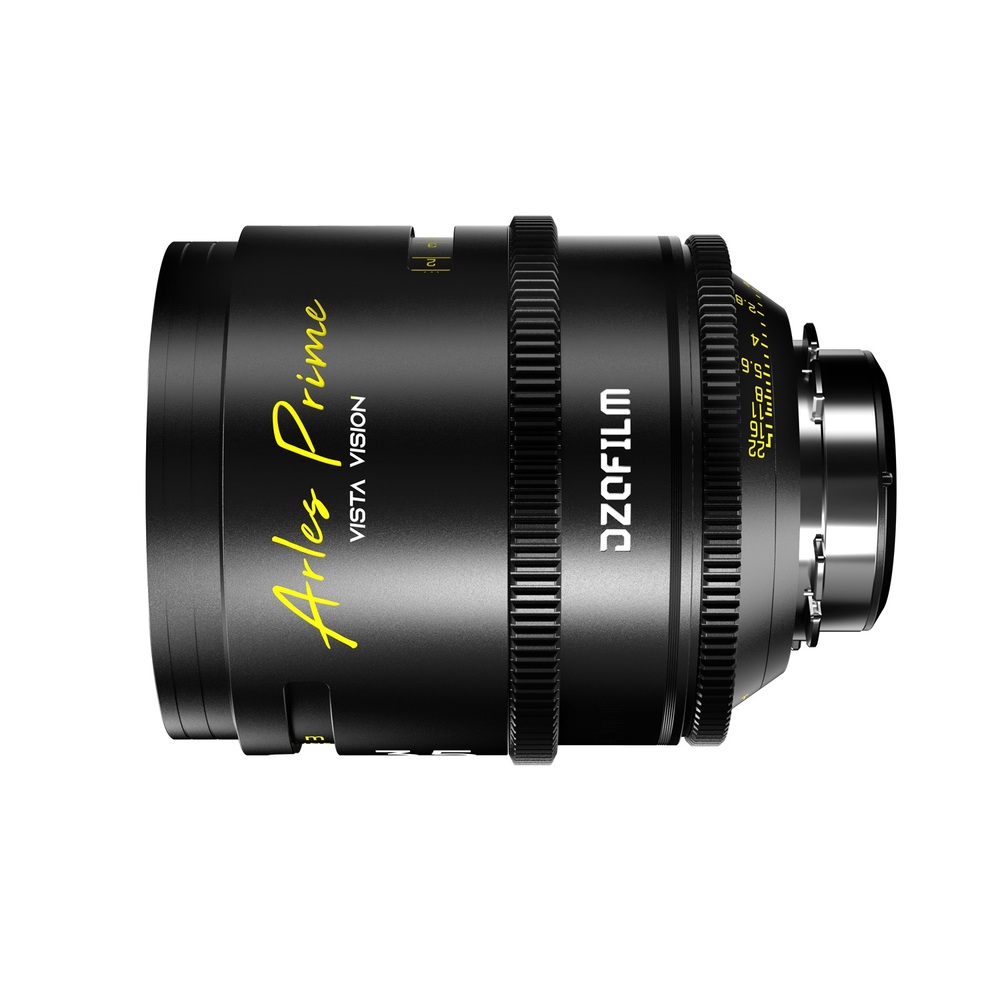

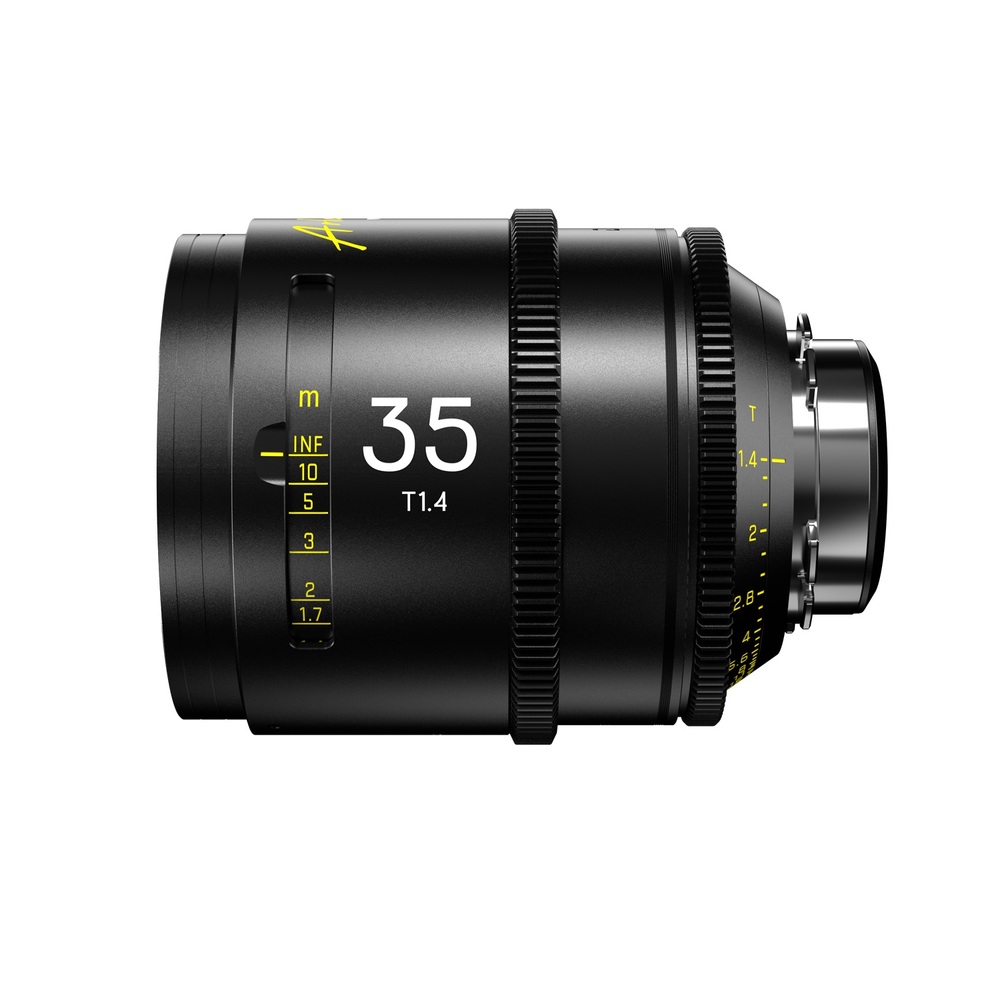

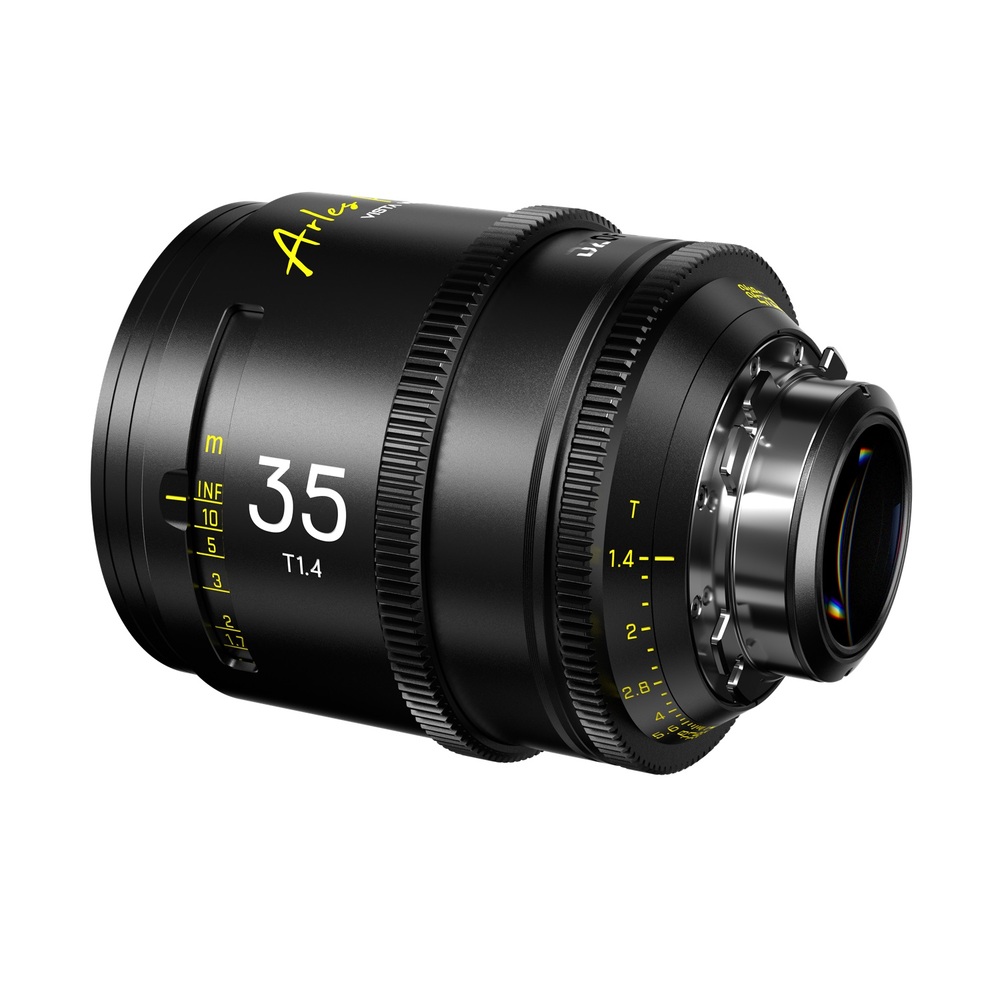

DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL, Meter)
Features
- Covers Full Frame Sensors
- T1.4 to T22 Aperture Range
- 16-Blade Iris
- 95mm Outer Diameter
- 14 Elements in 12 Groups
- 270° Focus Rotation, 77° Iris Rotation
- 13.78" Minimum Focus Distance
- Cinema-Standard Gearing
The lens features an 67.15° diagonal field of view to ensure your subject remains in the frame. A 95mm outer diameter and M86 filter thread allow you to incorporate different matte boxes or filters into your camera configuration. The lens has a cine-style design with 0.8 MOD focus and aperture gears. Thanks to similar gearing and outer diameters across the range of lenses, switching between focal lengths is a breeze.
Features at a Glance
- T1.4 to T22 aperture range
- 95mm outer diameter, 16-blade aperture
- Optical construction of 14 elements in 12 groups
- 270° focus rotation, 77° iris rotation
- 13.78" minimum focus distance
- 46.5mm image circle
- M86 filter thread
Specs
Focal Length |
35mm |
Maximum Aperture |
T1.4 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Filter Thread |
86 mm |
Image Stabilization |
No |
Maximum Aperture |
T1.4 |
Minimum Aperture |
T22 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Image Circle |
46.5 mm |
Angle of View | Full Frame Horizontal: 61.1° Vertical: 34.23° Diagonal: 67.15° |
Focus Scales |
Matric |
Optical Design |
14 Elements in 12 Groups |
Filter Thread |
86 mm |
Minimum Focus Distance |
From Camera Sensor: 13.78" / 0.35 m |
Diaphragm Blades |
16 |
Image Stabilization |
No |
Gear Standard |
Focus: 0.8 MOD |
Gear Rotation |
Focus 270° (Manual Only) |
Diameter |
3.7" / 95 mm |
Length |
4.8" / 121 mm |
Weight |
3.3 lb / 1650 g |
(DZO-SAP35MPL)
SKU | DZO-SAP35MPL |
Barcode # | 6970604942997 |
Brand | DZOFILM |
Shipping Weight | 2.0000kg |
Shipping Width | 0.350m |
Shipping Height | 0.200m |
Shipping Length | 0.250m |
Shipping Cubic | 0.017500000m3 |
