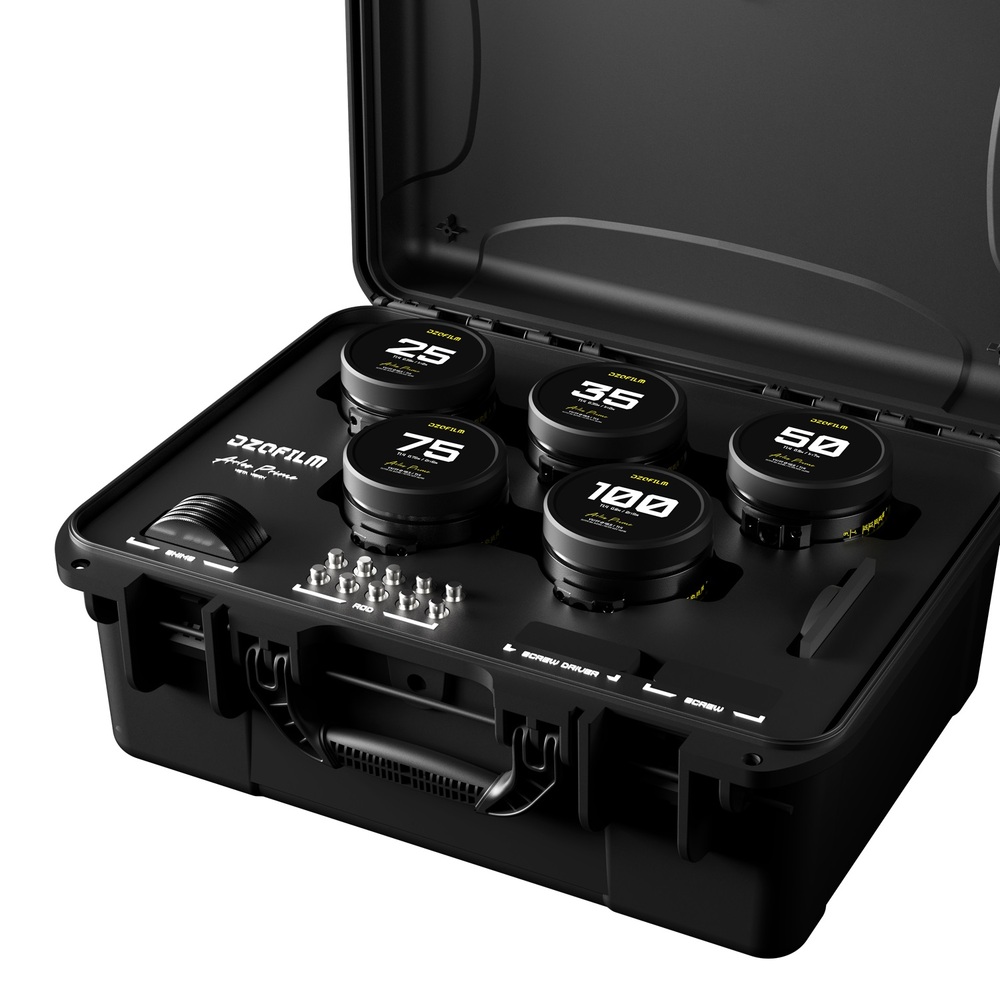

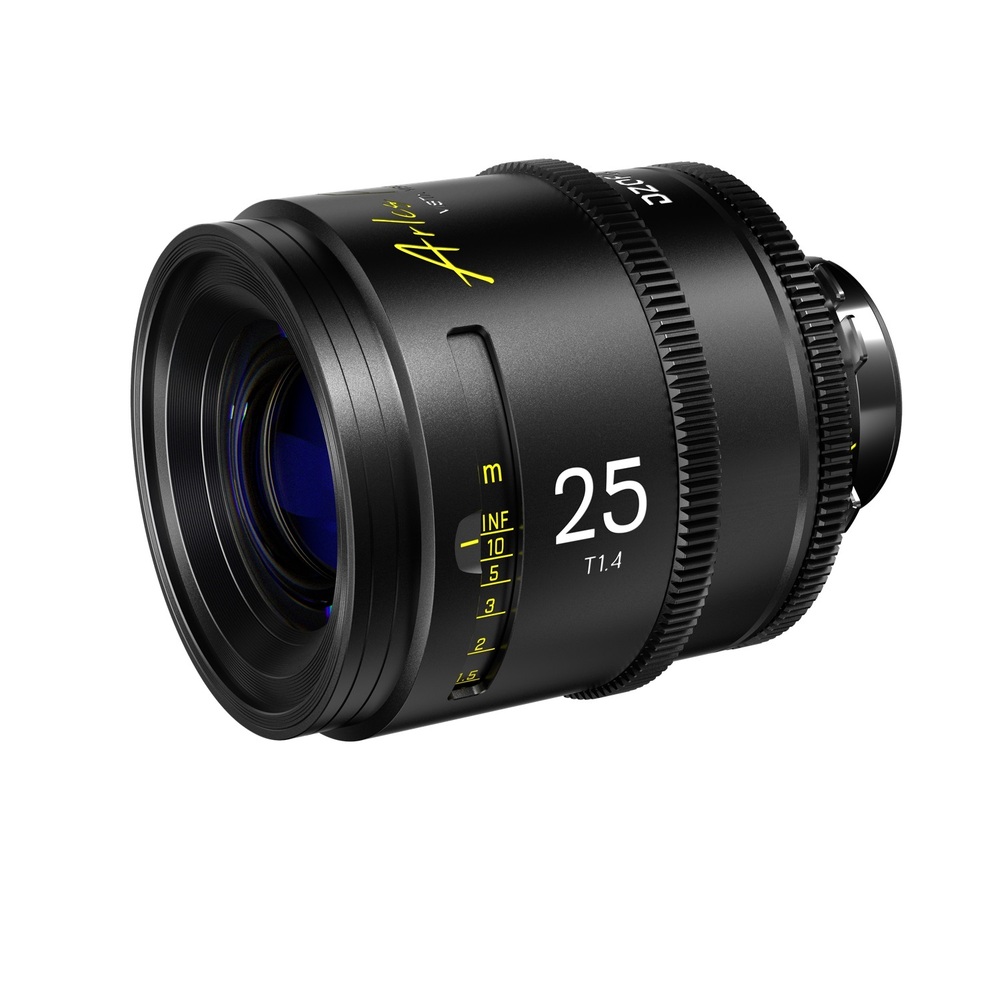

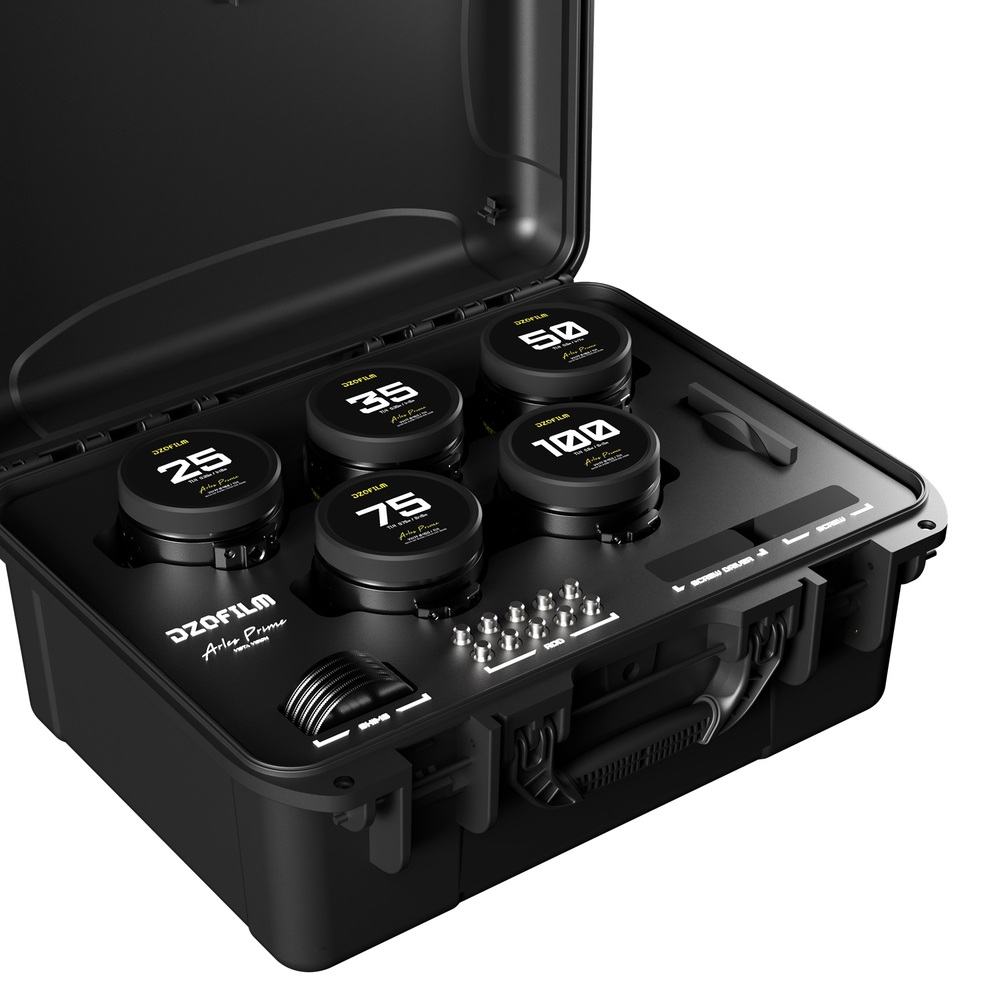

DZOFilm Arles 5 Fullframe Lens Kit (meter)
25/35/50/75/100mm
Features
- 25, 35, 50, 75, and 100mm Lenses
- All Lenses Cover Full-Frame Format
- T1.4 to T22 Aperture Range
- 16-Blade Iris, M86 Filter Thread
Specs
Focal Length |
25mm |
Maximum Aperture |
T1.4 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Filter Thread |
86 mm |
Image Stabilization |
No |
Maximum Aperture |
T1.4 |
Minimum Aperture |
T22 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Image Circle |
46.5 mm |
Angle of View |
Full Frame |
Focus Scales |
metric |
Optical Design |
14 Elements in 12 Groups |
Filter Thread |
86 mm |
Minimum Focus Distance |
From Camera Sensor: 13.78" / 0.35 m |
Diaphragm Blades |
16 |
Image Stabilization |
No |
Gear Standard |
Focus: 0.8 MOD |
Gear Rotation |
Focus 270° (Manual Only) |
Diameter |
3.7" / 95 mm |
Length |
4.8" / 121 mm |
Weight |
3.3 lb / 1490 g |
DZOFilm Arles 35mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs
Key Specs
Focal Length |
35mm |
Maximum Aperture |
T1.4 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Filter Thread |
86 mm |
Image Stabilization |
No |
Maximum Aperture |
T1.4 |
Minimum Aperture |
T22 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Image Circle |
46.5 mm |
Angle of View |
Full Frame |
Focus Scales | metric |
Optical Design |
14 Elements in 12 Groups |
Filter Thread |
86 mm |
Minimum Focus Distance |
From Camera Sensor: 13.78" / 0.35 m |
Diaphragm Blades |
16 |
Image Stabilization |
No |
Gear Standard |
Focus: 0.8 MOD |
Gear Rotation |
Focus 270° (Manual Only) |
Coatings |
Multi-Coating |
Environmental Protection |
No |
Diameter |
3.7" / 95 mm |
Length |
4.8" / 121 mm |
Weight |
3.6 lb / 1650 g |
Packaging Info
Package Weight |
5.73 lb |
Box Dimensions (LxWxH) |
12.9 x 7 x 6.9" |
DZOFilm Arles 50mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs
Key Specs
Focal Length |
50mm |
Maximum Aperture |
T1.4 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Filter Thread |
86 mm |
Image Stabilization |
No |
Maximum Aperture |
T1.4 |
Minimum Aperture |
T22 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Image Circle |
46.5 mm |
Angle of View |
Full Frame |
Focus Scales | metric |
Optical Design |
13 Elements in 9 Groups |
Filter Thread |
86 mm |
Minimum Focus Distance |
From Camera Sensor: 19.7" / 0.5 m |
Diaphragm Blades |
16 |
Image Stabilization |
No |
Gear Standard |
Focus: 0.8 MOD |
Gear Rotation |
Focus 270° (Manual Only) |
Coatings |
Multi-Coating |
Environmental Protection |
No |
Diameter |
3.7" / 95 mm |
Length |
4.8" / 121 mm |
Weight |
3.7 lb / 1688 g |
Packaging Info
Package Weight |
5.875 lb |
Box Dimensions (LxWxH) |
12.9 x 6.9 x 6.8" |

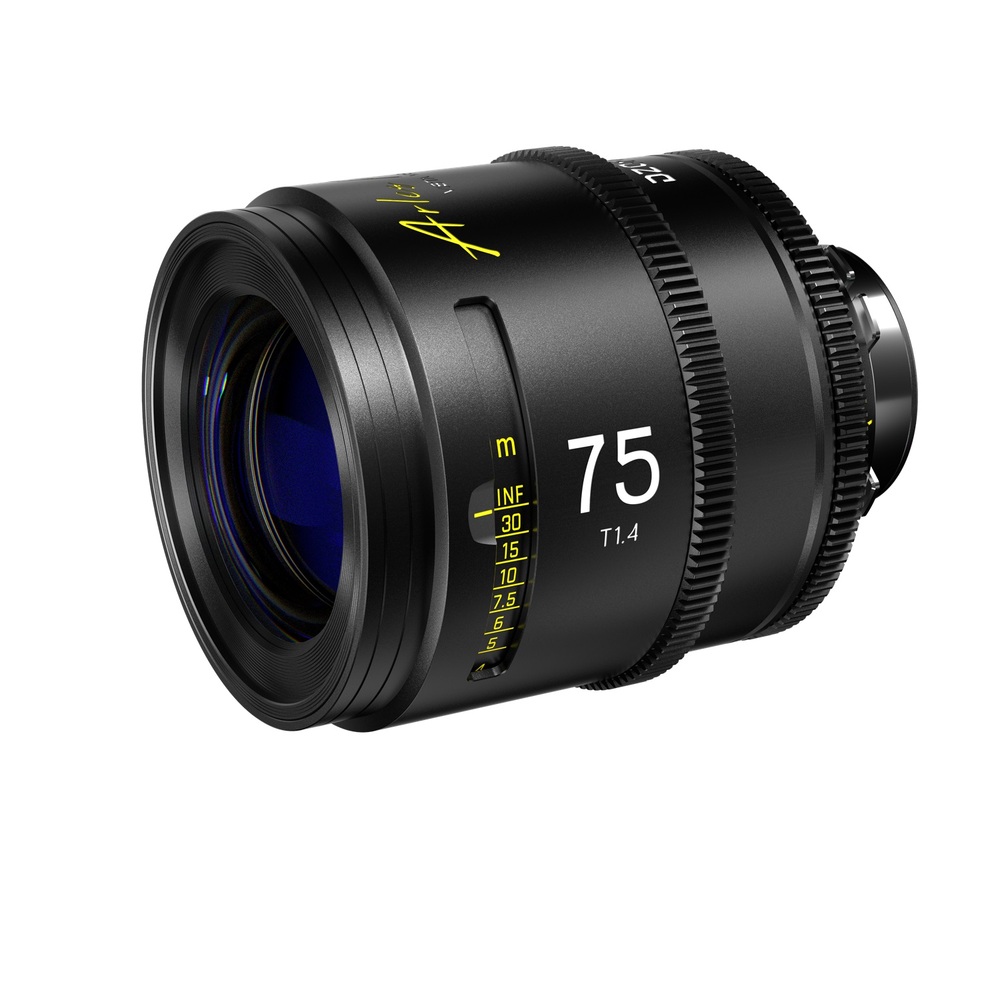

DZOFilm Arles 75mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs
Key Specs
Focal Length |
75mm |
Maximum Aperture |
T1.4 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Filter Thread |
86 mm |
Image Stabilization |
No |
Maximum Aperture |
T1.4 |
Minimum Aperture |
T22 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Image Circle |
46.5 mm |
Angle of View |
Full Frame |
Focus Scales | metric |
Optical Design |
13 Elements in 9 Groups |
Filter Thread |
86 mm |
Minimum Focus Distance |
From Camera Sensor: 2.46' / 0.75 m |
Diaphragm Blades |
16 |
Image Stabilization |
No |
Gear Standard |
Focus: 0.8 MOD |
Gear Rotation |
Focus 270° (Manual Only) |
Coatings |
Multi-Coating |
Environmental Protection |
No |
Diameter |
3.7" / 95 mm |
Length |
4.8" / 121 mm |
Weight |
3.7 lb / 1662 g |
Packaging Info
Package Weight |
5.795 lb |
Box Dimensions (LxWxH) |
12.9 x 6.7 x 6.6" |

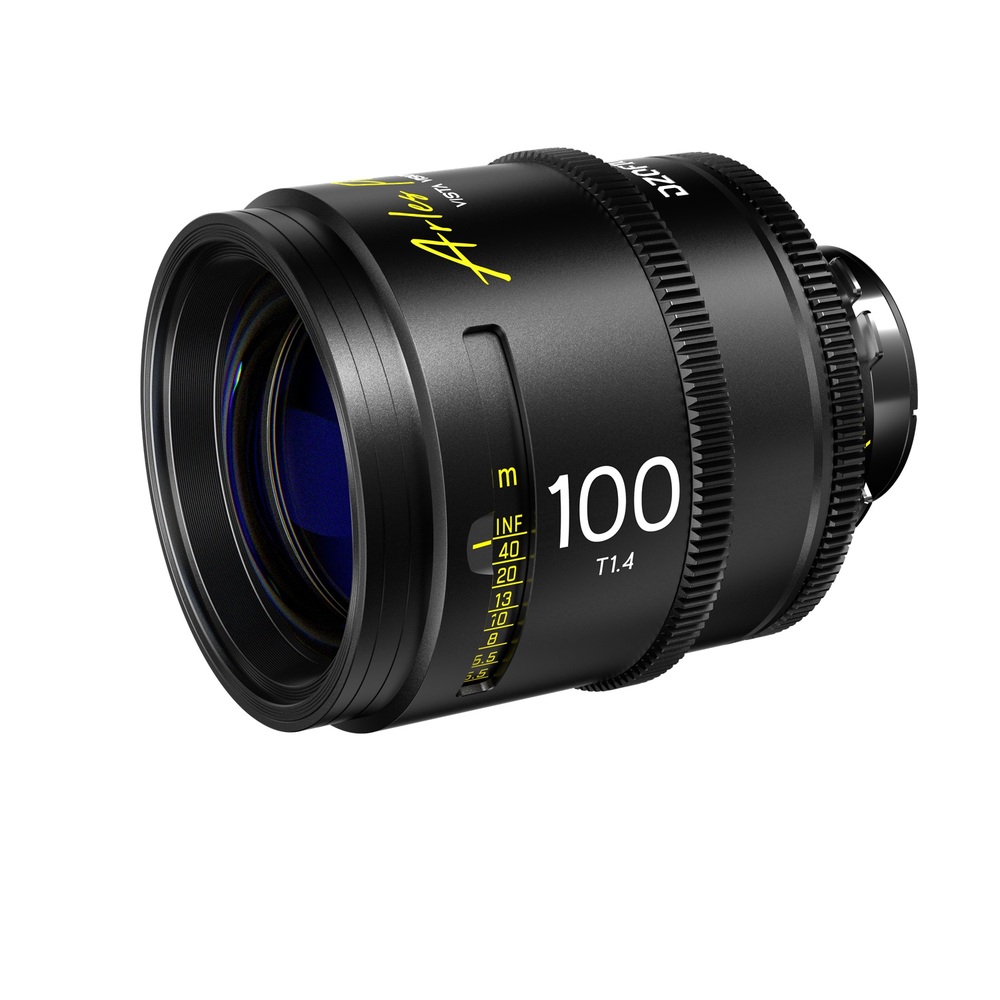

DZOFilm Arles 100mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs
Key Specs
Focal Length |
100mm |
Maximum Aperture |
T1.4 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Filter Thread |
86 mm |
Image Stabilization |
No |
Maximum Aperture |
T1.4 |
Minimum Aperture |
T22 |
Lens Mount |
ARRI PL |
Lens Format Coverage |
Full Frame |
Image Circle |
46.5 mm |
Angle of View |
Full Frame |
Focus Scales | metric |
Optical Design |
13 Elements in 8 Groups |
Filter Thread |
86 mm |
Minimum Focus Distance |
From Camera Sensor: 3.0' / 0.9 m |
Diaphragm Blades |
16 |
Image Stabilization |
No |
Gear Standard |
Focus: 0.8 MOD |
Gear Rotation |
Focus 270° (Manual Only) |
Coatings |
Multi-Coating |
Environmental Protection |
No |
Diameter |
3.7" / 95 mm |
Length |
4.8" / 121 mm |
Weight |
4 lb / 1830 g |
(DZO-SAP5A25MPL)
SKU | DZO-SAP5A25MPL |
Barcode # | 6970604943130 |
Brand | DZOFILM |
Shipping Weight | 10.0000kg |
Shipping Width | 0.350m |
Shipping Height | 0.250m |
Shipping Length | 0.500m |
Shipping Cubic | 0.043750000m3 |
