DZOFilm Arles FF/VV Prime Cine 5-Lens Set B (meter)

Features

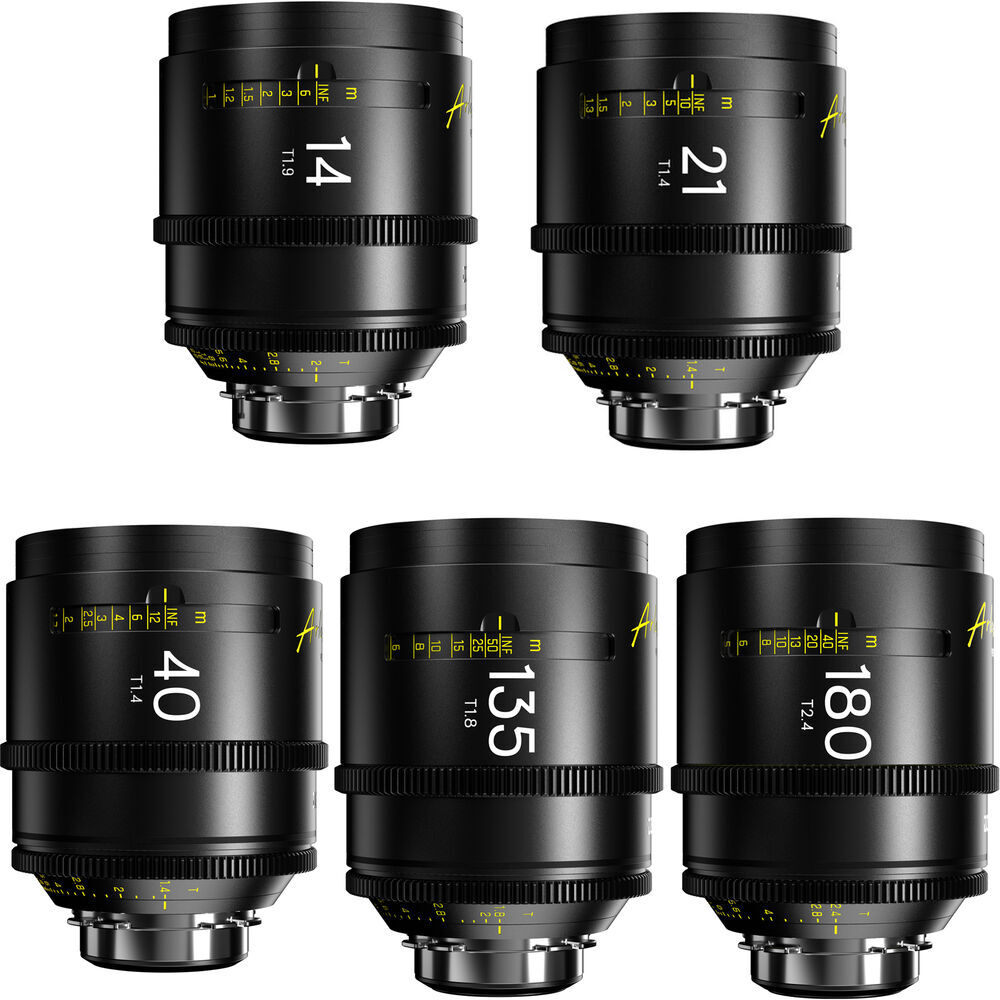

• 14, 21, 40, 135, and 180mm Lenses
• All Lenses Cover Full-Frame Format
• T1.4 to T22 Aperture Range
• 16-Blade Iris, M86 Filter Thread
• 95mm Front Diameter
• Cinema-Standard Gearing

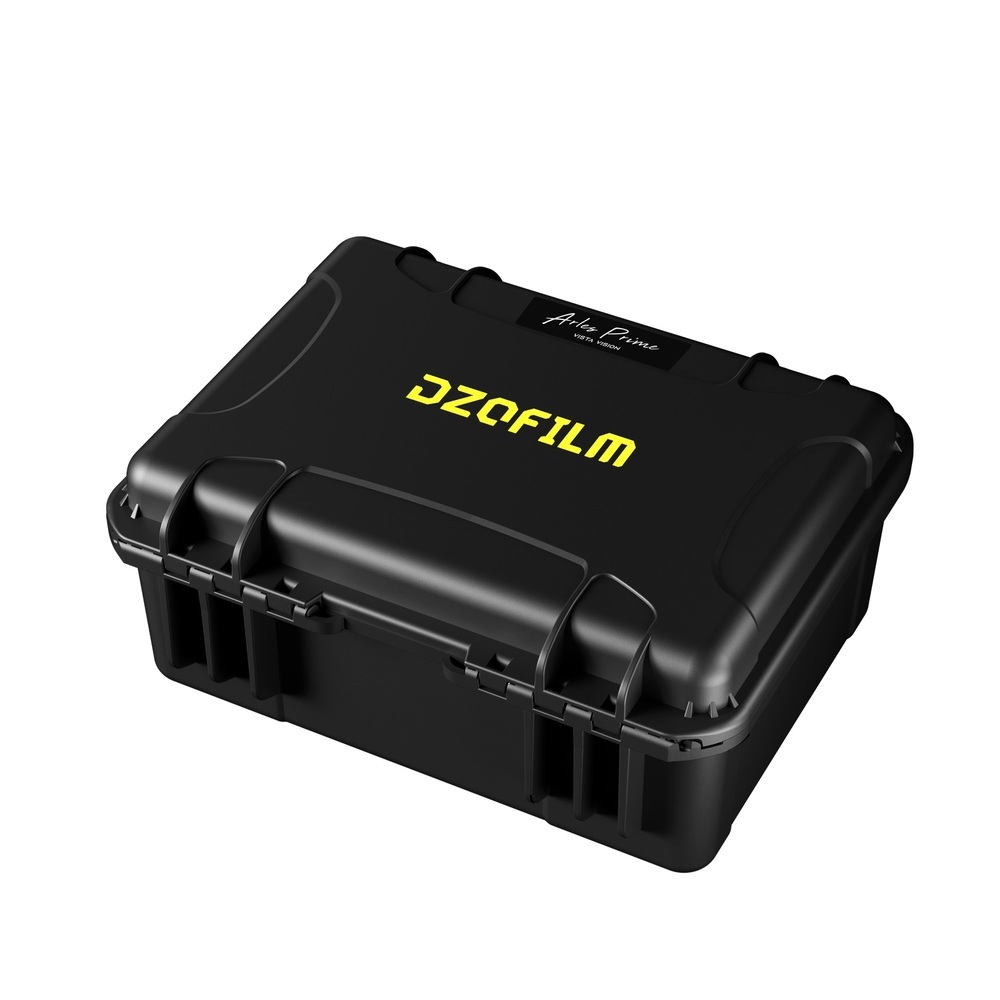

• Includes Lens Case

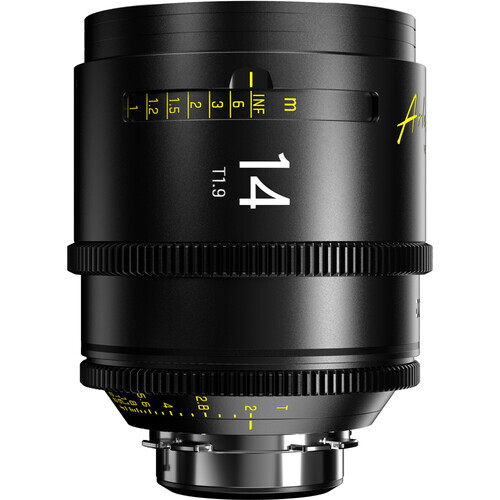

DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens (ARRI PL)

Cinematic, Painterly Look
Equip your full-frame ARRI PL-mount camera with the DZOFilm Arles 14mm T1.9 FF/VV Prime Cine Lens to capture sharp, natural imagery consistently. With an aperture range from T1.9 to T22, this 14mm prime lens excels in low-light environments and delivers an attractive shallow depth of field. Its 16-blade iris and optical construction, composed of multiple grouped elements, produce soft, natural bokeh, enriching your visuals. The focus ring rotates 270°, and the iris ring 77°, allowing for intuitive manual adjustments.

Large-Format Coverage
The Arles series lenses feature a 50mm image circle, making them compatible with large-format camera sensors.

Painterly Rendering
At maximum aperture, the Arles lenses offer a soft, lower-contrast look with slightly swirling peripheral bokeh.

Minimal Breathing and Aberration
Floating elements reduce focus-breathing, while the use of aspherical elements enhances low-light performance. Low-dispersion optical materials are employed to minimize chromatic aberration.

Interchangeable PL Mount
This ARRI PL-mount lens can be adapted to a Canon EF mount (sold separately), expanding compatibility to a range of cine-style, mirrorless, and DSLR cameras.

Consistency across Series
Each Arles lens features a 95mm outer diameter and M86 filter thread, allowing for seamless integration with matte boxes or filters. With standardized cine-style designs and 0.8 MOD focus and aperture gears across the series, switching between focal lengths is fast and efficient.

---

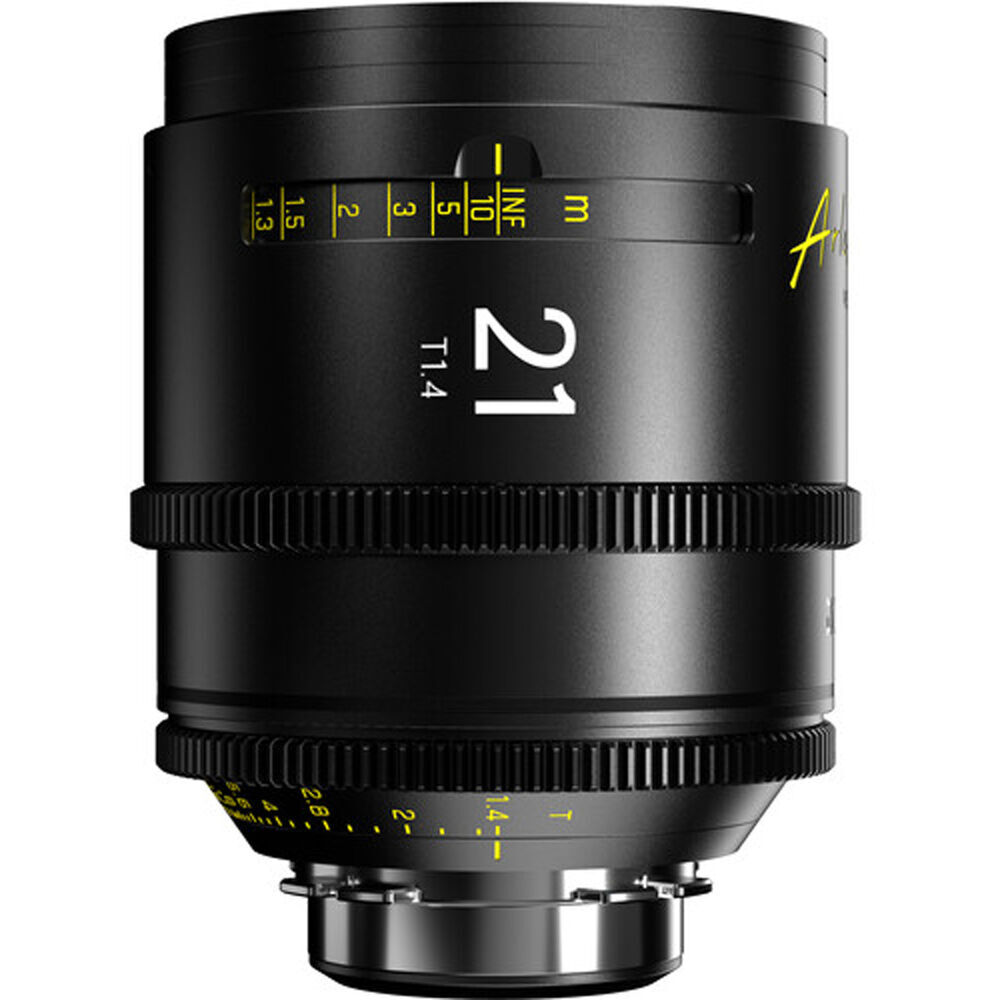

DZOFilm Arles 21mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Cinematic, Painterly Look
Capture consistently sharp, natural-looking images with the DZOFilm Arles 21mm T1.4 FF/VV Prime Cine Lens for ARRI PL-mount cameras. The fast T1.4 aperture delivers outstanding low-light performance and beautifully shallow depth of field. The 16-blade iris and precisely arranged optical elements create smooth, natural bokeh. The focus ring rotates 270°, and the iris ring 77°, facilitating smooth manual adjustments.

Large-Format Coverage
The Arles series lenses offer a 50mm image circle, making them suitable for large-format camera sensors.

Painterly Rendering
At maximum aperture, the Arles lenses deliver a soft, low-contrast look with swirling peripheral bokeh.

Minimal Breathing and Aberration
Floating elements reduce breathing during focus shifts. Aspherical elements and low-dispersion optical materials reduce chromatic aberration and improve low-light performance.

Interchangeable PL Mount
The PL mount can be swapped with an optional Canon EF mount, enhancing compatibility with various cameras.

Consistency across Series
With a 95mm outer diameter and M86 filter thread, the Arles lenses allow for easy integration with matte boxes and filters. The uniform design of focus and aperture gears across the series ensures hassle-free transitions between focal lengths.

---

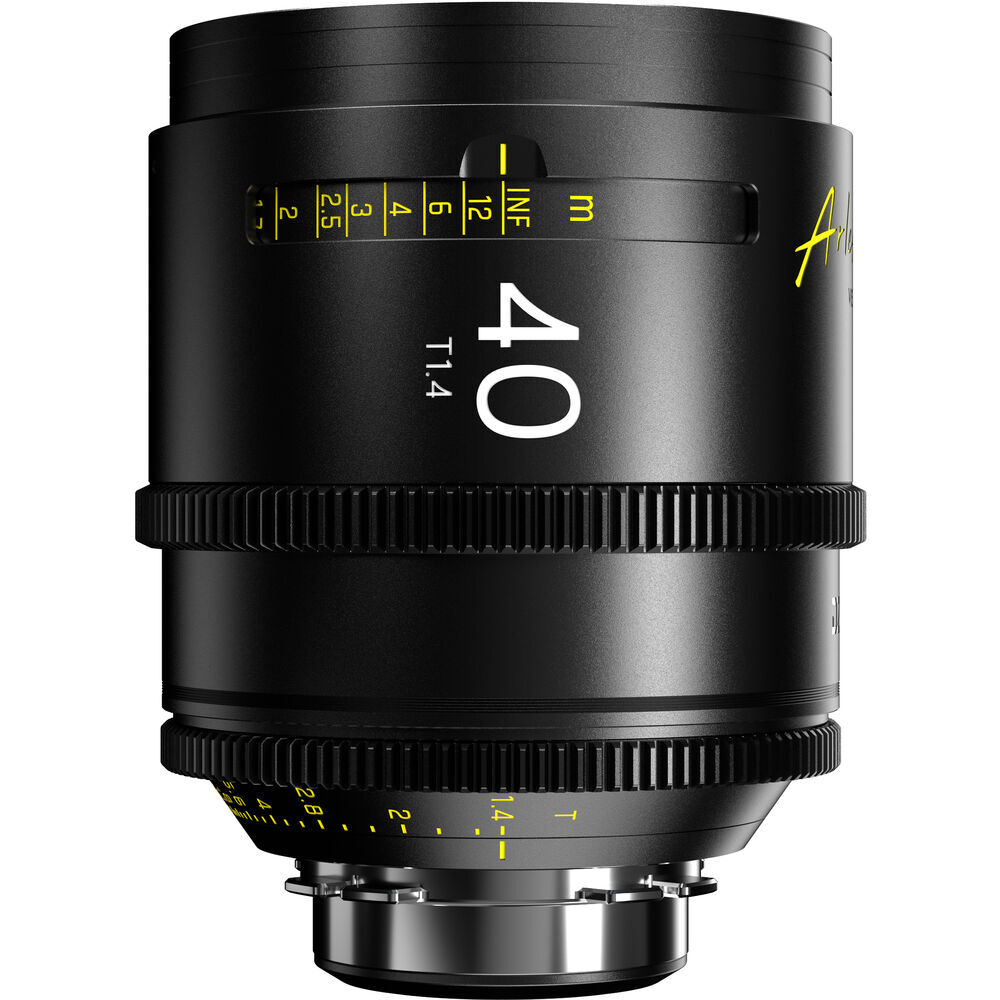

DZOFilm Arles 40mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Cinematic, Painterly Look
The DZOFilm Arles 40mm T1.4 FF/VV Prime Cine Lens delivers stunningly sharp and natural-looking imagery for full-frame ARRI PL-mount cameras. With its wide T1.4 aperture, this lens provides exceptional low-light capabilities and captivating shallow depth of field. The 16-blade iris and sophisticated optical design enhance bokeh quality. The focus ring rotates 270°, and the iris ring rotates 77°, ensuring precise manual control.

Large-Format Coverage
Featuring a 50mm image circle, this lens is optimized for large-format camera sensors.

Painterly Rendering
When used at wide apertures, the lens provides a soft, lower-contrast look with a characteristic swirling bokeh.

Minimal Breathing and Aberration
The lens features floating elements to minimize breathing and aspherical elements for superior low-light performance. Its low-dispersion optical materials reduce chromatic aberration.

Interchangeable PL Mount
This lens features an ARRI PL-mount that can be switched out for a Canon EF mount (sold separately), making it versatile for various camera types.

Consistency across Series
With a 95mm outer diameter and M86 filter thread, the Arles lenses integrate easily with different matte boxes and filters. Standardized 0.8 MOD focus and aperture gears across the range allow quick lens swaps.

---

DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Cinematic, Painterly Look
Equip your full-frame ARRI PL-mount camera with the DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens to capture consistently sharp and natural-looking images. The fast T1.4 aperture enables excellent low-light performance and dramatic shallow depth of field. Its 16-blade iris and multi-element optical construction ensure smooth, natural bokeh. The focus ring rotates 270°, while the iris ring offers a 77° rotation, providing precise manual control.

Large-Format Coverage
This lens has a 50mm image circle, ensuring compatibility with large-format camera sensors.

Painterly Rendering
Maximize the aperture for a soft, low-contrast image with slightly swirling peripheral bokeh.

Minimal Breathing and Aberration
The lens includes floating elements that minimize breathing during focus shifts, along with aspherical elements to improve low-light performance and reduce chromatic aberration.

Interchangeable PL Mount
This PL-mount lens can be converted to a Canon EF mount (sold separately) to suit a variety of cameras.

Consistency across Series
With a 95mm outer diameter and M86 filter thread, the lens is easily adaptable with various matte boxes and filters. The standardized cine-style design with 0.8 MOD gears ensures consistency across the Arles series.

---

DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL)

Cinematic, Painterly Look
The DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens delivers crisp, natural-looking imagery for full-frame ARRI PL-mount cameras. With its fast T1.4 aperture, this lens performs exceptionally well in low light and provides a beautifully shallow depth of field. A 16-blade iris and multiple optical elements create smooth, natural bokeh. The focus ring rotates 270°, while the iris ring rotates 77° for precise manual adjustments.

Large-Format Coverage
The lens offers a 50mm image circle, supporting large-format camera sensors.

Painterly Rendering
Using the lens at maximum aperture results in a soft, low-contrast look with slightly swirling bokeh at the edges.

Minimal Breathing and Aberration
Floating elements minimize breathing during focus shifts, and aspherical elements improve low-light capture while reducing chromatic aberration.

Interchangeable PL Mount
The PL mount can be swapped for an EF mount (sold separately), providing compatibility with various camera systems.

Consistency across Series
Each Arles lens shares the same 95mm outer diameter and M86 filter thread, making it easy to use different filters or matte boxes. Consistent cine-style 0.8 MOD gears allow for smooth transitions between lenses in the Arles series.

Specs

Focal Length	14mm
Maximum Aperture	T1.9
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No

Maximum Aperture	T1.9
Minimum Aperture	T22
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Angle of View	Not Specified by Manufacturer
Focus Scales	Metric
Optical Design	14 Elements in 12 Groups
Filter Thread	86 mm
Diaphragm Blades	16
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus: 270° (Manual Only) Iris: 77° (Manual Only)
Coatings	Multi-Coating
Diameter	3.7" / 95 mm
Length	Not Specified by Manufacturer

DZOFilm Arles 21mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs

Key Specs

Focal Length	21mm
Maximum Aperture	T1.4
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T1.4
Minimum Aperture	T22
Lens Mount	ARRI PL
Interchangeable Mount	Yes
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Focus Scales	Metric
Filter Thread	86 mm
Diaphragm Blades	16
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus: 270° (Manual Only) Iris: 77° (Manual Only)
Electronic Communication	No
Coatings	Multi-Coating
Diameter	3.7" / 95 mm

DZOFilm Arles 40mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs

Key Specs

Focal Length	40mm
Maximum Aperture	T1.4
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T1.4
Minimum Aperture	T22
Lens Mount	ARRI PL
Interchangeable Mount	Yes
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Focus Scales	Metric
Filter Thread	86 mm
Diaphragm Blades	16
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus: 270° (Manual Only) Iris: 77° (Manual Only)
Electronic Communication	No
Diameter	3.7" / 95 mm

DZOFilm Arles 135mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs

Key Specs

Focal Length	135mm
Maximum Aperture	T1.4
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No

Maximum Aperture	T1.4
Minimum Aperture	T22
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Focus Scales	Metric
Optical Design	14 Elements in 12 Groups
Filter Thread	86 mm
Diaphragm Blades	16
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus: 270° (Manual Only) Iris: 77° (Manual Only)
Coatings	Multi-Coating
Diameter	3.7" / 95 mm

DZOFilm Arles 180mm T1.4 FF/VV Prime Cine Lens (ARRI PL) Specs

Key Specs

Focal Length	180mm
Maximum Aperture	T1.4
Lens Mount	ARRI PL
Lens Format Coverage	Full Frame
Filter Thread	86 mm
Image Stabilization	No
Electronic Communication	No

Maximum Aperture	T1.4
Minimum Aperture	T22
Lens Mount	ARRI PL
Interchangeable Mount	Yes
Lens Format Coverage	Full Frame
Image Circle	46.5 mm
Focus Scales	Metric
Filter Thread	86 mm
Image Stabilization	No
Gear Standard	Focus: 0.8 MOD Iris: 0.8 MOD
Gear Rotation	Focus: 270° (Manual Only) Iris: 77° (Manual Only)
Electronic Communication	No
Coatings	Multi-Coating
Diameter	Front: 3.7" / 95 mm

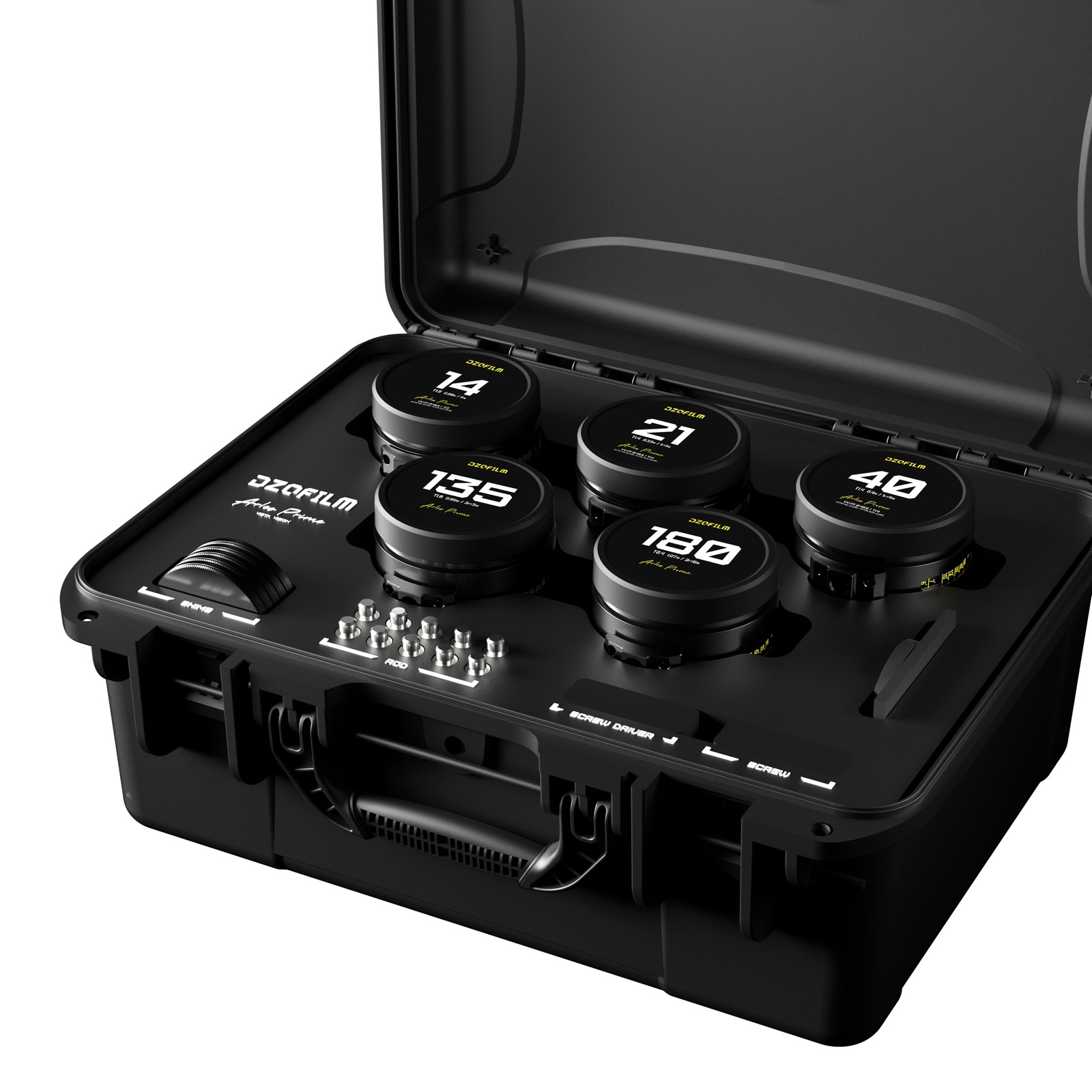

Content List:

1 x DZOFilm Arles FF/VV 14mm Cinematic Lens with PL Mount

1 x DZOFilm Arles FF/VV 21mm Cinematic Lens with PL Mount

1 x DZOFilm Arles FF/VV 40mm Cinematic Lens with PL Mount

1 x DZOFilm Arles FF/VV 135mm Cinematic Lens with PL Mount

1 x DZOFilm Arles FF/VV 180mm Cinematic Lens with PL Mount

5 x Front Caps

5 x Set Shims

10 x Stand Rods
