DZOFilm Catta Ace 35-80mm T2.9 Cine Zoom Lens (Black)

$5,595.00


Lens Mount Type





Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Add a cinema zoom lens to your documentary, broadcast, or online production kit with this white Catta Ace 35-80mm T2.9 PL-Mount Cine Zoom Lens from DZOFilm. The cine lens is designed to maintain focus as you smoothly zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 29.1" close focus range.

True to its cine design, it has a focus rotation of 240°, a 100° zoom rotation range, and a 75° iris rotation range. The lens features a PL mount, and an EF mount bayonet is included to change out with the included screws and shim kit. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, and a support rod.

Key Features

  • Maintains focus throughout 35 to 80mm zoom range
  • Minimal breathing
  • 16-blade iris with a soft bokeh
  • T2.9 to T22 aperture; 2.3x magnification ratio
  • 240° focus rotation; 100° zoom rotation; 75° iris rotation
  • 29.1" minimum focus distance
  • 80mm front diameter
  • 0.8 MOD gears
Focal Length 35 to 80mm
Lens Mount ARRI PL Or Canon EF
Format Full Frame
Image Circle 46.5 mm
Maximum Aperture T2.9
Minimum Aperture T22
Minimum Focus Distance From Unspecified Point in Lens: 29.5" / 75 cm
Optical Design 20 Elements in 15 Groups
Diaphragm Blades 16
Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch
Front Diameter 80 mm
Filter Thread 77 mm
Focus Scales Imperial
Focus Rotation 240°
Iris Rotation 75°
Zoom Rotation 100°
Zoom Ratio 2.3x
Electronic Communication No
Image Stabilization No
Weight 3.4 lb / 1532 g

Content List:

1 x DZOFilm Catta Zoom PL mount lens

1 x Front Lens Cap

1 x Rear Lens Cap

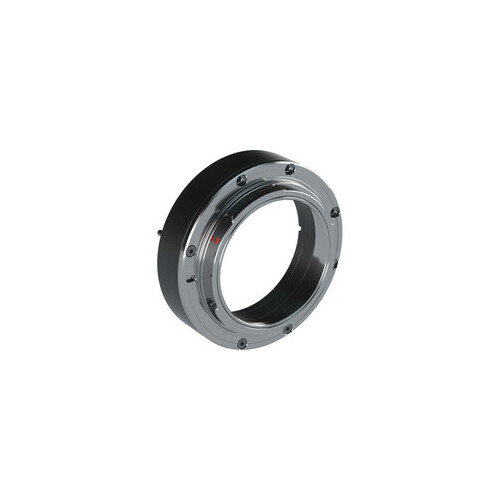

1 x EF bayonet

1 x EF Rear cap

1 x Shim Set

1 x Support Base

1 x Support Rod

(432184)

SKU 432184
Barcode # 842463108226
Brand DZOFILM
Shipping Weight 2.0000kg
Shipping Width 0.500m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.020000000m3
