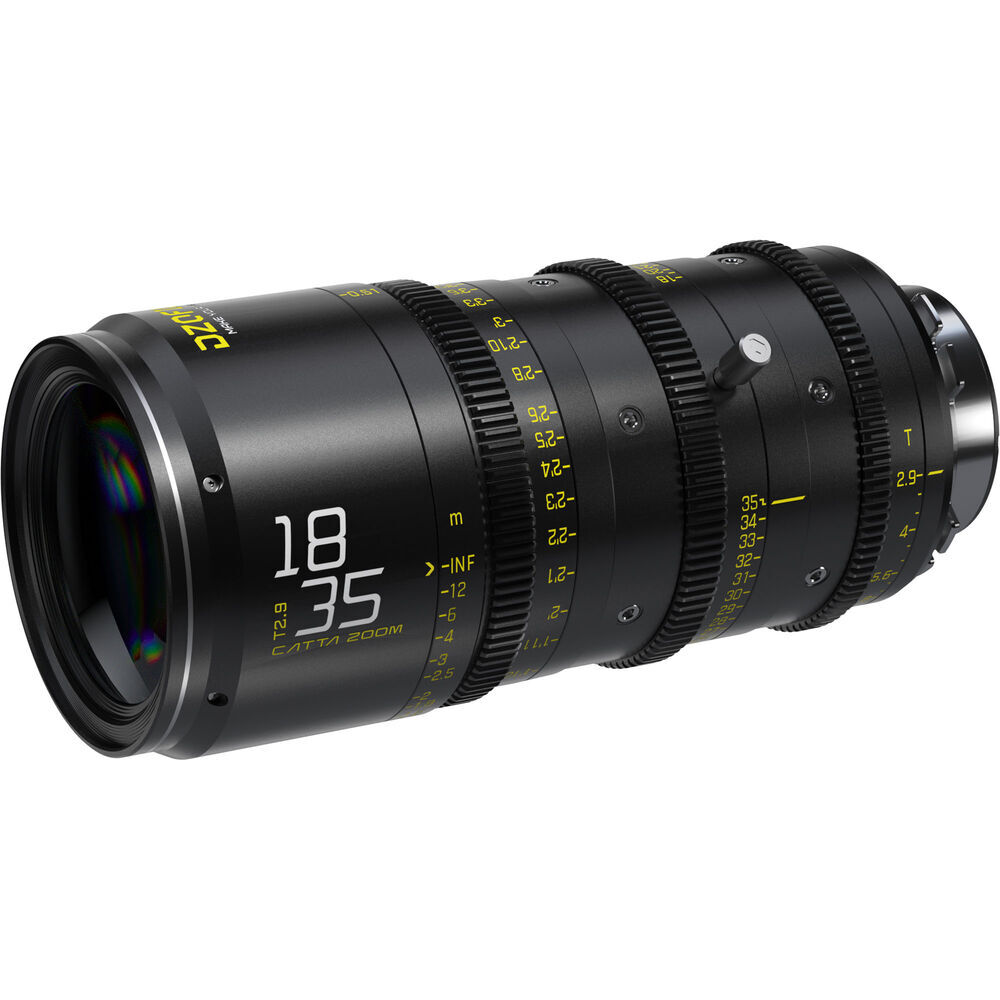

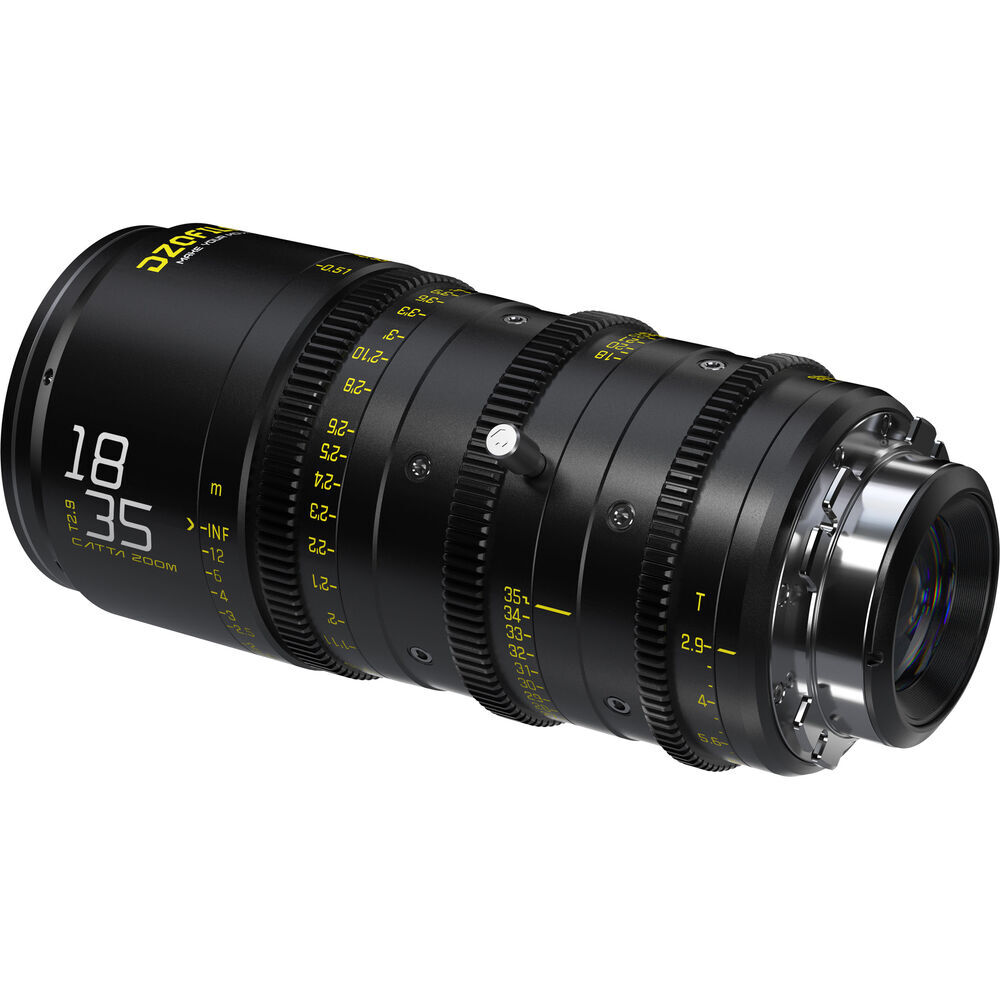

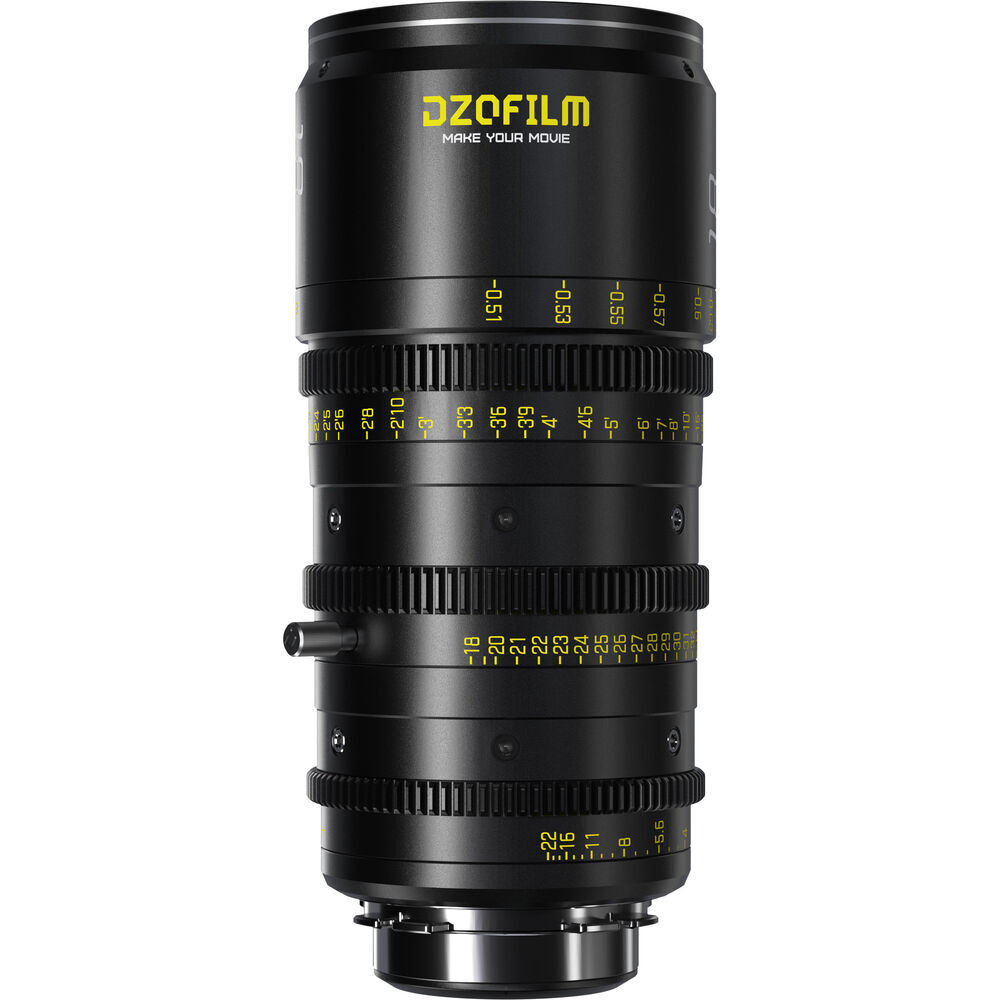

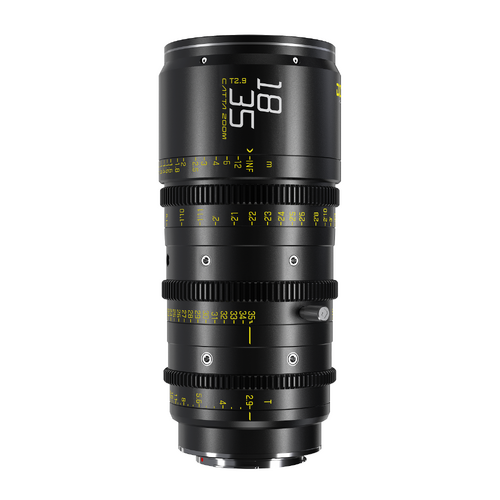

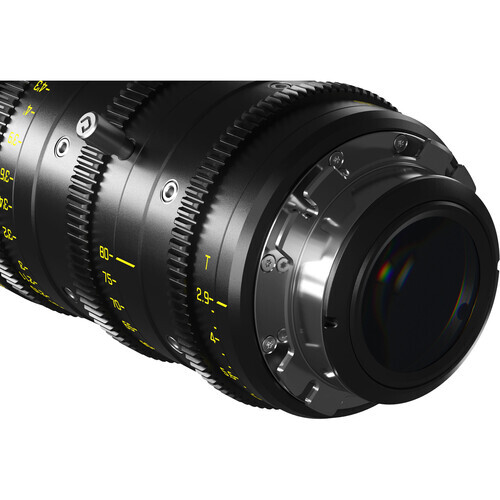

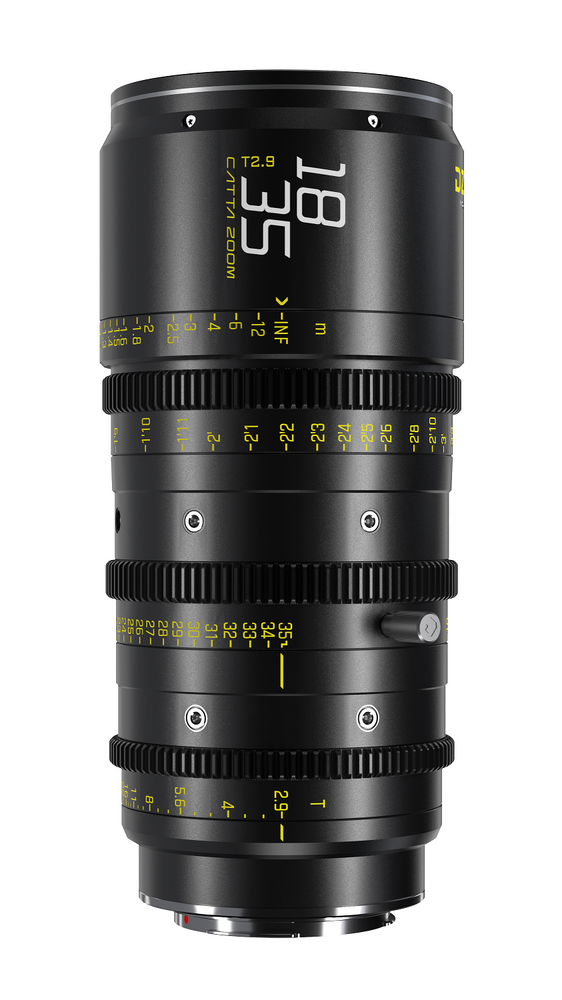

DZOFilm Catta Ace FF 18-35mm T2.9 Cine Zoom Lens (Black)
Add a cinema zoom lens to your documentary, broadcast, or online production kit with this white Catta Ace FF 18-35mm T2.9 Cine Zoom Lens from DZOFilm. The cine lens is designed to maintain focus as you smoothly zoom in or out. The Catta line reproduces accurate color and features a smooth focus/defocus transition. It features a wide T2.9 to T22 aperture, a 16-blade iris for a smooth bokeh, and a long 20.1" close focus range.
True to its cine design, it has a focus rotation of 210°, a 100° zoom rotation range, and a 77° iris rotation range. The lens features a PL mount, and an EF mount bayonet is included to change out with the included screws and shim kit. Multiple accessories are included with the lens, including front and rear lens caps, a shim set, a support base, and a support rod.
Key Features
- Maintains Focus Throughout Zoom Range
- Natural Color Rendering
- Consistent T2.9 to T22 Aperture
- Covers Full-Frame Sensors
- 16-Blade Iris for Soft Bokeh
- 20.1" Minimum Focus Distance
- Comes with EF Bayonet, Interchangeable
- 270° Focus Rotation
- 77mm Filter Diameter, 1.9x Magnification
- 80mm Front Diameter
Focal Length | 35 to 80mm |
Lens Mount | ARRI PL Or Canon EF |
Format | Full Frame |
Image Circle | 43.5 mm |
Maximum Aperture | T2.9 |
Minimum Aperture | T22 |
Minimum Focus Distance | From Unspecified Point in Lens: 29.5" / 75 cm |
Optical Design | 20 Elements in 14 Groups |
Diaphragm Blades | 16 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch Zoom: 0.8 MOD / 32 Pitch |
Front Diameter | 80 mm |
Filter Thread | 77 mm |
Focus Scales | Imperial |
Focus Rotation | 240° |
Iris Rotation | 75° |
Zoom Rotation | 100° |
Zoom Ratio | 1.9x |
Electronic Communication | No |
Image Stabilization | No |
Weight | 3.4 lb / 1532 g |
Content List:
1 x DZOFilm Catta Zoom PL mount lens
1 x Front Lens Cap
1 x Rear Lens Cap
1 x EF bayonet
1 x EF Rear cap
1 x Shim Set
1 x Support Base
1 x Support Rod
(DZO-FFA1835-BLK)
SKU | DZO-FFA1835-BLK |
Barcode # | 842463108226 |
Brand | DZOFILM |
Shipping Weight | 2.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
Shipping Cubic | 0.020000000m3 |
