DZOFilm PAVO T2.1 2x Anamorphic 32/55/100mm 3-Lens Set
Blue Coating with PL and EF Mount
Features
- Covers Super35 Format
- Interchangeable PL/EF Mount
- T2.1 Maximum Aperture
- Focus Marks in Feet
- EF Bayonet Included
2X Compression Factor for Authentic Anamorphic
The PAVO series comprises 28mm to 100mm focal lengths with a 2X compression ratio. This expansion of the cinematic scope allows for the inclusion of additional details, resulting in a more dramatic depth of field.
It achieves a genuine anamorphic look that immerses viewers in a visually spectacular world, while maintaining a harmonious and unified visual style across the entire series, making it the ideal choice for professional film production.
Unparalleled Compact Anamorphic
With its solid and lightweight design, the PAVO features a front diameter of only 95mm and weighs between 1.2 and 1.6 kg. This versatility allows for seamless integration with a range of filming accessories, such as gimbals, Steadicams, and drones.
Whether you're navigating handheld shots, shoulder-mounted rigs, vehicle-mounted setups, or aerial cinematography, PAVO offers the adaptability you need. Its precise construction and superior optical performance offer limitless creative possibilities for indie filmmakers and large-scale productions.
Revolutionary Close Focus
The PAVO series overcomes anamorphic limitations with a phenomenal minimum focus distance of 0.4m, perfect for capturing subtle facial expressions and using close-ups to create immersive and engaging visuals that resonate with viewers. This lens set is an ideal tool for filmmakers seeking to add depth and nuance to their storytelling.
Versatile Design,Flex Adaptation
PAVO lenses feature a built-in back-focus adjustment, enabling precise adjustments while the lens is mounted, streamlining operational processes. Additionally, these lenses can adapt to full-frame cinema cameras using the Marlin 1.6X Expander, broadening compatibility across various shooting scenarios and meeting the demands of professional film production.
PARAMETER
Focal Length | 28 mm | 32 mm | 40 mm | 55 mm | 75 mm | 100 mm |
Colour | Space Grey + Black | |||||
Flare Option | Neutral / Blue | |||||
Mount | PL / EF | |||||
Aperture | T2.1-T22 | T2.4-T22 | ||||
Image Circle | φ31.5mm(S35) | |||||
Construction Of Optics | 15 Elements in 13 Groups | 15 Elements in 14 Groups | 14 Elements in 13 Groups | 15 Elements in 14 Groups | 14 Elements in 13 Groups | |
Flange Distance | 52mm(PL)/44mm(EF) | |||||
Close Focus (From Sensor Plane) |
0.4m/1ft4in | 0.45m/1ft6in | 0.6m/2ft | 0.84m/2ft9in | 0.95m/3ft1in | |
Squeeze Factor | 2X | |||||
Iris Control | Manual(79°) | Manual(59°) | Manual(58°) | Manual(63°) | Manual(67°) | Manual(76°) |
Focus Control | Manual(270°) | |||||
Front Dia. | φ95mm/3.74" | |||||
Length (From Lens Front To Flange Plane) |
106.3mm/4.19" | 105.7mm/4.16" | 107.6mm/4.24" | 108.4mm/4.26" | 126.9mm/4.99" | 143.1mm/5.63" |
Iris Blade | 14 | 16 | ||||
Filter Size | M86 | |||||
Gear Pitch | 0.8 Mod | |||||
Material | Aluminum Alloy | |||||
Weight(Product) | ≈1203g | ≈1278g | ≈1300g | ≈1262g | ≈1466 | ≈1654g |

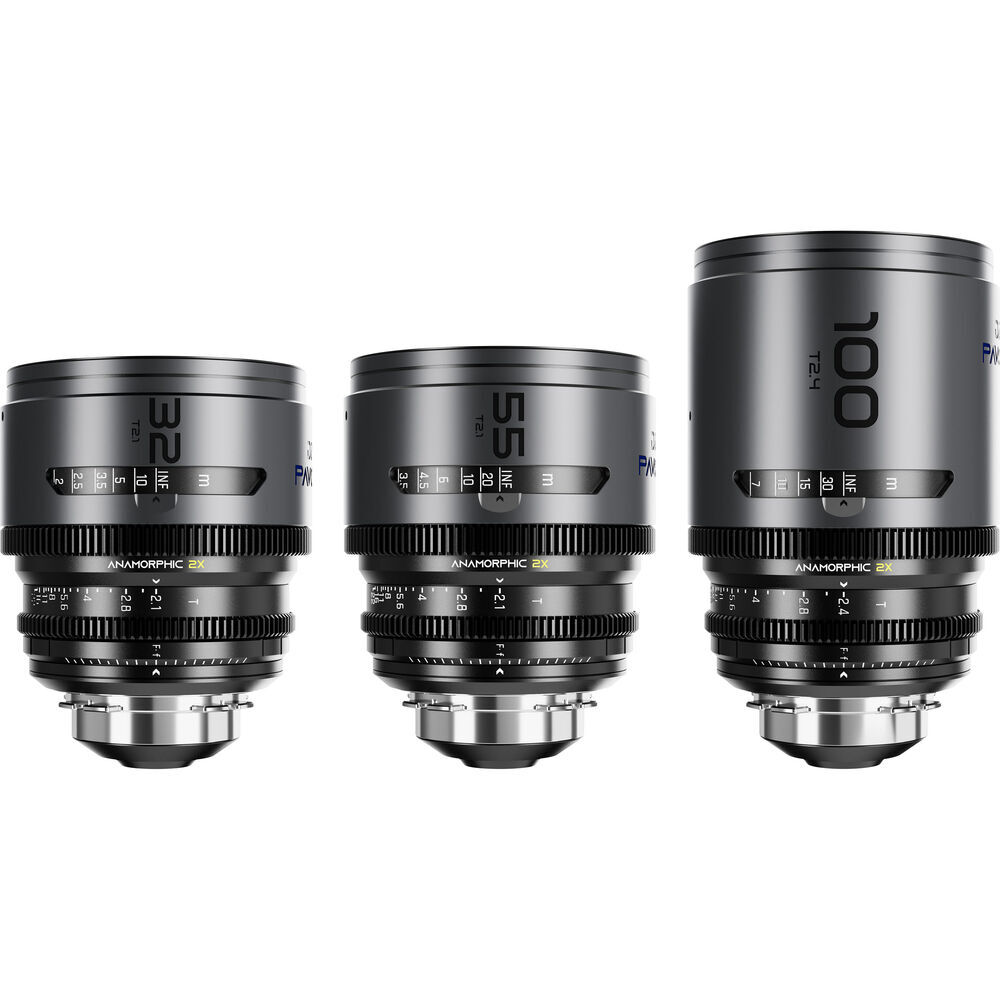

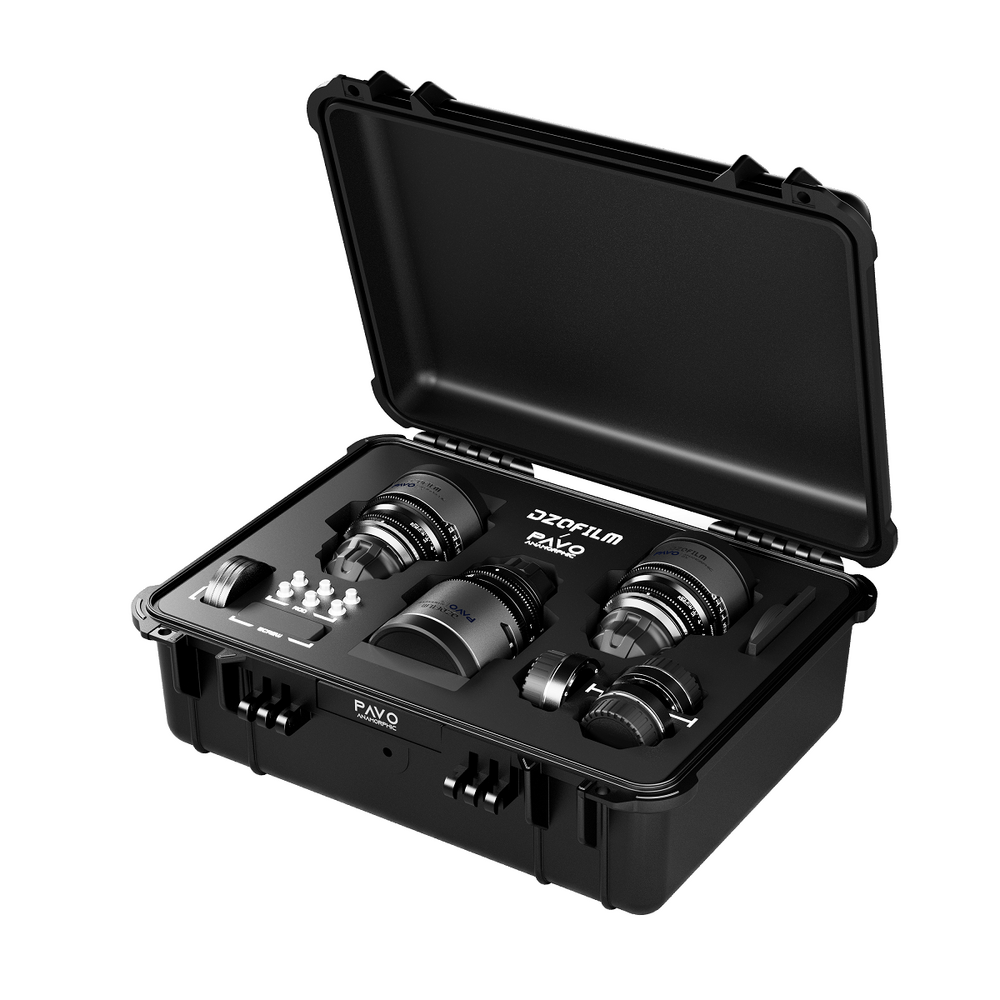

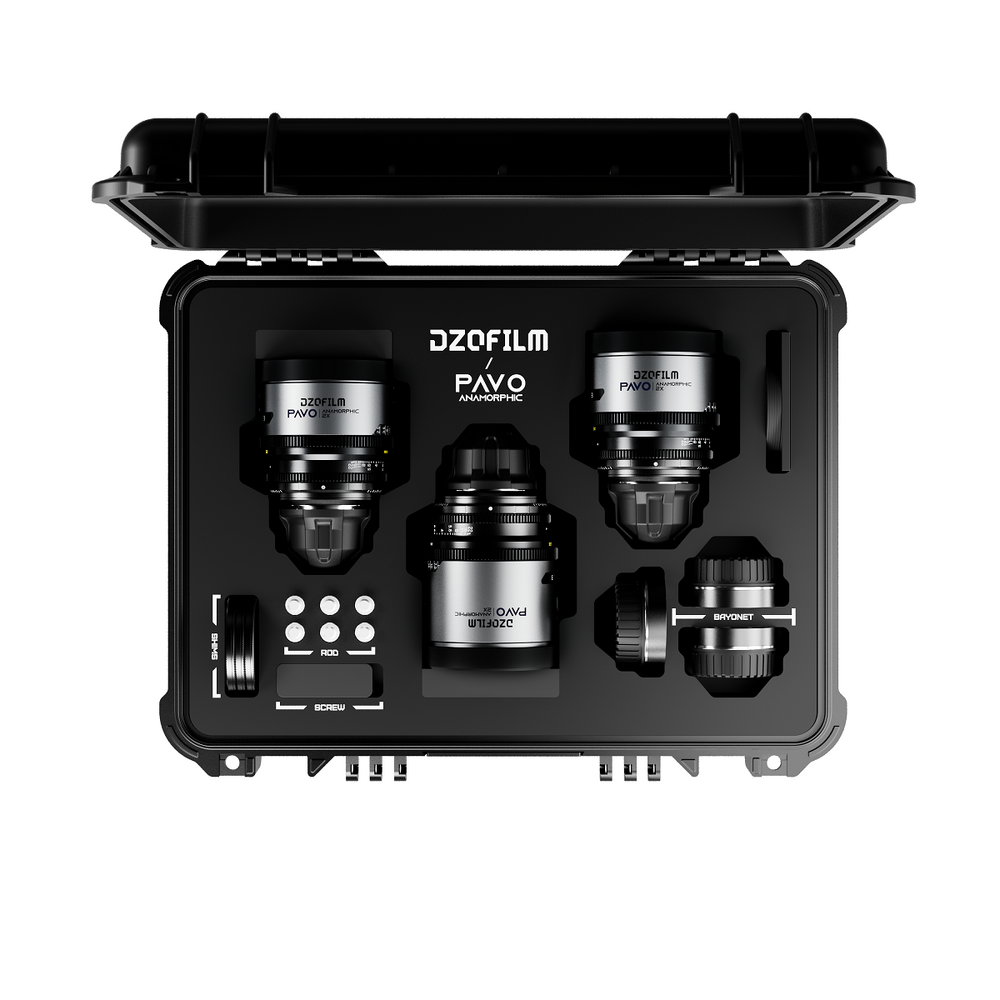

What's in the box:

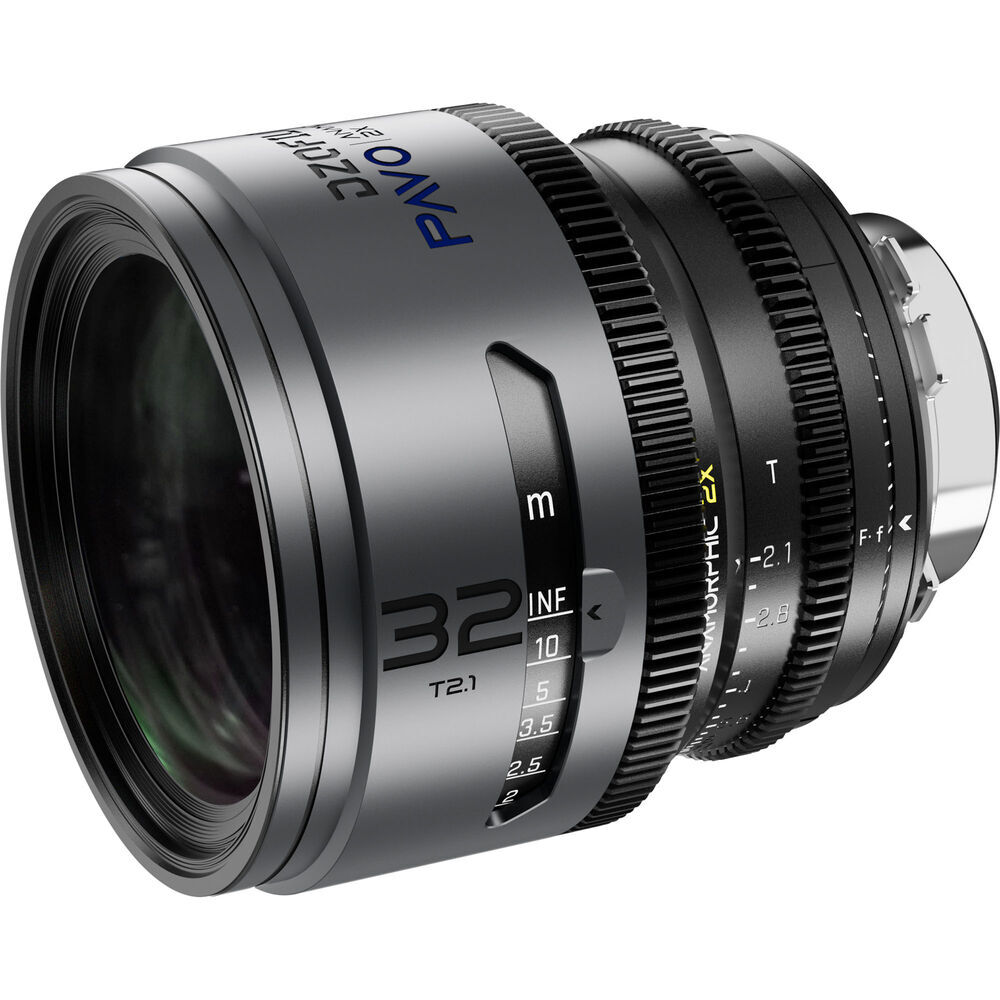

1 x DZOFilm Pavo 2x Anamorphic Prime 32mm T2.1-Blue Coating- PL mount

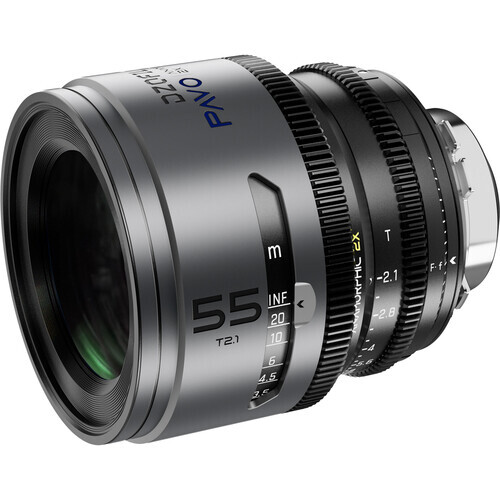

1 x DZOFilm Pavo 2x Anamorphic Prime 55mm T2.1-Blue Coating- PL mount

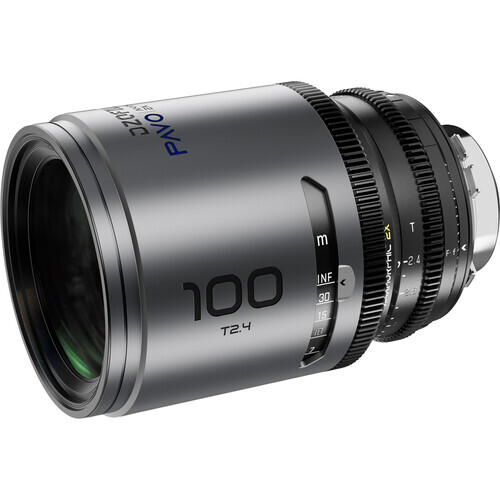

1 x DZOFilm Pavo 2x Anamorphic Prime 100mm T2.4-Blue Coating- PL mount
3 x Front Cap
3 x Rear Cap (PL)
3 x EF Bayonet
3 x Rear Cap (EF)
6 x Packet of Screws
3 x Set of Shims
3 x Screwdriver
Set of Stickers
(DZO-PAB3PLMB)
SKU | DZO-PAB3PLMB |
Brand | DZOFILM |
Shipping Weight | 12.0000kg |
Shipping Width | 0.650m |
Shipping Height | 0.250m |
Shipping Length | 0.520m |
Shipping Cubic | 0.084500000m3 |
