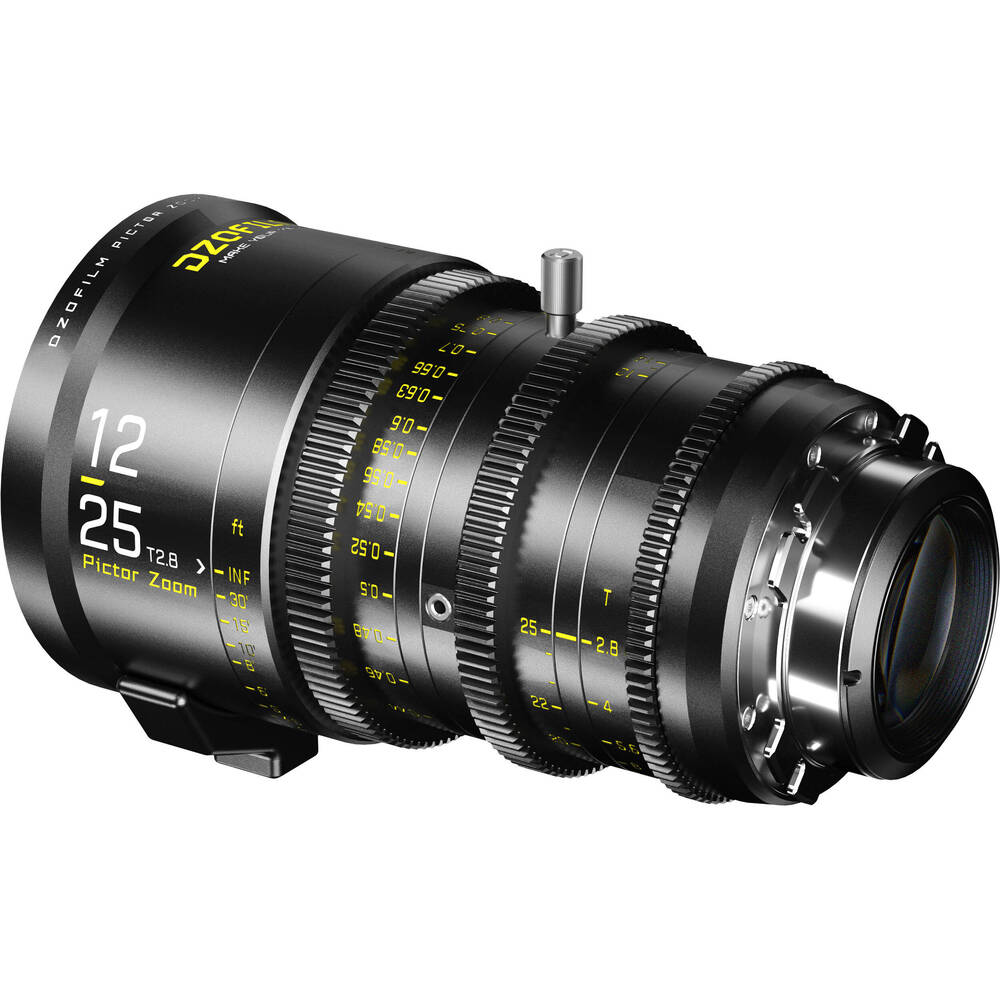

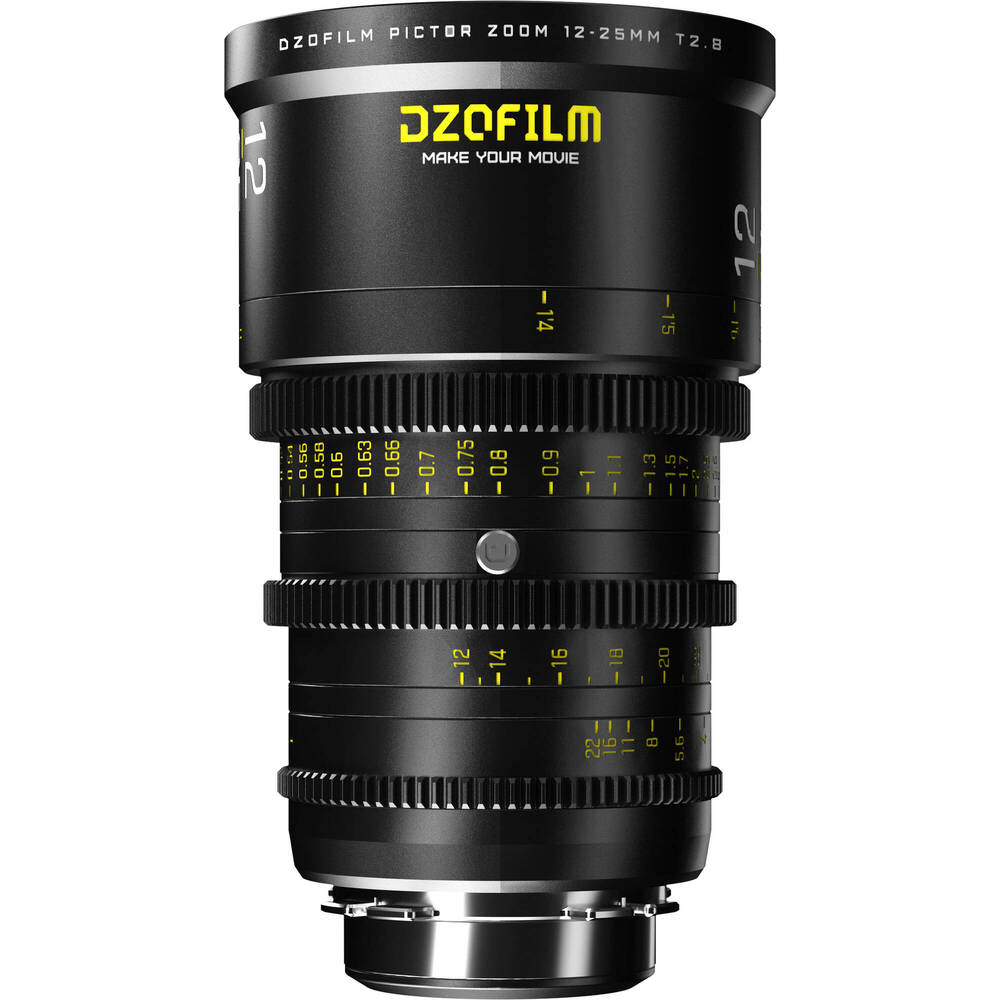

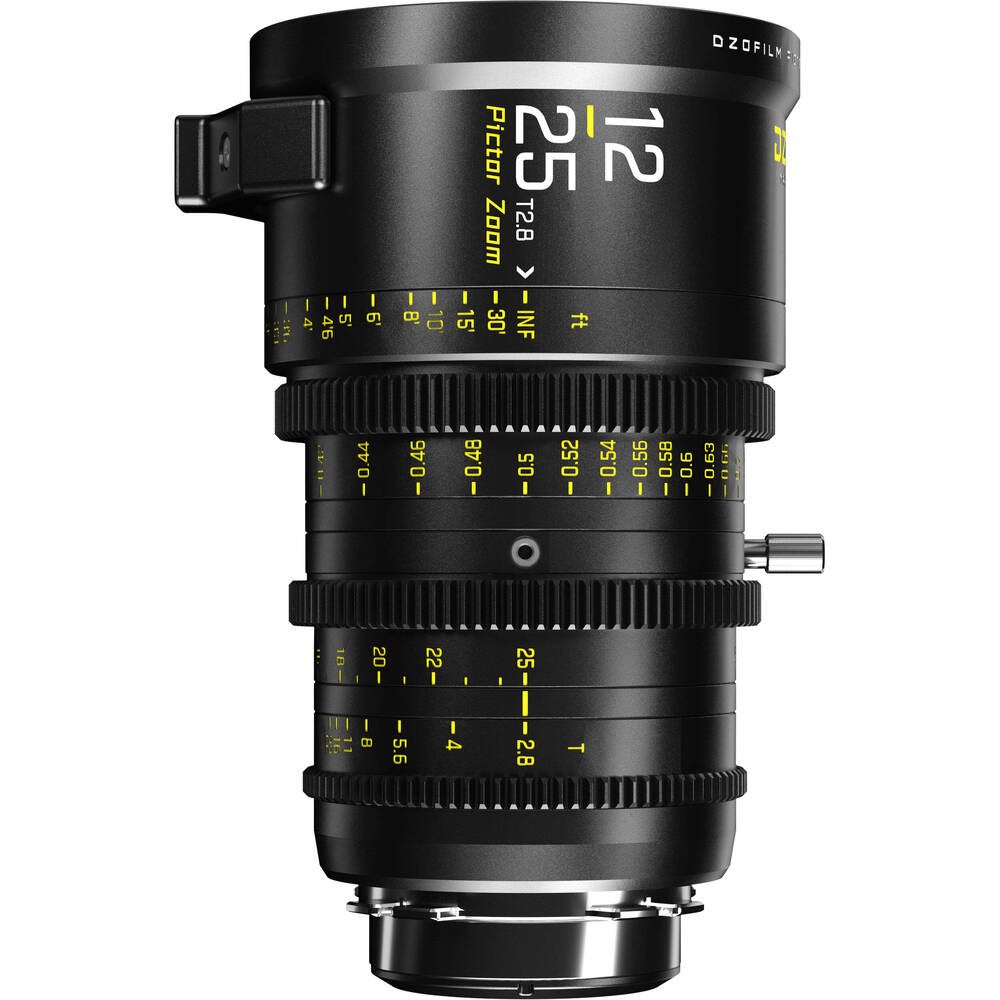

DZOFilm Pictor 12 to 25mm T2.8 Super 35 Parfocal Zoom Lens
EF or PL mount available
Features:
- Maintains Focus Throughout Zoom Range
- T2.8 to T22 Aperture Range

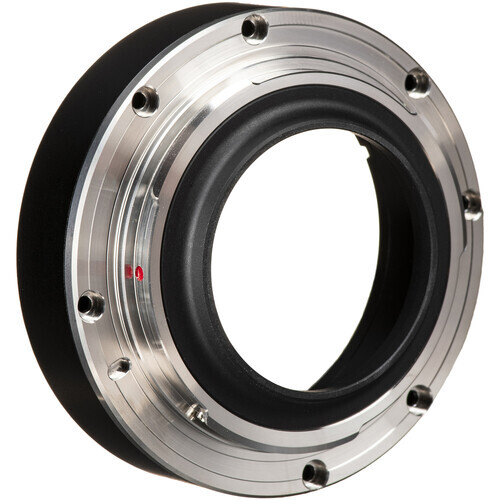

- Swappable PL Mount; Canon EF Included
- 95mm Front Diameter
- 16-Blade Iris
- Near-Zero Breathing
- 0.8 MOD Cine-Style F/I/Z Gears
A parfocal cine lens, the DZO Pictor 15 to 30mm T2.8 Super35 Parfocal Zoom Lens features a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lens is parfocal, meaning it holds focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes an EF mount.
The 16-blade iris creates round out-of-focus highlights, which have a more natural appearance and contribute to the lens's natural-looking bokeh. The lens features cine-style gear rings on the focus, iris, and zoom lens rings, making it compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The 95mm outer front diameter allows you to use a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread. A lens support foot allows you to support the lens on rods to help reduce strain on your camera's lens port.

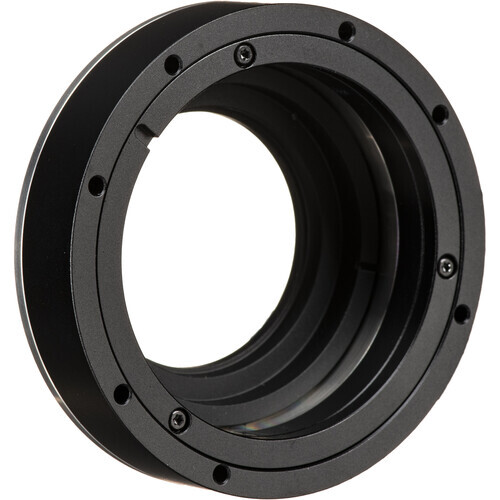

Please Note, According to the manufacturer, when converted to EF mount this lens is not compatible with DSLR cameras that have an EF mount. However, it is compatible with mirrorless cameras that have an EF mount, including Blackmagic Design cameras.
Features:
- Maintains focus throughout the zoom range
- Minimal breathing
- 16-blade iris produces round out-of-focus highlights
- T2.8 to T22 aperture
- 95mm front diameter
- Compatible with standard cine-style lens accessories
Specifications:
Focal Length | 12 to 25mm |
Lens Mount | ARRI PL |
Lens Format Coverage | Super35/APS-C |
Image Circle | 31.5 mm |
Maximum Aperture | T2.8 |
Minimum Aperture | T22 |
Minimum Focus Distance | From Image Plane: 15.7" / 40 cm |
Optical Design | 21 Elements in 15 Groups |
Diaphragm Blades | 16 |
Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch |
Front Diameter | 95 mm |
Filter Thread | 86 mm x 0.75 |
Focus Scales | Imperial |
Focus Rotation | 270° |
Iris Rotation | 64.4° |
Zoom Rotation | 100° |
Electronic Communication | No |
Image Stabilization | No |
Lens Support | 1/4"-20 Mounting Thread |
Length | 6.3" / 159 mm |
Weight | 3.5 lb / 1.6 kg |
(DZO-7220004B)
SKU | DZO-7220004B |
Brand | DZOFILM |
Shipping Weight | 3.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
Shipping Cubic | 0.012000000m3 |
