DZOFilm Pictor 20-55mm and 50-125mm T2.8 Super35 Zoom Lens Bundle - White
PL Mount or EF Mount

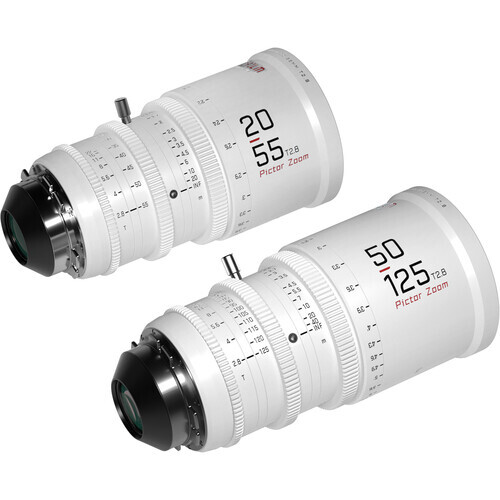

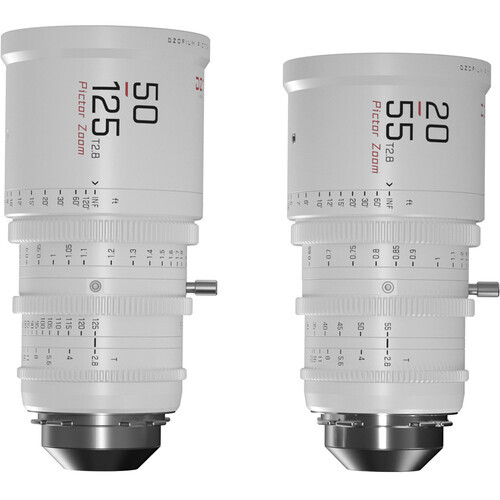

A parfocal cine lens, DZO Pictor 20 to 55mm and 50 to 125mm T2.8 Super35 Parfocal Zoom Lenses feature a relatively fast maximum aperture of T2.8 with an aperture range of T2.8 to T22. As you would expect from a cinema-style zoom, the lenses are parfocal, meaning they hold focus throughout the zoom range. The internal focus design with floating elements virtually eliminates focus breathing. It covers a Super35 image circle, comes standard with an interchangeable PL mount, and includes an EF mount.
The 16-blade iris creates round out-of-focus highlights, which have a more natural appearance and contribute to the lens's natural-looking bokeh. The lens features cine-style gear rings on the focus, iris, and zoom lens rings, making it compatible with cine-style lens accessories such as follow focus units, lens motors, and lens control systems. The 95mm outer front diameter allows you to use a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread. A lens support foot allows you to support the lens on rods to help reduce strain on your camera's lens port.
Please Note, According to the manufacturer, when converted to EF mount this lens is not compatible with DSLR cameras that have an EF mount. However, it is compatible with mirrorless cameras that have an EF mount, including Blackmagic Design cameras.
Features:
- Maintains focus throughout the zoom range
- Minimal breathing
- 16-blade iris produces round out-of-focus highlights
- T2.8 to T22 aperture
- 95mm front diameter
- Compatible with standard cine-style lens accessories
Specifications:
Parameter
- Focus Distance 20-55mm 50-125mm
- T- stop T2.8 - T22 T2.8 - T22
- Mag. Ratio ≈2.75X ≈2.5X
- Image Circle 24.89 mm*19.3 mm(φ31.5 mm) 24.89 mm*19.3 mm(φ31.5 mm)
ratio 1.33:1 ratio 1.33:1
- Flange Distance 52mm(PL) 44.14mm(EF) 52mm(PL)44.14mm(EF)
- Close Focus Distance 0.6m/2ft 0.8m/2ft8in.
- Size: φ95.0*164mm(PL mount) φ95.0*175mm(PL mount)
φ95.0*171.9mm(EF mount) φ95.0*182.9mm(EF mount)
- Iris Blades 16 pcs 16 pcs
- Gear Pitch 0.8 M 0.8 M
- Front Outer Dia. φ95 mm φ95 mm
- Filter Size M86*0.75 M86*0.75
- Weight ≈1520g ≈1700g
(DZO-7220001B2W)
SKU | DZO-7220001B2W |
Brand | DZOFILM |
Shipping Weight | 5.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.400m |
Shipping Length | 0.300m |
Shipping Cubic | 0.060000000m3 |
