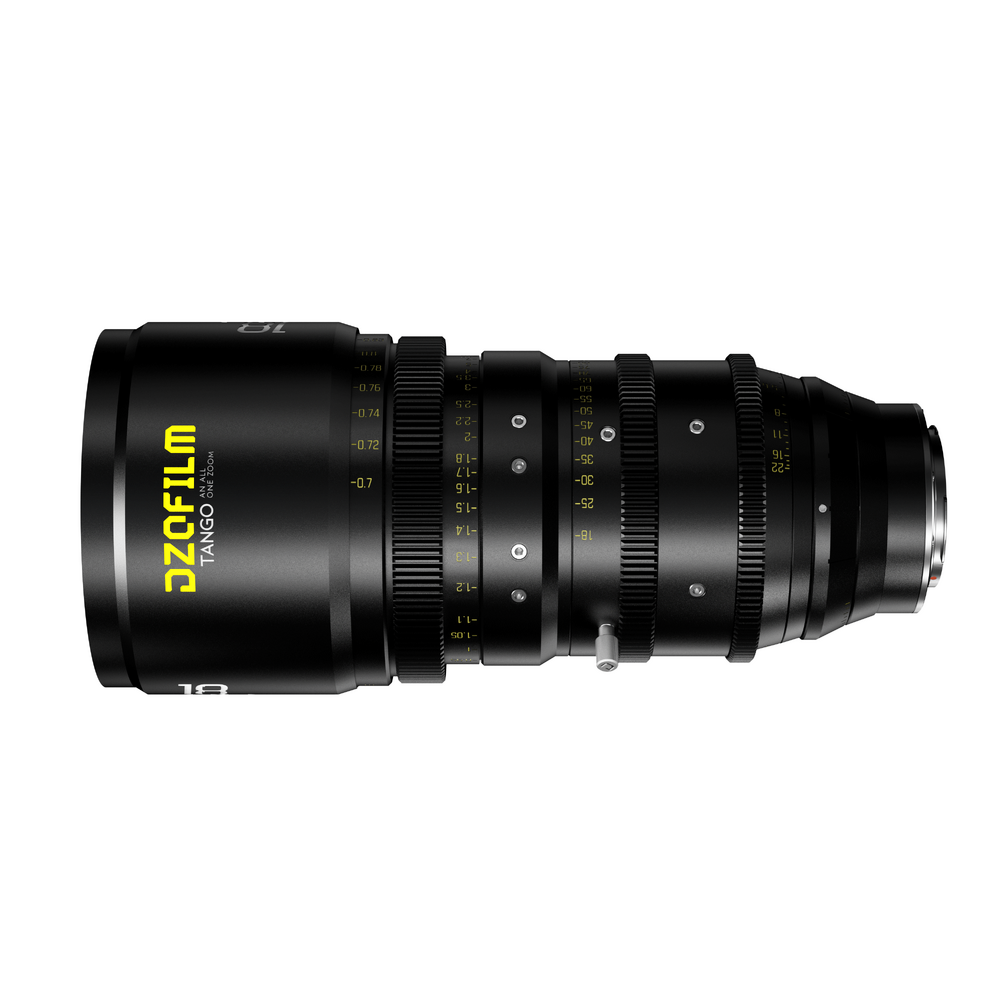

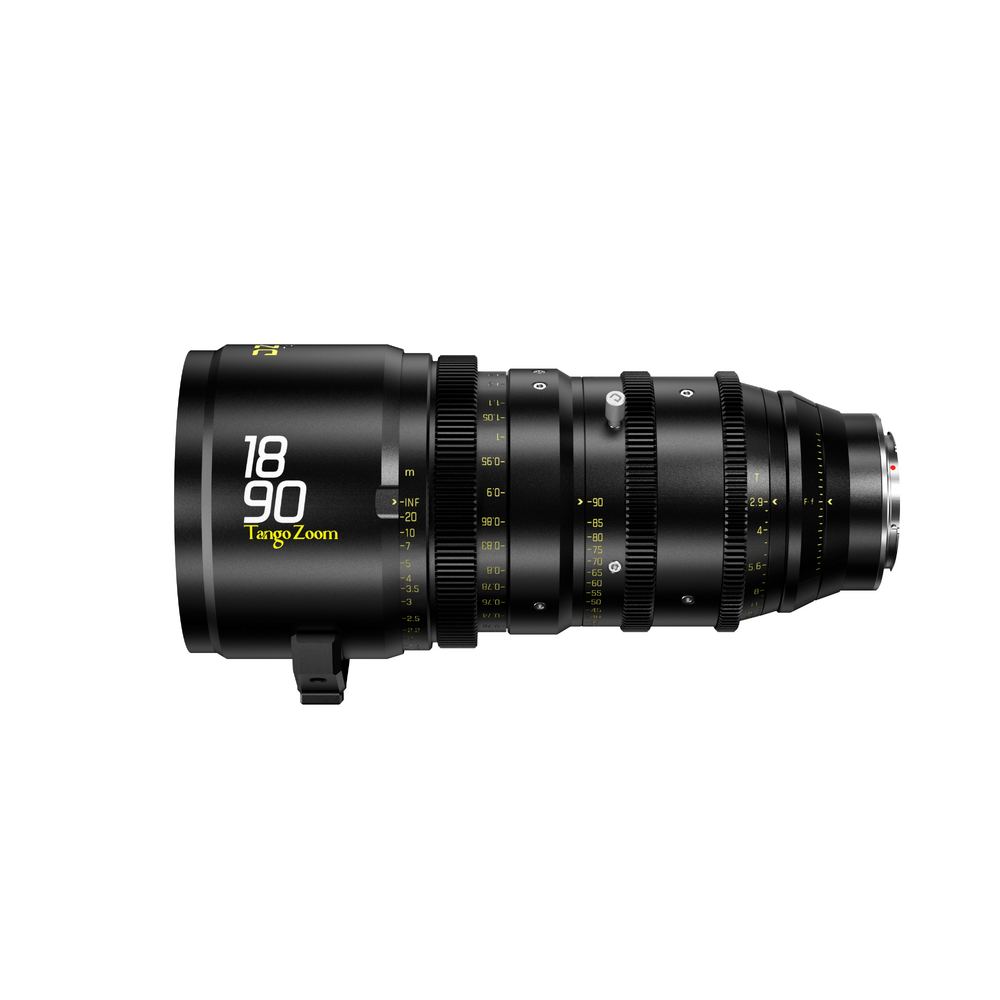

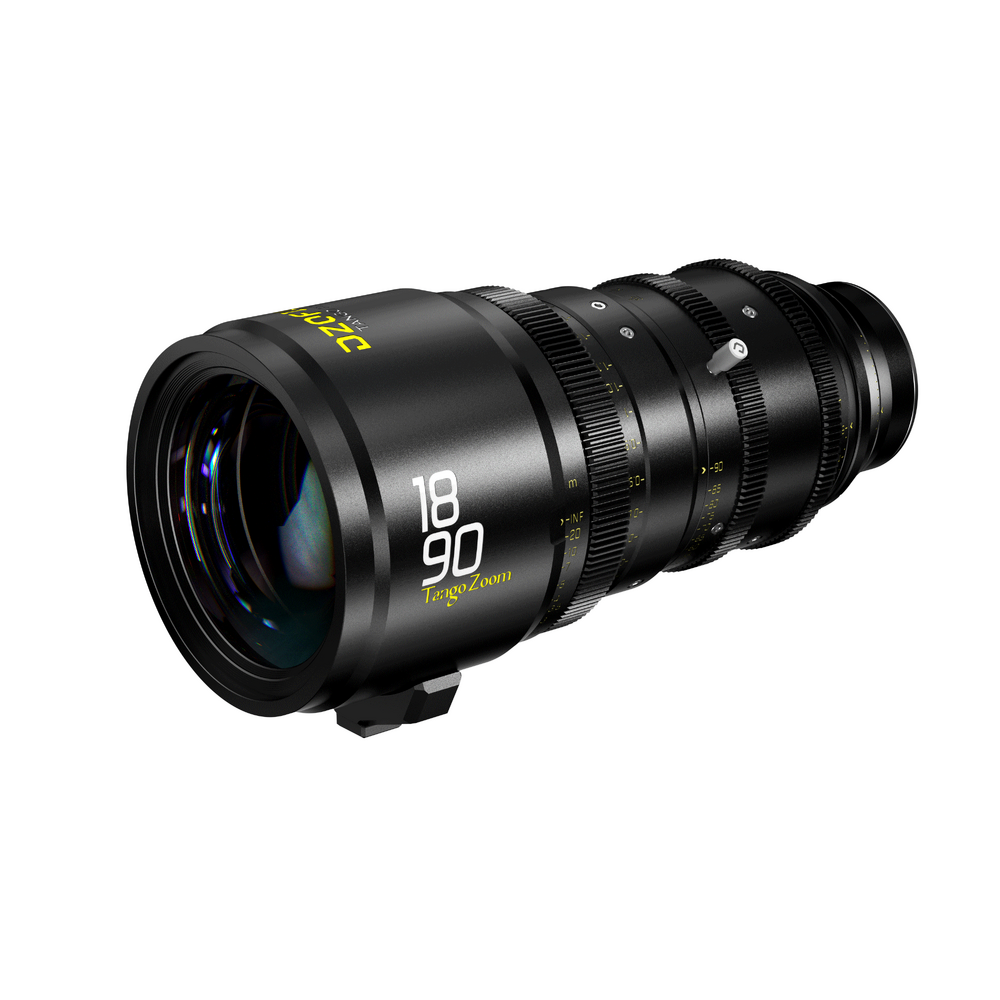

DZOFilm Tango 18-90mm T2.9 S35 Zoom Lens (ARRI PL and Canon EF)
Features
- Super35 Format | Maximum T2.9 Aperture
- Cine-Grade Optics | ENG Functionality
- Swappable PL & Canon EF Mounts Included
- 16-Blade Iris for Alluring Bokeh
- Works with Optional MOVCAM Servo Unit
- Focus, Iris, and Zoom Lens Gears
- Luminous Focus Marks in Feet
- Dual-Sided Focus Marks
ARRI PL & Canon EF Mounts
- This 18-90mm zoom comes mounted in ARRI PL and includes a Canon EF mount, enabling you to use it with a variety of cine-style cameras.
Alluring Bokeh
- This Tango S35 Zoom's 16-blade aperture series produces smooth and alluring bokeh, drawing viewers into your storytelling.
- The T2.9 maximum aperture is consistent across the 18-90mm zoom range.
Optimal Color Rendition
- Exceptional color rendition enables this Tango S35 zoom to bring lifelike skin tones to the screen, making it perfect for fashion projects, documentary, and sports.
- The entire Tango S35 lineup maintains a high level of color consistency,
- Use the 18-90mm zoom for capturing mesmerizing close-ups with delicate facial details.
Minimal Aberration
- The Tango S35 zoom series features advanced an optical design that effectively corrects chromatic aberrations, resulting in optimal image quality and color reproduction.
- Outstanding distortion control and imperceptible breathing effects ensure an immersive visual experience.
Optional Movcam Servo
- The Tango S35 zoom series offers the ultimate combination of cinema-grade optics and ENG-style functionality. Combine the 18-90mm zoom with a separately available Movcam servo drive for seamless integration with ENG cameras, enabling remote control of focus, iris, and zoom settings.
- Targeted at experienced cinematographers, these zooms unlock professional-grade performance for broadcasting, large-scale events, and a variety of shooting scenarios.
Luminous Marks in Feet
- All focus, zoom, and aperture ring marks are coated with luminous paint to accommodate the demands of low-light shooting.
- The luminous marks enhance clarity, enabling focus pullers and camera operators to easily discern lens marks, improving on-set efficiency.
- Focus is marked in feet on both sides of the lens.
Specifications:
Focal Length | 18-90 mm | 65-280 mm |
Colour | Black | |
Mount | PL / EF | |
Aperture | T2.9-T22 | T2.9/4-T22 |
Image Circle | φ31.5mm(S35) | |
Construction Of Optics | 24 Elements in 17 Groups | 21 Elements in 17 Groups |
Flange Distance | 52mm(PL)/44mm(EF) | |
Close Focus (From Sensor Plane) |
0.7m/2ft3in | 1.1m/3ft7in |
Zoom Ratio | 5X | 4.31X |
Iris Control | Manual(74.1°) | Manual(73.5°) |
Focus Control | Manual(270°) | |
Zoom Control | Manual(100°) | |
Front Dia. | ∮114mm/4.48in | |
Length (From Lens Front To Flange Plane) |
249.1mm/9.8" PL mount 256.4mm/10.1" EF mount |
267.1mm/10.5" PL mount 274.4mm/10.8" EF mount |
Iris Blade | 16 | |
Filter Size | M105 | |
Gear Pitch | 0.8 Mod | |
Material | Aluminum Alloy | |
Weight(Product) | ≈3539g | ≈3962g |
(DZO-T189029M)
SKU | DZO-T189029M |
Brand | DZOFILM |
Shipping Weight | 4.0000kg |
Shipping Width | 0.500m |
Shipping Height | 0.250m |
Shipping Length | 0.250m |
Shipping Cubic | 0.031250000m3 |
