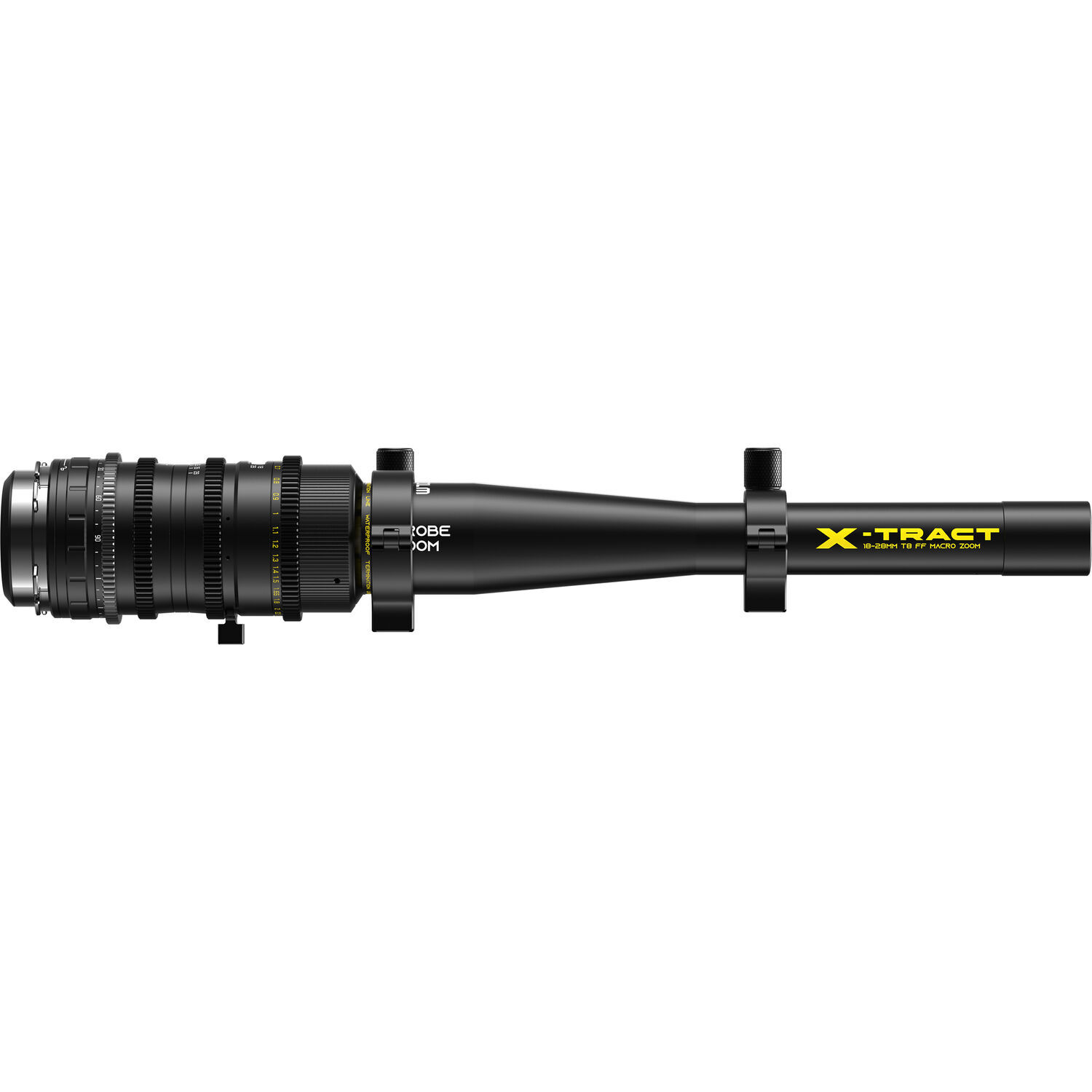

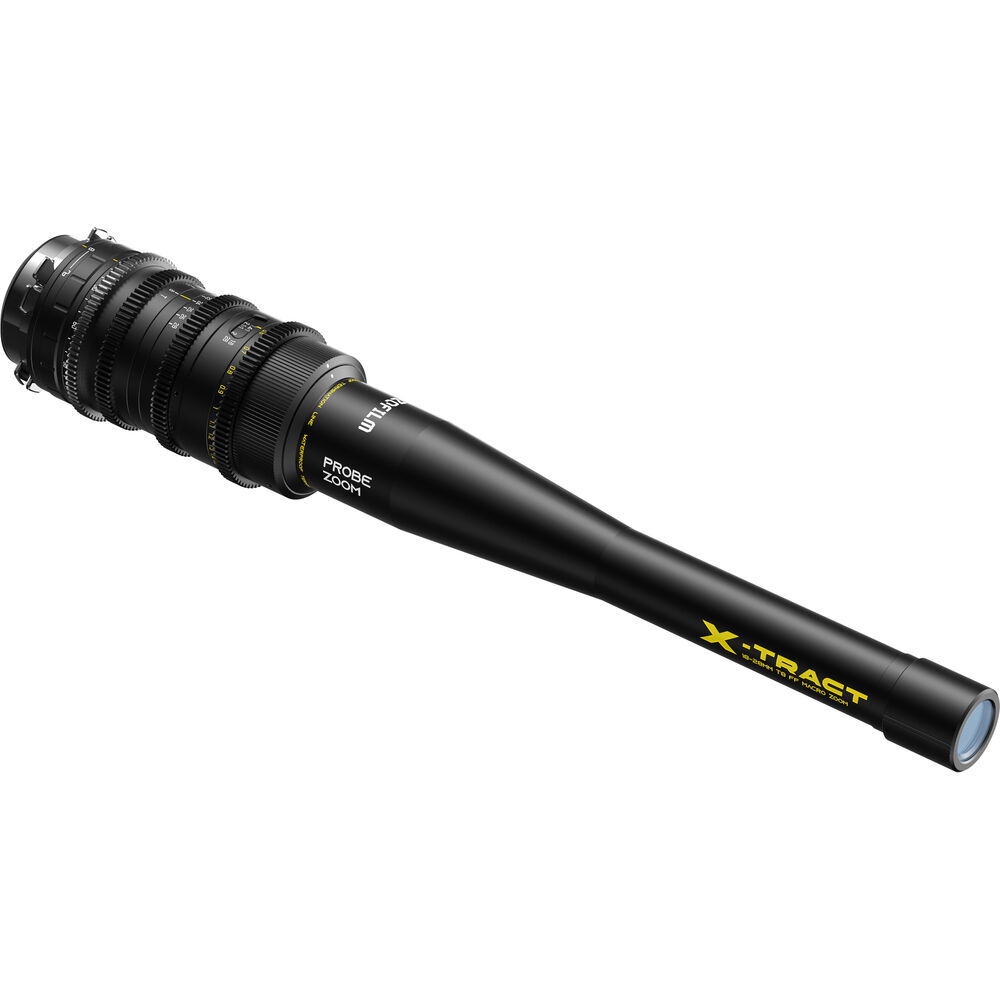

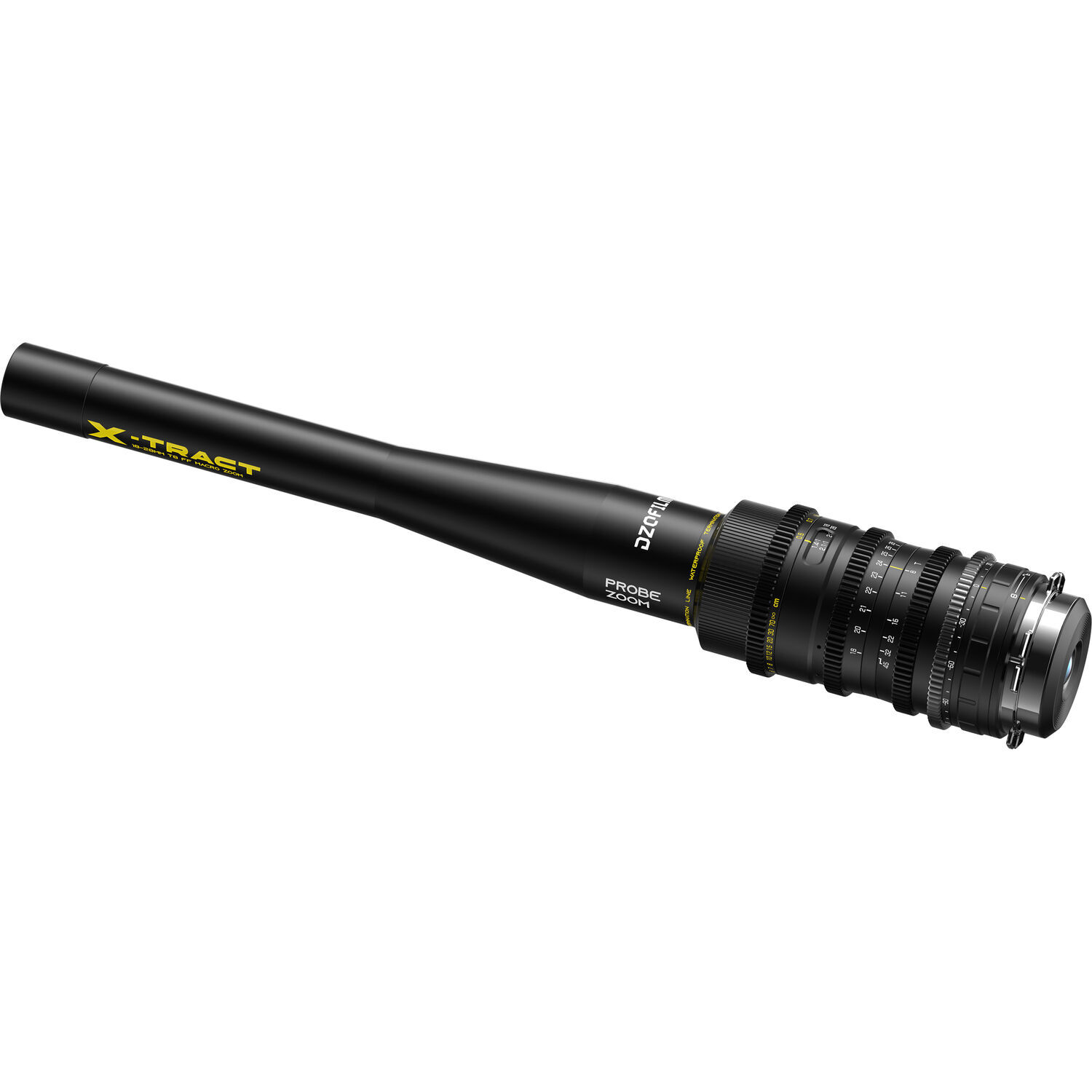

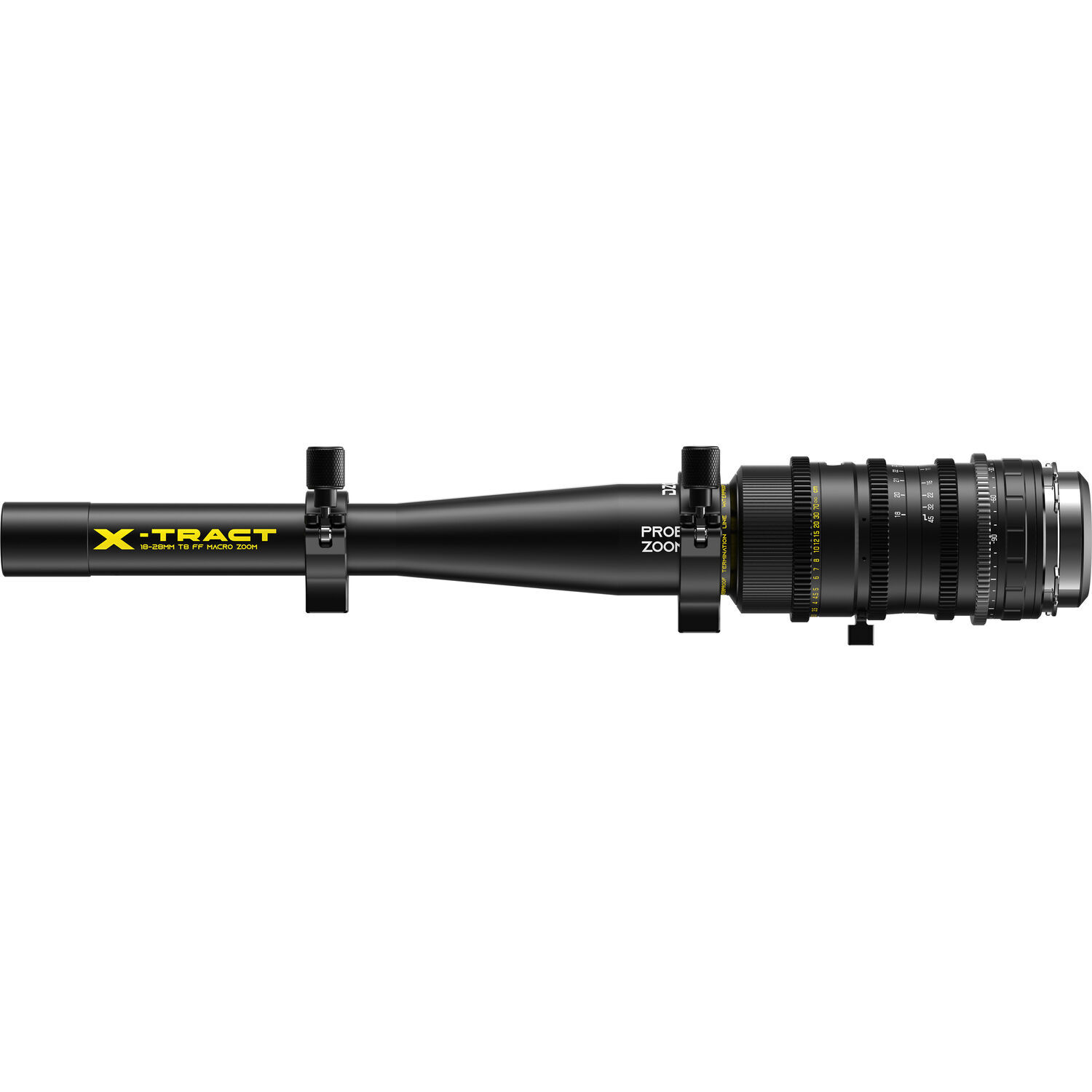

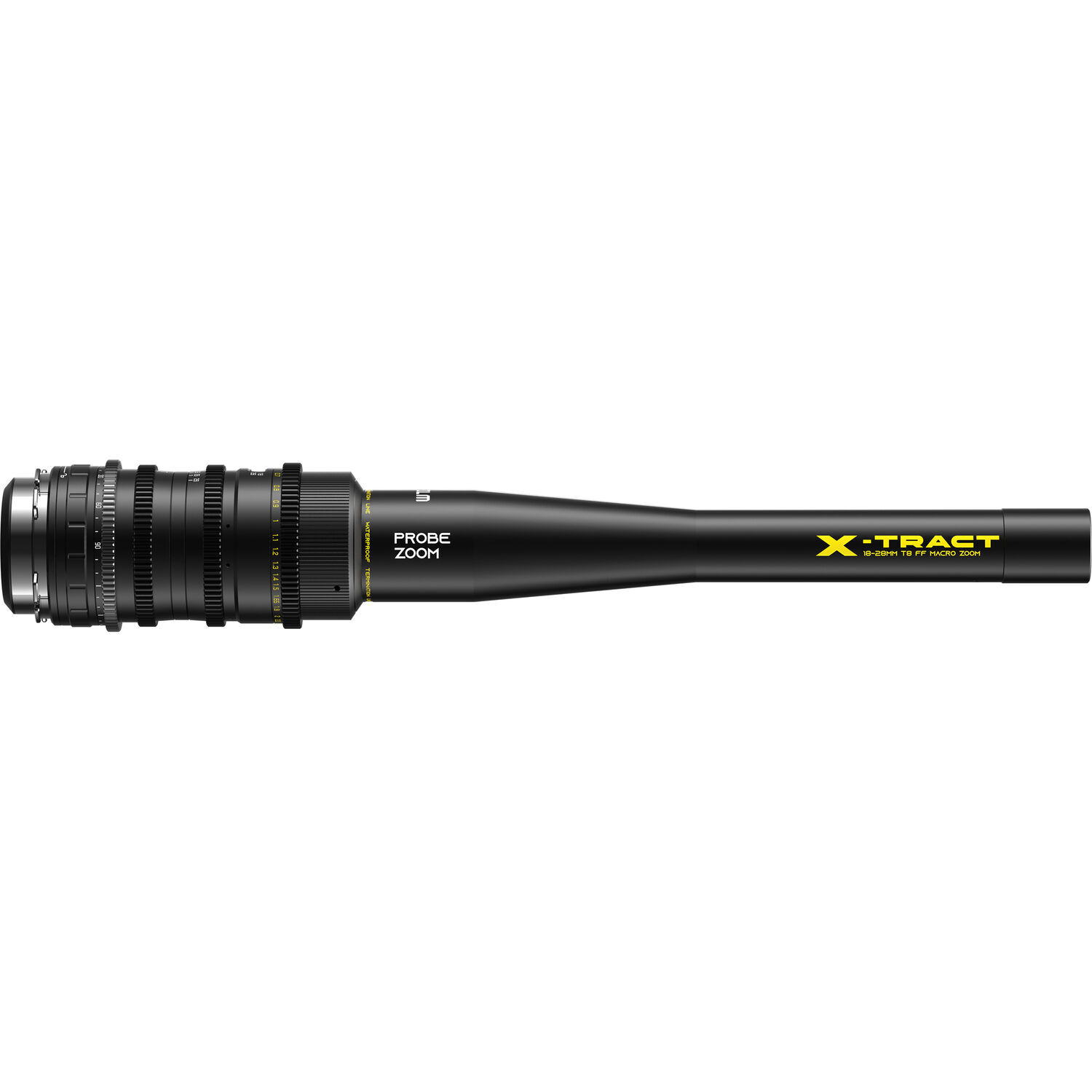

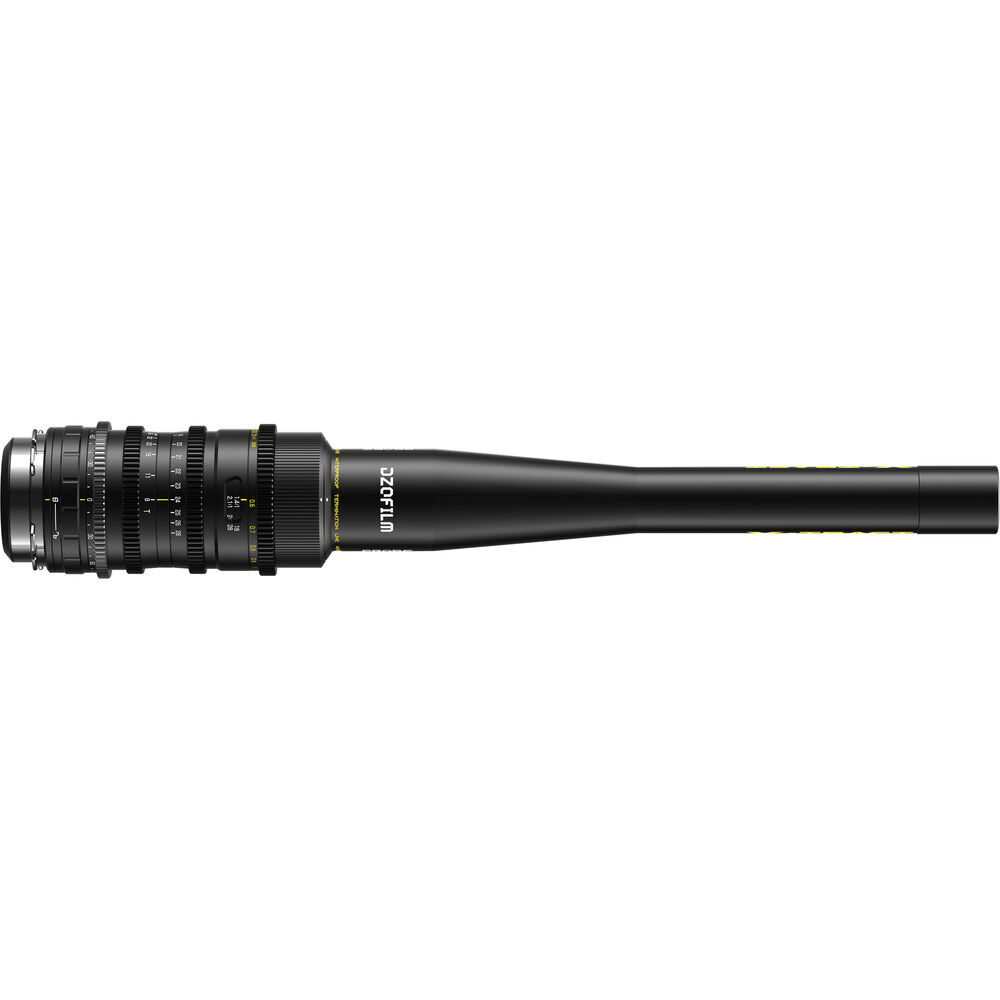

DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens - PL Mount

$6,175.00
RRP $6,295.00
SAVE $120.00 (2%)
Pre-order - Released 7 February 2025





Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

  • Full Frame | T8 Maximum Aperture
  • Innovative Probe Zoom for Close-Ups
  • 0.8 MOD FIZ Gears, 300° Focus Rotation
  • 2.1:1 Image Magnification
  • Versatile 73 to 100° Angle of View
  • Minimum Focus: 0.24"
  • <1.2" Front Outside Diameter
  • Compact 16.3" Length
  • ED and HRI Elements Reduce Aberrations
  • Waterproof, Dustproof, and Anti-Fog

Unleash your creative potential with the DZOFilm X-tract Probe Lens, a revolutionary tool designed for filmmakers and content creators. This lens offers unmatched versatility, allowing you to capture stunning macro shots with extraordinary detail and unique perspectives. Featuring a robust, lightweight build and advanced optical performance, the X-tract Probe Lens excels in low-light environments and delivers strikingly sharp imagery. Whether you're shooting commercials, documentaries, or cinematic masterpieces, this lens is perfect for exploring the tiniest details and crafting visually captivating scenes.



Wide 18-28mm Zoom

  • This 18-28mm zoom offers an ultrawide to more midrange reach, covering most common focal lengths.
  • The wide 100 to 73° field of view supports flexible capture.

Close Capture in Narrow Spaces

  • Craft creative shots using a maximum magnification ratio of 2.1:1.
  • The extremely close minimum focusing distance of around 0.24" lets you get super tight coverage of your subject.
  • The large depth of field and wide-angle focal length combine to enable close-ups in constricted areas while maintaining a safe distance from your subject.

Low-Distortion, High-Resolution Optics

  • The optical design has both ED (extra-low dispersion) and high-refractive index elements, suppressing chromatic and spherical aberrations.
  • Advanced coatings help minimize flaring and reflections.
  • Incorporates seven HRI (high-refractive-index) lens elements, producing more natural color.
  • ±2% distortion control across the zoom range.

T8 Maximum Aperture

  • The relatively fast T8 maximum aperture is maintained throughout the zoom range.
  • Multilayer, antireflective coatings help ensure sharp, clear images even when shooting wide open.

Waterproof, Cine-Style Design

  • Focus, iris, and zoom functions all have 0.8 MOD cine-style gears for compatibility with follow focus and lens motor systems.
  • A lightweight yet rear-heavy design helps reduce vibrations while shooting.
  • The focus barrel offers a wide 300° rotation for precise focus pulls.
  • Waterproof and dustproof, this probe lens is also scratch and fog resistant.

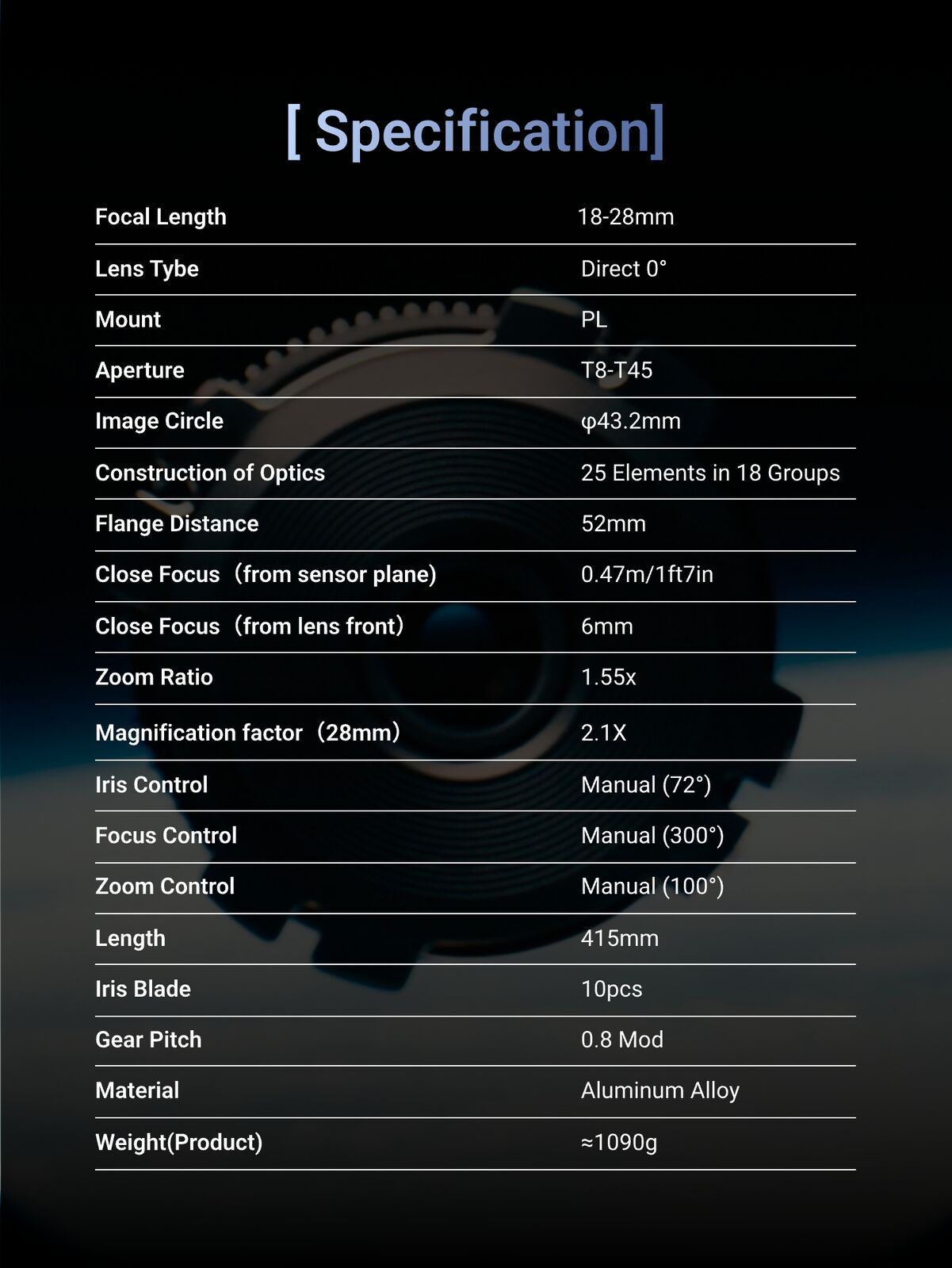

Specifications:

Focal Length

18 to 28mm

Maximum Aperture

T8

Lens Mount

ARRI PL

Lens Format Coverage

Full Frame

Filter Thread

No

Image Stabilization

No

Electronic Communication

No

Maximum Aperture

T8

Minimum Aperture

T22

Lens Mount

ARRI PL

Interchangeable Mount

No

Lens Format Coverage

Full Frame

Image Circle

Not Specified by Manufacturer

Angle of View

Full Frame
Horizontal: 100 to 73°

Focus Scales

Metric

Filter Thread

No

Zoom Ratio

1.56x

Minimum Focus Distance

From Camera Sensor: 18.6" / 47.3 cm
From Front of Lens: 0.2" / 6 mm

Maximum Magnification Ratio

2.1:1

Diaphragm Blades

Not Specified by Manufacturer

Image Stabilization

No

Lens Mounting

1x 1/4"-20 (via Included Support Foot)
3x 3/8"-16 (via Included Support Foot)

Gear Standard

Focus: 0.8 MOD
Iris: 0.8 MOD
Zoom: 0.8 MOD

Gear Rotation

Focus: 300°

Electronic Communication

No

Coating

Multi & Resistance Coated

Environmental Resistance

Water-Resistant (Unrated)

Diameter

Front: 1.2" / 29.6 mm

Length

16.3" / 415 mm

Weight

2.4 lb / 1.09 kg

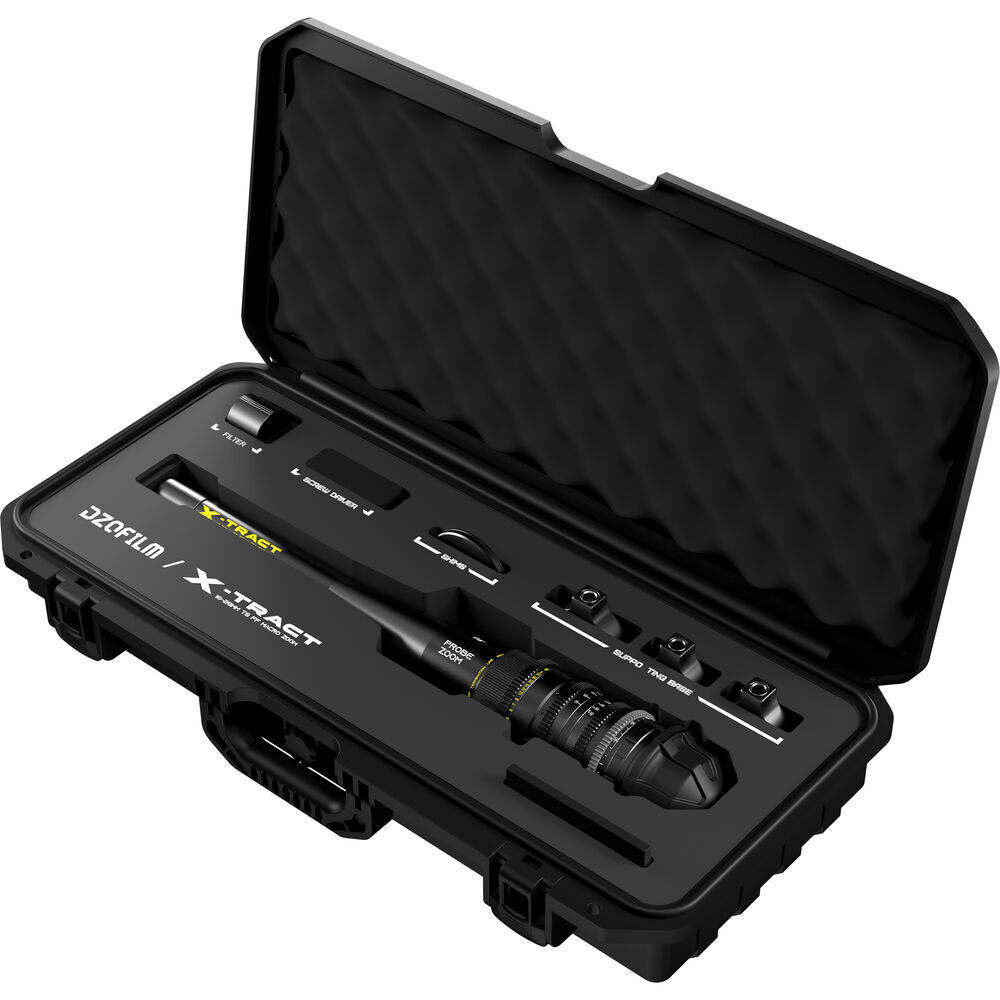

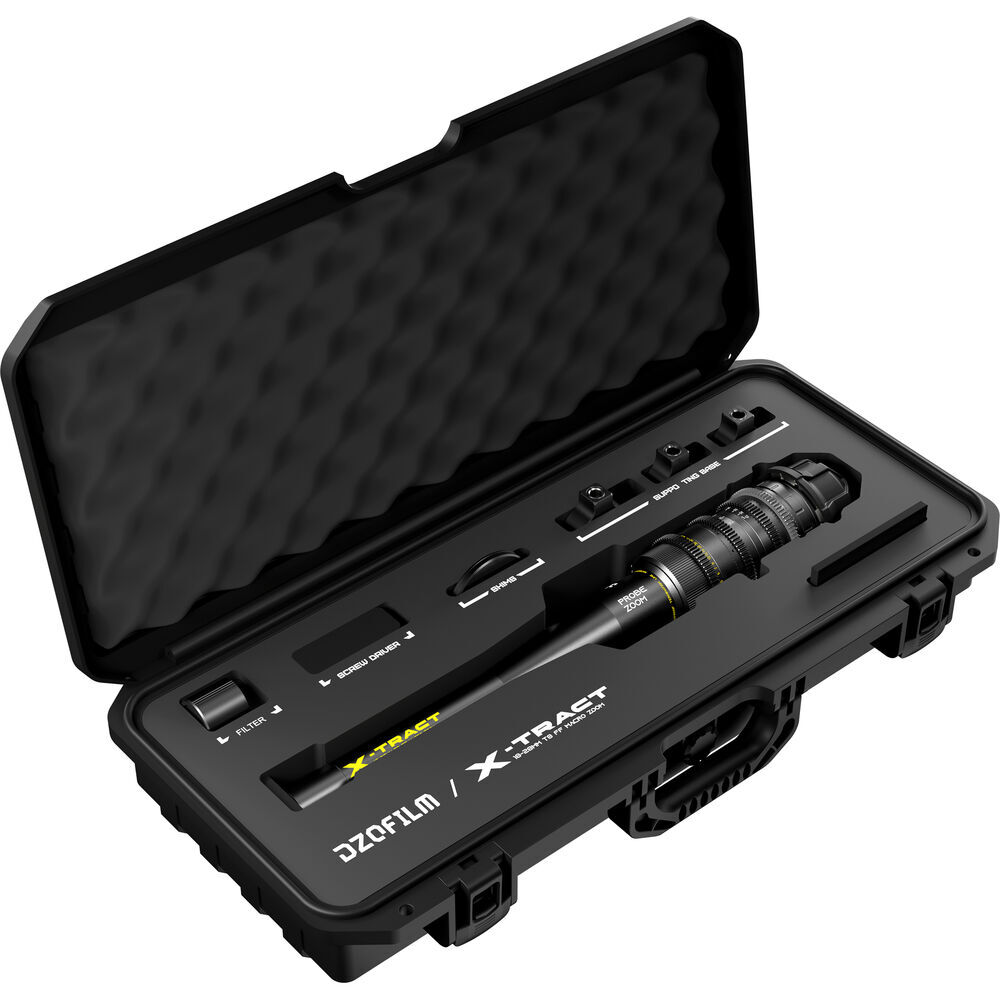

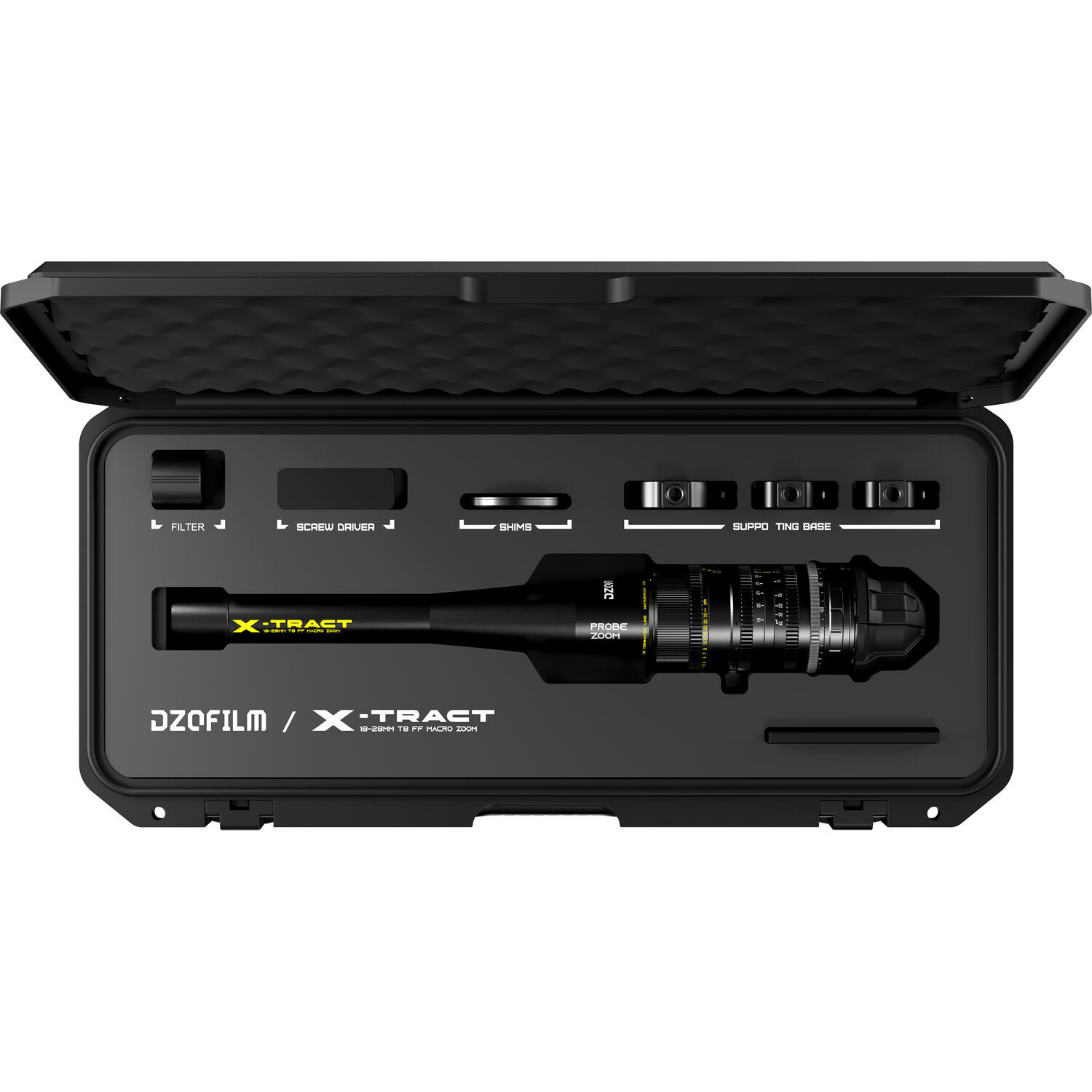

What's in the box:

1 x DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (0° Direct View, ARRI PL)

1 x Front Cap

1 x Rear Cap

1 x Y-Bracket Support

1 x Bolt Driver

1 x Shim Set

1 x Hard Case with Foam Inlay

1 x 3 x Support Ring

(DZO-X1828A)

SKU DZO-X1828A
Barcode # 6970604943406
Brand DZOFILM
Shipping Weight 2.0000kg
Shipping Width 0.600m
Shipping Height 0.200m
Shipping Length 0.200m
Shipping Cubic 0.024000000m3
