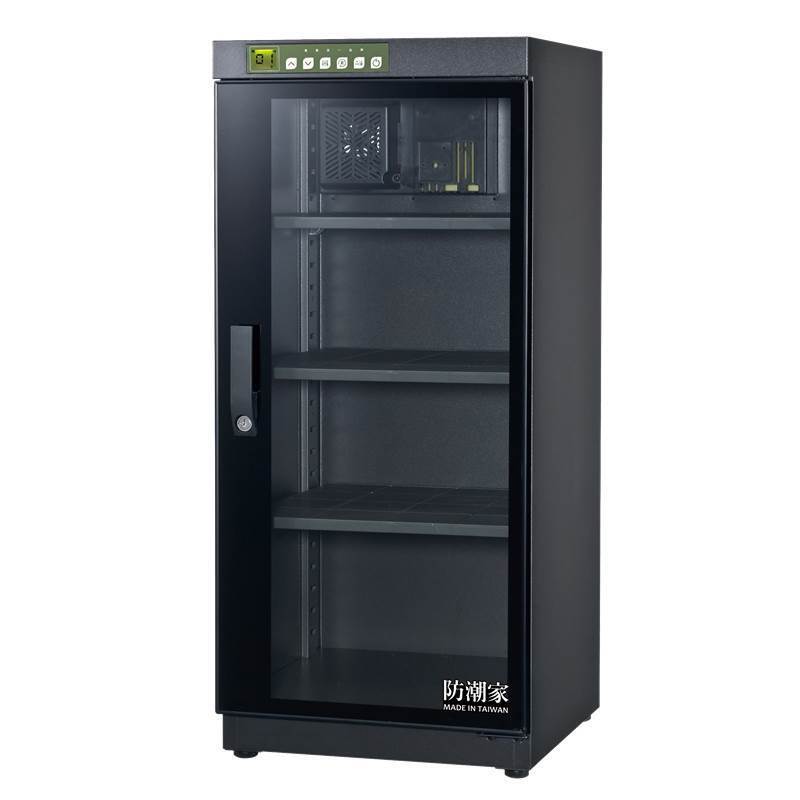

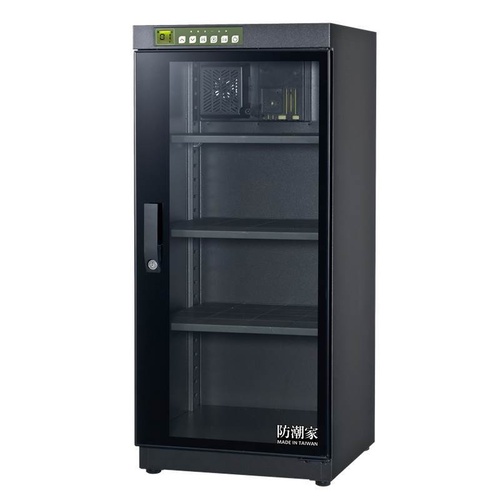

eDry Ultra Low Humidity 128L Dry Cabinet TD-126CA(100% Made in Taiwan)
The manufacturing of the ultra-low moisture cabinet completely follows the standards
of IPC/JEDEC J-STD-033 on managing the IC integrated circuit. The omission of
repackaging and the high temperature treatment enhance the assembly quality while
reducing the cost effectively.
Much more superior than the counterparts in terms of dehumidification power,
speed of dehumidification after door opening, life span and energy saving.
1. Extreme Speed Desiccating Performance
Industrial desiccating and moisture prevention must be fast and stable. EDRY leads the
world to launch the extreme speed desiccating ultra low humidity main desiccating unit to
lower the humidity level to less than 10% within 5 minutes and maintain stable 1%RH
lowest humidity level in long period of time. One hour after power up , even with power
interruption, it will maintain less than 15%RH humidity level in a period of 24 hours. It
can completely replace nitrogen filling and other dry air equipment.
2. Speedy humidity reduction even with multiple door openings
EDRY Desiccators core machine can maintain a maximum of 70 hours of desiccating
capability. Multiple door openings will allow humidity level speedy reduction, fully in
Compliance with the requirement of instant access to storage items by manufacturing,
research and development organization, to improve work efficiency and product yields ,
“Dry Cabinet from other brand can only maintain 3 to 4 hours of desiccation capability,
desiccation process needs to be restarted after door opening twice. Such intensive
desiccating activities inconveniently hinder the usage. “In other word, number of
desiccating represents shorter equipment life span and lower desiccating capability.
According to test, Moisture Buster’s main desiccating unit has 10 times of life span,
desiccating capability and energy efficiency compares to other brands(as shown in
following diagram).
3. Patented Speedy Desiccation
EDRY uses patented speedy desiccating design to allow desiccating process more
stable and the humidity level will not fluctuate. Other brand products uses shape
memory alloys, not only slow in starting desiccating, but the humidity level returns
to more than 10% during desiccating process.
4. World Leading Patented Technology
As the leading brand of desiccating product, EDRY Extreme Speed Main Desiccating
Unit won three key patents. All it takes is one main desiccating unit will bring
humidity level down to 1% easily (Other brand product may need 6 to 10 main
desiccating units). This is not only reducing energy consumption, it reduces
maintenance cost. Polymer physical adsorption turbo desiccation technology further
won the approval rate of more than 90% of major electronic manufacturers globally
as their favorite product. It is not required to replace consumables, low energy
consumption , and superb desiccating results are the major characteristics that meet
IPC/JEDEC-STD-033A and SMD processing requirement standards. Its popularity
is not coincidental.
Perfect Humidity Control Performance
Industrial quality control is an important task but you are not able to stare at the
hygrometer all the time. Intelligent microcomputer, touch panel and LCD panel can
help you not only switching displays between temperature and humidity level, it is
equipped with humidity level recording function to real time check humidity level in
the cabinet. It can also be arbitrarily set desired humidity level between 1% -90%RH
and stabilized humidity control within +2% & -2%RH range. Upon power failure, it will
memorize the preset value and will not be altered due to power failure. Furthermore,
it can be upgraded with internet connection to monitor and control the humidity level
on line, which gives you a peace of mind all the time. The low humidity specialized
sensor is made in the USA by Honeywell with stability, accuracy and credibility.
Specifications:
| Model | TD-126CA | Desiccating Capability |
Return to 5%RH in less than 1 Hour; Return to 10% RH in less than 45 minutes. |
| Capacity | 128L | Desiccator’s Configuration Layout | |
| Outside Size | H890 x W400 x D410 mm | Humidity Control Design | Intelligent microcomputer control, touch control panel operation, LCD panel display. |
| Inside Size | H815 x W395 x D400 mm | Cabinet body design | Cabinet body uses 1mm strengthen steel plate |
| Accessories |
Upward/Downward adjustable board*2 |
Warranty Period | |
| Desiccating Theory | Average Power Consumption | 8W | |
| Humidity Control Range | Humidity Control Range 1%~40%RH | Power Source | AC220V+10V 50/60HZ |
(685713958208)
| SKU | 685713958208 |
| Barcode # | 685713958208 |
| Brand | eDry |
| Shipping Weight | 15.0000kg |
| Shipping Width | 0.480m |
| Shipping Height | 0.850m |
| Shipping Length | 0.480m |
| Shipping Cubic | 0.195840000m3 |
