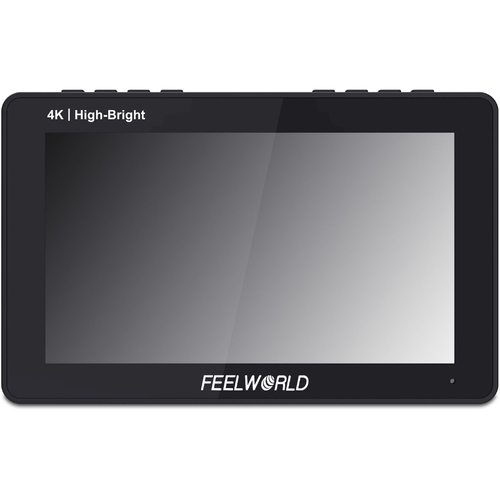

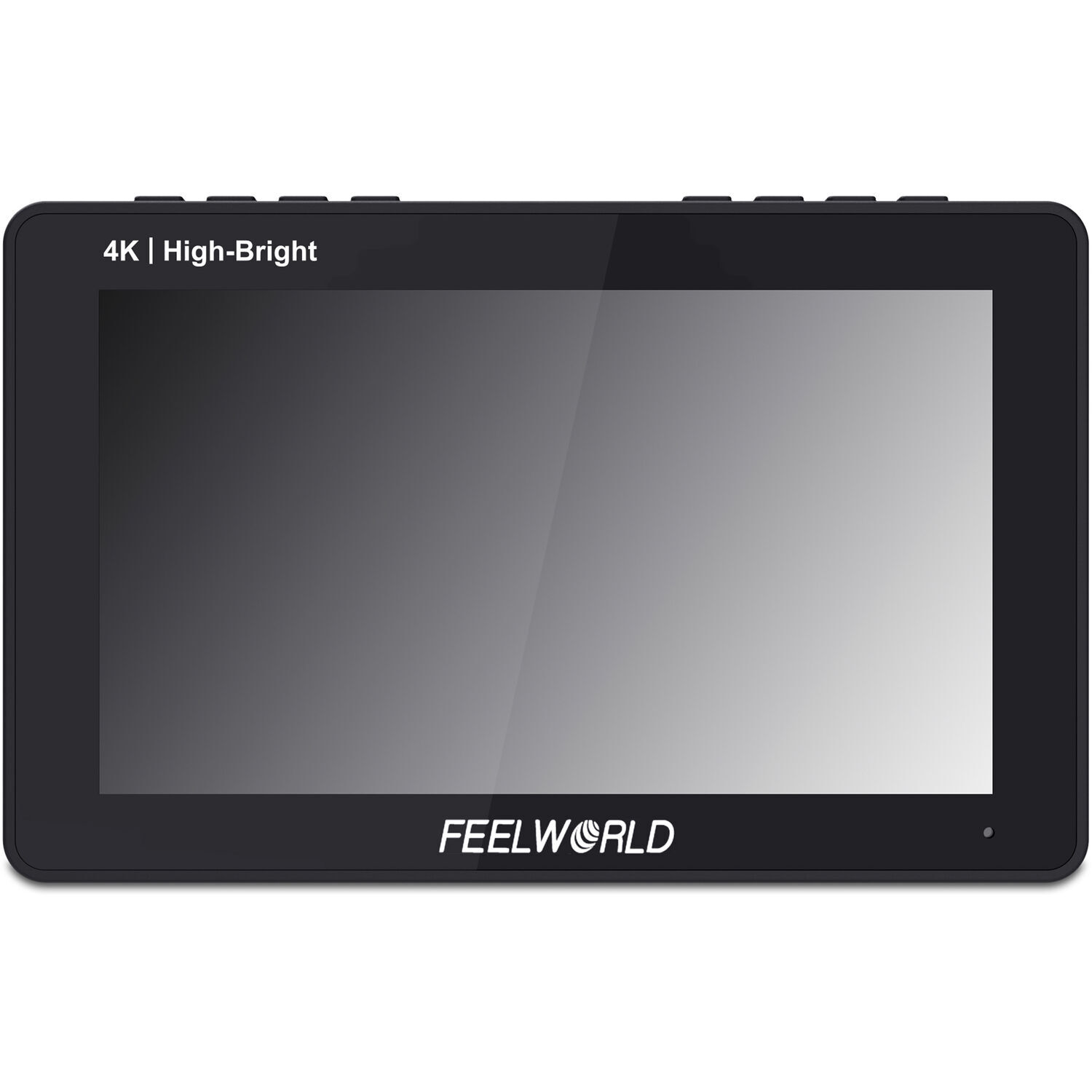

Feelworld F5 PROX 5.5" Inch 1600nit High Bright DSLR Camera Field Monitor
Features:
- High brightness screen 1600 nits daylight viewable
- 3D-LUT. 4K HDMI input and output, support 30 Hz signal,transmitted without loss and the screen is clearer.
- Touch screen control sensitive.
- Multiple mounting points, meet different need of monitoring
- Support up to 11 languages, meets the different countries needed, such as English,German,Spanish,French, Korean, Dutch,Japanese,Portuguese,Russian,Chines,Traditional Chinese.
- Multiple power supply ways and DC out. In additional to the power supply through F970 battery plate and 12V DC power input (can be using 12V/1.5A adapter), it also supports 5V Type-C input, which can be powered by mobile phone charger or power bank.(At least 5V/2A). It can also provide auxiliary DC power out 8.4V, power your DSLR mirrorless camera.
Powerful Performance Tools
The F5 Pro X is designed for professional videographers who demand precision and versatility. Featuring an upgraded 1600 cd/m² high-brightness touchscreen, it ensures clear visibility even in bright environments. With intuitive pinch-to-zoom functionality, you can easily inspect finer details in your images.

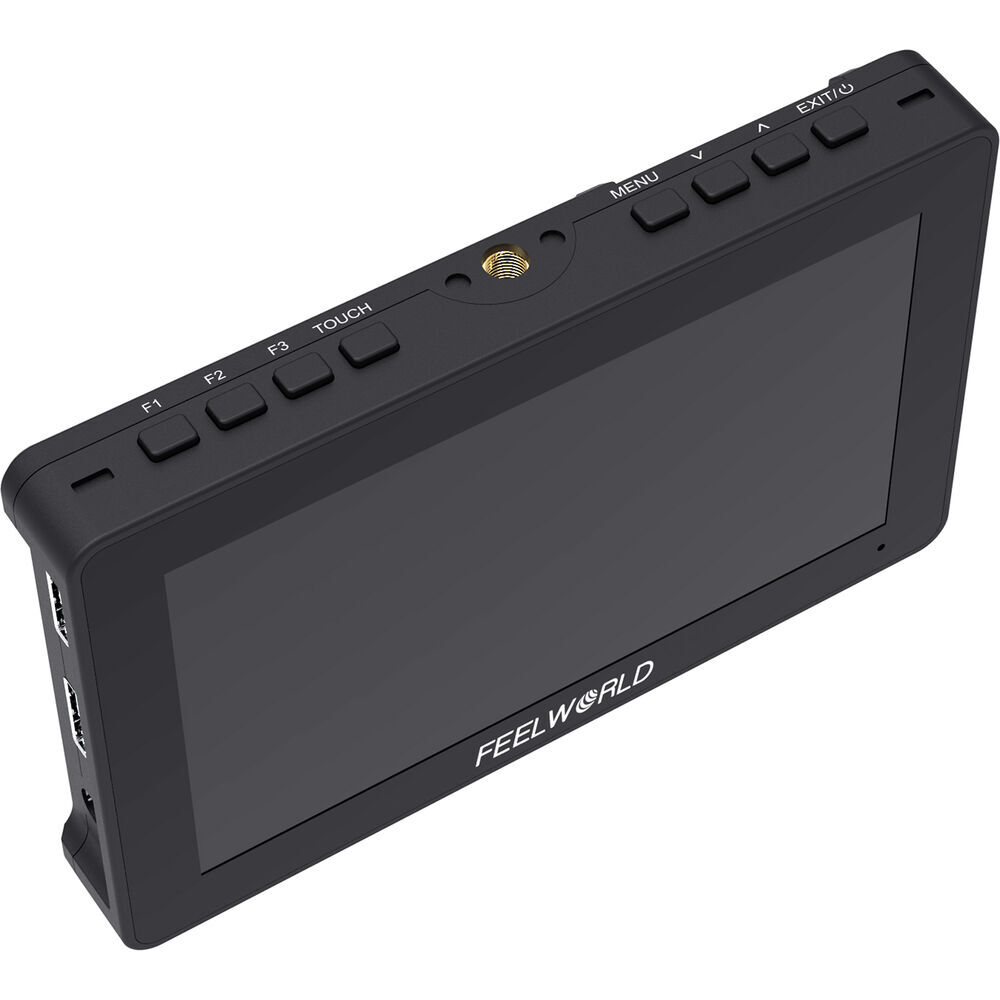

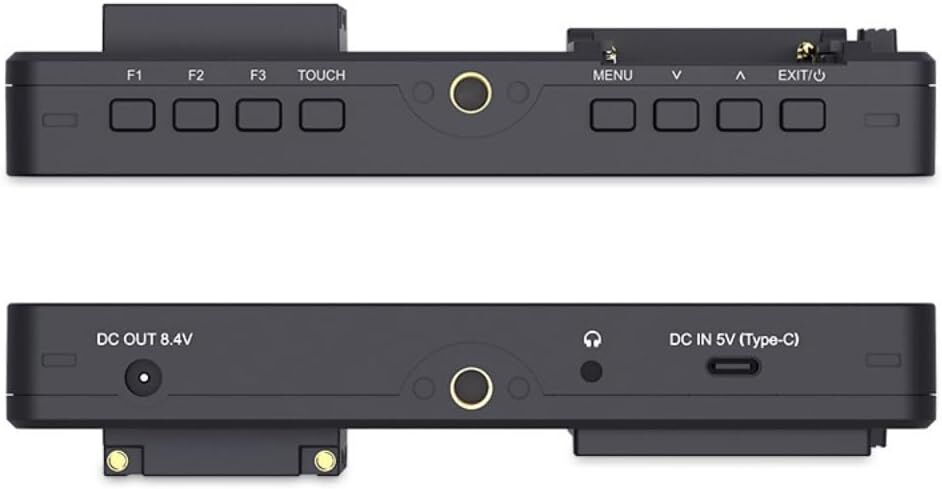

Equipped with an HDMI input and loop output, the F5 Pro X supports up to DCI 4K video signals and includes a headphone output for real-time audio monitoring. To prevent accidental touches, the touchscreen functionality can be disabled via the internal menu, allowing you to navigate seamlessly using the dedicated control buttons on top.
For precise monitoring, the F5 Pro X is loaded with essential tools, including vectorscope, histogram, anamorphic mode, and audio level meters. With 3D LUT support, you can apply one of the four built-in Log LUTs for accurate Rec. 709 monitoring or upload up to 32 custom LUTs via the USB port to match various camera formats and creative styles.
Versatile Compatibility

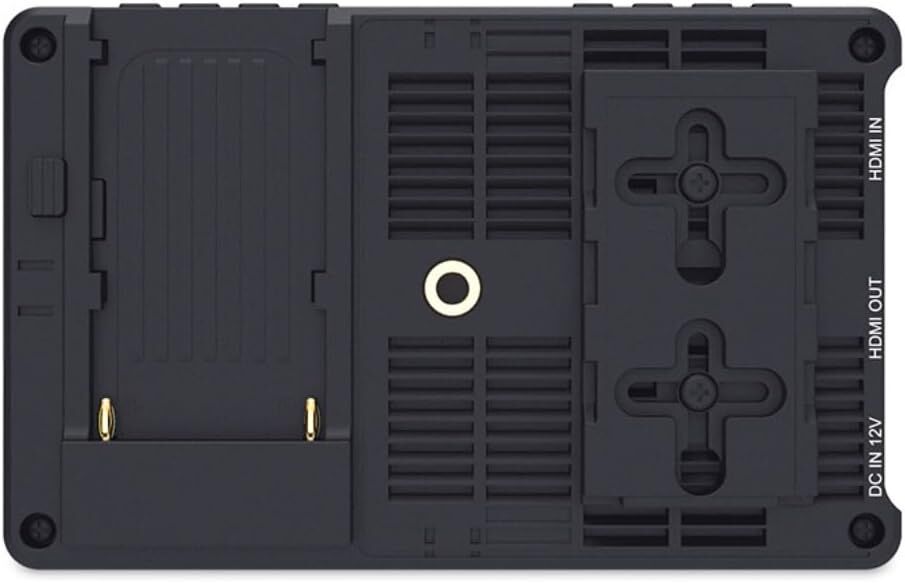

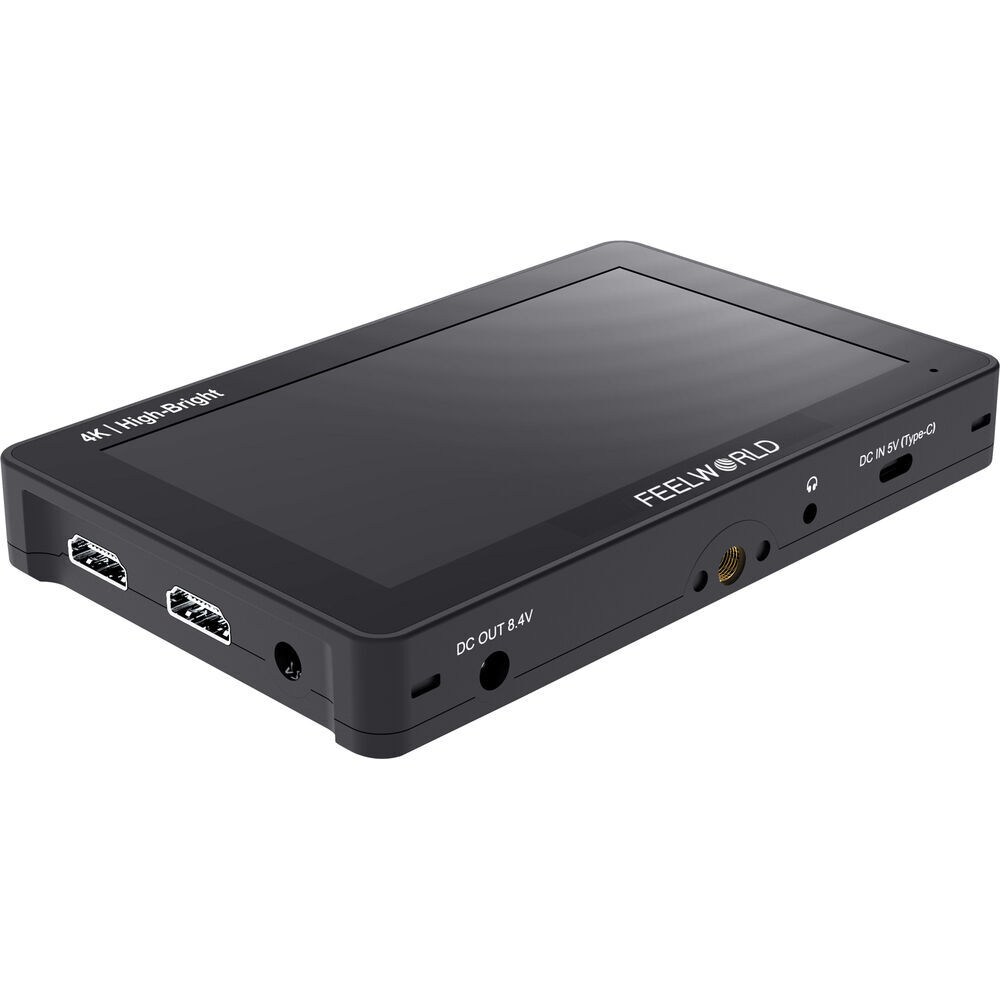

The F5 Pro X offers multiple power options for seamless on-the-go operation. It features a DC barrel input for an optional power adapter, a 5V USB-C port for power banks, and an L-series battery plate on the rear. Additionally, an 8.4V DC output port enables you to power external devices like cameras and accessories with a separately available cable.
Designed for flexible mounting, the monitor includes multiple 1/4"-20 threads on the top, bottom, right side, and rear center, allowing you to position it according to your workflow. The included 1/4"-20 to shoe mount tilt arm lets you attach the monitor directly to your camera while providing a side-mounted cold shoe for accessories like microphones or the included LED light.
For added convenience, the integrated installation bracket on the back allows secure attachment of wireless transmitters, signal converters, and other essential devices. A sun hood is also included for improved visibility when shooting in bright outdoor conditions.
Display Size |
5.5" / 14.0 cm |
Native Resolution |
1920 x 1080 |
Touchscreen |
No |
HDR Support |
No |
Video I/O |
1x HDMI (Unspecified Signal) Input |
Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [LUT Upload Only] |
Video Format |
HDMI (8-Bit) |
Battery Type |
1x L-Series |
Power Consumption |
9 W (Maximum) |
Mounting |
1x 1/4"-20 Female (Top) |
Display
Panel Type |
IPS-Type LCD |
Display Size |
5.5" / 14.0 cm |
Native Resolution |
1920 x 1080 |
Aspect Ratio |
16:9 |
Viewing Angle |
Horizontal: 160° |
Touchscreen |
No |
Maximum Brightness |
1600 nits / cd/m2 |
Contrast Ratio |
1000:1 |
Color Support |
16.7 Million Colors (8-Bit) |
HDR Support |
No |
Pixels Per Inch (ppi) |
400 ppi |
Finish |
Glossy |
LUT Support |
Yes |
Image Controls |
Focus Assist, Histogram, R/G/B/Chroma Only, Waveform |
Inputs / Outputs
Video I/O |
1x HDMI (Unspecified Signal) Input |
Embedded Audio |
HDMI |
Audio I/O |
1x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker |
No |
Power I/O |
1x Barrel 5.5 mm (12 VDC) Input |
Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [LUT Upload Only] |
Wi-Fi |
No |
Bluetooth |
No |
Mobile App Compatible |
No |
Format Support
Video Format |
HDMI (8-Bit) |
Power
Input Power |
12 VDC |
Battery Type |
1x L-Series |
Power Consumption |
9 W (Maximum) |
What's in the box:
1 x Feelworld F5 Pro X Monitor
1 x L Bracket
1 x USB-C to USB - A Cable
1 x HDMI Cable
1 x Sunshade
(F5ProX)
SKU | F5ProX |
Barcode # | 6971863817460 |
Brand | Feelworld |
Shipping Weight | 1.0000kg |
Shipping Width | 0.230m |
Shipping Height | 0.110m |
Shipping Length | 0.160m |
Shipping Cubic | 0.004048000m3 |
Type | FEELWORLD F5 PROX 5.5" Inch 1600nit High Bright DSLR Camera Field Monitor |
