Feelworld F7 Plus 7" Touchscreen 1200 nits HDMI Field Monitor

$355.00
RRP $375.00
SAVE $20.00 (5%)


or 4 payments of $88.75 with Info



Need Extras?




Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

 Features

  • 7" 1920 x 1200 Touchscreen Monitor
  • HDMI Input and Output
  • Accepts SD, HD, and DCI/UHD 4K Video
  • High 1200 cd/m² Brightness
  • 1200:1 Contrast Ratio
  • L-Series Battery Plate and DC Output
  • 160° Viewing Angle
  • Multiple Built-In Imaging Tools



Feelworld 7" Touchscreen HDMI Field Monitor

Designed for professional and on-the-go videographers, the Feelworld 7" Touchscreen HDMI Field Monitor offers crisp, high-resolution monitoring in a compact and lightweight design. Featuring a 1920 x 1200 resolution display, this monitor easily mounts on top of your camera or handheld rig for real-time video assessment.

With HDMI input and loop output, the monitor supports up to DCI/UHD 4K resolutions, ensuring seamless integration with high-quality camera systems.

Versatile Power Options & Connectivity

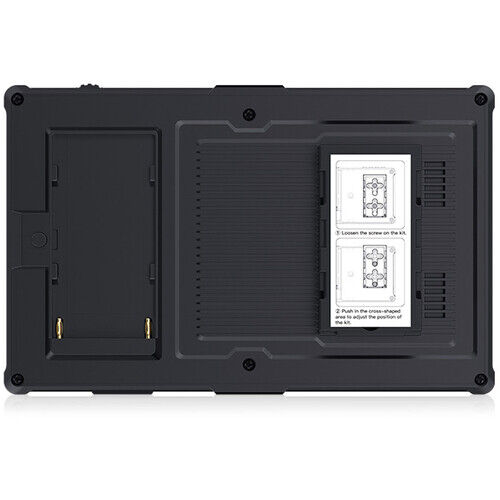

The monitor features an L-series battery plate on the rear, with additional USB-C and DC barrel inputs for flexible power options. A DC barrel output is also available, allowing you to power external devices like cameras and accessories.

A built-in mounting block on the back enables easy attachment of wireless receivers or other accessories, making it a versatile tool for professional workflows.

Advanced Monitoring Tools

To ensure color accuracy, focus precision, and exposure control, the monitor is equipped with a range of built-in image analysis tools, including:
Vectorscope
Histogram
RGB Parade

With its intuitive touchscreen interface and high-resolution display, the Feelworld 7" monitor is an essential addition to any videographer’s kit, providing precise, real-time monitoring in any shooting environment.

Specs

Display Size

7.0" / 17.8 cm

Native Resolution

1920 x 1200

Touchscreen

Yes

HDR Support

Yes, Hybrid Log Gamma

Video I/O

1x HDMI 2.0 Input
1x HDMI 2.0 Output

Media/Memory Card Slot

Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only]

Video Format

HDMI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i

Battery Type

1x L-Series

Power Consumption

15 W

Mounting

1x Anti-Twist 1/4"-20 Female (Top)
1x Anti-Twist 1/4"-20 Female (Right)
1x Anti-Twist 1/4"-20 Female (Bottom)

Display

Panel Type

IPS-Type LCD

Display Size

7.0" / 17.8 cm

Native Resolution

1920 x 1200

Aspect Ratio

16:10

Viewing Angle

Horizontal: 160° (80/80)
Vertical: 160° (80/80)

Touchscreen

Yes

Maximum Brightness

1200 nits / cd/m2

Contrast Ratio

1200:1

Color Support

16.7 Million Colors (8-Bit)

HDR Support

Yes, Hybrid Log Gamma

Pixels Per Inch (ppi)

323 ppi

Color Gamut

100% Rec. 709

Image Controls

Anamorphic De-Squeeze, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Overscan, Screen Markers, Vectorscope, Waveform

Inputs/Outputs

Video I/O

1x HDMI 2.0 Input
1x HDMI 2.0 Output

Embedded Audio

HDMI

Audio I/O

1x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

No

Power I/O

1x Barrel 5.5 mm (12 VDC) Input
1x USB-C (2 A / 5 VDC) Input
1x Barrel 5.5 mm (8 VDC) Output

Other I/O

No

Media/Memory Card Slot

Single Slot: microSD (Unspecified Type) [LUT/Firmware Update Only]

Wi-Fi

No

Bluetooth

No

Mobile App Compatible

No

Video Format

HDMI
DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p
576i
480p
480i

Power

Input Power

7 to 24 VDC

Battery Type

1x L-Series

Power Consumption

15 W





What's in the box:

1 x Feelworld F7 Plus Monitor

1 x L Bracket

1 x Mini HDMI to Full HDMI Cable

1 x Sunshade

(F7Plus)

SKU F7Plus
Barcode # 6971863818511
Brand Feelworld
Shipping Weight 1.0000kg
Shipping Width 0.230m
Shipping Height 0.110m
Shipping Length 0.160m
Shipping Cubic 0.004048000m3
Type Feelworld F7 Plus 7" Touchscreen 1200 nits HDMI Field Monitor
