Feelworld P6X 5.5" 4K HDMI Touchscreen Monitor

$285.00
RRP $299.00
SAVE $14.00 (5%)


or 4 payments of $71.25 with Info



Need Extras?




Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

 Features

  • 5.5" 1920 x 1080 Resolution Display
  • 1000 cd/m² Brightness
  • 4K HDMI Input and Output
  • 160° Viewing Angle
  • Up to 32 Custom 3D LUTs
  • NP-F Series Battery Plate
  • 8 VDC Output for Powering Camera
  • Three 1/4"-20 Threads, Cold Shoe Adapter



FeelWorld P6X 5.5" 4K HDMI Touchscreen Monitor

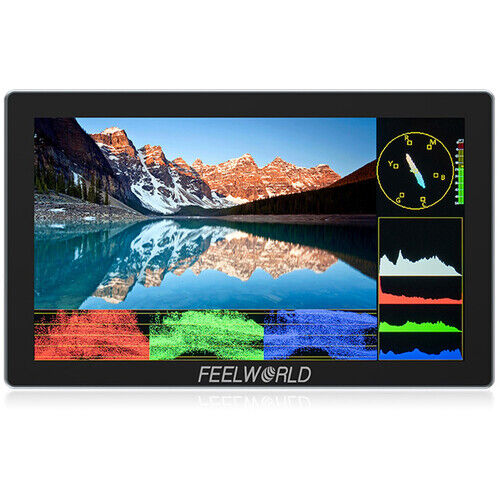

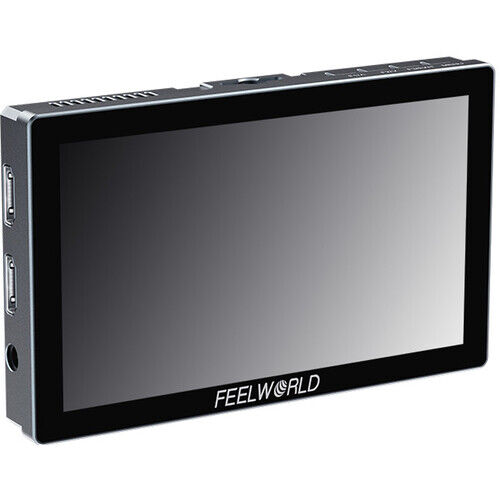

The FeelWorld P6X is a compact yet powerful 5.5" on-camera monitor, designed for professional field shooting. Featuring a 1920 x 1080 native resolution and an impressive 1000 cd/m² brightness, it delivers crisp, vibrant visuals with a 160° viewing angle, ensuring clear monitoring even in direct sunlight.

Equipped with HDMI input and output ports, the P6X supports up to 4K video signals, making it compatible with a wide range of cameras and wireless transmitters. Customize your footage in real-time by uploading up to 32 custom 3D LUTs, providing greater flexibility for achieving your desired look.

Advanced Monitoring & Power Options

The P6X offers intuitive touchscreen controls alongside dedicated onboard buttons, ensuring quick and easy access to essential video assist tools like waveform, histogram, vectorscope, focus peaking, and false color.

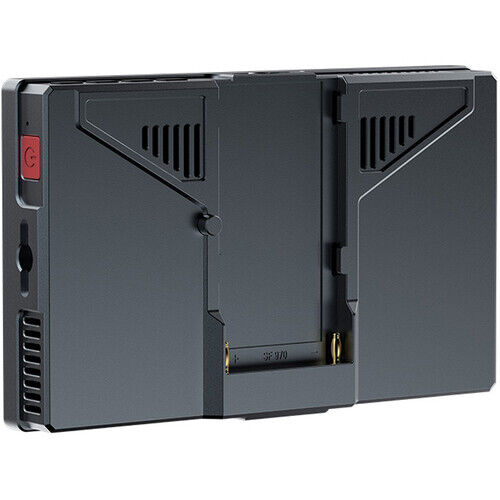

For power flexibility, the monitor supports NP-F batteries and can also be powered via USB input. Additionally, its 8V DC output port allows you to power your DSLR or mirrorless camera directly from the monitor, reducing the need for multiple power sources.

Versatile Mounting & Accessories

Designed for seamless integration into any rig, the P6X includes three 1/4"-20 mounting threads, allowing for versatile positioning. It comes with a cold shoe adapter, enabling easy attachment to cameras, stabilizers, or additional accessories.

With high brightness, 4K support, customizable LUTs, and versatile power options, the FeelWorld P6X is an essential tool for filmmakers and content creators who require accurate and reliable monitoring in any shooting environment.



Specs

Display Size

5.5" / 14.0 cm

Native Resolution

1920 x 1080

Touchscreen

Yes

HDR Support

Yes, Hybrid Log Gamma

Video I/O

1x HDMI 2.0 Input
1x HDMI 2.0 Output

Media/Memory Card Slot

No

Video Format

HDMI
DCI 4K: 60/50/30/29.97/25/24/23.98
UHD 4K: 60/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i

Power Consumption

10 W

Mounting

1x 1/4"-20 Female (Bottom)
1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Right)

Display

Panel Type

IPS-Type LCD

Display Size

5.5" / 14.0 cm

Native Resolution

1920 x 1080

Aspect Ratio

16:9

Viewing Angle

Horizontal: 160° (80/80)
Vertical: 160° (80/80)

Touchscreen

Yes

Maximum Brightness

1000 nits / cd/m2

Contrast Ratio

1000:1

HDR Support

Yes, Hybrid Log Gamma

Pixels Per Inch (ppi)

400 ppi

Image Controls

Anamorphic De-Squeeze, Check Field, False Color, Histogram, Image Flip, Image Freeze, Overscan, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform

Inputs/Outputs

Video I/O

1x HDMI 2.0 Input
1x HDMI 2.0 Output

Embedded Audio

HDMI

Audio I/O

1x 1/8" / 3.5 mm Headphone Output

Built-In Speaker

Stereo

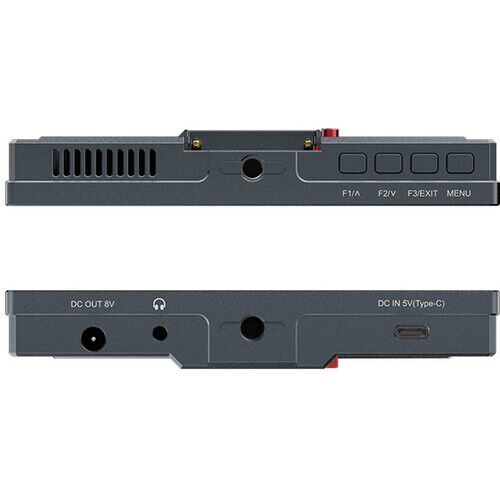

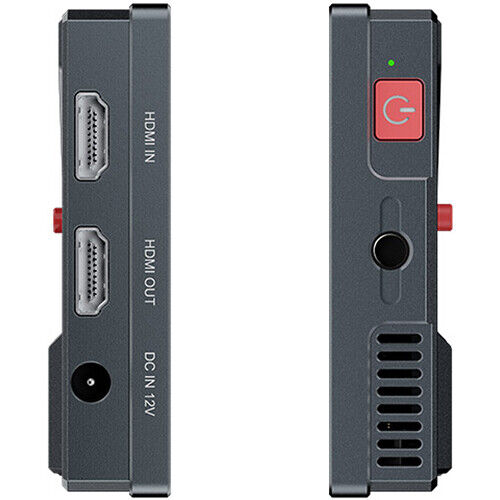

Power I/O

1x Barrel (12 VDC) Input
1x Barrel (8 VDC) Output
1x USB-C (5 VDC) Input

Other I/O

1x USB-C (Firmware/LUT Upload) Input [Shared with Power]

Media/Memory Card Slot

No

Wi-Fi

No

Bluetooth

No

Mobile App Compatible

No

Video Format

HDMI
DCI 4K: 60/50/30/29.97/25/24/23.98
UHD 4K: 60/50/30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
576p
576i
480p
480i

Power

Input Power

7 to 24 VDC

Power Consumption

10 W

Mounting

Mounting

1x 1/4"-20 Female (Bottom)
1x 1/4"-20 Female (Top)
1x 1/4"-20 Female (Right)

General

Operating Conditions

-4 to 122°F / -20 to 50°C

Storage Conditions

-22 to 140°F / -30 to 60°C

Material of Construction

Aluminum

Dimensions

5.5 x 3.3 x 0.9" / 138.5 x 84.5 x 22 mm

Weight

0.55 lb / 249.00 g



What's in the box:

1 x Feelworld P6X Monitor

1 x L-Bracket

1 x Sunshade

1 x Micro HDMI to HDMI Cable

1 x USB-c to USB-A Adaptor

(P6X)

SKU P6X
Barcode # 6971863818153
Brand Feelworld
Shipping Weight 1.0000kg
Shipping Width 0.230m
Shipping Height 0.110m
Shipping Length 0.160m
Shipping Cubic 0.004048000m3
Type FeelWorld P6X 5.5" 4K HDMI Touchscreen Monitor
