Feelworld F7 Pro IPS PANEL 7" Touchscreen Monitor

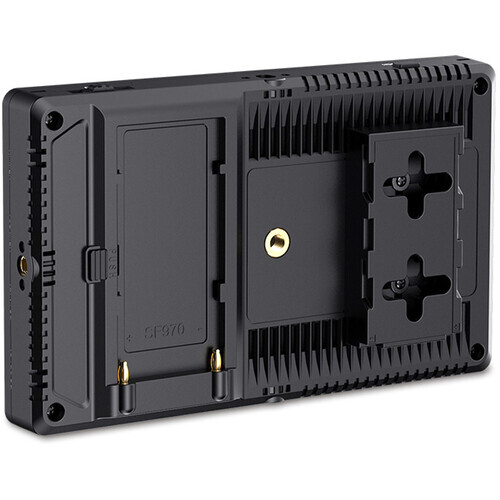

FEELWORLD F7 PRO 7-inch monitor, with full HD LCD touch screen, supports HDMI signal up to 4K 60Hz, professional and rich auxiliary composition tools, etc. The special feature of the F7 PRO is the F970 external install and power kit, it can install like wireless transmission, LED light and others equipped with a Sony F970 battery plate, and power for it. This design not only eliminates the trouble of arranging various cables but also combines the monitor and wireless video transmission, which is perfect for director monitoring, 1st AC to focus pulling in the film crew.
Many times, when you want to use wireless video transmission, you always do not know where to put it on the monitor. With the F970 external install and power kit, not only solves this problem but also can be powered by a Sony F970 battery. The most important is that can use as a director monitor or 1st AC monitor, convenient to director monitoring or 1st AC to focus pulling, improve the efficiency of the film crew shooting.

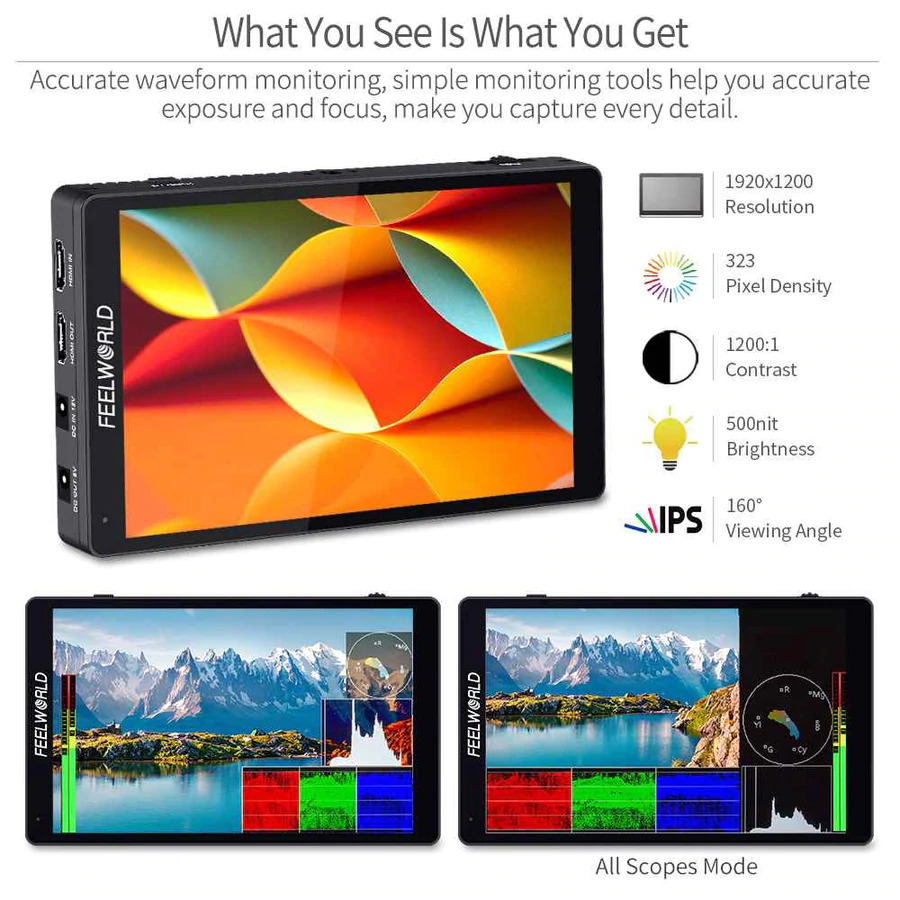

- The F7 RPO provides a 7-inch screen and sharp image, ideal for focus pulling and image analysis on set and in the field. With native 1920x1200 high resolution and 16:10 display, 500cd/m2 brightness, 1200:1 contrast ratio, delivers excellent detail. The 160°wide viewing angle is convenient for monitoring from multiple angles.
- FEELWORLD uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
- FEELWORLD monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of the shooting, enabling users to accurately evaluate the quality of various input video signals.
- The FEELWORLD F7 PRO is an ideal camera-top monitor for DSLR and mirrorless camera shooters. Because the F7 PRO provides auxiliary power out (DC OUT 8V); allowing shooters to power their cameras. With a battery adapter cable (Optional), the F7 PRO extends camera run-time, while providing a more usable display.
- Barrel output for powering your camera with a separately available DC coupler via adaptor (NP-FW50 Sony & LP-E6 Canon & DMW-BLF19 Panasonic). More adapters coming soon.
Note: since different brands and models of cameras require different power for normal operation, the camera may not be able to take pictures or video normally. Therefore, when using batteries to power the monitor, in order to use the camera normally, it is recommended to use a large capacity fully charged battery.

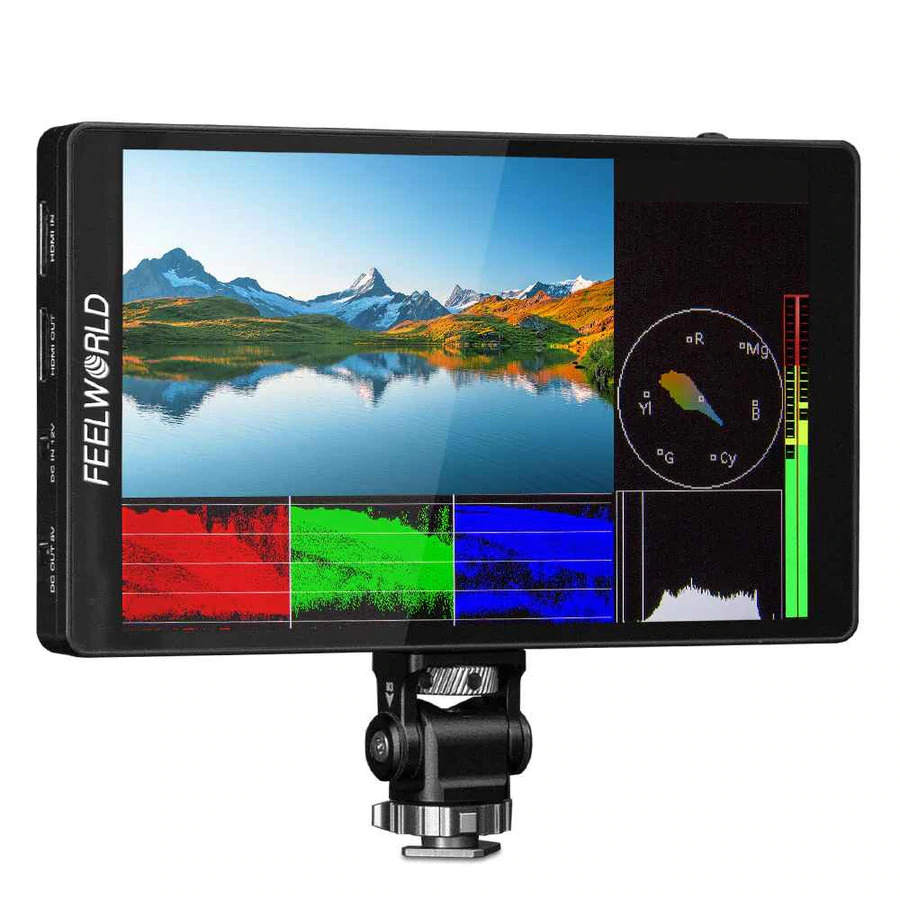

Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) along with a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.
Specifications:
Model: F7 PRO

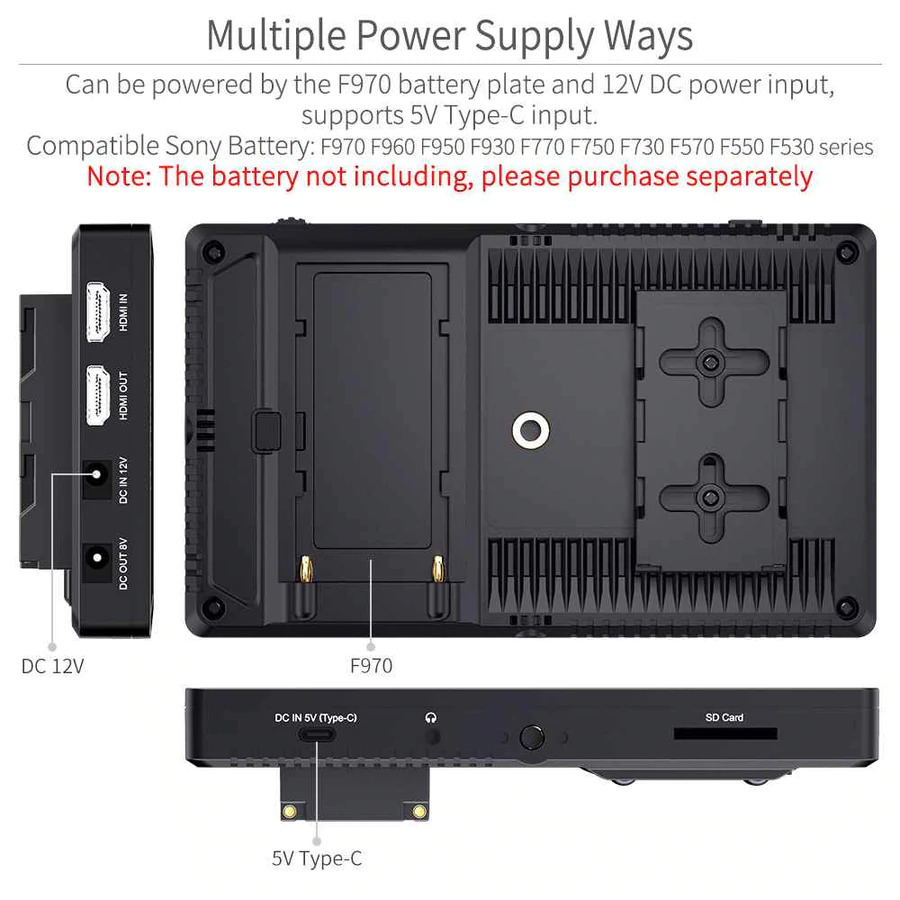

Input Interfaces: DC IN 12V, DC IN 5V(Type-C), SD Card, HDMI
Contrast Ratio: 1200:1
Backlight: LED
Diameter: 105(H) x 175(W) x 22(D)mm
Fitting Mount: Battery Mount (without battery), 1/4 inch-20 Thread Mount, Hot-Shoe Mount
Connectivity: DC 5.5x2.1mm, SD Card, 3.5mm Headphone Jack, Audio, HDMI
Features:
3D LUT, HDR Monitoring, Light Weight, Display, Headphone Output, LCD Monitor, SD-Card, Touchscreen
Number of Outputs: 3
Image Control:
Zoom In, Anamorphic Mode, Nine Grid, Center Marker, HDR Monitoring, Audio Meter, False Color, Focus Assist, Histogram, Image Flip, LUT Import, Vectorscope, Waveform
Output Interfaces:
DC OUT 8V, 3.5mm Headphone Jack, HDMI
Video Format: HD
Item Weight: 330g
Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
Input Voltage: DC 7~24V
Max Power Consumption: 9W
Working Temperature: -20°C~50°C
Screen Size: 7 in
Colour System Type: NTSC, PAL, SECAM
Screen Type:
LCD IPS Touch Screen
Resolution:1920x1200 pixels
Aspect Ratio:16:10
(F7Pro)
SKU | F7Pro |
Barcode # | 6971863813905 |
Brand | Feelworld |
Shipping Weight | 1.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
Shipping Cubic | 0.009000000m3 |
