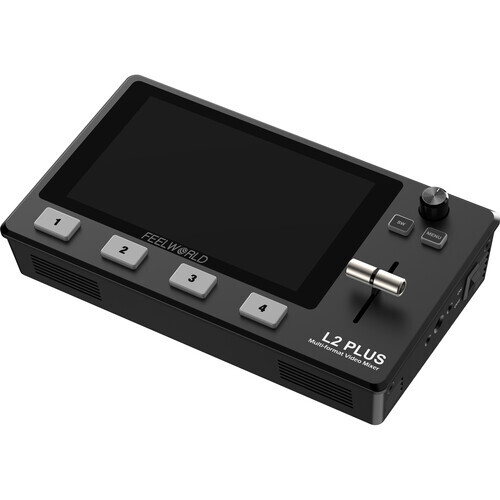

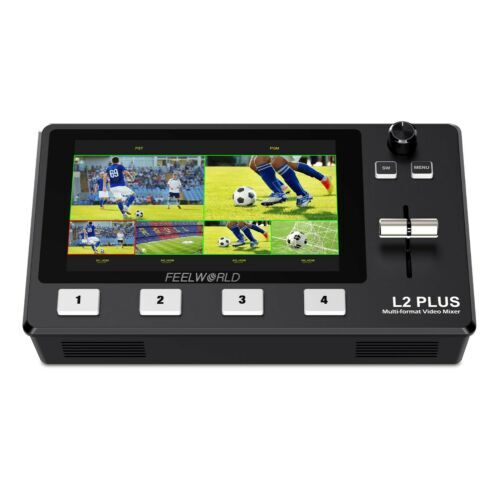

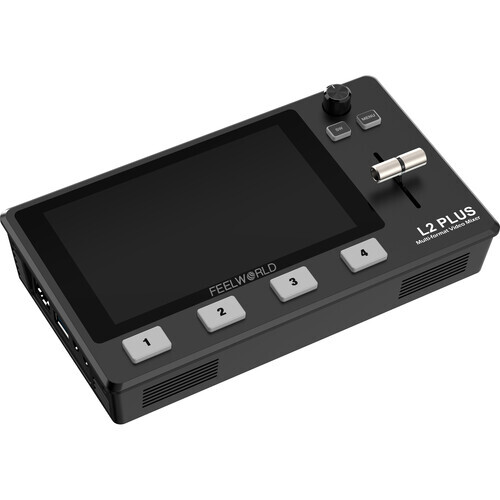

FeelWorld HDMI Live Stream Switcher with Built-In 5.5" LCD Monitor
The switcher allows you to switch between the inputs using the touchscreen or the large LED buttons that light up with green or red tally indicators, or it can be controlled via a computer or smartphone app. You can utilize the HDMI embedded audio or embed audio from a microphone or external source using the 3.5mm stereo input jack. There is also a 3.5mm output jack to de-embed the audio for use with external speakers or an audio mixer. You can monitor all four inputs using the built-in color TFT display on the unit, or you can output Program/Preview via the HDMI output. It supports video output up to 1080p60 via USB for use with a variety of third-party streaming software or NLE video editing systems.
Key Features
- 5.5" Full HD IPS screen; provides real picture
- Touchscreen operation; easy to use
- Real-time six-picture preview (four input sources + PST preview + PGM output picture)
- USB 3.0 fast livestreaming via computer
- PTZ camera control for up to eight cameras
- Chroma key and logo overlay
- T-bar easily switches transition effects and signal sources
- 15 transition effects and nine PiP modes
- Audio offers embedded or 3.5mm line-in mode
- Remote control via computer or smartphone app
Specs
Effect Types | 1 x Graphic, Transition, Chroma Key |
Processing
Switching Type | Pushbutton, T-Bar, Touchscreen |
Processing Resolution | 1080p at 23.98/24/30/50/60 |
Input
Number of Video Input Sources | 4 |

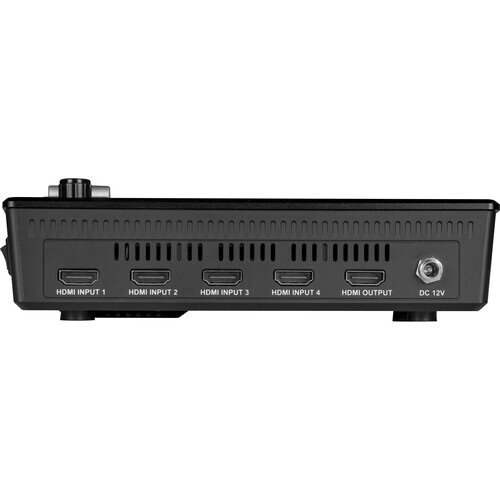

Video Input Connectors | 4 x HDMI Female |
Input Video Format | HDMI 1080p: 23.98/24/30/50/60 fps 1080i: 50/60 fps 720p: 50/60 fps WUXGA (1920 x 1200): 60 fps WUXGA+ (1680 x 1050): 60 fps UXGA (1600 x 1200): 60 fps WXGA+ (1440 x 900): 60 fps FWXGA (1366 x 768): 60 fps SXVGA (1280 x 1024): 60 fps WXGA (1280 x 800): 60 fps XGA (1024 x 768): 60 fps |

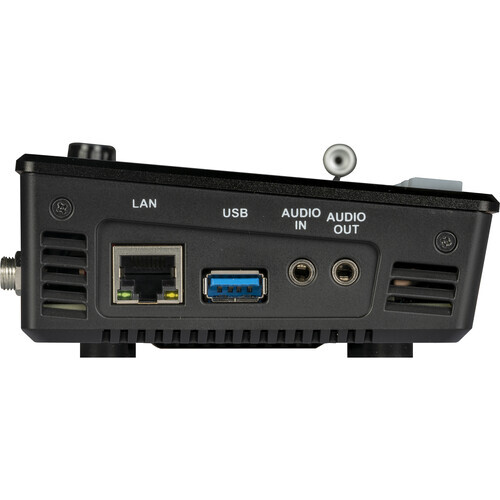

Audio Input Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Embedded Audio Input | HDMI |
Output
Video Output Channels | 2 |
Video Output Connectors | 1 x HDMI Female (Program) 1 x USB Type-A Female (Program) |
Output Video Format | HDMI 1080p: 24/25/30/50/60 fps 720p: 50/60 fps 1360 x 768: 60 fps SXGA (1280 x 1024): 60 fps 1280 x 768: 60 fps XGA (1024 x 768): 60 fps USB Type-A 1080p: 24/25/30/50/60 fps 720p: 50/60 fps FWXGA (1366 x 768): 60 fps SXGA (1280 x 1024): 60 fps |
Audio Output Connectors | 1 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Output Audio Format | Analog |
Embedded Audio Output | HDMI USB Type-A |
Multiview Output | 4-Way Multiview viaHDMI |
Display
Display Size | 5.5" |
Power Connector | 1 x Barrel (12 VDC at 2 A) Input |
Power Consumption | Device: 21 W |
Environmental
Operating Temperature | 32 to 122°F / 0 to 50°C |
Operating Humidity | 5 to 85% |
General
Dimensions | 7.5 x 4.3 x 1.7" / 19.1 x 11 x 4.3 cm |
Weight | 1.3 lb / 610 g |
(L2Plus)
SKU | L2Plus |
Brand | feelworld |
Shipping Weight | 1.0000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.300m |
Shipping Cubic | 0.013500000m3 |
