Feelworld/Seetec 4 x SDI 17.3" Director Monitor With Carry Case
Display Spec.
| Model | ATEM173S-CO |
| Screen Size | 17.3" IPS |
| Color Depth | 16.7M |
| Resolution | 1920×1080 pixels |
| Pixel pitch | 0.1989(W) x 0.1989(H) mm |
| Aspect Ratio | 16:9 |
| Brightness | 300cd/m² |
| Contrast Ratio | 700:1 |
| Backlight | LED |
| Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Input
| 4 X 3G-SDI | 3G-SDI (support 2K) |
| 1 X HDMI | HDMI (support 1080P) |
| 1 X RS485 | RS485 |
| 1 X GPI | GPI |
| 1 X USB | USB (upgrade and LUT import) |
Output
| 4 X 3G-SDI | 3G-SDI (support 2K) |
| 1 X RS485 | RS485 |
Audio
| Audio | Stereo Headphone, Speaker |
SDI Support Format
| 720p (60/59.94/50/30/29/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
| 2048x1080i (60/59.94/50) |
| 2048x1080p (60/59.94/50/30/29.97/25/24/23.98) |
HDMI Support Format
| 480i/576i/480p/576p |
| 720p (60/59.94/50/30/29.97/25/24/23.98) |
| 1080i (60/59.94/50) |
| 1080p (60/59.94/50/30/29.97/25/24/23.98) |
General
| Input Voltage | DC 12V |
| Power Consumption | ≤22W |
| Working Temperature | 0°C~50°C |
| Storage Temperature | -20°C~60°C |
| Unit Size | 425L×296H×23D (mm) (W/O aluminium case) |
| Unit Weight | 2.84kg (w/o aluminium case) |
| Outer Carton Qty | 1 |
| Outer Carton Size | 590*300*400 (mm) |
| Gross Weight | 12.7kgs |
Advanced Features
| * Built-in Multi camera Delog LUTs |
| * User 3DLUTs upload via USB (up to 36) |
| * Support GPI control |
| * Support dynamic IMD, support TSL 3.1/4.0 and IMAGE VIDEO protocol |
| * Support TALLY |
| * Support 16-ch embedded audio meters display |
| * Histogram |
| * HDR |
| * Focus Assist (Yellow, Red, Green, Blue and White five colors optional highlight over parts of the image in focus) |
| * False Colors |
| * Zebra (70IRE, 80IRE, 90IRE) |
| * Timecode Display |
| * Picture in Picture (Adjustable Horizontal or Vertical Wipe Position) |
| * Under Scan, Over Scan |
| * Anamorphic Mode (1.25X, 1.33X, 1.5X, 2.0X, 2.0X mag) |
| * Pixel to Pixel |
| * Center Marker |
| * Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1,user) |
| * Marker Mat (16:9, 16:10, 4:3, 1.85:1, 2.35:1) |
| * All Waves |
| * Parade (RGB Parade, Y, YUV Parade) |
| * Image Freeze |
| * Selectable Color Temperature Presets |
17.3”3G-SDI/HDMI Broadcast Director Monitor
Complete solution for multi-camera on set shooting, monitoring and post production
SEETEC ATEM173S-CO is a full HD broadcast carry-on monitor, equipped with 4x3G-SDI inputs and outputs, 1 x HDMI input interface and RS485, GPI control interface. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing; With 3D-LUT, waveform, vectorscope, histogram, peaking focus and other wonderful functions, all of functions can be easily operated and controlled via the front panel buttons. The portable aviation aluminum case can easily handle even harsh location shooting. It is an ideal monitor for film and television crews, broadcast and post-production!

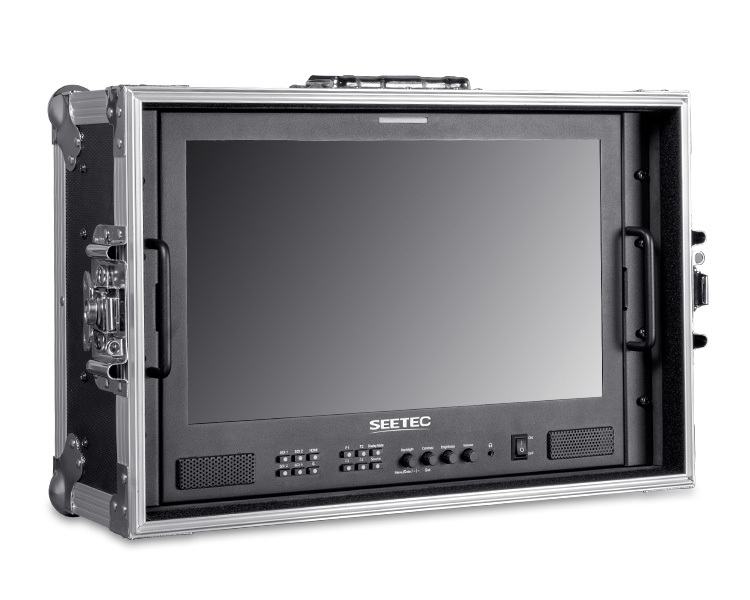

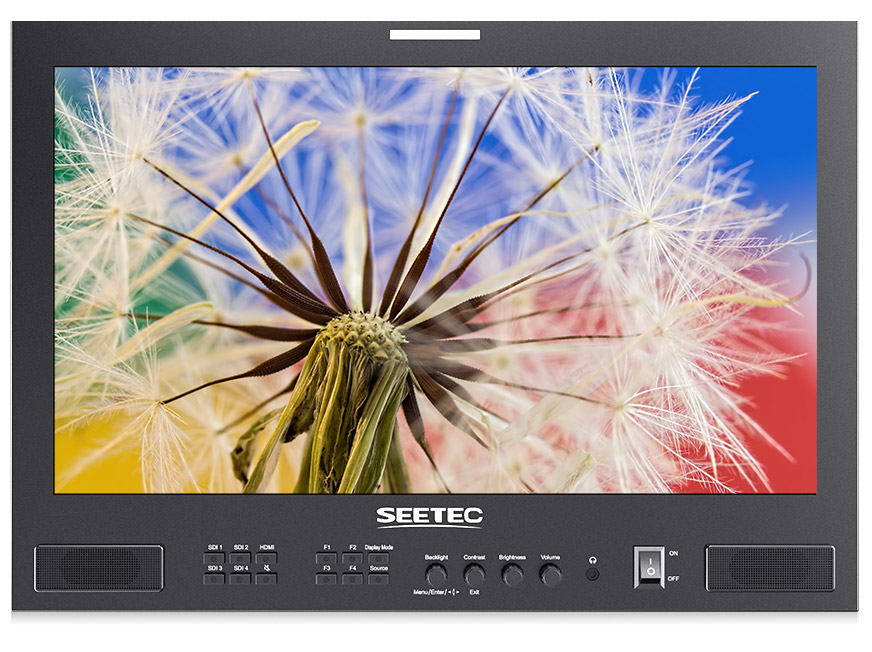

17.3-inch Full HD LCD
The ATEM173S-CO adopts a 17.3-inch LCD panel, with high resolution 1920x1080, accurate color reproduction, provides you natural and clear image; 300cd/㎡ brightness, 700:1 contrast ratio, 178° wide viewing angle, allows you to see clearly no matter you monitor from which angle.

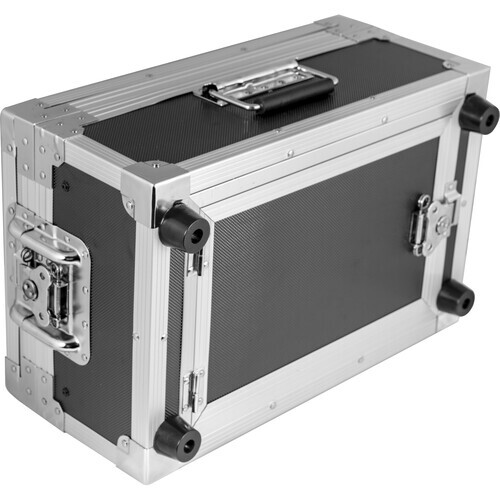

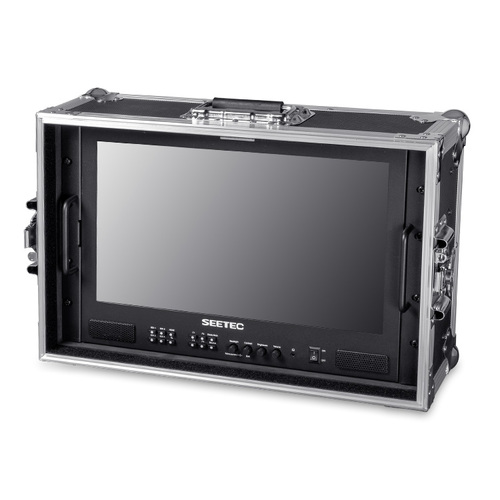

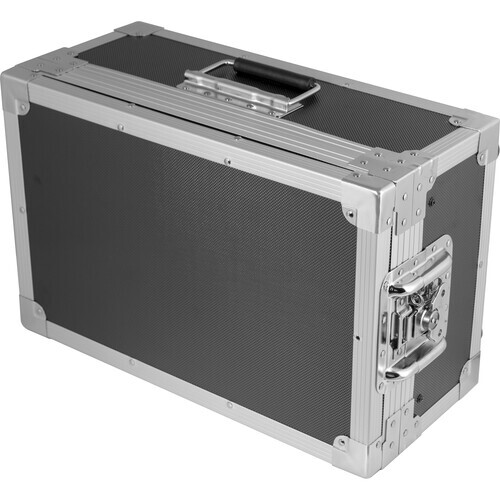

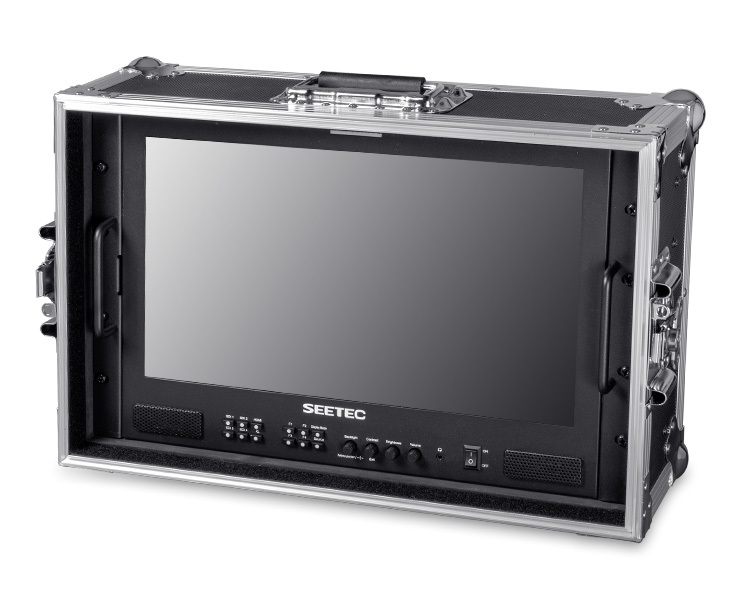

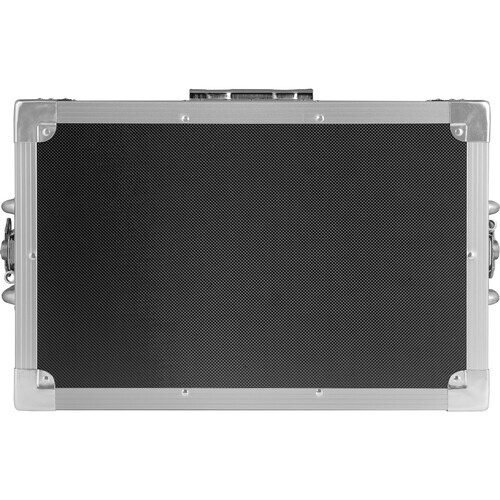

Portable Aviation Aluminum Case
Ideal choice for filming shooting
Time and Costs are important for film crews. This becomes more obvious if there are frequent scene changes during on-set production. The ATEM156S-CO provides a aviation aluminium case, has the characteristics of dust-proof, waterproof, high temperature resistance, and corrosion resistance and so on. It is suitable for carrying and application in different environments, and provides a safer protection for the monitor.
Quickly Disassemble and Assemble, Without Tools Required
The innovative combined structure design can quickly complete the disassembly and installation of the monitor, and easily to make the monitor use for both indoor and outdoor.
Comfortable Handle
The handle with moderate size and comfortable to hold , effectively relieve the weight-bearing feeling caused by the movement of the device，easy to carry.

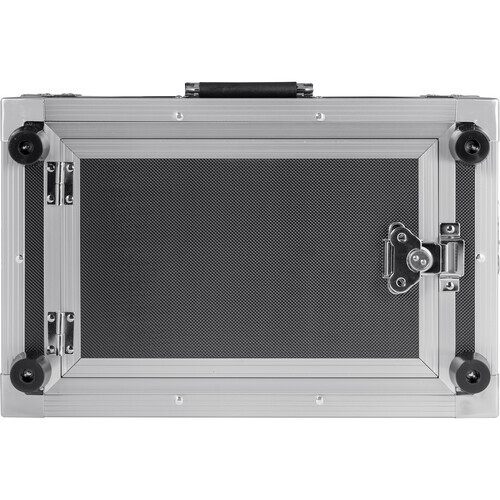

Beautiful Butterfly Shape Lock
Both the case links and the front and rear covers are adopt beautiful butterfly shape locks，durable and good looking.
Accurate Color Reproduction
Use Rec.709 color standard
Accurate color reproduction is one of the important indicators for measuring professional monitors. ATEM156S-CO built-in 3D-LUT, adopts the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory to ensure the consistency of color reproduction of each monitor.
.jpg)

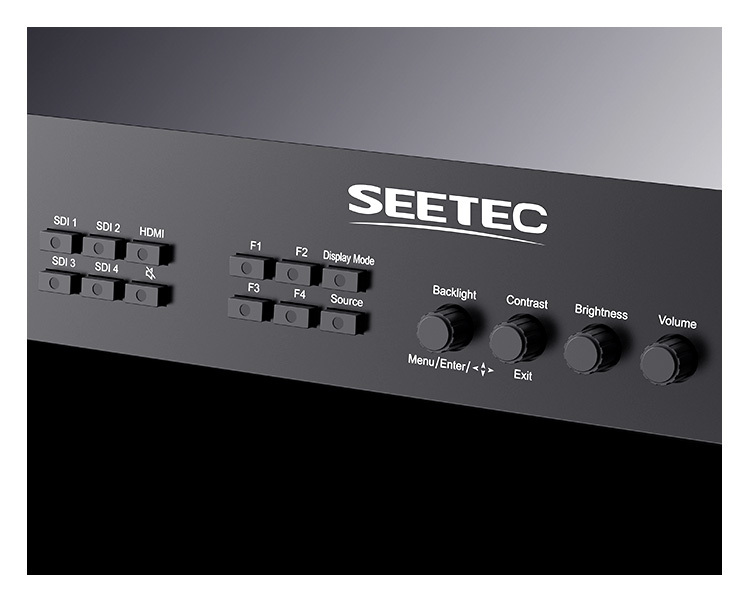

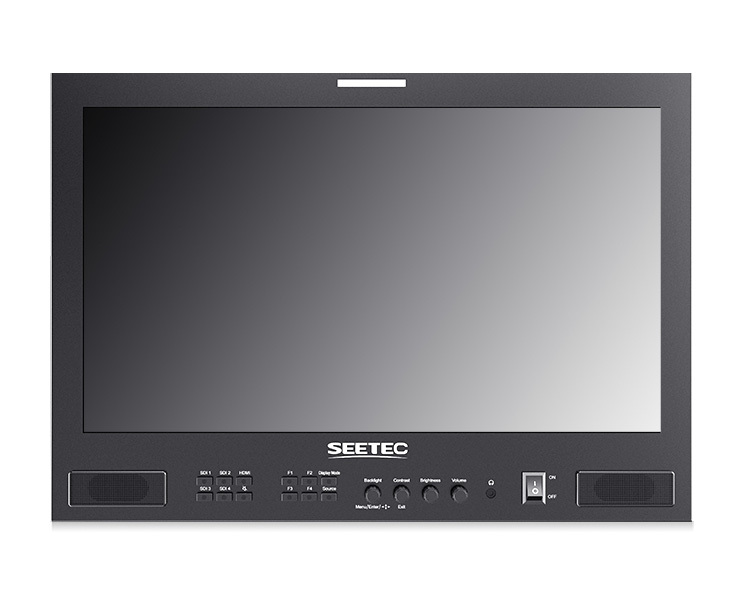

Flexible and Intuitive Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment, and the ATEM156S-CO can meet your needs. It can switch between one-button sources, custom shortcuts, and quickly adjust brightness, contrast, volume, etc. to make shooting easier. The backlight button design makes it easier for you to distinguish the current input signal and the shortcut keys used, easy to use even in dimly lit studio or outdoor environments.

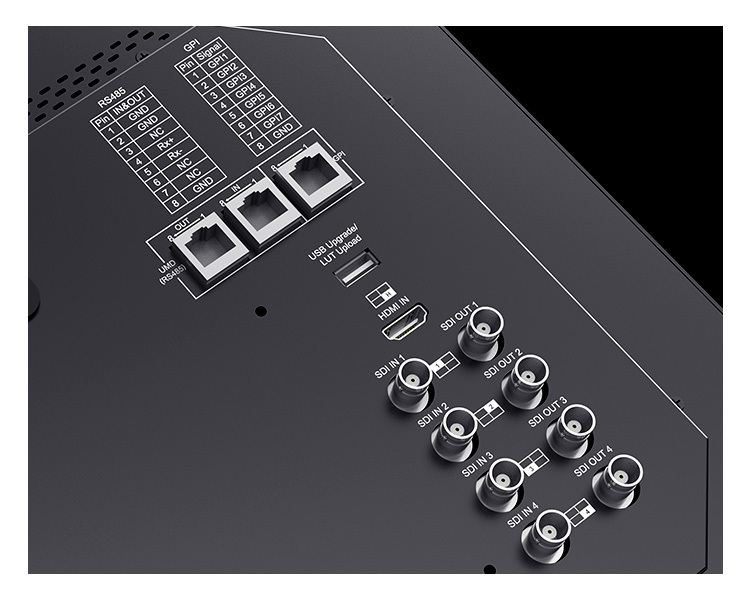

4X3G-SDI Inputs and Output
Perfect SDI monitoring
ATEM156S-CO monitors are the perfect choices to add SDI monitoring anywhere you need it. It comes with 4x3G-SDI signal inputs and outputs, suitable for multicamera shooting in crew, and simultaneous monitoring by multiple persons. In addition, it also with a HDMI input, RS485, GPI control interface, meet different needs.

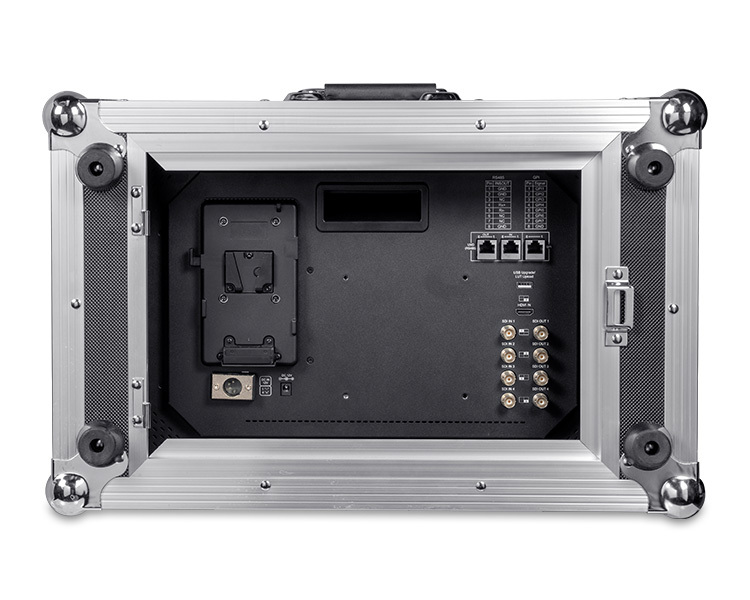

Multiple Power Options
Long-lasting Power Shooting
The monitor provides DC 12V/2A~3A power, XLR connector and Sony V-mount battery plate for options.
Note: The battery plate default is V-mount Plate, the client can choose Panasonic Anton Plate for optional.
Professional On Set Monitoring Tools
Accurately focus and efficient monitoring
The monitor provides a series professional auxiliary monitoring tools, such as waveform, 3D-LUT, peaking filter, histogram, vectorscope, audio meter, time code, anamorphic mode, etc. All of functions can easy to select and operate from menu, also can set shortcut button or via GPI control. Effectively improve the efficiency of on-site shooting and post-production.
3D LUT, Recreate Film Looks
Supports up to load 36 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36).

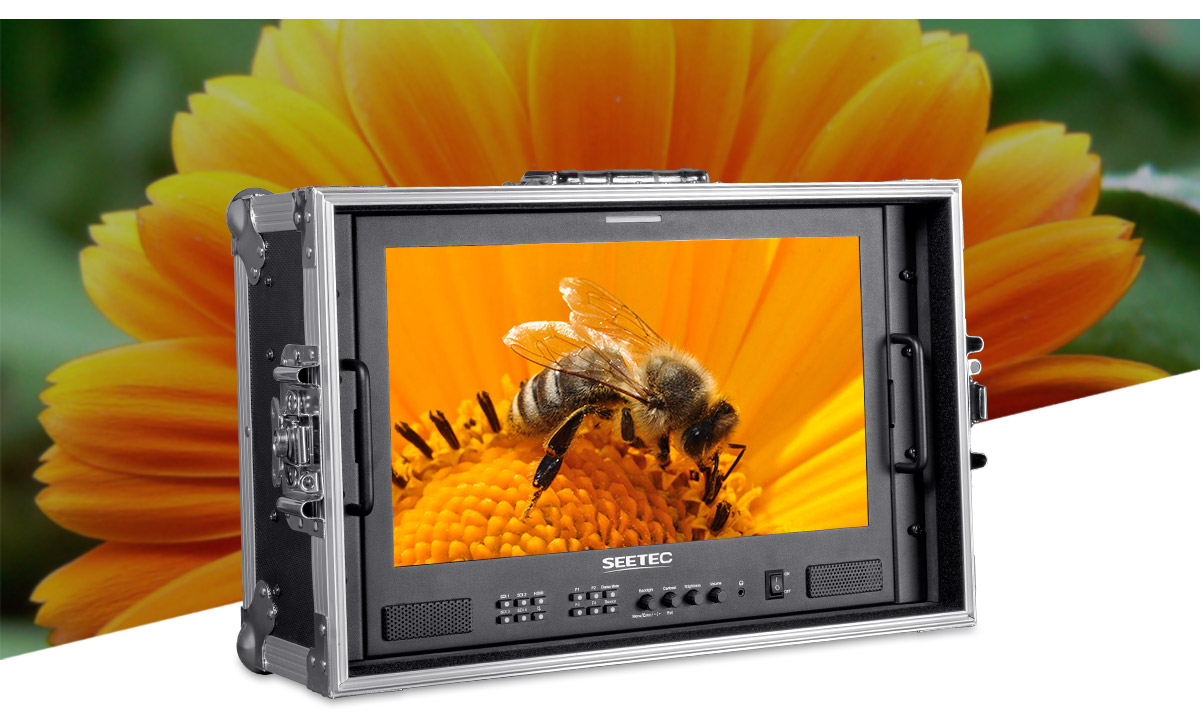

HDR Monitoring
What you see is what you get
Supports HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality. When HDR is activated, you can select Gamma and Gamut corresponding to the company Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.
Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode （can be right/left adjustment）. ATEM156S-CO becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

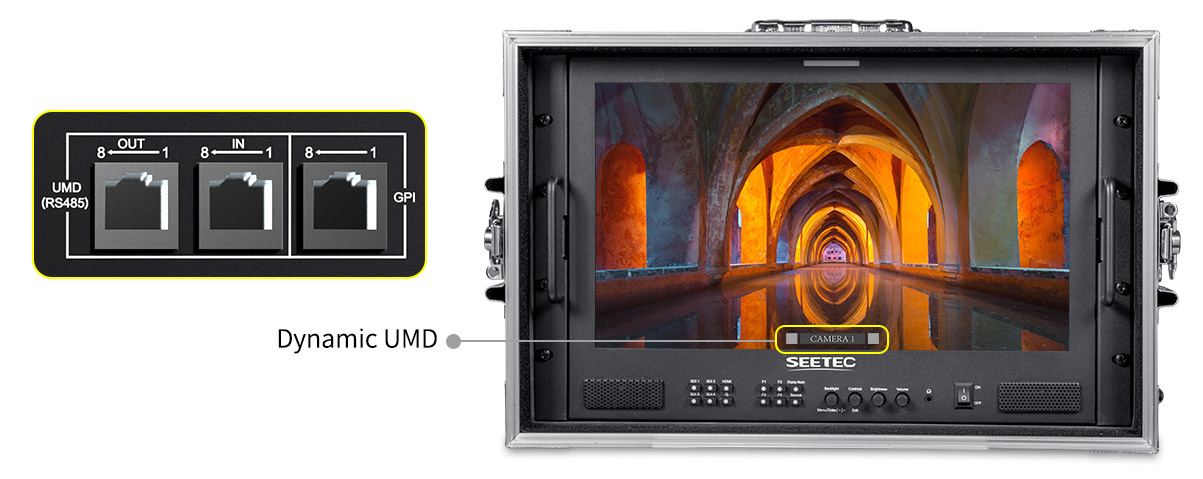

Dynamic UMD
TSL3.1/4.0 Protocol
ATEM156S-CO supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port.
Tally Lights
GPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.
Multiple Display Mode
Meet different monitoring needs
The screen can be set to full screen, picture-in-picture and quad to meet different monitoring needs. In the picture-in-picture mode, the size and position of the sub-window can be adjusted. In the quad screen mode, supports SDI signal simultaneously display 4-channel audio meter and 4 time code.
16-Channel Audio Level Meters
The monitor can de-embedded audio from SDI and HDMI. Support select any 2 channels audio to output via 3.5mm headphone jack. Under SDI audio, it supports max 16-ch embedded audio meters display. Under HDMI audio, only 2 channels audio displays are supported.
Custom Menu Setting
ATEM156S-CO provides 4 groups custom menu setting, which will be automatically saved after setting, and there is no need to reset when you turn on next time, saving time cost.
Portable Sunshade
New extended screen sun hood, to acquire the ideal visual effect in almost all environments.
Application for various environments
No matter the environment of cold snow or hot desert and so on, the ATEM156S-CO can easily handle.
(ATEM173S-CO)
| SKU | ATEM173S-CO |
| Brand | Feelworld |
| Shipping Weight | 6.0000kg |
| Shipping Width | 0.600m |
| Shipping Height | 0.250m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.075000000m3 |
