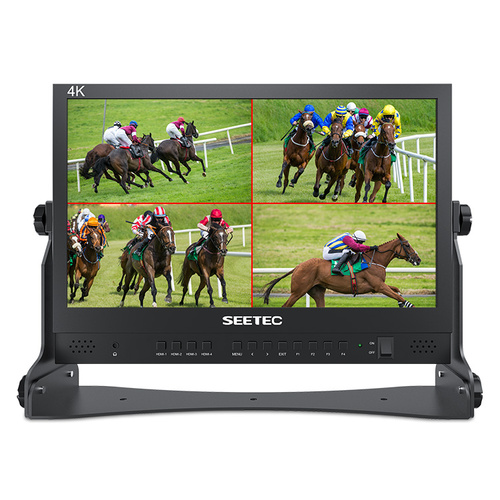

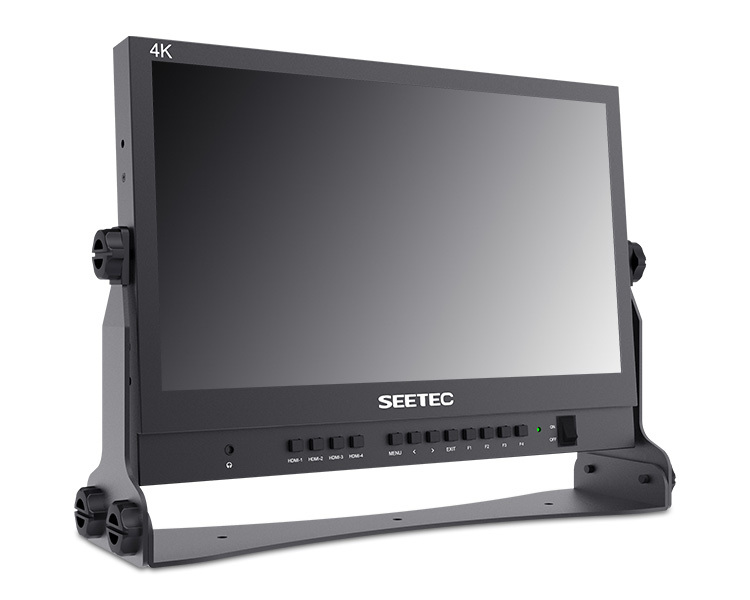

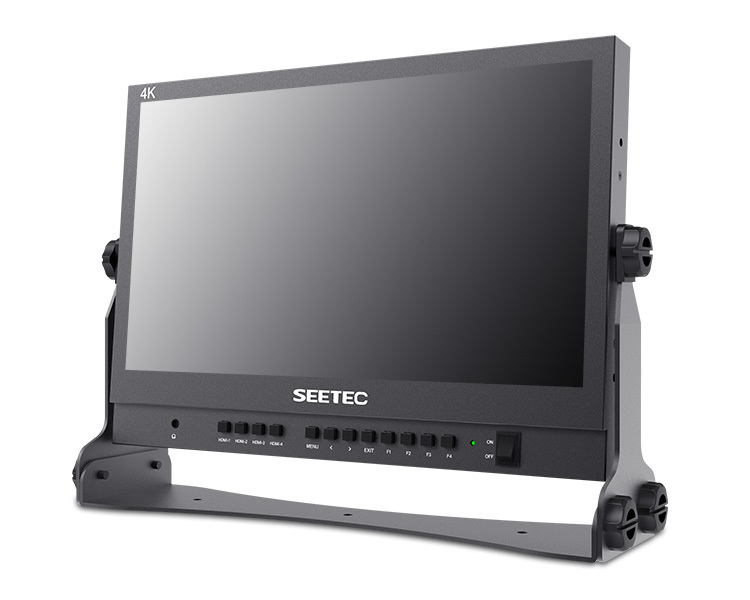

Feelworld/Seetec Atem156 4 x HDMI 15.6" Director Monitor Combo Kit
Dimension : 37cm (W) x 23cm (H) x 2.8cm (D)
4 HDMI inputs, 4HDMI outputs
FHD Resolution with PIP/PBP
SEETEC ATEM156 has set up professional monitoring functions according to the actual needs of pre-shooting and post-production to help you improve the shooting efficiency. Equipped with four 4K HDMI inputs, it supports quad view, dual view, and single view monitoring functions, allowing you to get perfect multi-camera monitoring in any location! It contains focus-checking functions, such as Peaking Focus, False Color, and Pixel to Pixel, to assist in getting sharp images. It contains framing functions, such as Center Marker, Safety Marker, Grid Marker, to prevent the cut of the screen during the live, to leave the correct space for other functions during the live. It also includes other useful functions like Image Zoom, Check Field, Image Freeze, Color Temperature Adjustment, etc.
Package List:
1 x Seetec Atem156 Monitor
1 x Seetec Monitor Stand

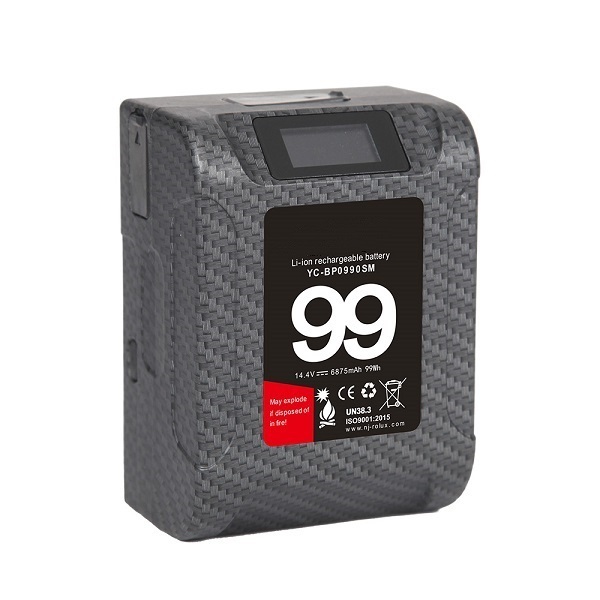

1 x Rolux 99wh V Lock Battery

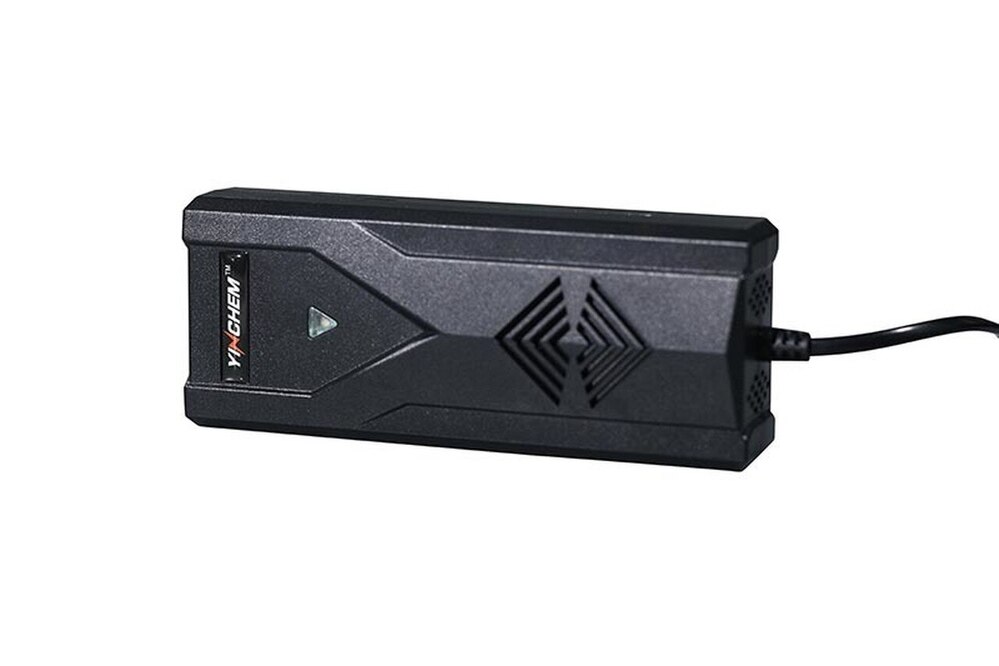

1 x Rolux Super Fast Charger
The SEETEC ATEM156 equipped with a 15.6 inch IPS LCD panel. The IPS LCD panel itself has a resolution of 1920 x 1080, a contrast ratio of 800:1, and an LED backlight with a brightness of 250cd/m², giving you an accurate reproduction of video. It combines a wide 170° viewing angle in both horizontal and vertical directions. Easy viewing is ensured by reducing color changes due to the viewing angle.
Use Rec.709 color standard
SEETEC uses the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory, it can achieve monitor calibration efficiently and get accurate color reproduction easily, do not distort the color, show the real image when you shooting video.
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals.
Easy Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment, and the ATEM156 can meet your needs. It is equipped with a simple control panel, , allowing you to be comfortable in the shooting process. With 4 separated HDMI buttons, you can switch the HDMI signal source quickly; with 4 shortcut keys (F1 ~ F4), you can customize the shortcut key functions and quickly call them out.
Connect up to 4 cameras, game consoles or computers!

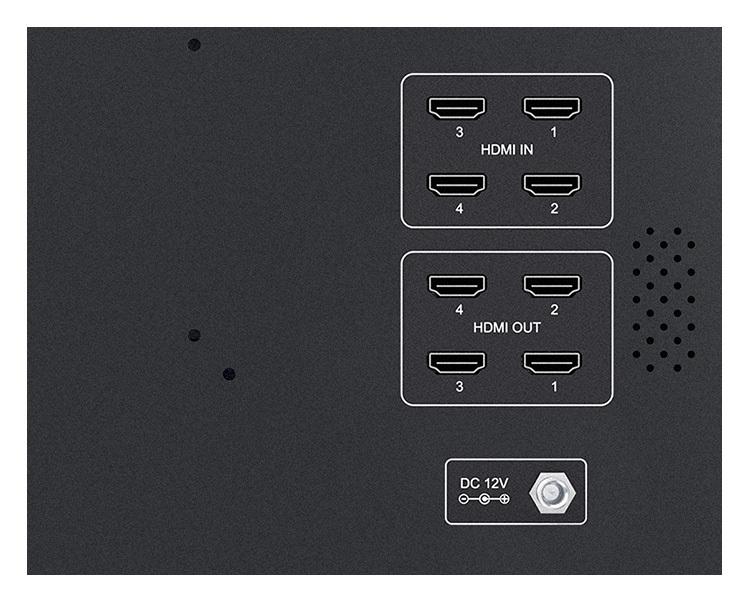

ATEM156 has 4 X 4K HDMI input and output, which can connect up to 4 cameras, game consoles, computers and other equipment. At the same time, it can also loop out 4 HDMI signals to other devices, such as ATEM Mini or ATEM Mini Pro. This is very useful for studio and live multi-camera shooting.
When your switcher does not have a multiview function, such as ATEM Mini, then you may need an ATEM156. When doing larger live productions with multiple cameras, you can first connect the camera to the ATEM156 monitor, check the shooting images of each camera on the ATEM156 monitor, and then put them to air, so you don't have to worry about the broadcast content. Help you preview the image and avoid the "blind cut" channel status.

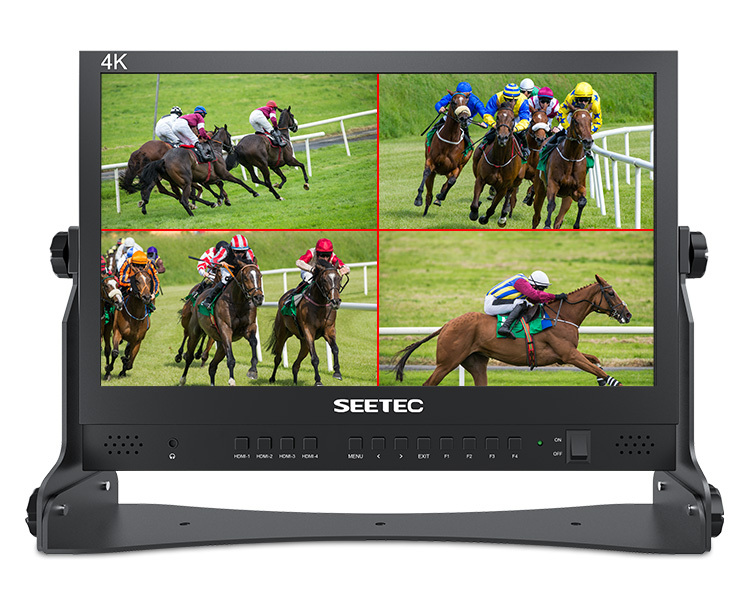

Quad View/ Dual View
When you’re creating a live program from multiple cameras, it’s important to be able to see more video sources at the same time. ATEM156 has four 4K HDMI inputs and outputs, supports quad view, dual view, single view monitoring functions, allowing you to get perfect multi camera monitoring in any location!

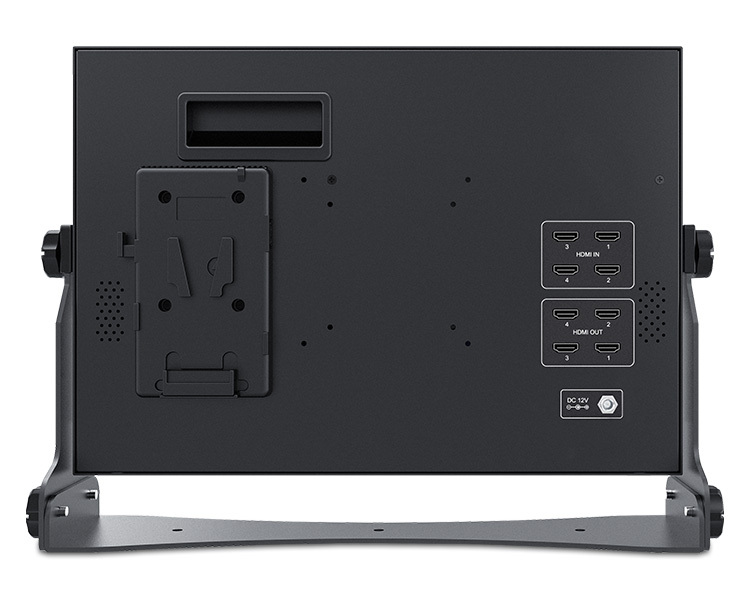

The back of ATEM156 is equipped with a 12V DC power input and a V-mount battery plate. You can connect its 12V DC input for continuous power, or you can install a V-mount rechargeable battery on the V-mount battery plate to realize mobile applications. For outdoor shooting, you can use an external battery, and you can connect a standard DC power supply when using it in a shed or post-production room.
There are 3 mounting points located on the U-shaped bracket. The standard sized mounting points make it easy to mount and are compatible with third-party rigging equipment. Using the 1/4 inch holes, you can hang it from rigs or mounted it on the camera support, and use it as a monitor for the entire crew. And you can also set it up on a table to monitor.
The included VESA mount points mean you don’t have to rack mount ATEM156, as you can use a wide range of computer monitor mounting hardware if you want to mount your broadcast monitor in cubicles, on walls or anywhere you need!
The frame of ATEM156 is made from extremely durable and lightweight aircraft grade aluminum, the weight of the ATEM156 is as low as 1.57kg (without bracket), and this metal material has very sturdy and durable characteristics, suitable for high-intensity production such as mobile shooting, location shooting or live broadcast.
(ATEM156Kit)
SKU | ATEM156Kit |
Barcode # | 6971863813202 |
Brand | Seetec |
Shipping Weight | 6.0000kg |
Shipping Width | 0.600m |
Shipping Height | 0.300m |
Shipping Length | 0.500m |
Shipping Cubic | 0.090000000m3 |
