Hollyland Mars 300 Pro HDMI Wireless Transmission System - EX Demo
Ex-Demo Unit
We carry only Australian stock which complies with local Radio Safety Regulations.
Hollyland Mars 300 PRO HDMI Loopout Wireless Transmitter and Receiverfor SLR/MILC Camera with 300ft Long Range 0.08S Low Latency 1080P HD Video Transmission System .
Overview:
- Add up to 1080p60 wireless video transmission to your gimbal, mirrorless, or DSLR camera rig using the lightweight standard Mars 300 PRO HDMI Wireless Video Transmitter/Receiver Set from Hollyland. This standard model features internal antennas on both the transmitter and receiver. The transmitter provides a single HDMI input plus an HDMI loop-out for viewing on an on-board monitor and the receiver provides two HDMI outputs. The transmitter features line-of-sight transmission up to 400' to the receiver and up to 300' to a Wi-Fi app.
- Using the Hollyview app for iOS or Android, you can monitor your video transmission in real time via a Wi-Fi connection. The transmitter can transmit to up to one receiver and two apps, or to a total of three apps, simultaneously. The transmitter and receiver are compact in size, feature a bright OLED display for configuration, and they each feature a 1/4"-20 mounting thread. Each can be powered using a USB Type-C source, or they can be powered using a separately available L-series type battery using their battery plates. The Mars 300 set also includes an accessory expansion plate, a shoe mount, and a USB Type-C cable.
Key Features
- Transmits up to 1080p60 HDMI video
- 100m line-of-sight transmission to receiver, 75m to SmartPhone App
- OLED display
- Real-time app monitoring
- Simultaneously transmit to one receiver and two apps, or to three apps
- HDMI input and loop-out on transmitter for viewing on an on-board or another monitor
- Dual HDMI outputs on receiver

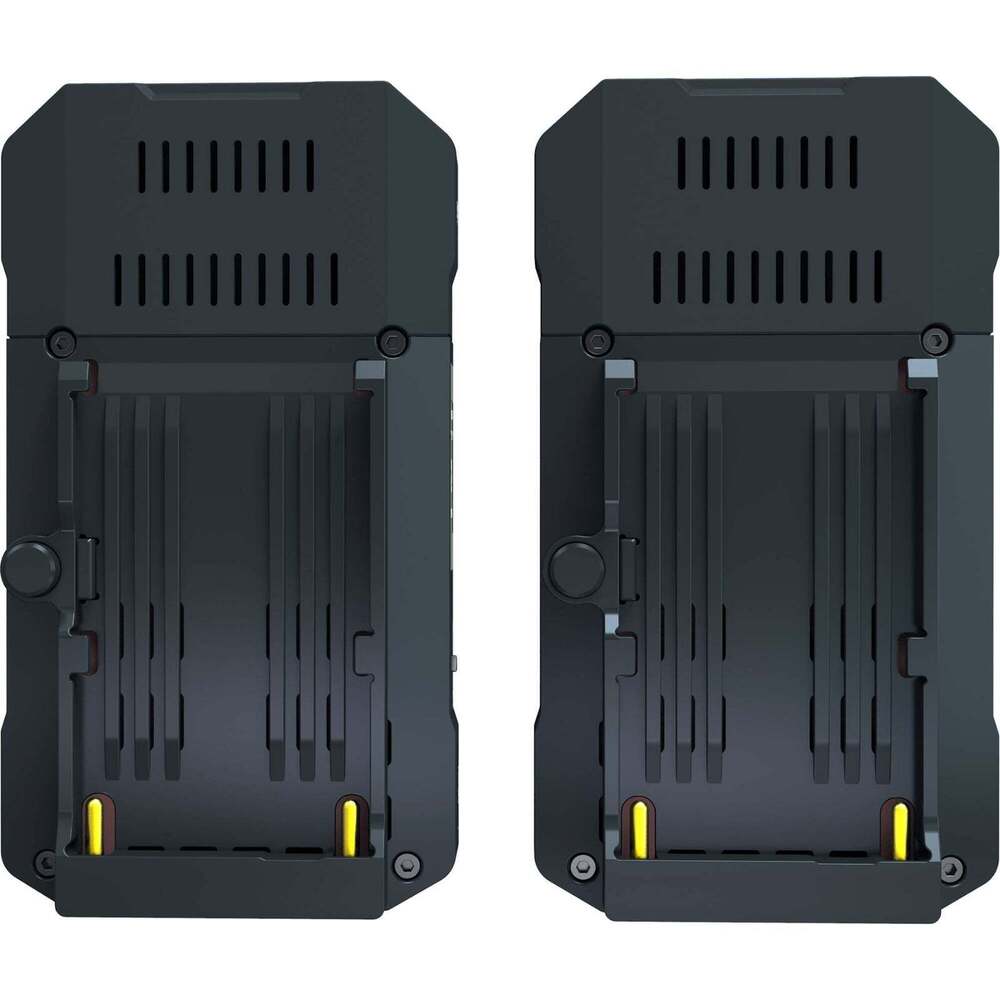

- Power via L-series battery or USB Type-C input
- 1/4"-20 mounting threads
Features
BUILT-IN ANTENNAS IN RX
Built-in Antennas for Easy Setups , Efficient Shooting , and Different Shooting Applications
0.08S MINIMUM LATENCY IN 300FT RANGE
Up to 300ft Hassle-free and Reliable Range for Wireless Video and Audio Transmission
0 08s Lowest Achievable Latency for Real-time Monitoring That Enables
THUMBWHEEL SWITCH MENU
Better Using Experience with the Multi-functional Clickable Thumbwheel Switch
MULTIPLE POWER OPTION
Supports 5-12V Wide Voltage Power Supply , Including VariousL-series Batteries , Different Power Banks , and Type-c ( 5v / 2A ) Charging

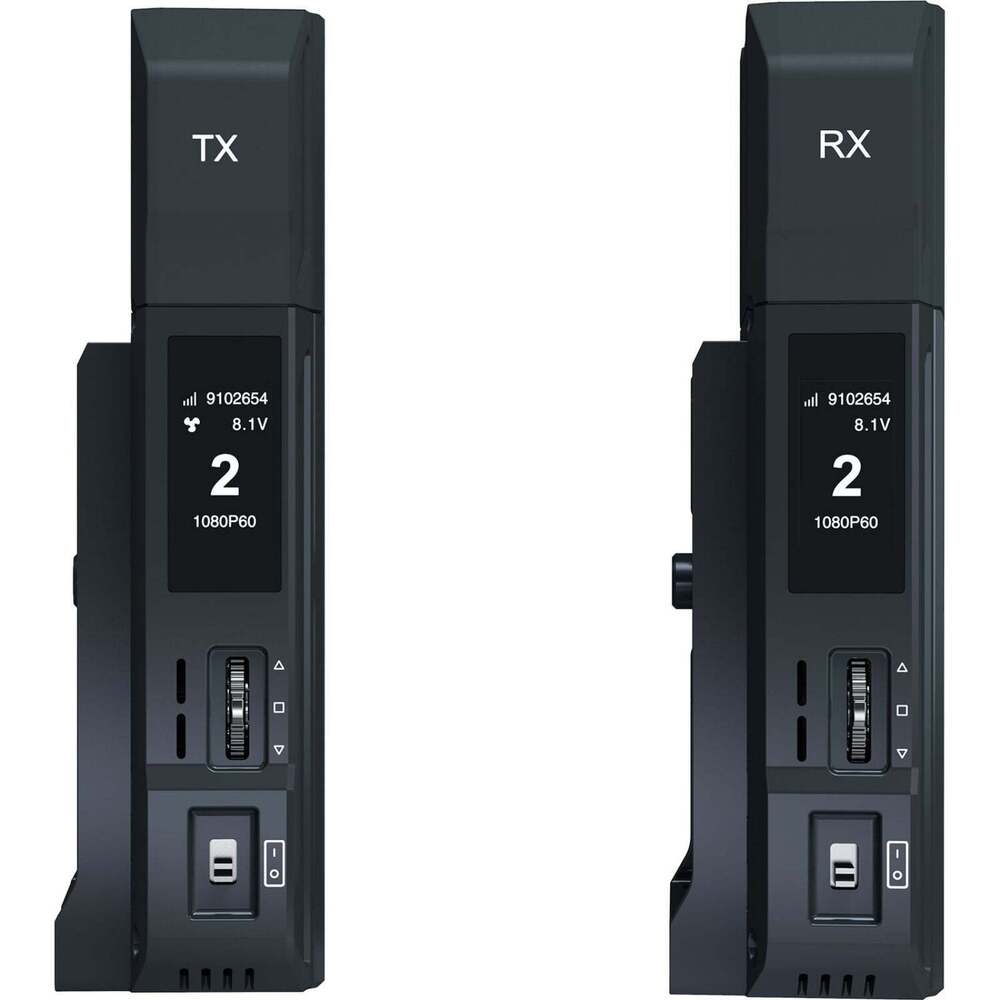

SIDE OLED
Side OLED provides easy access to power status, channel scan, and other OLED display information for both vertical or horizontal installation methods.
OLED Display: Device ID, WiFi Signal Strength, Fan Status Display, Battery Voltage Display, Channel Display, Video Format
Specifications:

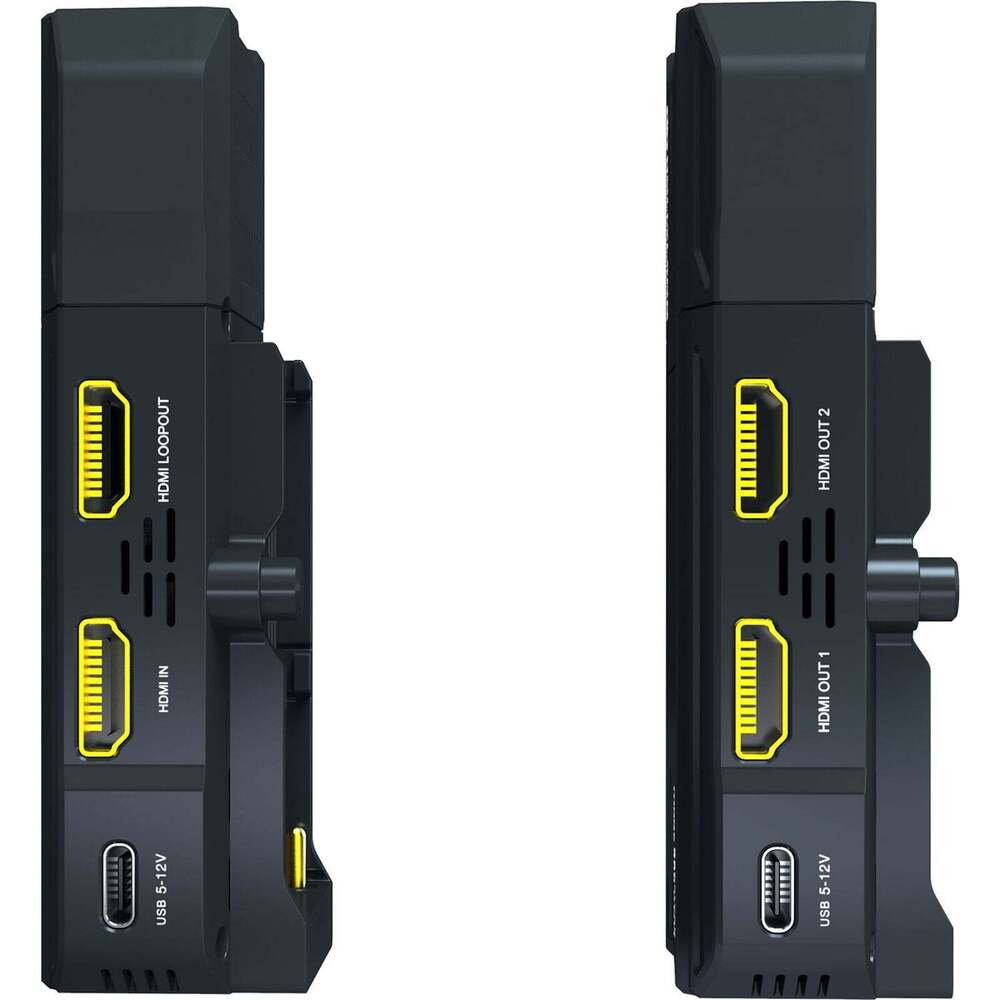

Interface | Transmitter: HDMI Input (Type A Female) & HDMI Loop out (Type A Female); USB Type-C ; Receiver:HDMI Output (Type A Female); USB Type-C |
Supply Interface | USB Type-C Supply: 5V/2A & Battery Supply: 5-12V DC |
Power Consumption | Transmitter: <11W ; Receiver: <4W |
Weight | Transmitter: 172.5g ; Receiver: 128.5g |
Deminsion | Transmitter--L*W*H: 110*61*21mm & The battery plate excluded ; Receiver-- L*W*H: 110*61*21mm & The battery plate excluded |
Input / Output Video Format | Transmitter: HDMI: 480p60; 576p50; 720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.9/30; 1080P50/59.94/60 ; Receiver: HDMI: 480P60; 576P50; 720P50/60; 1080i50/60 ; 1080P24/25/30; 1080P 50/60 |
Frequency | 5GHz |
Modulation Mode | OFDM |
Transmission Power | Transmitter: Maximum 21dBm ; Receiver: / |
Receiver Sensitivity | Transmitter: / ; Receiver: -80dBm |
Transmission Latency | 0.08s Minimum delay |
Bandwidth | 20MHz |
Package Including:
- 1 x Receiver
- 1 x Transmitter
- 1 x User Guide
- 1 x Expansion Accessory
- 1 x Cold Shoe
- 1 x USB Type-A to Type-C data cable
- 1 x Hollyland Carry Case
(Mars300Pro)
SKU | Mars300Pro |
Barcode # | 6970758741057 |
Brand | Hollyland |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.150m |
Shipping Length | 0.100m |
Shipping Cubic | 0.003000000m3 |
