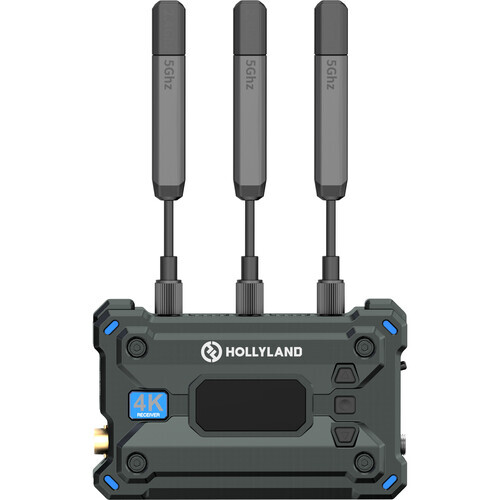

Hollyland Pyro S 4K HDMI/SDI Wireless Video Receiver

$589.00


or 4 payments of $147.25 with Info






Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.



Features

  • Wireless Transmitter and Receiver Set
  • Transmit UHD 4K30 Video up to 1300'
  • HDMI/SDI Inputs and Outputs
  • 2.4 and 5 GHz Frequency Bands
  • Supports UVC and RTMP for Streaming
  • 650' Transmission in Broadcast Mode
  • Smart Channel Scanning, Bright LCD
  • Low 50 ms Latency, 12 Mb/s Bit Rate
  • DC, L-Series, and USB-C Power Options



Each Pyro S unit is equipped with a USB-C port that can power the unit and also supports plug-and-play UVC operation, so it can seamlessly plug into a computer and utilize the wireless video for streaming and conferencing applications. A built-in frequency scanner allows you to select the clearest frequency for your transmission and features a bright LCD for configuration. In addition to the multifunction USB-C port, each unit can be powered using a separately available locking DC power adapter or an L-series type battery using an optional battery plate.

Long Distance, High Quality

The Pyro S Wi-Fi broadcast technology enables one transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs emerge on set. When Broadcast mode is activated, the transmitter can transmit signals to at most four receivers, and the line-of-sight range reaches 650'. When Broadcast mode is deactivated, the transmitter can transmit signals to at most two receivers and two mobile devices, and the line-of-sight range extends up to 1300'.

Strong Signal Strength

At a stable transmission range of up to 1300', the Pyro S features latency as low as 50ms. Compared to the Mars series, whose transmission range extends at the cost of image quality and latency, the Pyro S excels with increased transmission distance while preserving video quality and minimizing latency. The transmitter/receiver combo also provides two modes for users to tip the balance between image quality and latency, with HD mode for better image quality with bitrate at up to 12 Mb/s and Smooth mode for a dynamic change in latency.

Crisp and Sharp Images

With up to 4K30 transmission capabilities via HDMI and 1080p60 via SDI, the Pyro S transmits images with superior clarity, detail, and realism, making it a great choice for professional applications like broadcast and filmmaking.

USB Video Class

UVC allows seamless compatibility with a wide range of devices, such as computers, without requiring additional drivers or software installations. This plug-and-play feature simplifies setup and operation, making it convenient for users in various scenarios, such as live streaming and video conferencing.

RTMP

Input your wireless key and connect a network card to stream video directly to live platforms like Zoom, YouTube, Twitch, and TikTok.

Smart Channel Scan

Upon startup, Pyro S automatically chooses a high-quality frequency channel, optimizing the user experience from the outset. Additionally, users can activate the smart channel scan function on the receiver to view real-time feedback on the frequency status, thus ensuring an uninterrupted and reliable experience.

Easy Setup

The Pyro S supports preset grouping and pairing, eliminating the need for users to repetitively and manually set up the transmitter and receivers.

Continuous Power, Multiple Options

In addition to DC input and NP-F batteries, the Pyro S also supports a USB-C power supply (5-12V). A USB power supply option provides convenience, especially when using stabilizers, as it eliminates the need for larger NP-F batteries, reducing overall weight and enhancing maneuverability.

Specs

Resolution

Not Specified by Manufacturer

Touchscreen

No

Video I/O

Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input
Receiver: 1x HDMI 1.4b Output
Transmitter: 1x BNC (3G-SDI) Output

Embedded Audio

HDMI/SDI

Latency

50 ms

Video Format

HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Power Consumption

Transmitter: 11 W
Receiver: 8 W

Mounting

1/4"-20 Female

Display

Panel Type

Transmitter/Receiver: LCD

Resolution

Not Specified by Manufacturer

Aspect Ratio

Not Specified by Manufacturer

Touchscreen

No

Inputs / Outputs

Video I/O

Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input
Receiver: 1x HDMI 1.4b Output
Transmitter: 1x BNC (3G-SDI) Output

HDCP Support

Not Specified by Manufacturer

Embedded Audio

HDMI/SDI

Audio I/O

No

Power I/O

Transmitter/Receiver: 1x Barrel Input

Other I/O

Transmitter/Receiver: 1x USB-C

Encryption

No

Wireless

Wireless Range

1300' / 396.2 m (Line-of-Sight)
650' / 198.1 m (Line-of-Sight)

Channel Bandwidth

40 MHz, 20 MHz

Frequency Range

5.15 to 5.25 GHz
5.25 to 5.35 GHz
5.47 to 5.725 GHz
5.725 to 5.85 GHz
2.412 to 2.484 GHz

Latency

50 ms

RF Sensitivity

-85 dBm

Wi-Fi

Wi-Fi 4 (802.11n); Dual-Band (2.4 & 5 GHz)

Bluetooth

No

Mobile App Compatible

Yes: Android & iOS

Cellular Support

No

Format Support

Video Format

HDMI
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SDI
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50

Video Signal Conversion

No

Wireless Video Compression

Uncompressed

Timecode Support

Yes

Power

Input Power

6 to 16 VDC

Power Consumption

Transmitter: 11 W
Receiver: 8 W

Mounting

Mounting

1/4"-20 Female

Environmental

Environmental Protection

No

Certifications

No

Operating Temperature

14 to 113°F / -10 to 45°C

Storage Temperature

-40 to 140°F / -40 to 60°C

General

Material of Construction

Magnesium

Dimensions

Transmitter/Receiver: 4.4 x 2.8 x 1.3" / 112 x 71.2 x 34.1 mm

Weight

7.3 oz / 207 g

Weight

Transmitter/Receiver: 7.3 oz / 207 g

What's in the box:



1 x Hollyland Pyro-S TX

1 x Hollyland Pyro-S RX

3 x Pyro-S Antenna

1 x Power Adaptor

1 x Cold Shoe Adaptor

(HL-Pyro-S-RX)

SKU HL-Pyro-S-RX
Barcode # 6976068116226
Brand Hollyland
Shipping Weight 1.0000kg
Shipping Width 0.230m
Shipping Height 0.110m
Shipping Length 0.160m
Shipping Cubic 0.004048000m3
