Hollyland Syscom 421 Wireless Video & Audio Transmission System
4 Channels

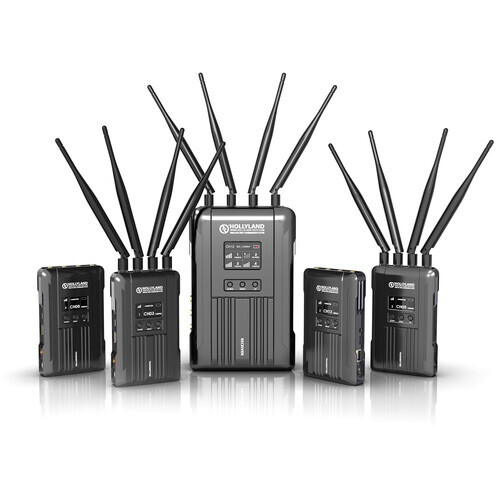

The Hollyland Syscom 421 540m/1800' Wireless Video & Audio Transmission System is a multi-cam wireless video transmission system that communicates with up to four cameras using a single receiver with PTZ control as well as tally. Supporting up to 1080p60 video signals via SDI and HDMI, the transmitter/receiver system offers an 1800' line-of-sight transmission range with 0.07 second latency.
The receiver features 4 x SDI/HDMI outputs (one for each transmitter) for connecting to a monitor or switcher. You can also connect the receiver to a LAN, allowing you to pass control signals from a control panel to the transmitters. This enables you to control PTZ cameras as well as send tally information. The transmitters have a dedicated tally output port. Both units also have an OLED display that confirms the resolution, transmission channel, signal strength, and other details such as battery power. The transmitters each have a built-in L-series battery plate, and the receiver has a V-mount battery plate. Both Transmitter and receiver feature a 2-pin power input for extended run times.
Features
- Up to 1080p60 transmitter/receiver system
- 1800' line-of-sight transmission
- SDI and HDMI input
- SDI and HDMI output
- Passes control and tally
- OLED display
Specifications:
Wireless Signal:
Wireless Range | 1800' / 548.64 m (Line-of-Sight) |
Channel Bandwidth | 40 MHz |
Frequency Range | US: 5.1 to 5.9 GHz |
Latency | < 0.07 sec |
RF Power | ≤ 22 dBm |
RF Sensitivity | -90 dBm |
Interfaces:

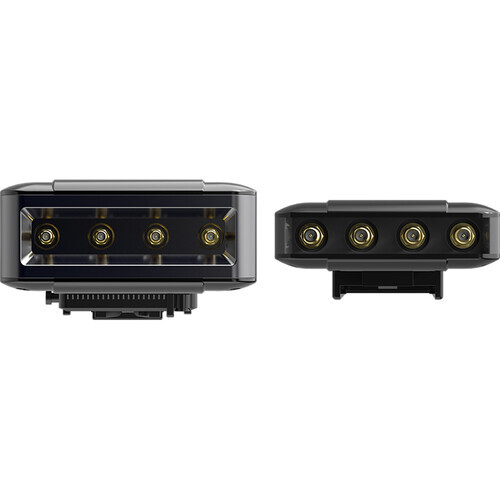

Transmitter Antenna Ports | 4 x RP-SMA Male |
Receiver Antenna Ports | 4 x RP-SMA Male |

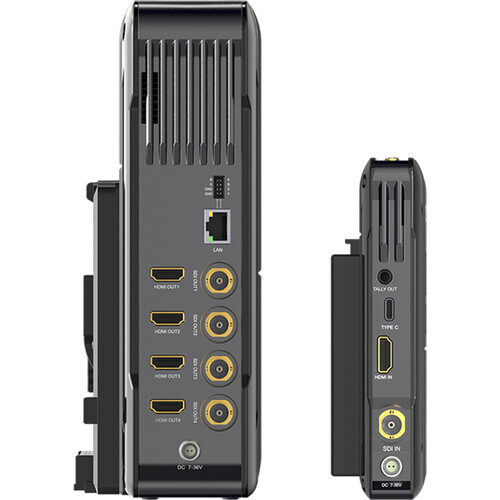

Transmitter Video Connectors | 1 x BNC (3G-SDI / HD-SDI) Input 1 x HDMI Input |
Receiver Video Connectors | 4 x BNC (3G-SDI) Output 4 x HDMI Output |

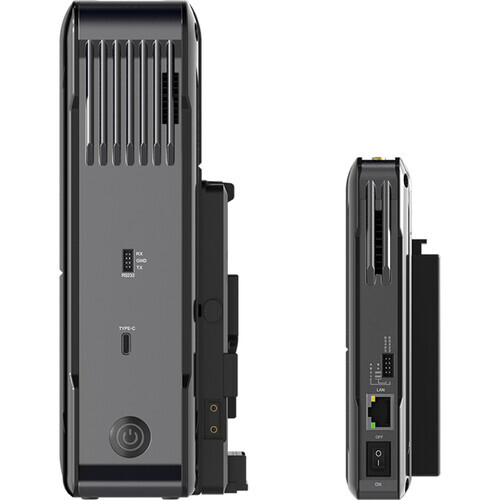

Transmitter Other I/O | 1 x USB Type-C 1 x RJ45 10/100/1000 Ethernet, RS-422, RS-485 1 x 3.5 mm Tally Output |
Receiver Other I/O | 1 x USB Type-C 1 x RJ45 10/100/1000 Ethernet, RS-422, RS-485 |
HDCP Support | None |
Embedded Audio | SDI HDMI |
Format Support:
Broadcast System Compatibility | NTSC, PAL |
Video Format | SDI/BNC: 1080p at 23.98, 24, 25, 30, 50, 60 fps 1080i at 50, 60 fps 720p at 50, 60 fps HDMI: 1080p at 24, 25, 30, 50, 60 fps 1080i at 50, 60 fps 720p at 50, 60 fps 576p at 50 fps 480p at 60 fps |
Display
Transmitter Panel Type | OLED |
Receiver Panel Type | OLED |
Power
Transmitter Built-In Battery | None |
Receiver Built-In Battery | None |

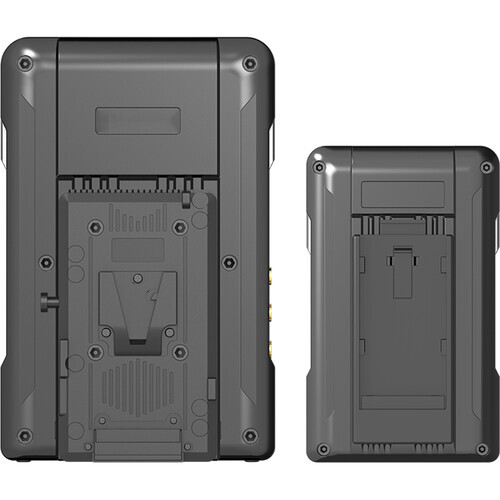

Transmitter Battery Support | 1 x Sony L-Series / NP-F Type |
Receiver Battery Support | 1 x V-Mount |
Transmitter Power Connector | 1 x 2-Pin LEMO (7 to 36 VDC) Input |
Receiver Power Connector | 1 x 2-Pin LEMO (18 to 36 VDC) Input |
Transmitter Power Consumption | Device: (12 W) |
Receiver Power Consumption | Device: (32 W) |
General

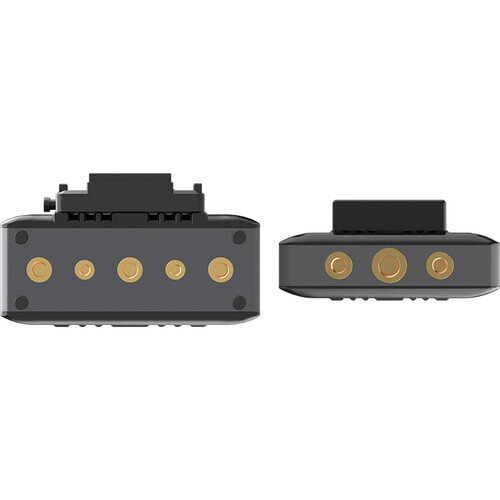

Transmitter Mounting | 1 x 1/4"-20 Female |
Receiver Mounting | 1 x 1/4"-20 Female |
Memory Card Slot | Not Specified by Manufacturer |
Transmitter Dimensions | 5.67 x 3.46 x 1.18" / 144 x 88 x 30 mm (Excluding Antenna and Battery Plate) |
Receiver Dimensions | 9.53 x 5.83 x 2.44" / 242 x 148 x 62 mm (Excluding Antenna and Battery Plate) |
Transmitter Weight | 0.9 lb / 431.5 g (Excluding Antenna) |
Receiver Weight | 3.6 lb / 1621 g (Excluding Antenna) |
Content List:
Hollyland Syscom 421 1800' Wireless Video & Audio Transmission System
4 x Syscom421 Transmitter
1 x Syscom 421 Receiver
25 x 5 GHz Antenna
4 x 7" Magic Arm
1 x OTG Cable
4 x DC Conversion Cable
5 x RS485/RS422 Interface Cable
1 x Power Adapter
(Syscom421)
SKU | Syscom421 |
Barcode # | 191460000348 |
Brand | Hollyland |
Shipping Weight | 19.0000kg |
Shipping Width | 0.700m |
Shipping Height | 0.300m |
Shipping Length | 0.500m |
Shipping Cubic | 0.105000000m3 |
