Lilliput HT7S 7" 4K IPS Monitor with 2000 nits Brightness and LANC Camera Control
Features
- 1920 x 1200 Native Touchscreen
- Supports up to DCI 4K Input
- 2000 cd/m² Brightness, HDR Support
- 1200:1 Contrast Ratio, 16:10 Aspect
- HDMI 2.0/3G-SDI Inputs/Outputs
- Hot-Swap Dual L-Series Battery Plate
- HDR Support, Load 3D LUTs via USB
- 1 x Speaker, 1 x Headphone Jack
- 3 x 1/4"-20 Mounting Threads
- 180° Tilting Shoe Mount
The HT7S supports loading 3D LUTs via the USB port on the bottom, and it supports HDR image input with the ability to display a wide dynamic range such as ST2084-300, ST2084-1000, ST2084-10000, and HLG (Hybrid Log Gamma). On the back of the monitor is a dual L-series battery plate, so you can power the monitor for a long shoot. The batteries are also hot-swappable, so you can charge one battery and then swap out the other while the monitor is in use, without having to power it down.
The monitor features a speaker, a headphone jack, a tally input, and numerous control and function buttons around the display. You can create shortcuts to your favorite and most used monitor functions using the two customizable function keys. You can mount the monitor onto your camera by attaching the included shoe mount adapter to the 1/4"-20 with threads on the bottom or sides. An HDMI type-A to type-C cable, a tally cable, a power adapter, and a carry bag are also included in the box.
- 7" bright 2000 cd/m² touchscreen display; 1200:1 contrast ratio
- The included LANC cable allows you to control select camera functions such as focus, zoom, iris, and record/stop, with LANC compatible cameras from the monitor's touchscreen display. (Please note that some cameras do not support all control functions)
- DCI and UHD 4K compatible; HDR support
- Support for 3D LUTs with 17 default logs and 6 user logs that can be loaded via the USB port on the bottom of the monitor
- HDMI and 3G-SDI input and output

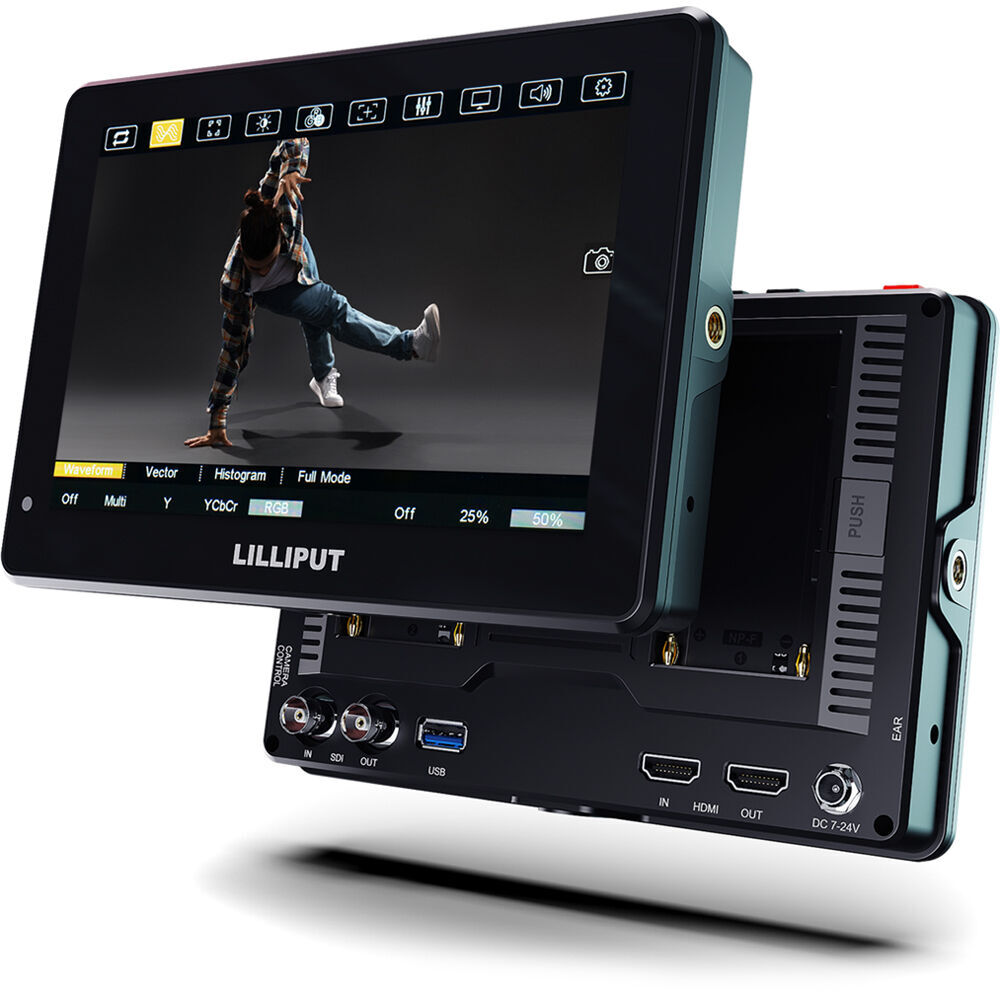

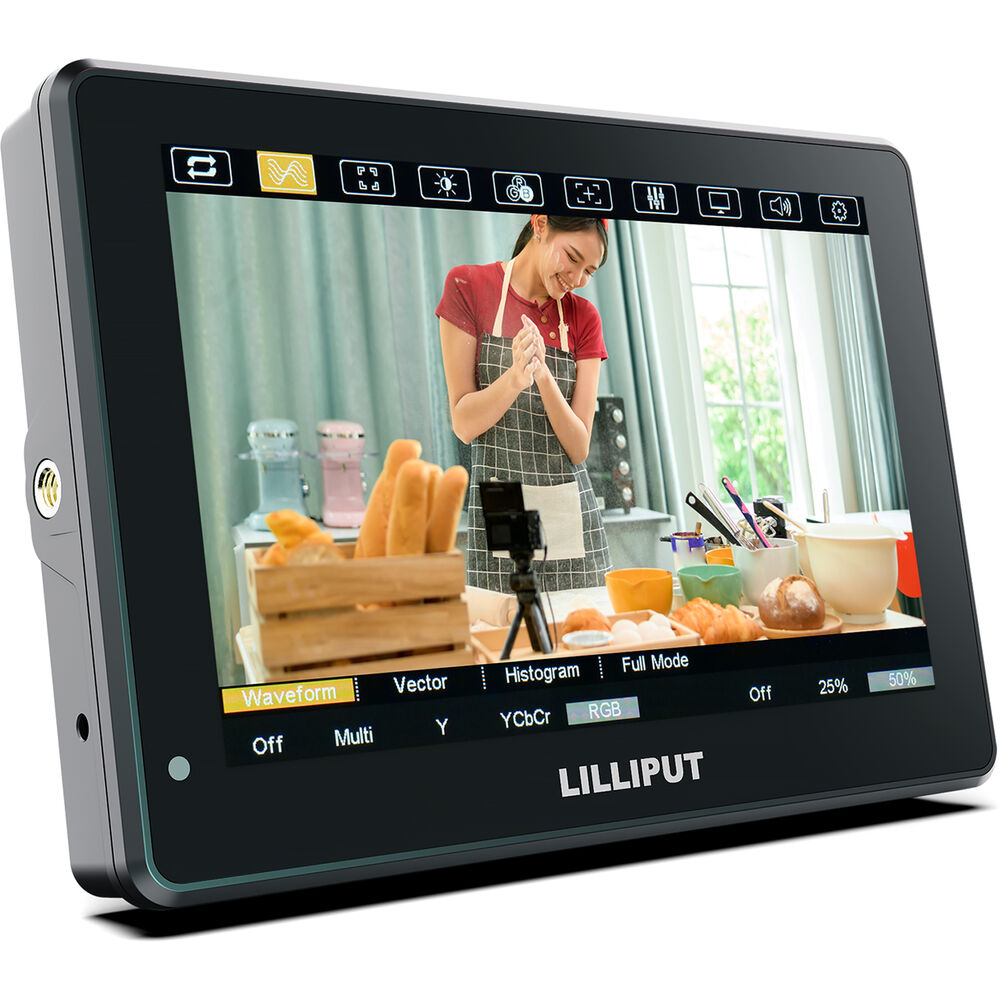

- Advanced functions: pixel zoom, level meter, peaking, false color, histogram, H/V delay, exposure, check field, image flip, pixel-to-pixel, markers, aspect ratio, timecode, and freeze

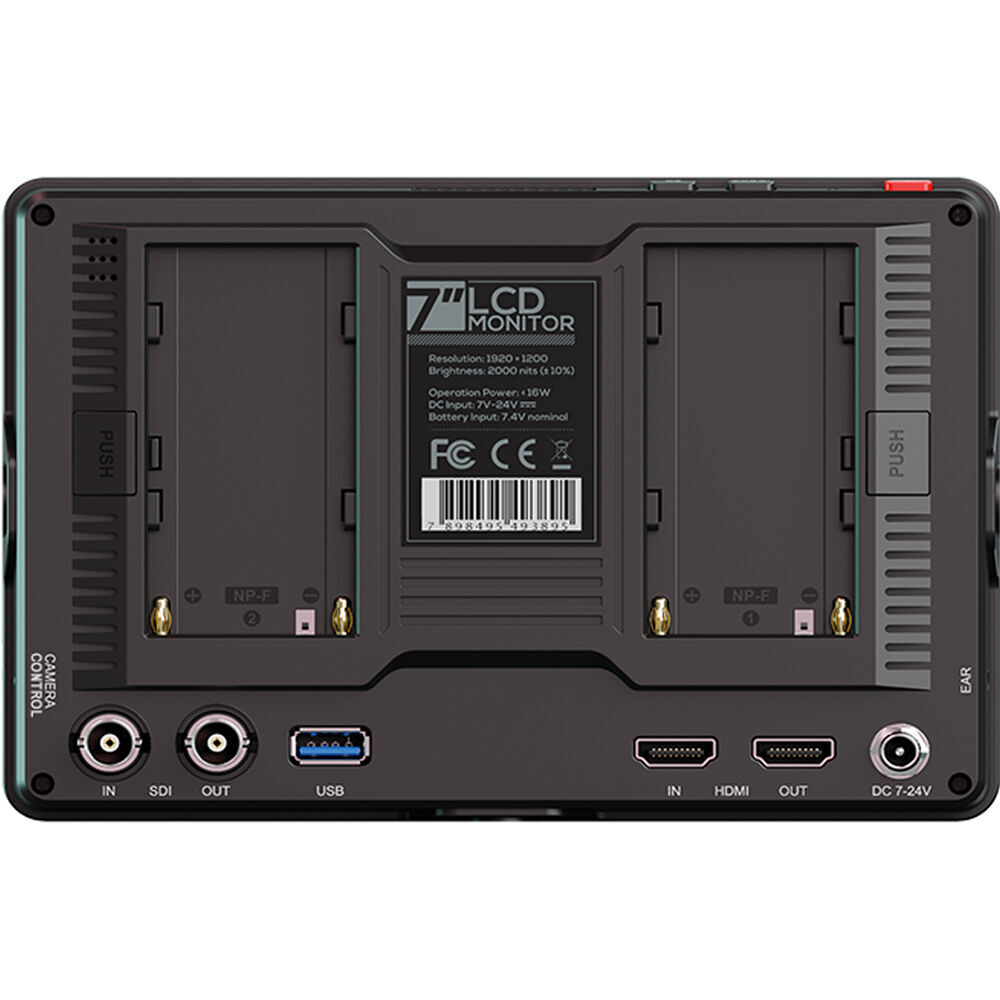

- Dual-integrated L-series/F-970 battery plate on back; batteries are hot-swappable

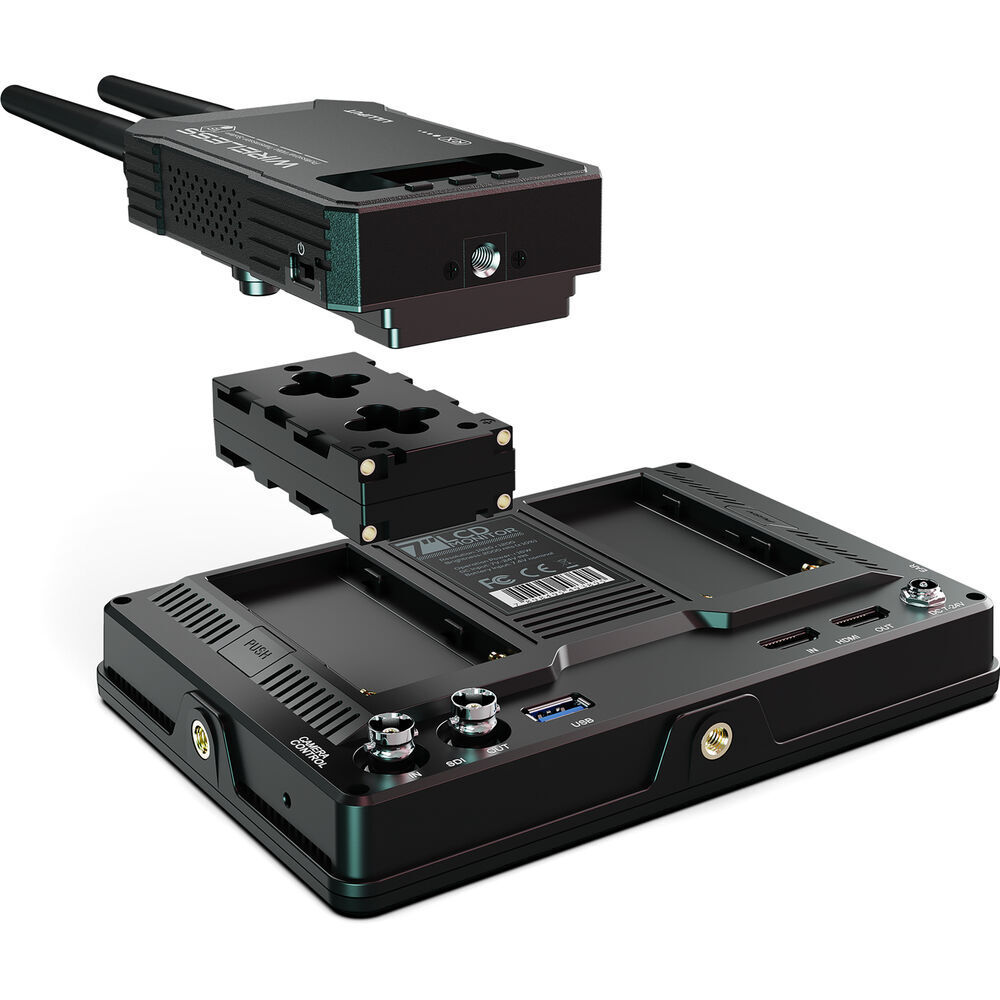

- An optional NP-F adapter allows you to mount an external device to one of the L-series plates and use it to power the monitor

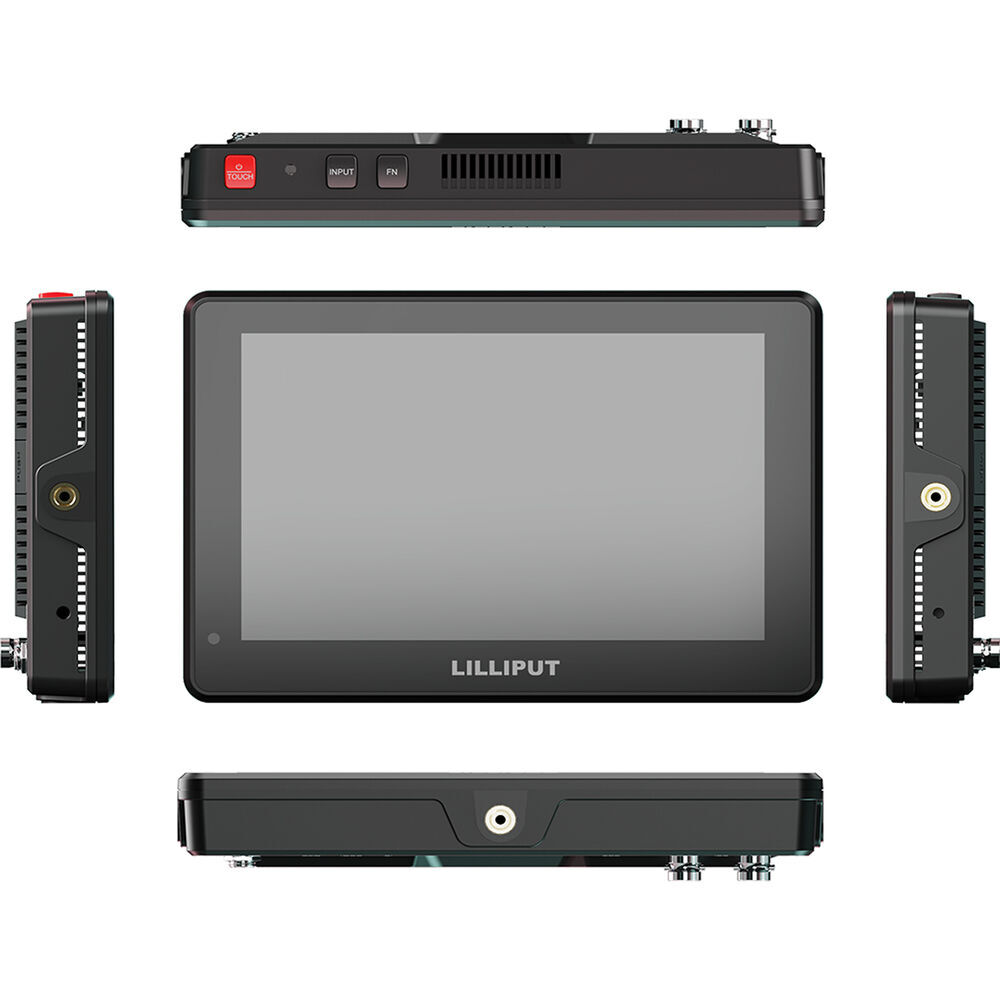

- Three 1/4"-20 mounting threads total, one each on bottom and sides
HT7S Specs
Display
Panel Type | IPS-Type LCD |
Display Size | 7.0" / 17.8 cm |
Resolution | 1920 x 1200 |
Aspect Ratio | 16:10 |
Viewing Angle | Horizontal: 160° Vertical: 160° |
Touchscreen | No |
Maximum Brightness | 2000 nits / cd/m2 |
Contrast Ratio | 1200:1 |
HDR Compatibility | Hybrid Log Gamma |
Pixels Per Inch (ppi) | 323 ppi |
Real-Time LUT Monitoring | HDR |
Inputs / Outputs
Video I/O | 1 x HDMI 2.0 Input 1 x HDMI 2.0 Loop Output 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output |
Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | 1 x 1 W |
Other I/O | 1 x USB-A 2.0 Input |
Media/Memory Card Slot | None |
Wi-Fi | None |
Bluetooth | None |
Mobile App Compatible | No *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
Format Support
Video Format | HDMIRGB DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 |
Power
DC Input Power | 7 to 24 VDC |
Battery Type | 2 x L-Series |
Power Consumption | 16 W (Maximum) |
Mounting
Mounting | 3 x 1/4"-20 Female |
Environmental
Operating Temperature | 32 to 122°F / 0 to 50°C |
Operating Humidity | 0 to 90% |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Dimensions | 7.3 x 5 x 1.1" / 186 x 128 x 29 mm |
Weight | 18.3 oz / 520 g |
(HT7S)
SKU | HT7S |
Brand | Lilliput |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.150m |
Shipping Length | 0.250m |
Shipping Cubic | 0.007500000m3 |
