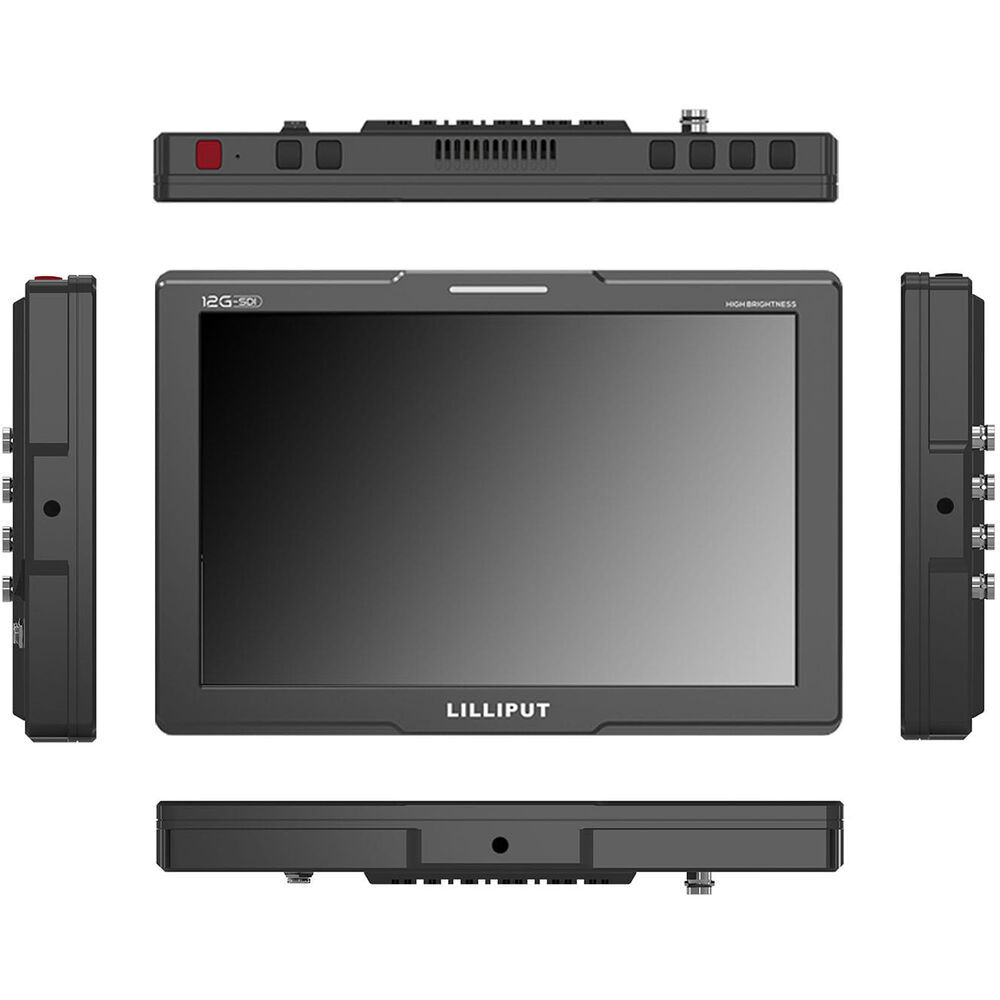

Lilliput Q10 10.1" 1500 nits 4K Monitor with 2 x 12G-SDI and 1 x HDMI 2.0 inputs
Features
- 10.1" 1920 x 1200 LCD Display
- Indoor and Outdoor Use without Sunhood
- 12G-SDI & HDMI Inputs
- 170/170° H/V Viewing Angle
- Supports Frame Rates from 24 to 60p
- 7 to 24 VDC Power and Tally Connector
- Includes 75mm VESA L-Series Plate
- Includes U-Shaped Bracket
- Includes Carry Case, Power Adapter
- Includes V-Mount power supply
The monitor supports a 170° H/V viewing angles for good color and contrast, even when viewed from extremely off center. The monitor powers from a DC input, supporting 7 to 24 VDC and it comes with an L-series battery plate that you can mount on the back. Optional V-mount and Gold mount battery plates are available. A Tally cable features pigtails that allow you to add Tally info. An included suitcase can carry your monitor and accessories to and from location, and can be used for storage when not in use.
Frame Rate Support
The monitor supports DCI 4K, 4K UHD, and Full HD frame rates from 24 to 60p in both NTSC and PAL compatible frame rates. The monitor also supports HD video at 24 fps to allow you to see video shot at cinema frame rates.

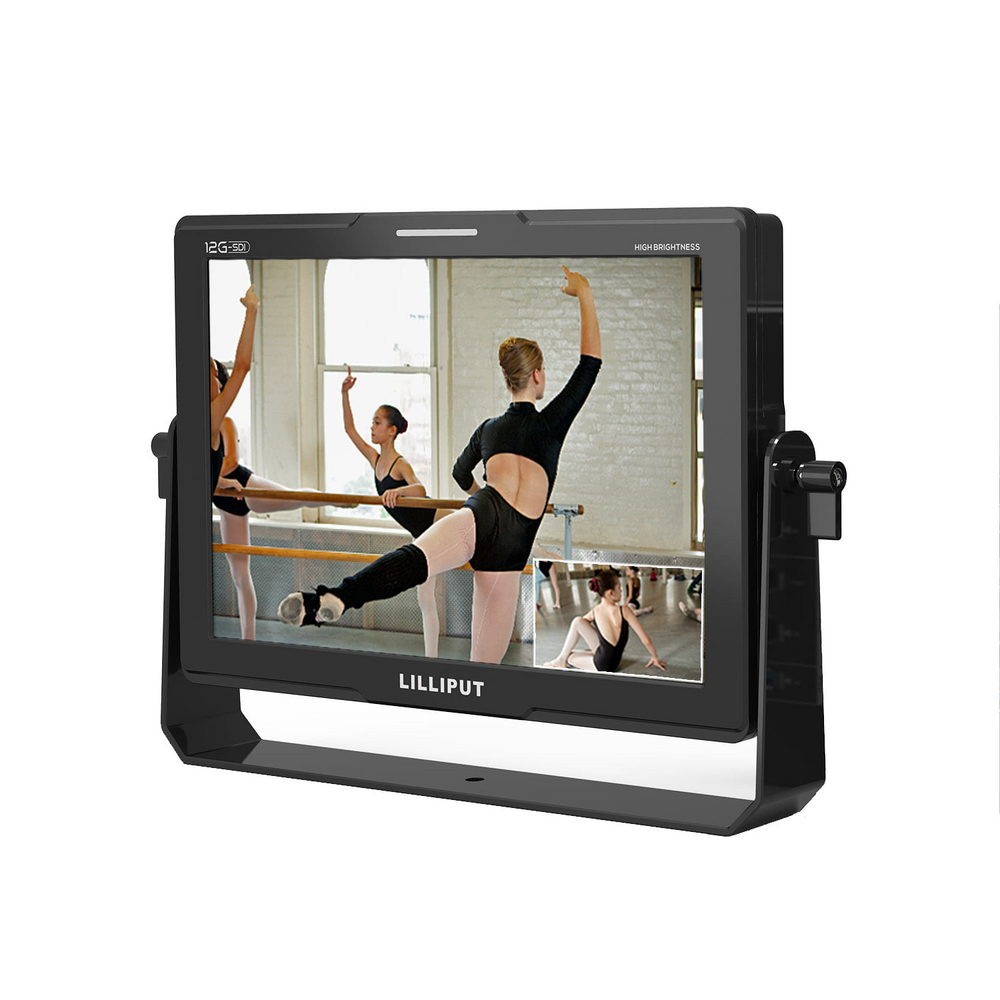

12G-SDI PiP or PIB
You can choose to display the two 12G-SDI signals on the monitor's screen simultaneously as either picture-in-picture, or picture-by-picture (side-by-side)

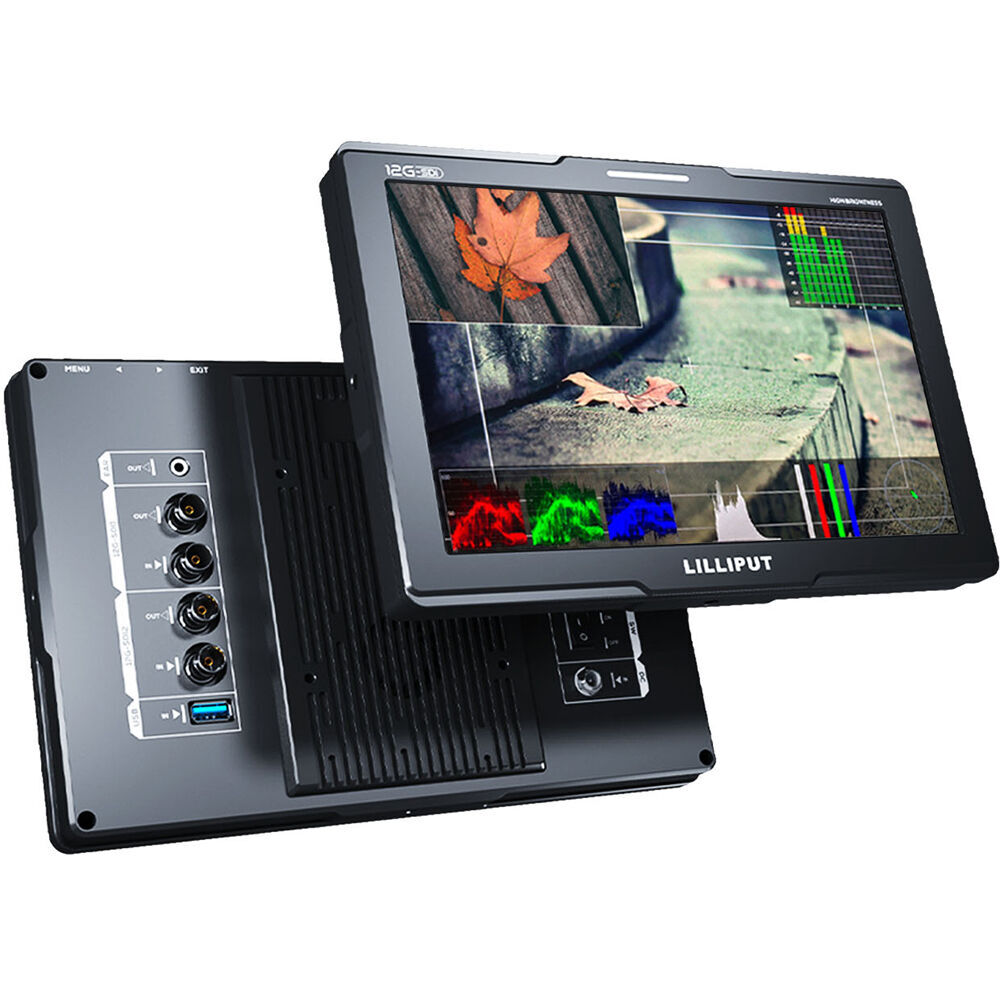

Signal Display Tools
Video
- 3D-LUT HDR
- Waveform
- Focus Peaking
- False Color
- Histogram
- Vectorscope
- Exposure
- Check field
- Pixel Zoom
- Pixel-to-Pixel
- Marker
Audio
- Level meter display
- Audio Vector
Display
- Color Temperature
- Color Bar
- Color Gamut
Q10 Specs
Display
Panel Type | LCD |
Display Size | 10.1" / 25.6 cm |
Resolution | 1920 x 1200 |
Aspect Ratio | 16:10 |
Viewing Angle | Horizontal: 170° Vertical: 170° |
Touchscreen | No |
Maximum Brightness | 1500 nits / cd/m2 |
Contrast Ratio | 1000:1 |
HDR Compatibility | Yes |
Pixels Per Inch (ppi) | 224 ppi |
Real-Time LUT Monitoring | HDR |
Image Controls | False Color, Focus Peaking, Histogram, Pixel Zoom, Pixel-to-Pixel Zoom, Vectorscope, Waveform, Zebra |
Inputs / Outputs

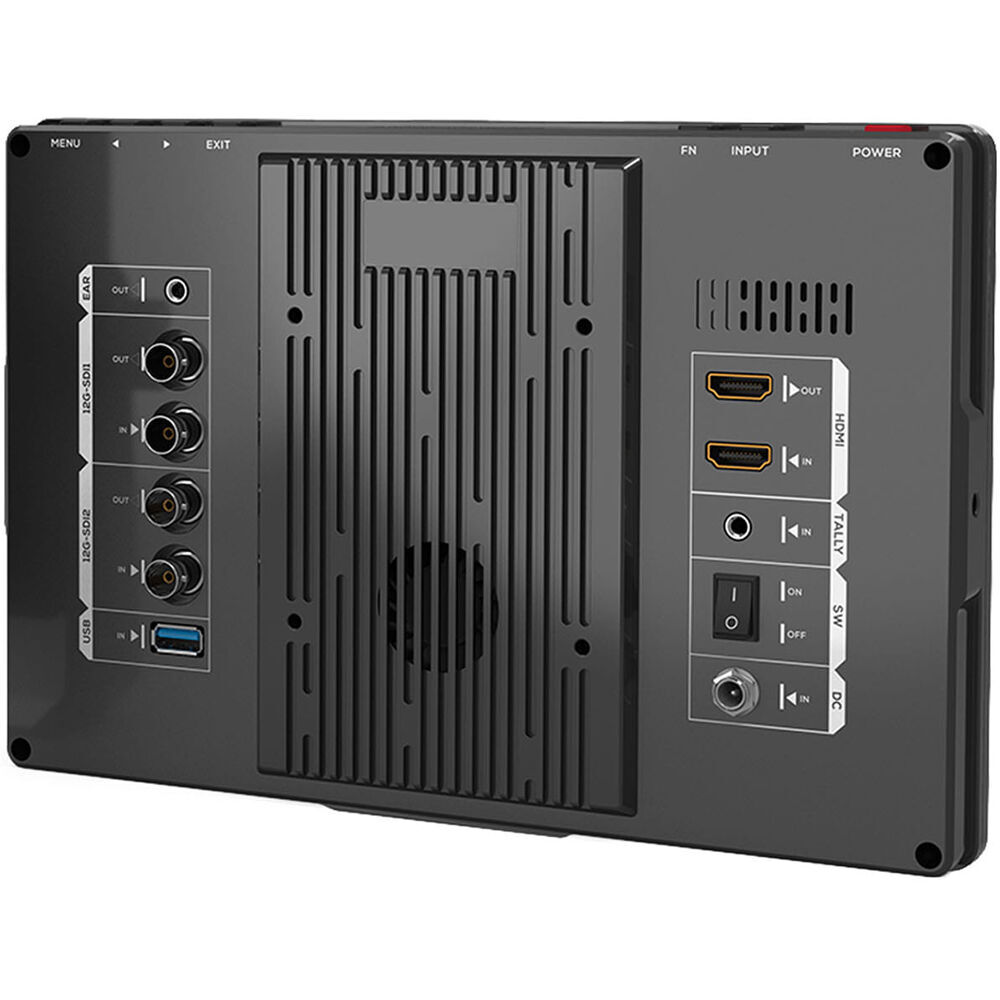

Video I/O | 2 x BNC (12G-SDI) Input 1 x HDMI 2.0 Input 2 x BNC (12G-SDI) Output 1 x HDMI 2.0 Output |
Audio I/O | 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | 1 x 1 W |
Power I/O | 1 x Barrel Input |
Media/Memory Card Slot | None |
Wi-Fi | None |
Bluetooth | None |
Mobile App Compatible | No *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Format Support
Video Format | SDI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080PsF: 30/25/24 1080i: 60/50 720p: 60/50 HDMI DCI 4K: 60/50/30/25/24 UHD 4K: 60/50/30/25/24 1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 |
Power
DC Input Power | 7 to 24 VDC |
Battery Type | 1 x L-Series |
Power Consumption | 12 W (Maximum) |
Environmental
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
General
Material of Construction | Aluminum |
Dimensions | 9.9 x 6.7 x 1.2" / 251 x 170 x 30.5 mm |
Weight | 2.4 lb / 1100 g |
(Q10)
SKU | Q10 |
Brand | Lilliput |
Shipping Weight | 2.0000kg |
Shipping Width | 0.400m |
Shipping Height | 0.150m |
Shipping Length | 0.350m |
Shipping Cubic | 0.021000000m3 |
