Manfrotto 504X Fluid Video Head with 536 CF Single leg tripod

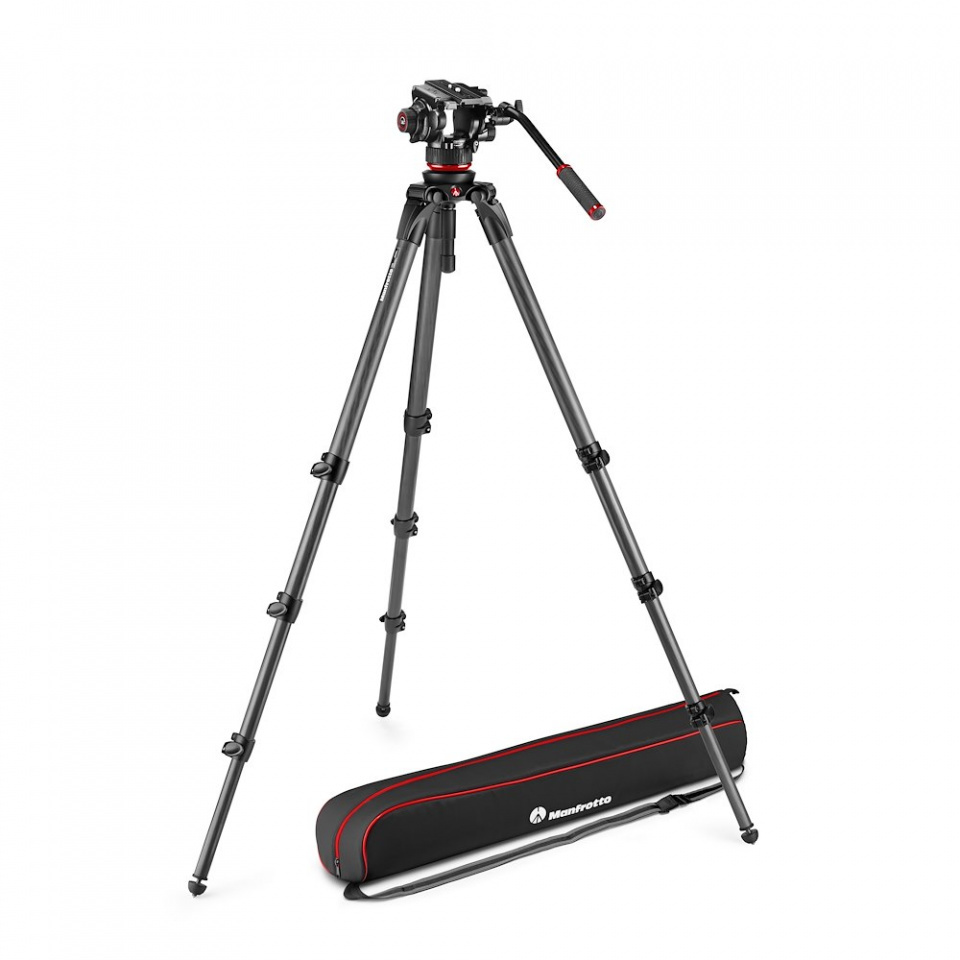

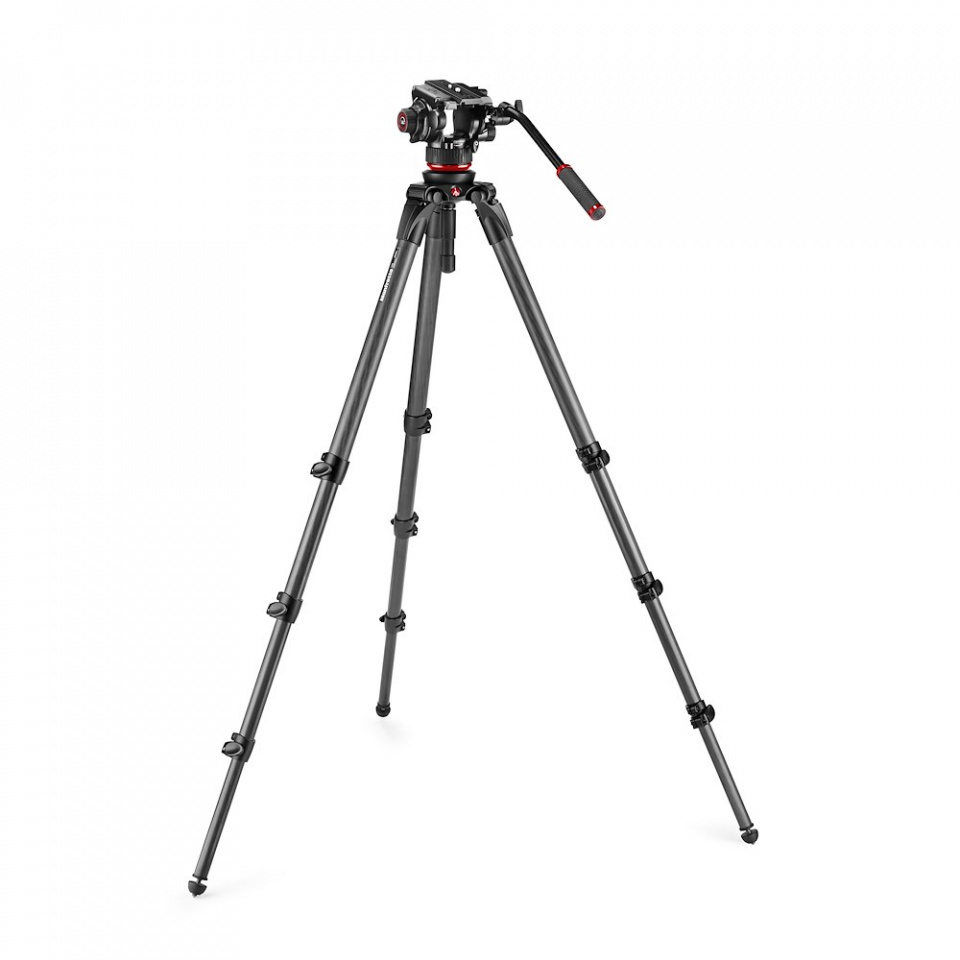

This video system includes the Manfrotto 504X Fluid Video Head and the 536 Single Leg Carbon Tripod.

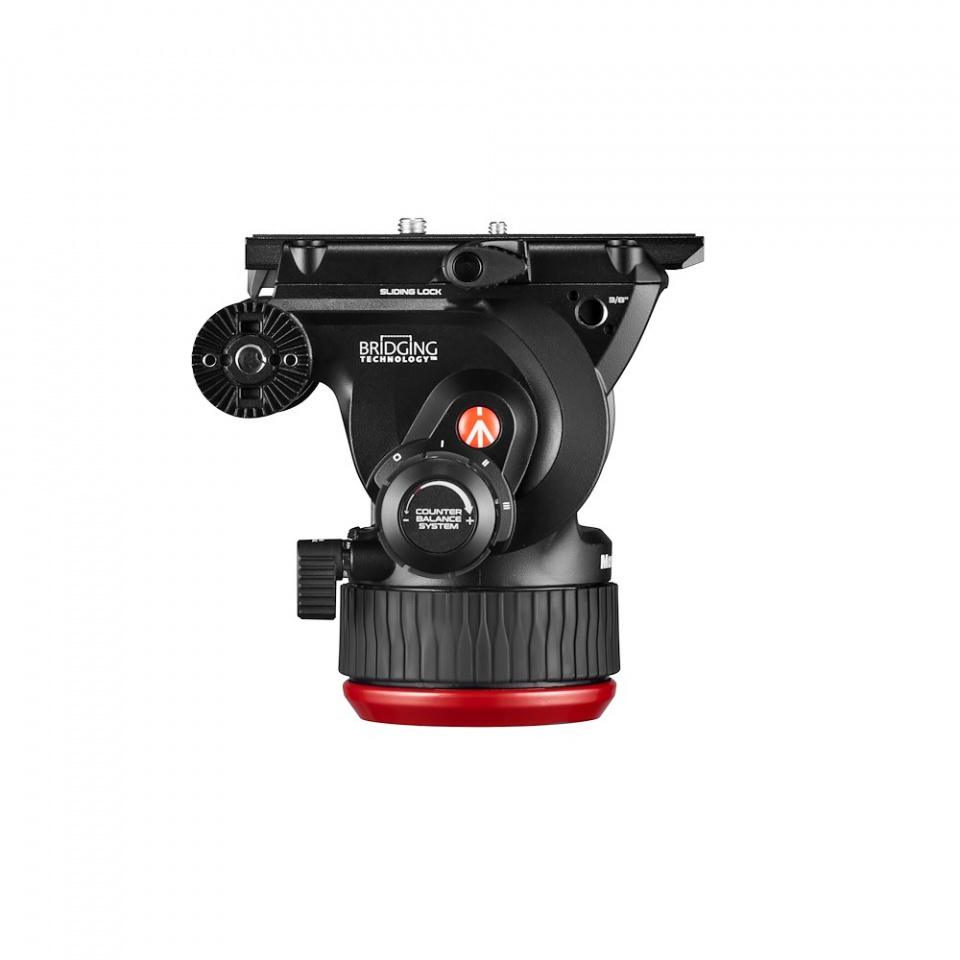

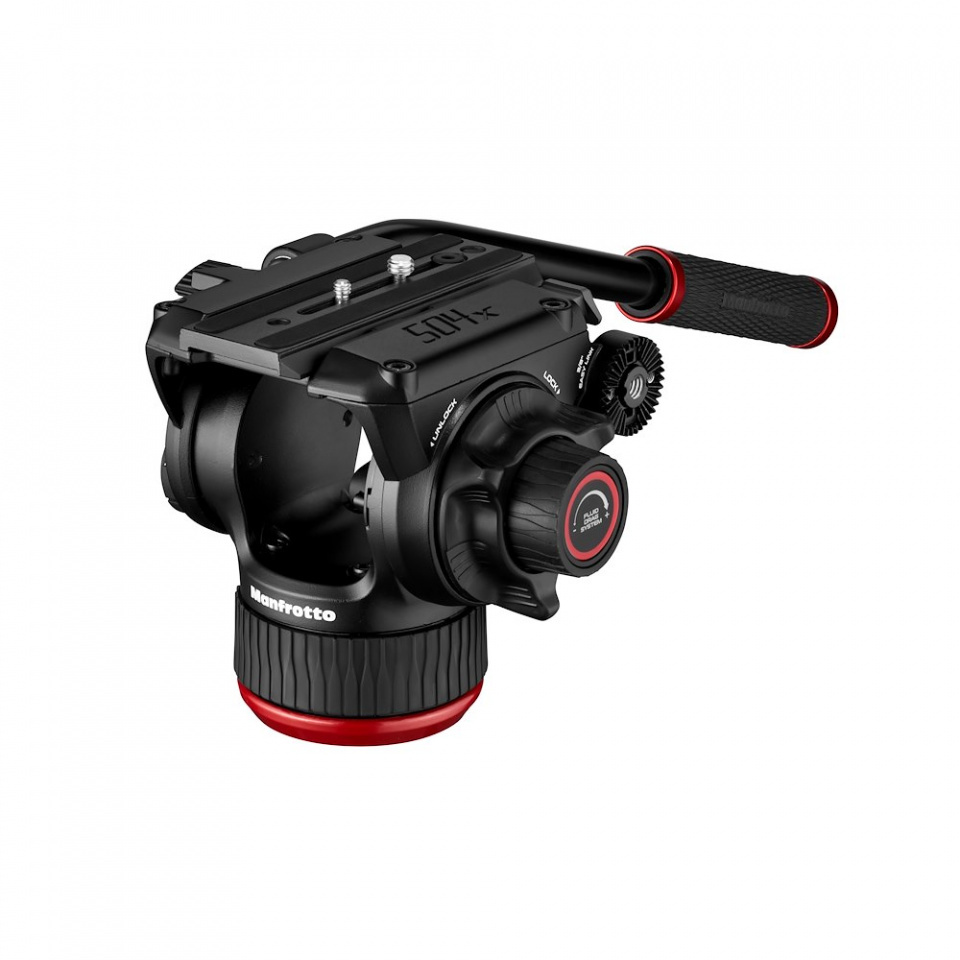

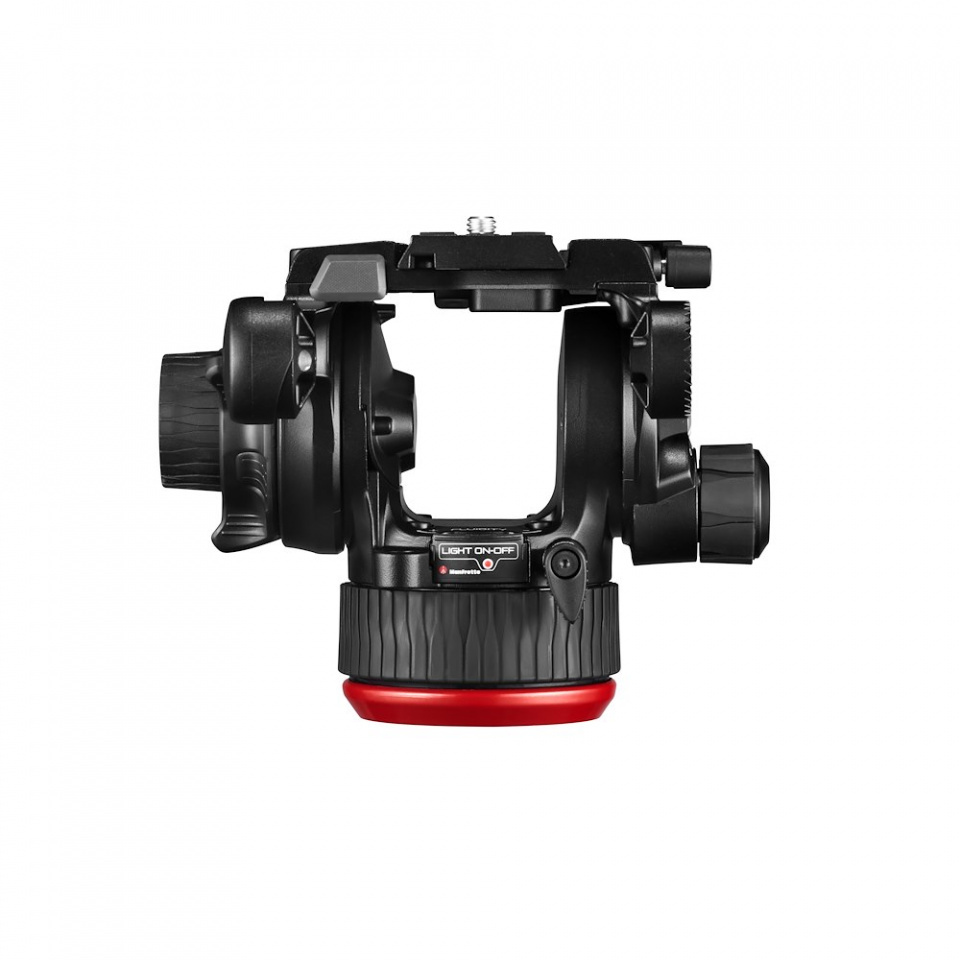

The Manfrotto 504X fluid video head with flat base features the new Manfrotto fluid technology which allows smoother operation and unrivalled stability in both pan and tilt movements. It presents a 4-step counterbalance system that can take loads of up to 6.5 kg at 55 mm C.O.G.
The tripod head is made from a brand-new catching aluminium design and has a maximum payload of 12 kg.
It is a compact and light head with a flat base (base diameter 75 mm), that lets you choose from a wide variety of different shooting options. It also features two 3/8” Easy Link connectors, equipped with an anti-rotation function that enables the fitting of external monitors or other accessories. A cap fits over the easy link, to avoid cutting during use. The sliding plate attachment and side-lock mechanism allows safe, quick and easy camera attachment.

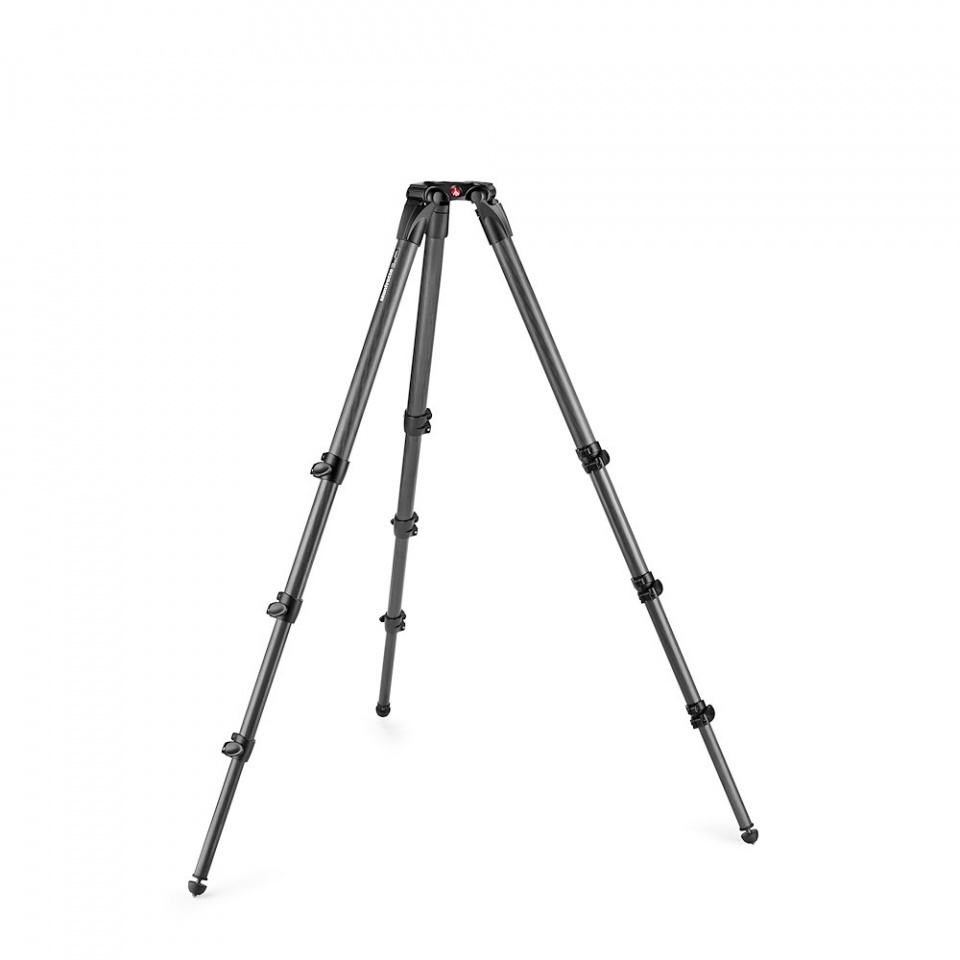

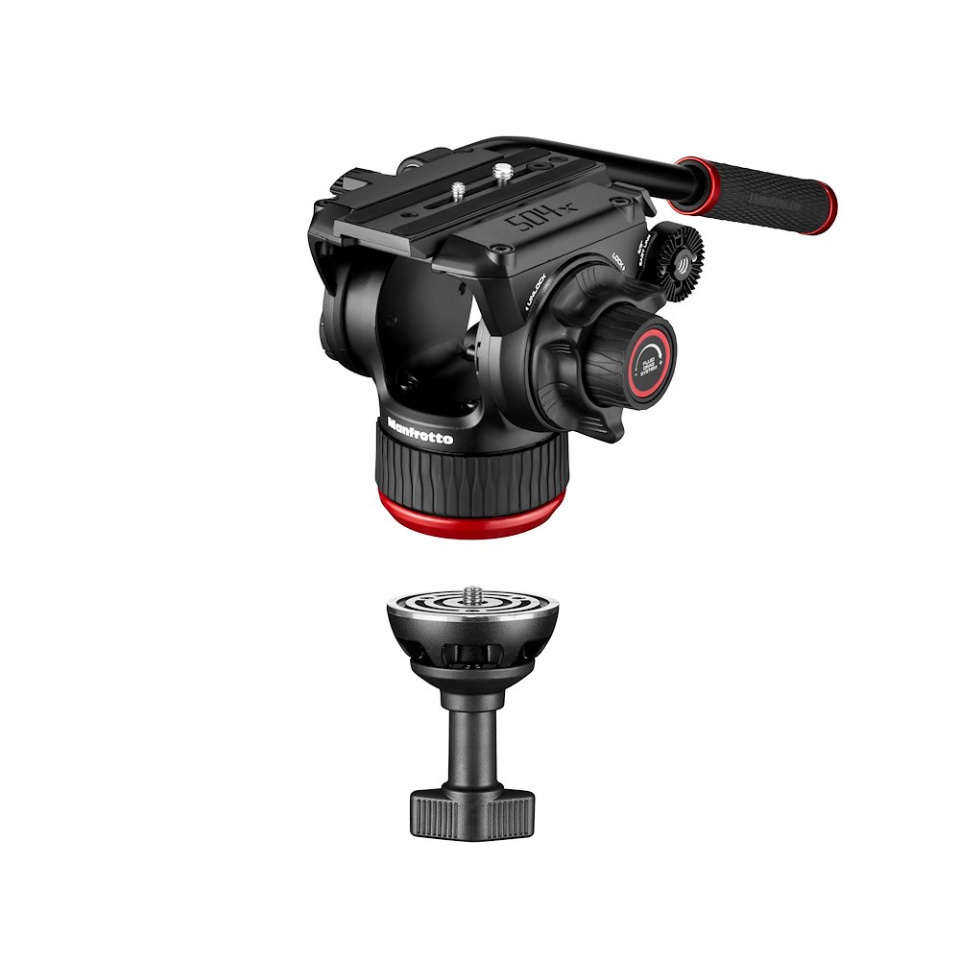

The 536 features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm, perfect in combination with the 504X head for fast levelling and precision. Thanks to its four section design, you can easily set up and disassemble in a flash, so you’ll never waste time on a shoot.
The tripod enables you to select the exact angle that suits you thanks to the leg angle selector. Together with the head you can move smoothly up and down, from 40.5cm to 217.5cm.
Supplied with its own padded carrying bag.
Specifications
Weight: 5.84 kg
Safety Payload UNI/PdR 105:2021: 12 kg
Counterbalance System: Variable Steps
Counterbalance Weight: 2.2, 4.4, 6.5 kg
Maximum Height: 218 cm
Min Height: 42 cm
Base Diameter: 75 mm
Bubble Spirit Level (No.): 1
Center Of Gravity: 55 mm
Carrying Bag Included: yes
Center Column: no centre column
Closed Length: 87 cm
Colour: Black
Top Attachment: 1/4″ screw, 3/8″ screw
Ball Flat: 0
Safety Payload Weight: 12 kg
Powered By (Batteries): Lithium
Easy Link: Yes (with antirotation)
Front Tilt: -70° / +90°
Head Type: Video/Fluid Head
Leg Type: Single
Leg Angles
23°, 50°, 70°
Leg Lock Type
Flip Lock
Leg Sections
4
Material
Aluminium, Carbon Fiber
Maximum Working Temperature
60 °C
Minimum Working Temperature
-30 °C
Pan Bar Included
Yes
Pan Drag
continuously adjustable from 0 to max level
Panoramic Rotation
360 °
Plate Type
504PLONGR-1
Quick Release
Yes
Tilt Drag
continuously adjustable from 0 to max level
Accessory Compatibility
114; 127V; 127VS; MVAPANBARM; MVAPANBARL
(MVK504XCTALL)
SKU | MVK504XCTALL |
Barcode # | 8024221704143 |
Brand | Manfrotto |
Shipping Weight | 6.0000kg |
Shipping Width | 1.000m |
Shipping Height | 0.250m |
Shipping Length | 0.250m |
Shipping Cubic | 0.062500000m3 |
