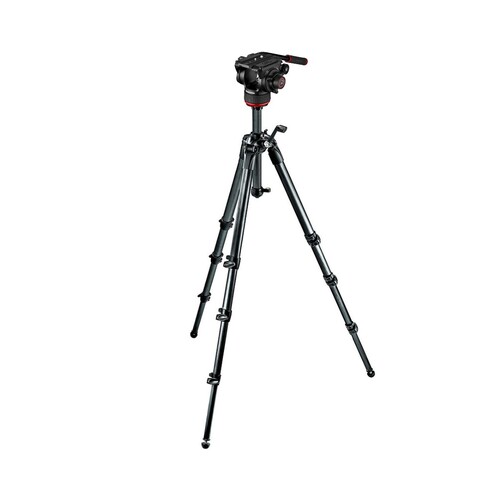

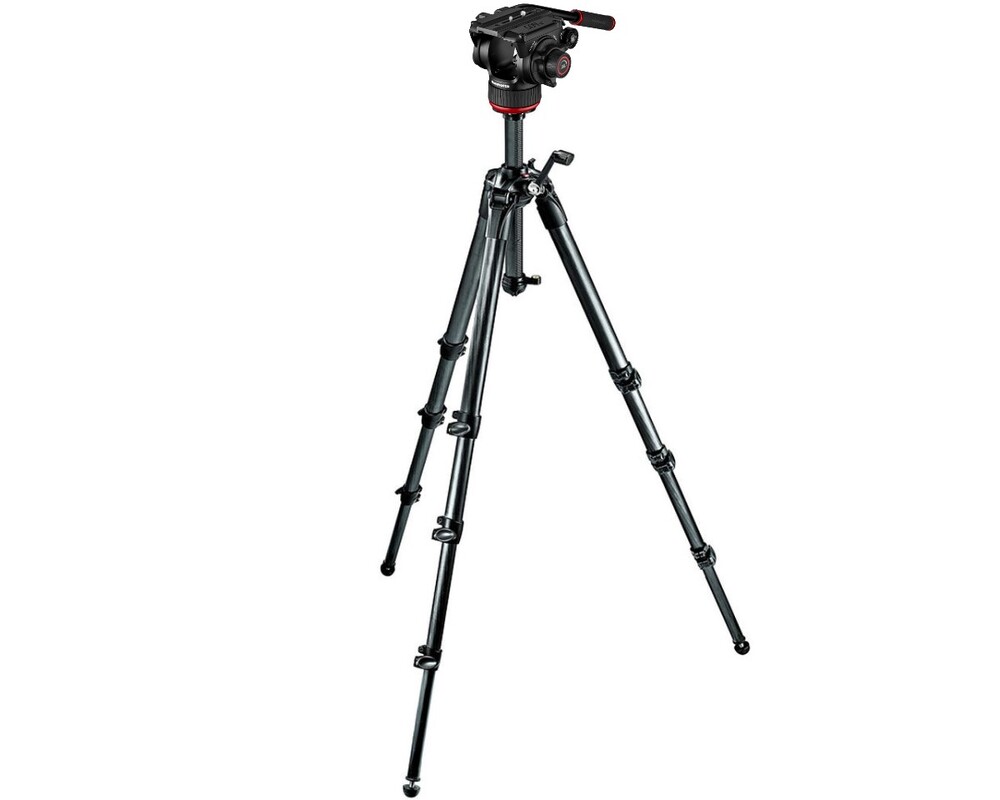

Manfrotto MT057C4G + 504X Carbon Fiber Video Tripod Kit
Carbon Fibre Heavy Duty Tripod
Max. Payload: 12KG
Max. Height: 205cm Min. Height: 22.5cm

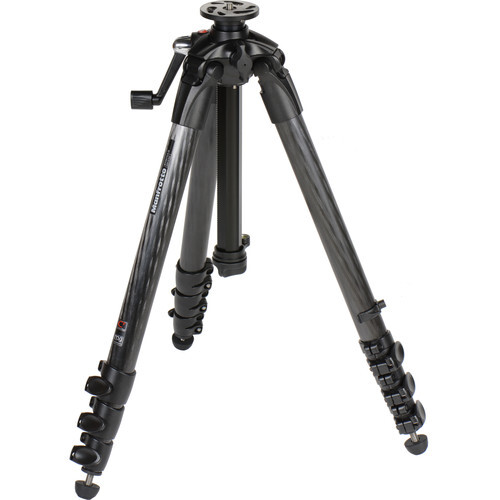

This Manfrotto Carbon Fibre Video/Photo Tripod including a Geared Center Column is a heavy-duty tripod that's intended for use with professional video cameras and large format still cameras. With a healthy 12kg load capacity, the lightweight carbon fibre leg tubes of the 057 tripod provide rigid support even under a considerable amount of weight.

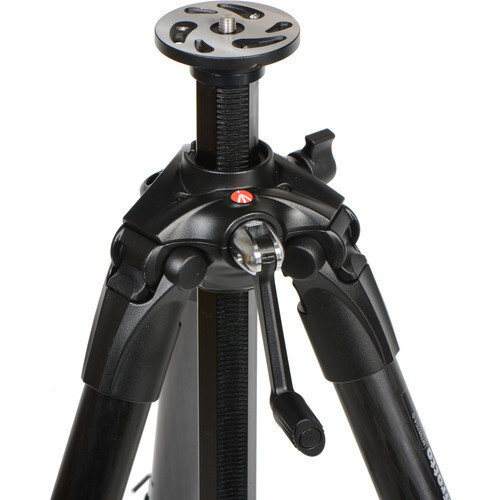

The tripod's geared centre column provides maximum precision when you're setting the camera position. The column has a non-rotating, three-faceted design for increased system stability. To enable extremely low-angle shooting, you can unscrew the centre-post collar, remove the centre column, and attach the collar directly to the included low-angle adapter (through the chassis). With this method, the Manfrotto MT057C4-G 4-Section Carbon Fiber Tripod can achieve a minimum height of 22cm

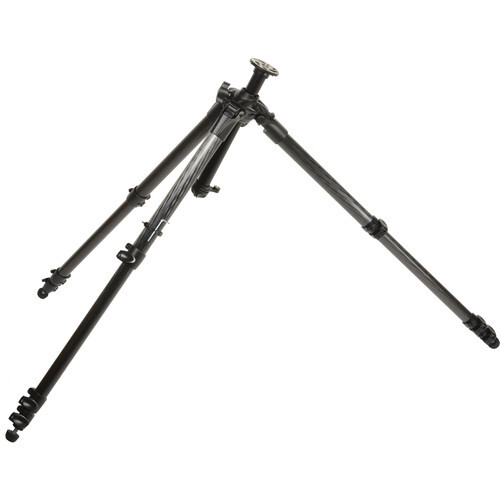

The round carbon fibre legs feature user-adjustable flip locks to free and secure the leg stages. An included key for tightening the flip locks attaches to a leg for ever-ready access. With both the legs and the centre column fully extended, the tripod reaches a maximum height of 205cm.
Features:
- Retractable spikes in feet

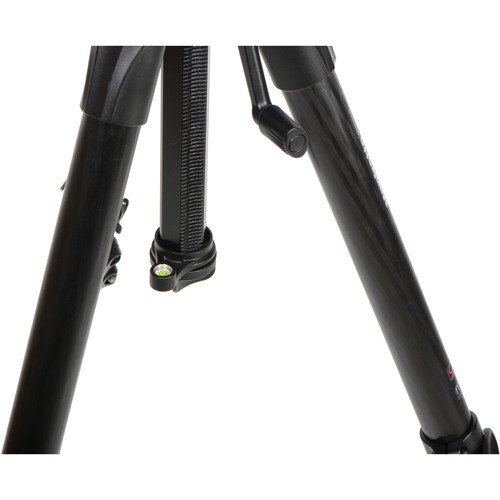

- Bubble level near the bottom of the centre column
- Screw locks for tightening a tripod head to the centre-post collar
- Manfrotto recommends its 114 Video/Movie Heavy Dolly for this tripod
Specifications:
Load Capacity |
12 kg |
Maximum Working Height |
205 cm |
Max Height without Center Column |
180.1 cm |
Minimum Working Height |
22.9 cm |
Folded Length |
66.5 cm |
Head Mount Type |
3/8"-16 Screw |
Weight |
3.7 kg |
Materials |
Carbon Fiber |
Bubble Level |
Yes |
Legs
Leg Lock Type |
Flip Lock |
Leg Positions |
3 Positions |
Independent Leg Spread |
Yes |
Leg Sections |
4 |
Leg Diameter |
38.1 mm |
Feet Features |
Retractable, Spiked |
Center Column
Center Column Shape |
Faceted |
Center Column Sections |
1 |
Center Column Extension Type |
Geared |
Center Column Diameter |
35.6 mm |
Lateral / 90-Degree Center Column |
No |

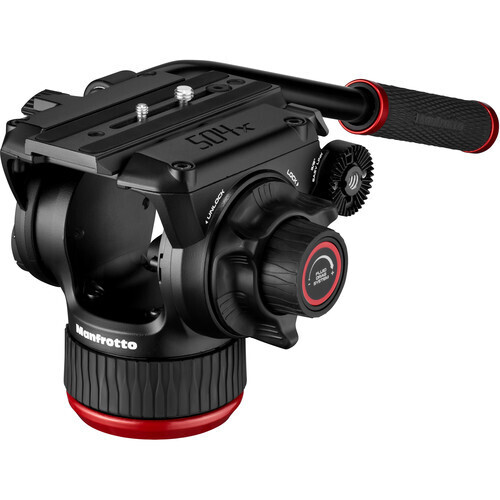

Manfrotto MVH504XAH Specs
Camera Plate
Camera Plate Features | Quick Release, Sliding Balance Plate |
Camera Plate Type | 504PLONG |
Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
Tripod Platform
Base Mount | 3/8"-16 Female |
Pan & Tilt
Drag Control | Tilt: Continuous Pan: Continuous |
Drag Type | Fluid |
Vertical Tilt | None |
Panning Range | 360° |
Independent Pan Lock | Yes |
Independent Tilt Lock | Yes |
Physical
Material | Aluminum |
Load Capacity | 26.46 lb / 12 kg |
Counter Balance | Incremental 4-Step Plus 0 (0 to 14.3 lb / ) |
Bubble Level | 1 |
Dimensions | 5.86" / 14.88 cm |
Weight | 4.41 lb / 2 kg |
(MT057C4G_504X)
SKU | MT057C4G_504X |
Barcode # | 8024221582956 |
Brand | Manfrotto |
Shipping Weight | 4.0000kg |
Shipping Width | 0.760m |
Shipping Height | 0.170m |
Shipping Length | 0.170m |
Shipping Cubic | 0.021964000m3 |
