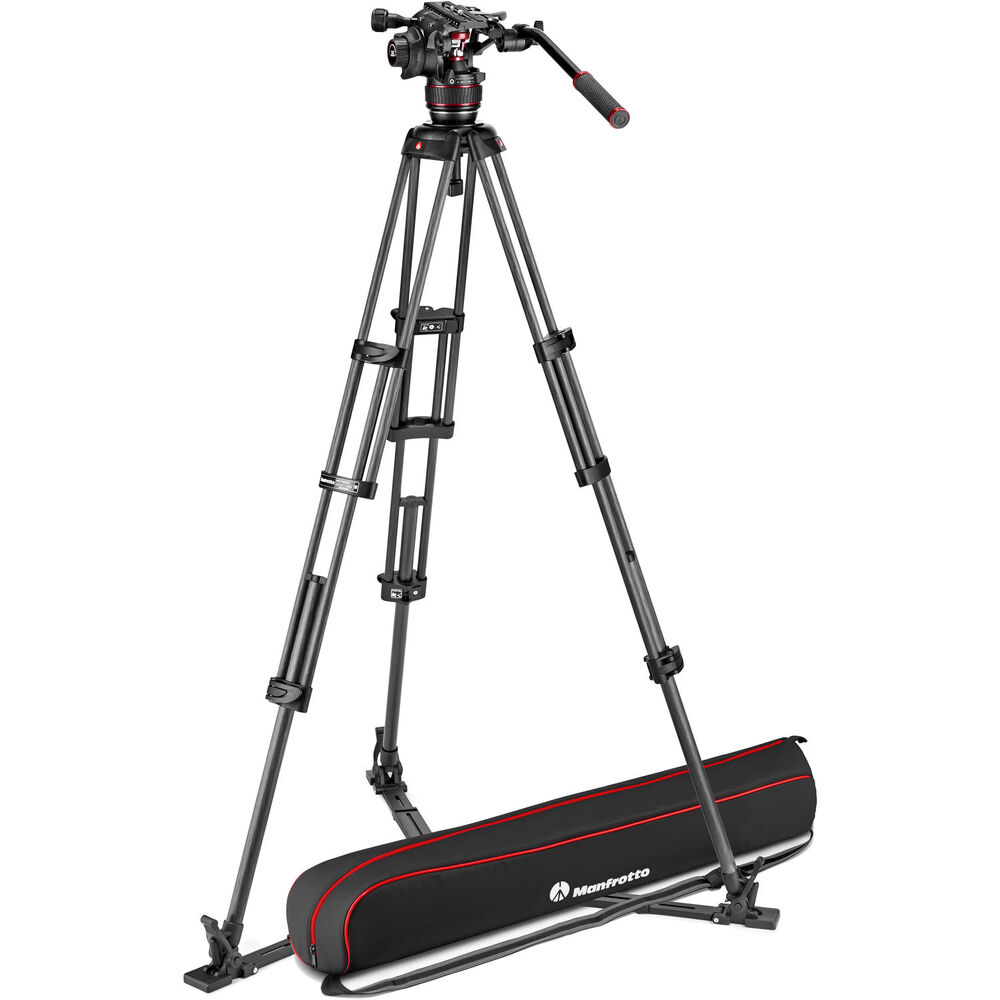

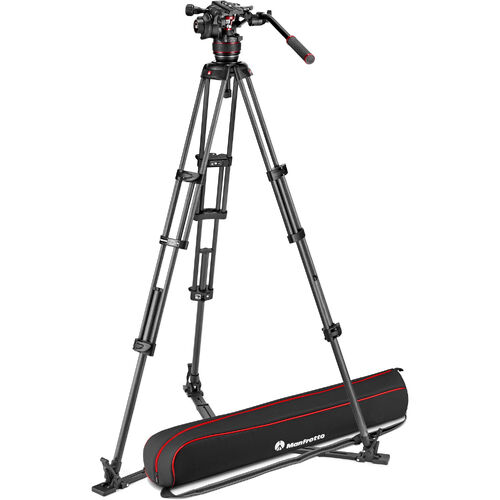

Manfrotto Nitrotech 608 video head with Carbon Fibre twin leg tripod kit
Features
- Flat Base Head; Half Ball Included
- Nitrogen Piston Counterbalance Mechanism
- Continuous Counterbalance up to 17.6 lb
- Continuous Variable Pan and Tilt Drag
- 3-Section Tripod, Removable Spreader
- 68" Maximum Height / 19" Minimum Height
- Twin Spiked Feet
- Side Lock Camera Plate System
- Rosette Mounts with 3/8"-16 Port
- Manfrotto and ARRI Anti-Rotation Slots
The 608 Nitrotech Head and Carbon Fiber Twin Leg Tripod with Ground Spreader from Manfrotto provide content creators with a versatile solution for various applications. A compact fluid head is paired with a lightweight three-section tripod and removable ground spreader that allows for maximum stability. The head supports up to 17.6 lb and features a Nitrogen gas piston mechanism that allows for continuous counterbalance across the full payload range. It's also designed with improved fluid technology that allows smooth and judder-free pan and tilt movements. Other key features of the head include a side lock camera plate system and two rosette adapters each with a 3/8"-16 accessory port and Manfrotto and ARRI anti-rotation slots.

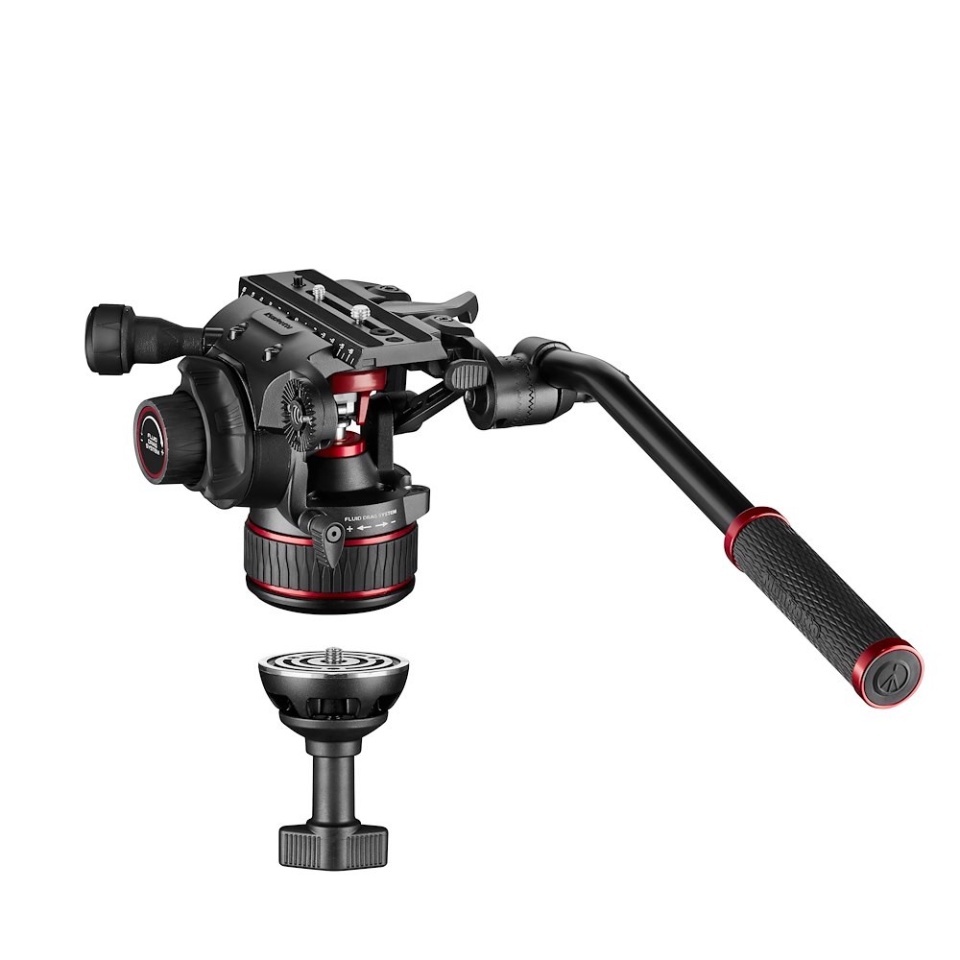

A half ball is included to convert the flat base head to fit the tripod, which has a 100mm bowl and 75mm bowl adapter. With a native flat base, the 608 Nitrotech can also be easily mounted on sliders, jibs, and other gear.
The combined maximum height of the head and tripod is 68" and the minimum height is only 19". The tripod is designed with twin spiked feet, allowing it to be used on soft terrain when you remove the spreader. Alternatively, optional Manfrotto 565 rubber shoes can be attached for use on flat surfaces. A padded carrying bag is included for the tripod.

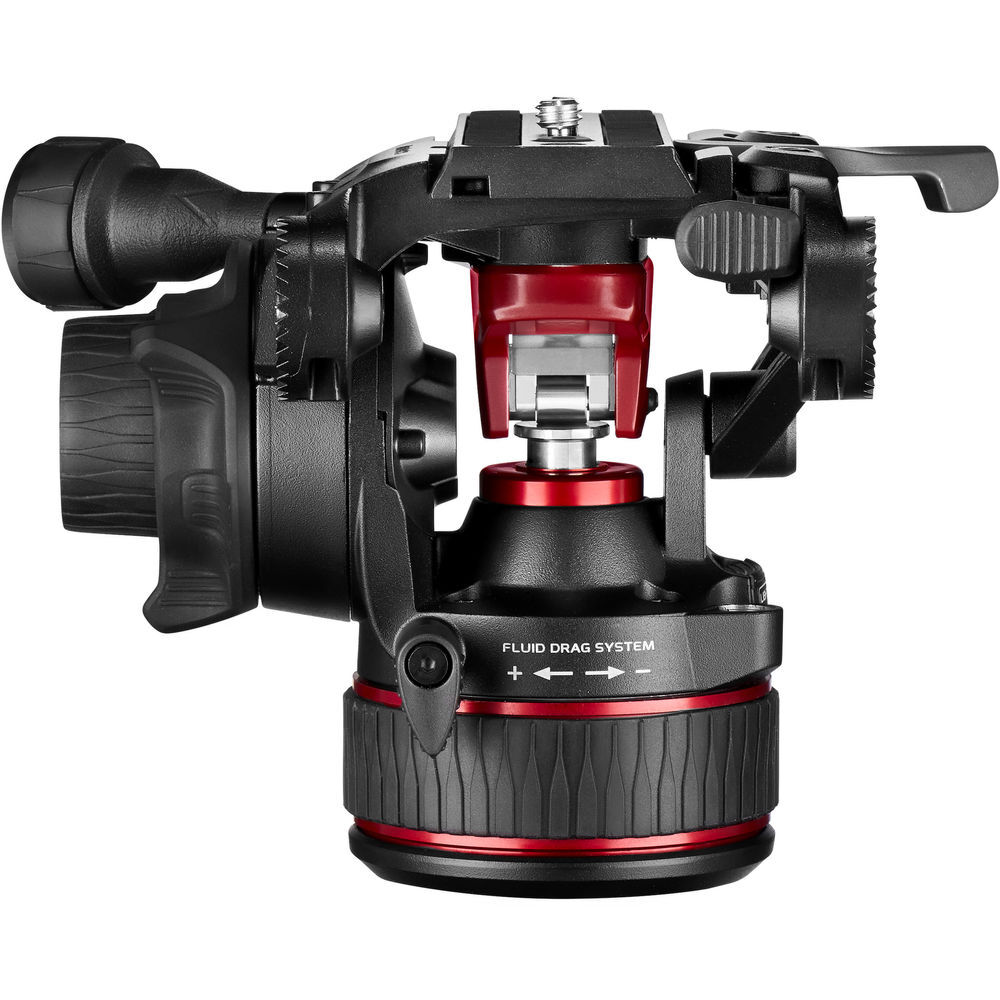

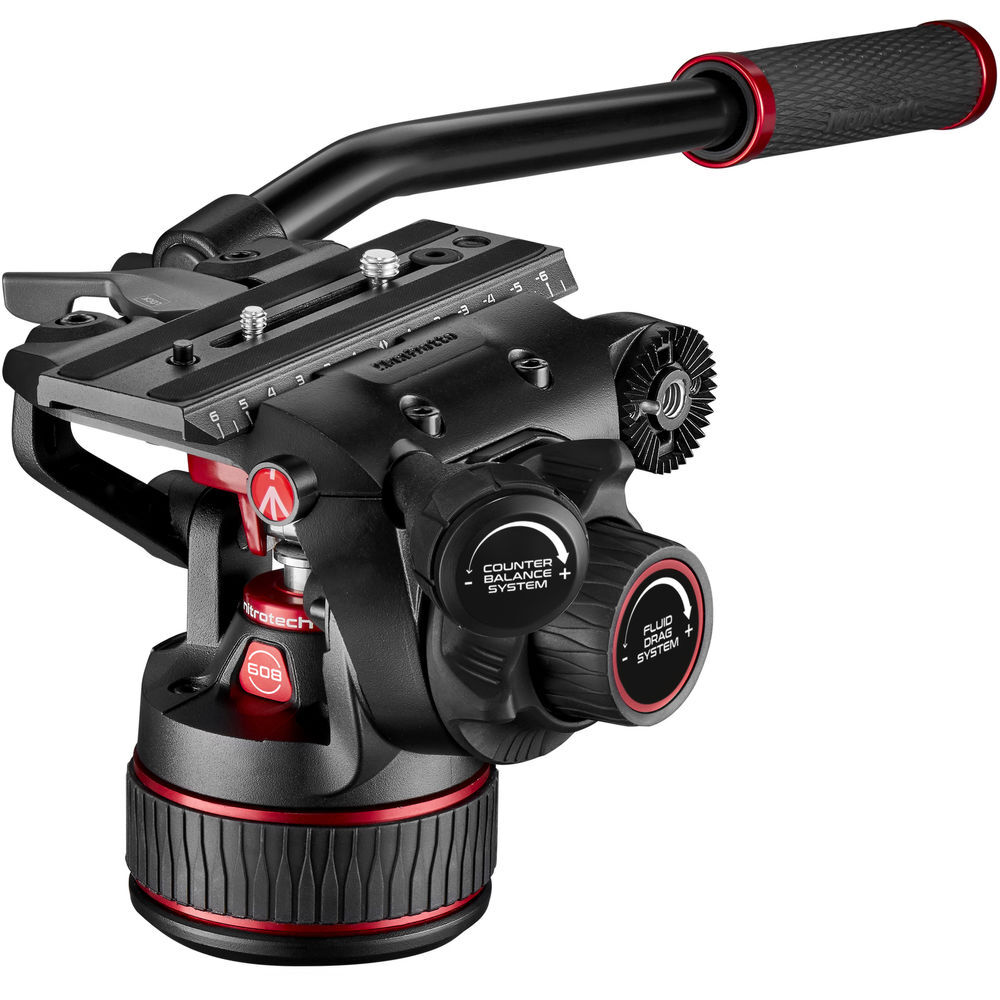

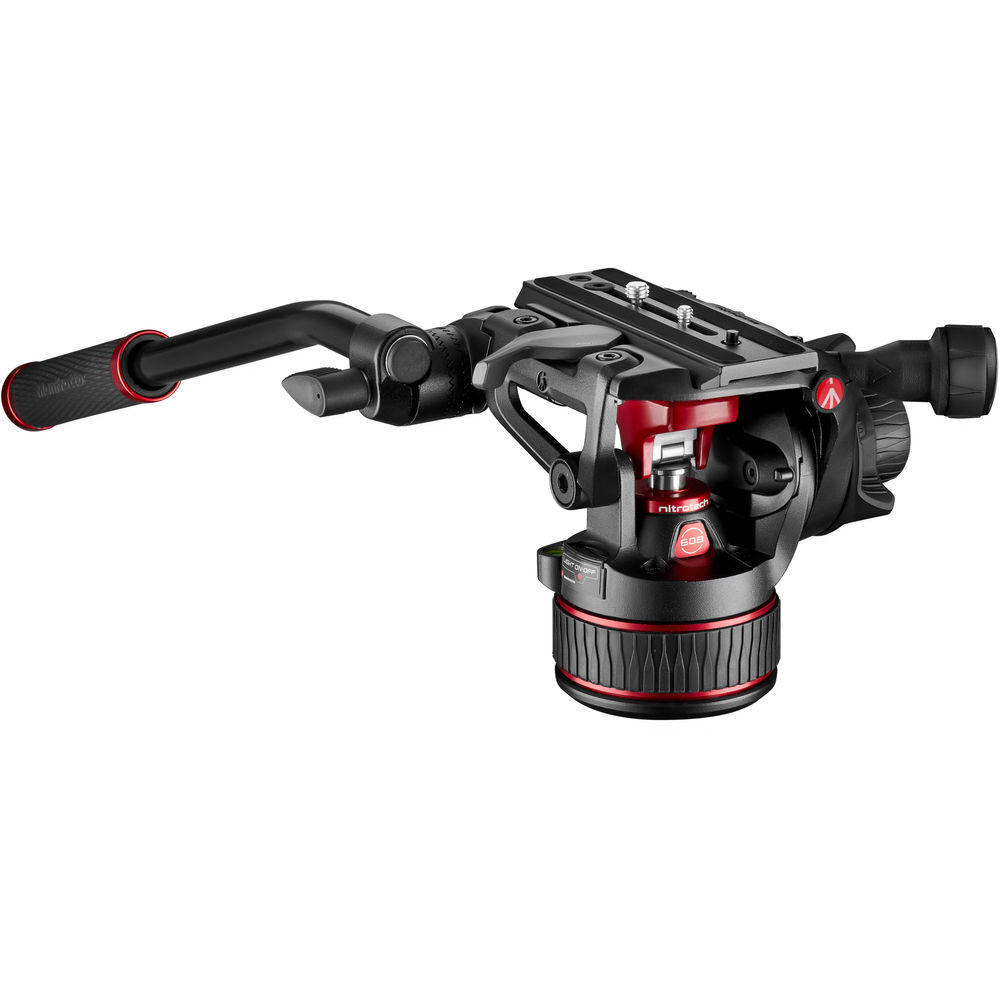

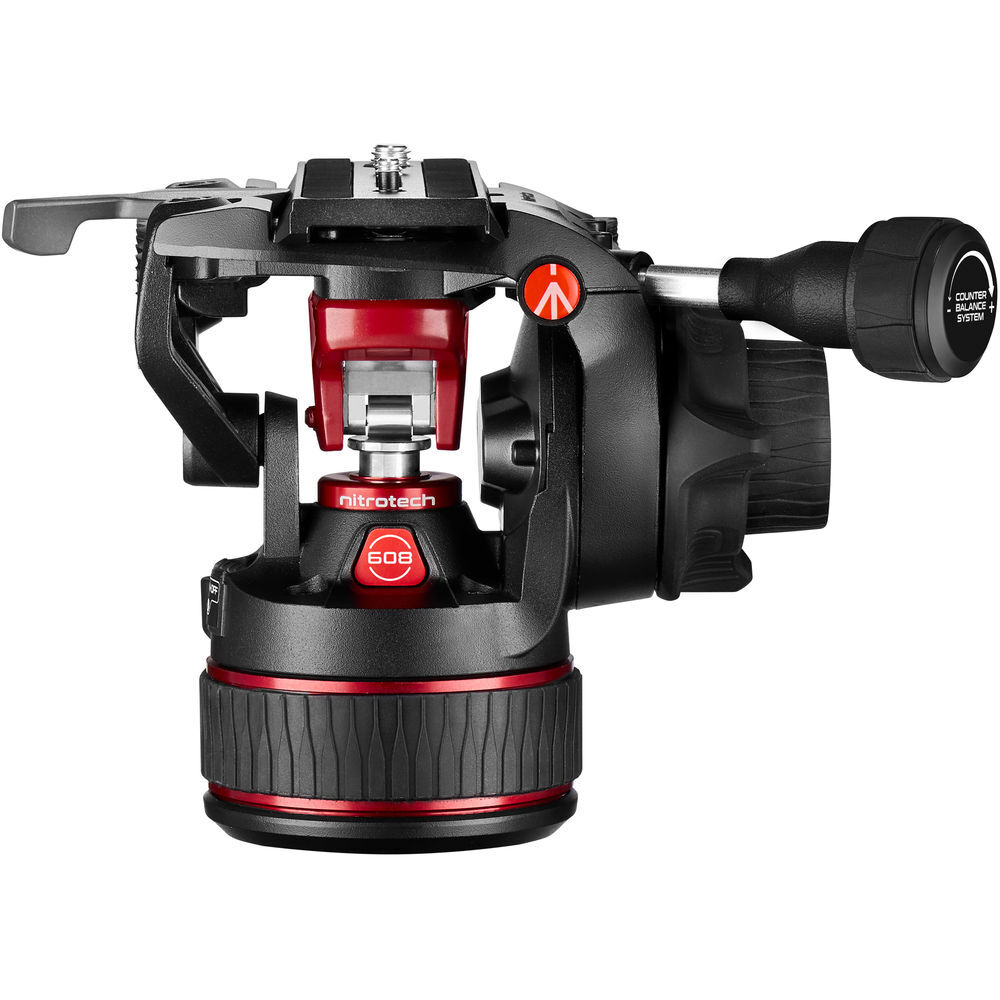

Manfrotto 608 Nitrotech Fluid Video Head

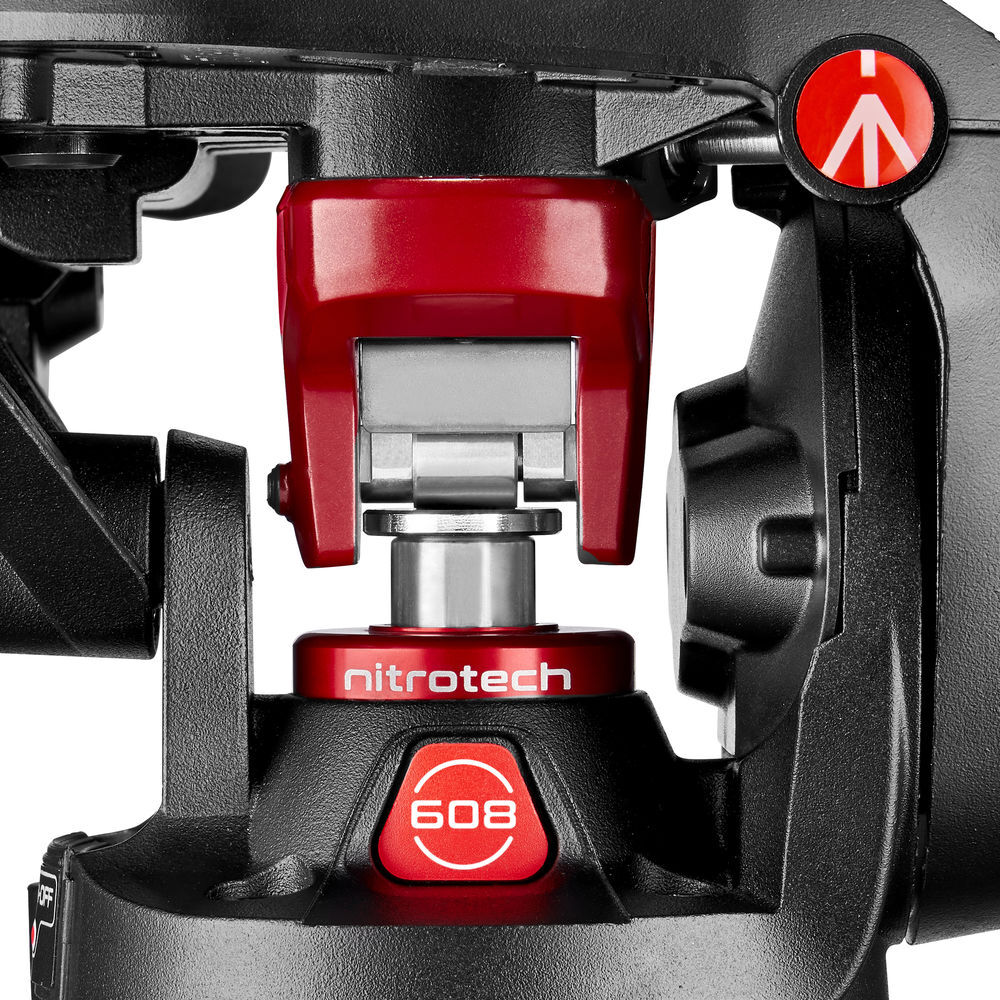

The Manfrotto 608 Nitrotech is a flat base fluid video head designed for the versatility needs of the independent content creator who's engaged in different types of projects. Thanks to its flat base with a 3/8"-16 mounting thread, as well as its relatively compact and lightweight design, the head can easily be moved between a compatible tripod and a slider, jib, monopod, and various other gear. One of the key features of the 608 Nitrotech is its Nitrogen gas piston counterbalance mechanism (hence, Nitrotech), which allows continuous counterbalance adjustment—as opposed to stepped or fixed—for the head's full payload range of 0 to 30.9 lb. Additionally, an upgraded fluid technology significantly improves continuously variable drag performance and enables smooth and judder-free pan and tilt movements.
Providing further flexibility, the head's camera plate system features a side-lock mechanism that allows for quicker and safer mounting of your camera plate and camera load. Instead of having to align and slide in your camera plate from the rear, you're able to conveniently tuck in one side of the plate from the top and then push and click on the other side.

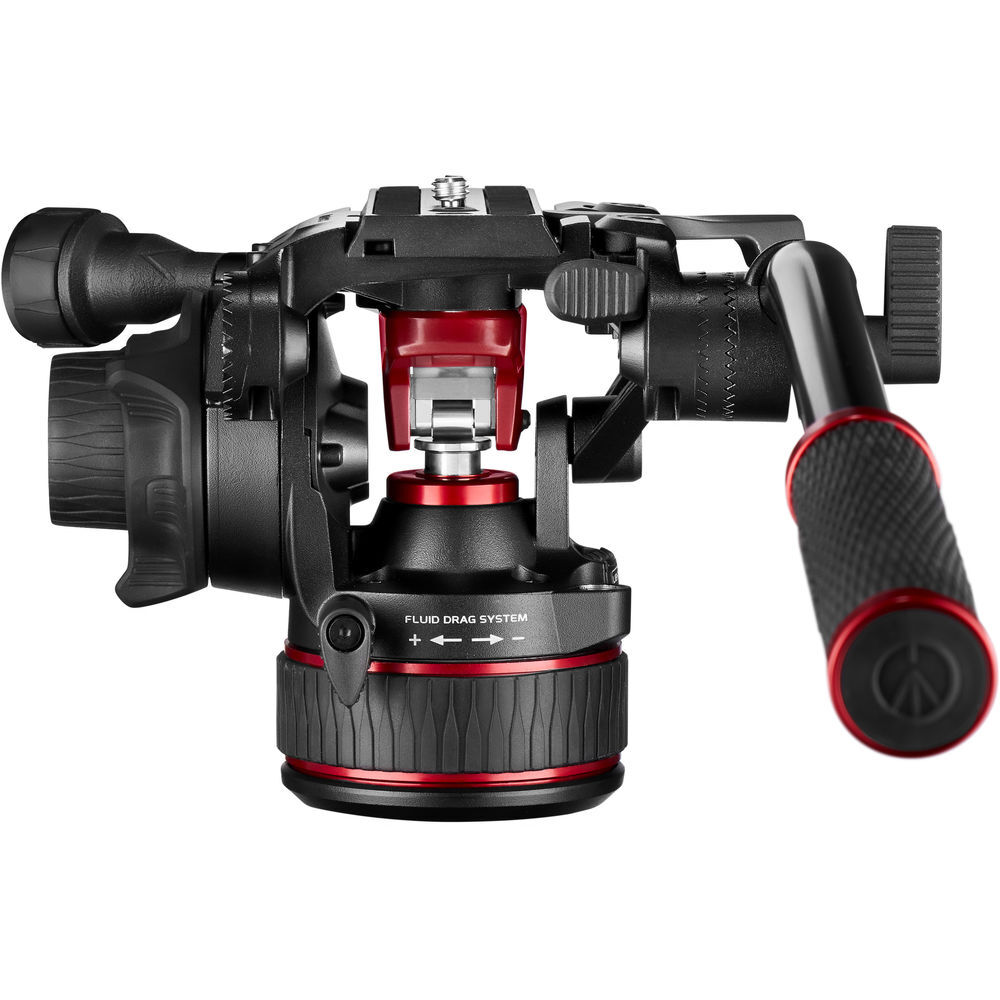

The 608 Nitrotech offers two rosette mounts for attaching the included pan bar on either the left or right side. These rosettes also feature Manfrotto's Easy Link system for mounting accessories via an articulating arm. Each rosette has a 3/8"-16 port in the center and both Manfrotto and ARRI anti-rotation slots surrounding the mounting port. The Easy Link system is designed to support Manfrotto articulating arms equipped with anti-rotation pins or those with ARRI locating pins to prevent twisting. At the same time, standard articulating arms can also be attached.
Other features of the 608 Nitrotech include improved resistance to lower operating temperatures in comparison to previous Nitrotech models and improved ergonomics and materials used for the different knobs.
Key Features
- Flat base with 3/8"-16 mounting thread allowing for use on tripods, sliders, jibs, monopods, and other support gear
- Nitrogen gas piston counterbalance mechanism allows for continuous counterbalance adjustment for the full payload range of 0 to 30.9 lb
- Upgraded fluid technology enabling smooth and judder-free pan and tilt movements via continuously variable drag performance
- Easier, safer side-lock camera plate mechanism
- Two rosette mounts with a 3/8"-16 port and Manfrotto and ARRI anti-rotation slots for attaching the included pan bar and a standard or anti-twist articulating arm
- 5.9" height

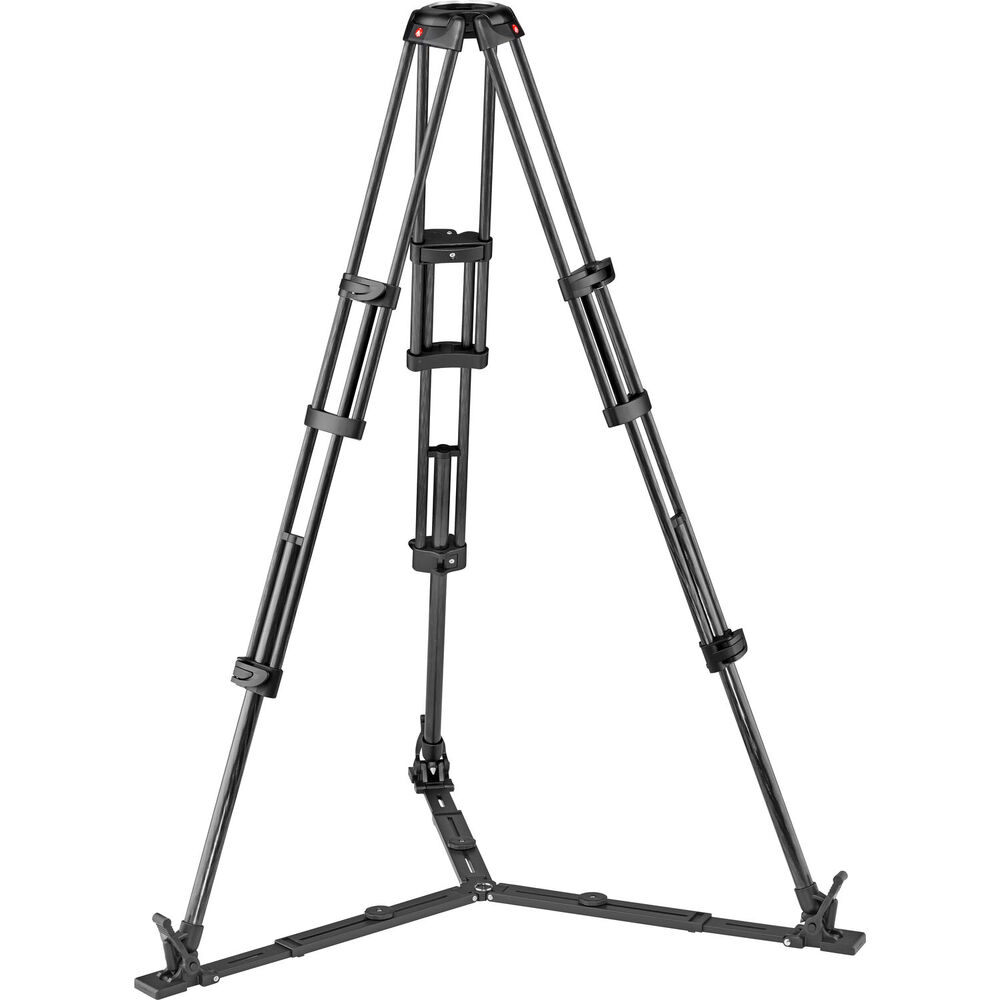

Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader (100/75mm Bowl)
The Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader is suitable for use on flat, smooth surfaces, and it features carbon fiber tubes that are both strong and lightweight while being corrosion resistant. The legs incorporate a 100mm half bowl and include a 75mm adapter ring, so you can use them with heads that have either a 100 or 75mm half ball. The legs support up to 44.1 pounds, which allows you to mount an appropriately sized fluid head, camera, and accessories without straining the capacity of the legs.
With the included ground spreader attached the height of the legs can be adjusted from just over a foot to over 5 feet high, and the legs collapse to under 28 inches in length for transport and storage. Removing the spreader reveals the dual spiked feet, which are useful for soft surfaces such as gravel, dirt, or sand. The legs weigh a mere 7.21 pounds, making them easy to take almost anywhere you can go.
The integrated lever locks are strong, durable, and increase the torsional stability of the legs.
The included adapter ring is removable and attaches with three mounting screws. Attaching the adapter converts the 100mm bowl into a 75mm bowl.
The ground spreader is well suited for use on smooth and flat surfaces, and securely attach to the tripod's dual spiked feet.
Specs
Camera Plate
| Camera Plate Features | Quick Release |
| Camera Plate Type | 504PLONG |
| Camera Mounting Screw | 1 x 1/4"-20 Male with Locating Pin |
Head
| Base Mount | Flat Base |
| Counter Balance | Continuous (0 to 17.6 lb / 0 to 7.98 kg) |
| Pan Handle Fittings | 2 x Rosette |
| Bubble Level | 1 x Illuminated |
| Accessory Mounting | 2 x 3/8"-16 Female Thread |
Pan & Tilt
| Drag Control | Pan: Continuous Tilt: Continuous |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -70° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
General
| Load Capacity | 0 to 14 kg |
| Operating Temperature | -20 to 50°C |
| Weight | 2.22 kg |
Manfrotto Carbon Fiber Twin Leg Video Tripod Legs With Ground Spreader (100/75mm Bowl) Specs
General
| Head Mount Type | 100 mm Bowl |
| Maximum Working Height | 62.20" / 158 cm (with Spreader) |
| Minimum Working Height | 13.19" / 33.5 cm (with Spreader) |
| Closed Length | 27.2" / 69 cm |
| Materials | Carbon Fiber |
| Weight | 3.27 kg |
Legs
| Leg Lock Type | Lever Lock |
| Leg Positions | Continuously Adjustable |
| Independent Leg Spread | Yes |
| Leg Sections | 3 |
| Feet Features | Dual Spiked |
| Spreader | Ground (Included) |
(MVK608TWINMC)
| SKU | MVK608TWINMC |
| Barcode # | 8024221698121 |
| Brand | Manfrotto |
| Shipping Weight | 6.0000kg |
| Shipping Width | 1.000m |
| Shipping Height | 0.400m |
| Shipping Length | 0.400m |
| Shipping Cubic | 0.160000000m3 |
