PORTKEYS BM5III WR 5.5" HDMI Touchscreen Monitor with Camera Control
Features
- 5.5" Wide Color Gamut Monitor
- Ultrabright Touchscreen, Image Overlay
- Focus Peaking, ARRI False Color
- HDMI In, SDI In/Loop Out
- SDI Output with New 3D LUTs
- Histogram, Fullscreen Waveform
- Low 13W Power Consumption

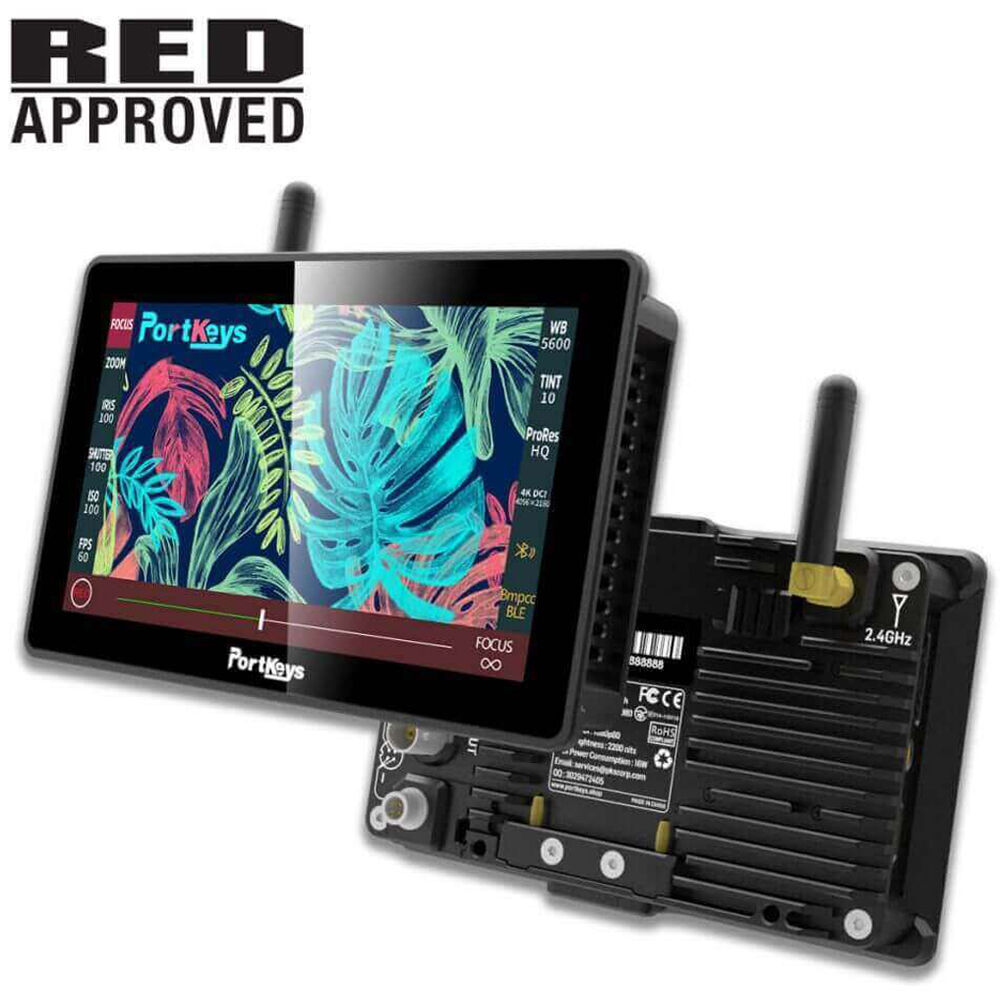

Set your exposure properly and focus accurately when capturing video with the help of the PORTKEYS BM5WR 5.5" HDMI Touchscreen Monitor. This ultrabright onboard monitor features a wide color gamut, a durable aluminum build, and both HDMI and 3G/SDI video inputs and SDI output. The included wireless control module offers Wi-Fi control for the RED KOMODO and Bluetooth control for BMPCC 6K/6K Pro and 4K cameras. Wired control is available for select Canon, Blackmagic Design, Panasonic, Sony, and ZCAM E2 cameras. The BM5WR with Camera Control maintains the same reliable BM5 clarity, vivid color details, and dynamic touch screen camera control, and it offers touch focus for the KOMODO, the Panasonic BGH1, and the ZCAM E2.
Wired Camera Control
Wired control of select Sony, Canon, Panasonic, Blackmagic Design, and ZCAM E2 cameras
Wired Motor Control
The BM5WR can display the position of the Tilta Nucleus N/M and display the wireless follow focus scale

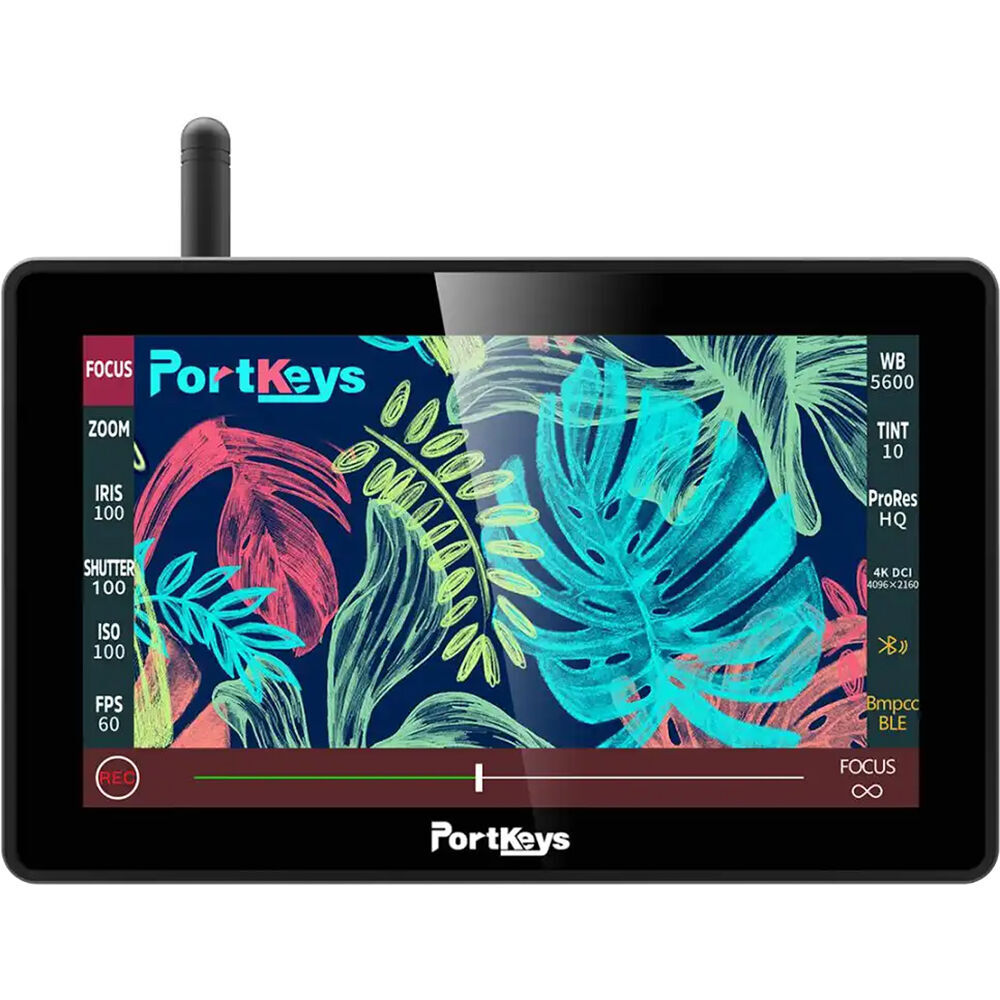

Touchscreen Control Focus
When you touch the screen of the monitor, it draws highlights around the edge of the focus, so you can focus quickly and accurately in real time without any other tools when using the RED KOMODO, Panasonic BGH1, or the ZCAM E2
2200 cd/m² Superbright Monitor
The BM5WR offers a 2200 cd/m² ultrabright 5.5" display with excellent color, resolution, contrast, and precise image control
Robust Design
The rugged aluminum alloy shell design is durable and lightweight, weighing only 13.3 oz yet able to withstand heavy daily operations

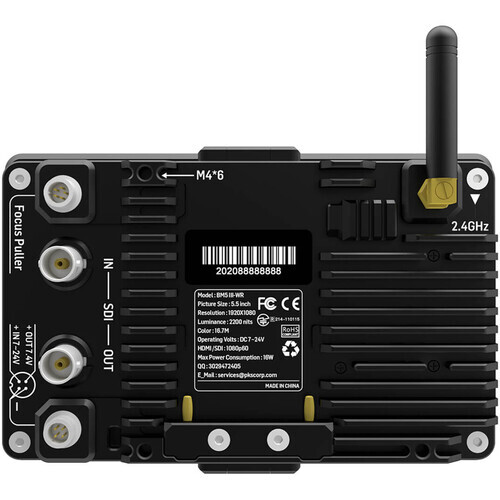

HDMI In/SDI In/Loop Out
HDMI input and SDI input and loop output ports with the ability to output a superimposed image with 3DLUT and peaking via the SDI output
Color Calibration
Each BM5WR has passed strict hardware color calibration before shipping to ensure the widest color gamut and the most accurate colors
10-Bit (8+2 FRC) Color
A 10-bit color depth for more accurate, richer color reproduction
ARRI False Color Mode
Expose your image using ARRI false color mode and user-defined modes with the ability to freely set the IRE in user-defined mode
New Focus Peaking
The optimized new peaking algorithm can accurately capture subtle facial focus
Precision Waveform
The high-precision fullscreen waveform monitor can accurately capture 1920 x 1080 pixels frame by frame
Image Capture and Image Overlay
Image Capture takes a snapshot of the video feed being sent through SDI or HDMI (combined with a LUT if desired) and saves it to memory; great for shot matching (continuity) or a quick overview of the days' shots
Specs
Display
Panel Type | LCD |
Display Size | 5.5" / 14.0 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Viewing Angle | Horizontal: 178° Vertical: 178° |
Touchscreen | Yes |
Maximum Brightness | 2200 nits / cd/m2 (Sustained) |
Contrast Ratio | 1000:1 |
Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) |
HDR Compatibility | Hybrid Log Gamma |
Pixels Per Inch (ppi) | 401 ppi |
Real-Time LUT Monitoring | SDR |
Image Controls | Anamorphic De-Squeeze, Check Field, False Color, Focus Peaking, Histogram, Image Flip, Image Rotate, RGB Parade, Screen Markers, Underscan, Waveform |
Video I/O | 1 x BNC (3G-SDI) Input 1 x BNC (3G-SDI) Loop Output 1 x HDMI Input |
Embedded Audio | SDI HDMI |
Audio I/O | None |
Built-In Speaker | None |
Power I/O | 1 x Unspecified 4-Pin (24 VDC) Input 1 x Unspecified 4-Pin (7.4 VDC) Output |
Other I/O | 1 x USB-A 2.0 1 x USB-B 2.0 1 x Proprietary |
Media/Memory Card Slot | None |
Wi-Fi | None |
Format Support
Video Format | HDMI (10-Bit) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 60/59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YUV) 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
Gamma Curve | HDR-HLG |
Power
DC Input Power | 7.4 to 24 VDC |
Power Consumption | 13 W (Maximum) |
Mounting
Mounting | 1 x 1/4"-20 Female |
General
Material of Construction | Aluminum |
Dimensions | 5.7 x 4.8 x 1.8" / 145.4 x 120.9 x 45.5 mm |
Weight | 13.3 oz / 376 g |
(BM5IIIWR)
SKU | BM5IIIWR |
Brand | PortKeys |
Shipping Weight | 0.5000kg |
Shipping Width | 0.200m |
Shipping Height | 0.150m |
Shipping Length | 0.200m |
Shipping Cubic | 0.006000000m3 |
