Portkeys BM7 II DS 7" High-Bright Monitor with Wireless Camera Control
Features:
- 7-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
- Daylight viewable with a maximum brightness of 2,200nits.
- Factory color-calibrated: 100% coverage of Rec.709 and 85% coverage of DCI-P3.

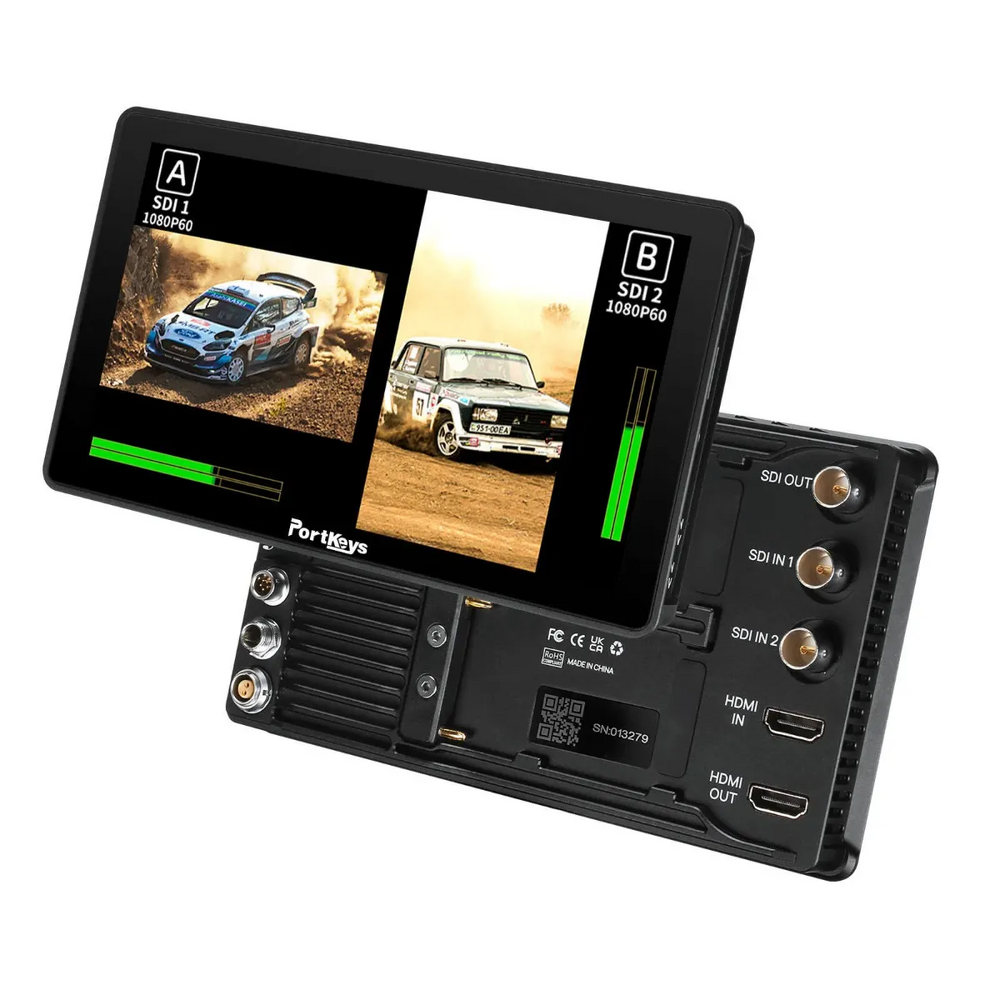

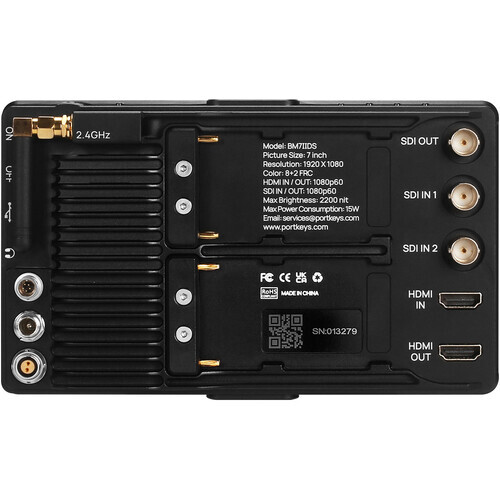

- 2 x 3G-SDI input, 1 x HDMI input, 1 x HDMI output, 1 x 3G-SDI output with cross-conversion.

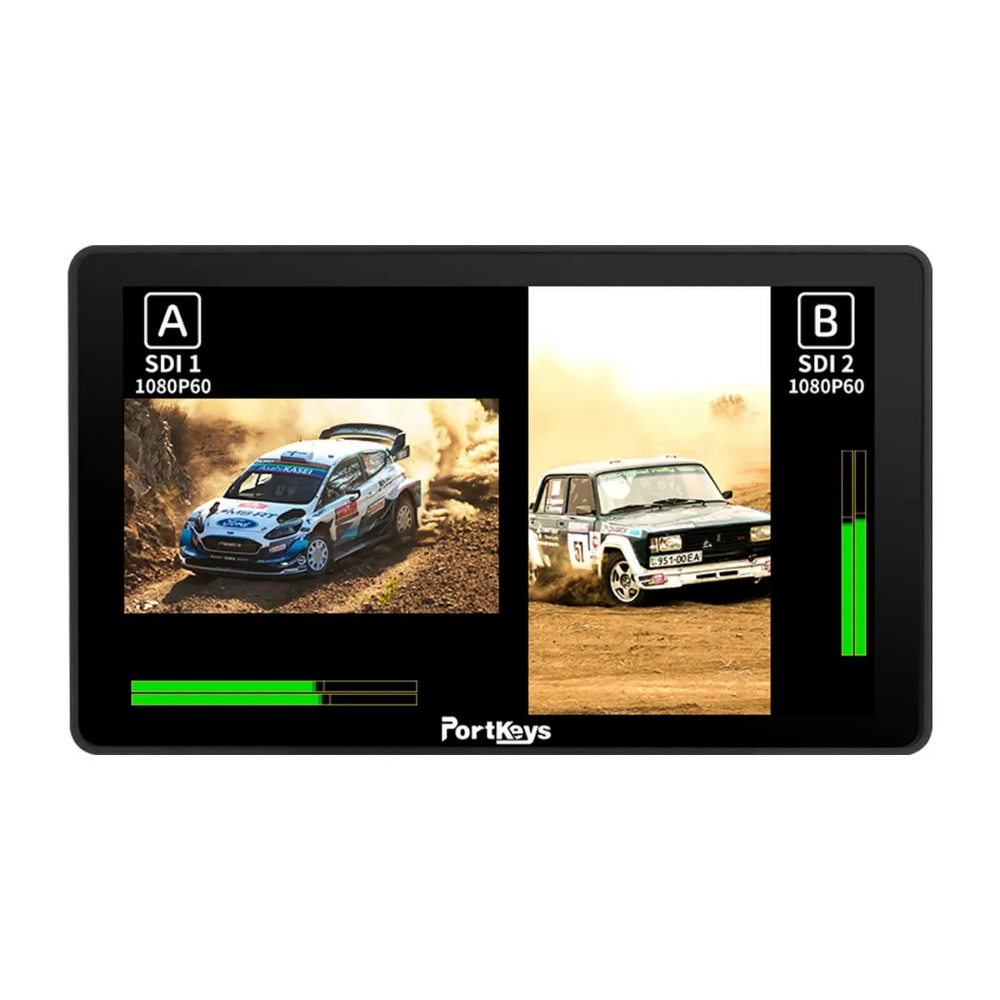

- Split screen monitoring, you can monitor two video inputs simultaneously.
- Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color.
- 3D LUT monitoring and 3D LUT SDI output capabilities.
- RED Approved: wireless camera control for the RED Komodo and V-RAPTOR.
- Wireless camera control for most Sony and Blackmagic Design cameras.
- Wired camera control for RED, Sony, Canon, Panasonic, BMD, and ZCAM E2.
- TILTA Nucleus N/M wireless follow focus wired control.
- Built-in dual Sony NP-F style battery plates.

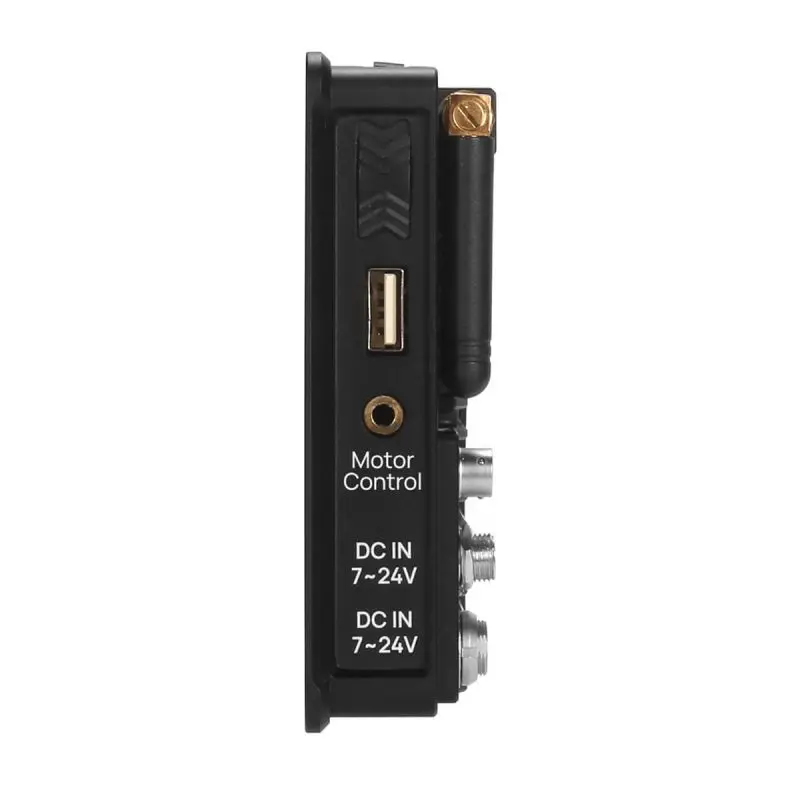

- Industry-standard 2-pin LEMO and 5.5mm barrel connector 7.4V-24V power inputs for external power (D-Tap cable included).
- Rugged all-aluminum housing: only 460g/16.2oz.
- Custom JPG picture custom freeze frame.
Compatible Camera Control Models
Wi-Fi
RED V-RAPTOR, KOMODO 6K
Sony a9 II, a1, a7C, FX3, FX30, RX10, a7S III, a7 IV, RX0, a7 III
Bluetooth
Blackmagic Pocket Cinema Camera 4K
Blackmagic Pocket Cinema Camera 6K
Blackmagic Pocket Cinema Camera 6K Pro
Wired
Various camera models from Sony, Canon, RED, Panasonic, Z CAM
Tilta Nucleus-N and Nucleus-M lens motor
Specs
Display Size |
7.0" / 17.8 cm |
Native Resolution |
1920 x 1080 |
Touchscreen |
Yes |
HDR Support |
Yes, Hybrid Log Gamma |
Video I/O |
2x BNC (3G-SDI) Input |
Media/Memory Card Slot |
No |
Video Format |
SDI (4:4:4/4:2:2 YUV) |
Battery Type |
2x L-Series |
Power Consumption |
15 W (Maximum) |
Mounting |
2x 1/4"-20 Female |
Display
Panel Type |
LCD |
Display Size |
7.0" / 17.8 cm |
Native Resolution |
1920 x 1080 |
Aspect Ratio |
16:9 |
Viewing Angle |
Horizontal: 170° (85/85) |
Touchscreen |
Yes |
Maximum Brightness |
2200 nits / cd/m2 |
Contrast Ratio |
1000:1 |
Bit Depth / Color Support |
8-Bit+FRC (1.07 Billion Colors) |
HDR Support |
Yes, Hybrid Log Gamma |
Pixels Per Inch (ppi) |
314 ppi |
Color Gamut |
85% DCI-P3 |
Image Controls |
Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, Vectorscope, Waveform, Zebra |
Inputs / Outputs
Video I/O |
2x BNC (3G-SDI) Input |
Embedded Audio |
HDMI: 2-Channel |
Audio I/O |
1x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker |
No |
Power I/O |
1x LEMO 2-Pin Input |
Other I/O |

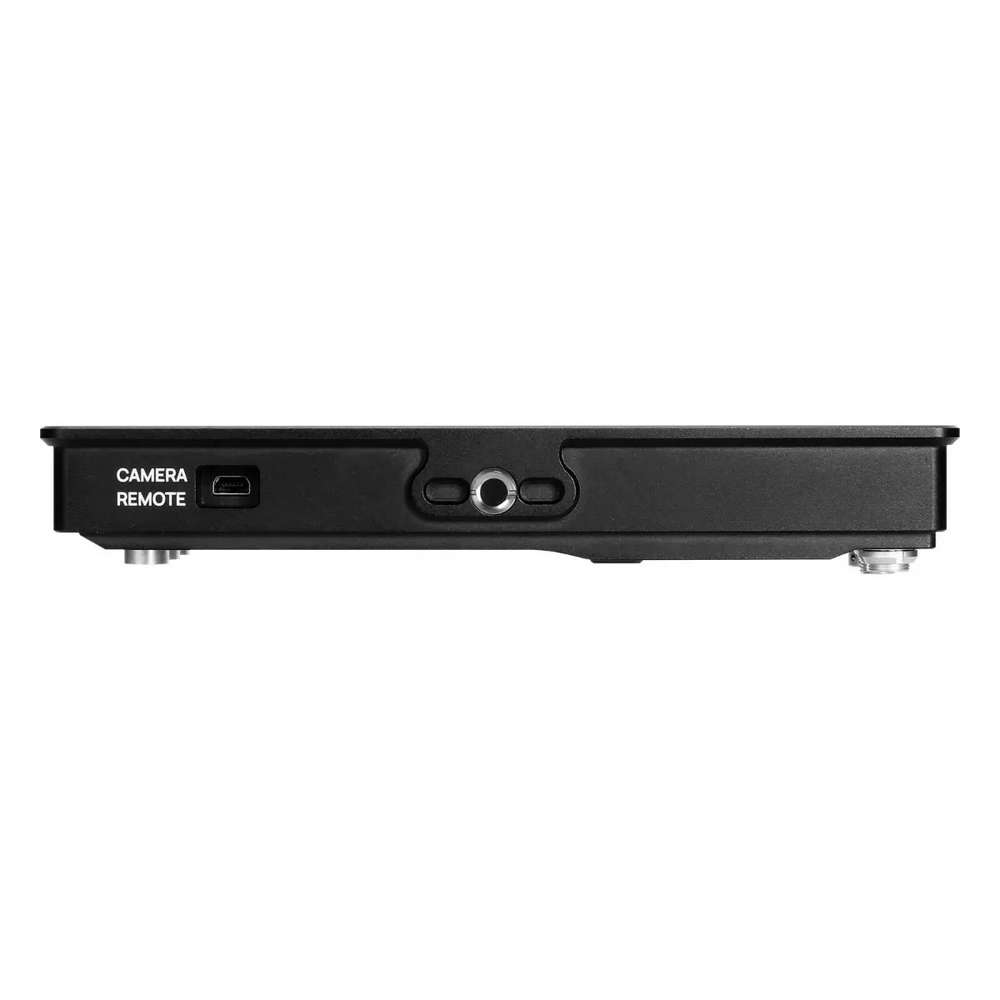

1x Mini-USB (Camera Control) |
Media/Memory Card Slot |
No |
Wi-Fi |
Yes |
Bluetooth |
Yes |
Mobile App Compatible |
No |
Format Support
Video Format |
SDI (4:4:4/4:2:2 YUV) |
Video Signal Conversion |
HDMI to SDI |
Power
Input Power |
7 to 24 VDC |
Battery Type |
2x L-Series |
Power Consumption |
15 W (Maximum) |
Mounting
Mounting |
2x 1/4"-20 Female |
Environmental
Environmental Protection |
No |
Operating Temperature |
0 to 40°C |
General
Material of Construction |
Aluminum |
Dimensions |
179.3 x 106.8 x 31 mm |
Weight |
460 g |
(BM7IIDS)
SKU | BM7IIDS |
Brand | PortKeys |
Shipping Weight | 1.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.080m |
Shipping Length | 0.220m |
Shipping Cubic | 0.003520000m3 |
