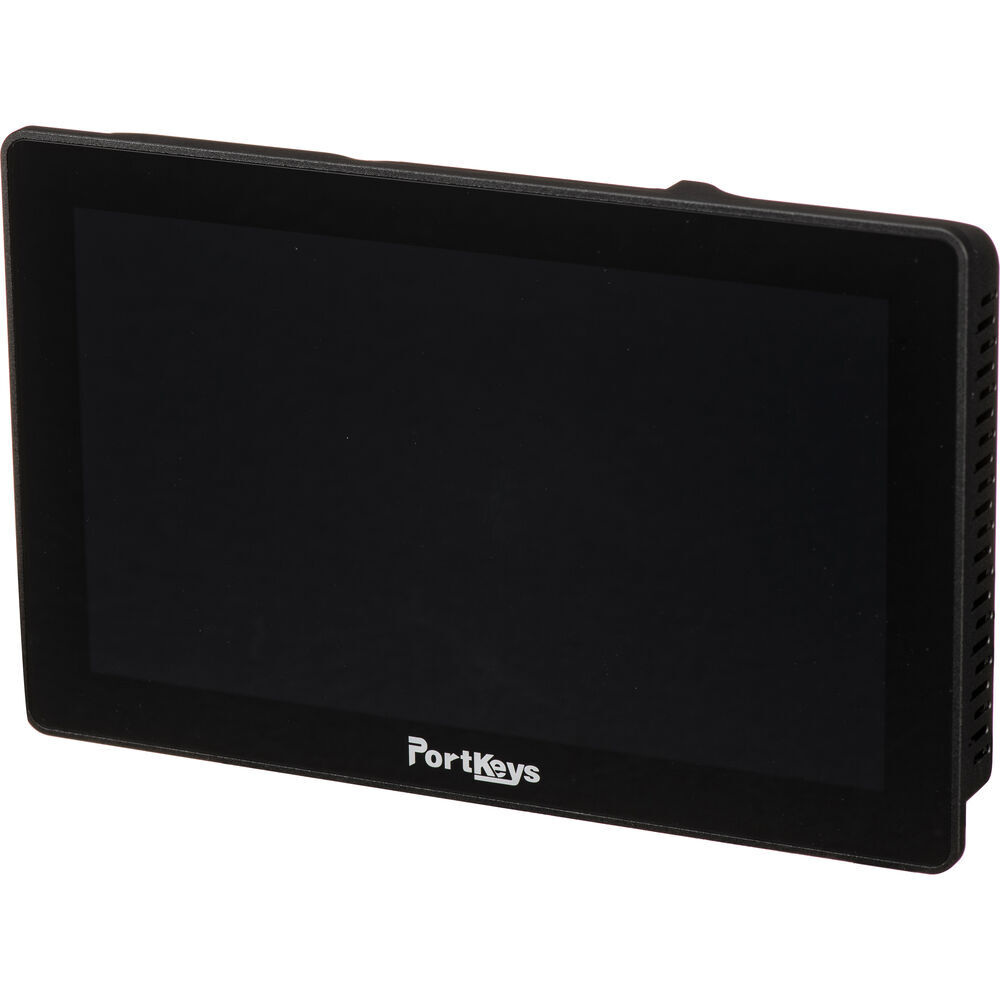

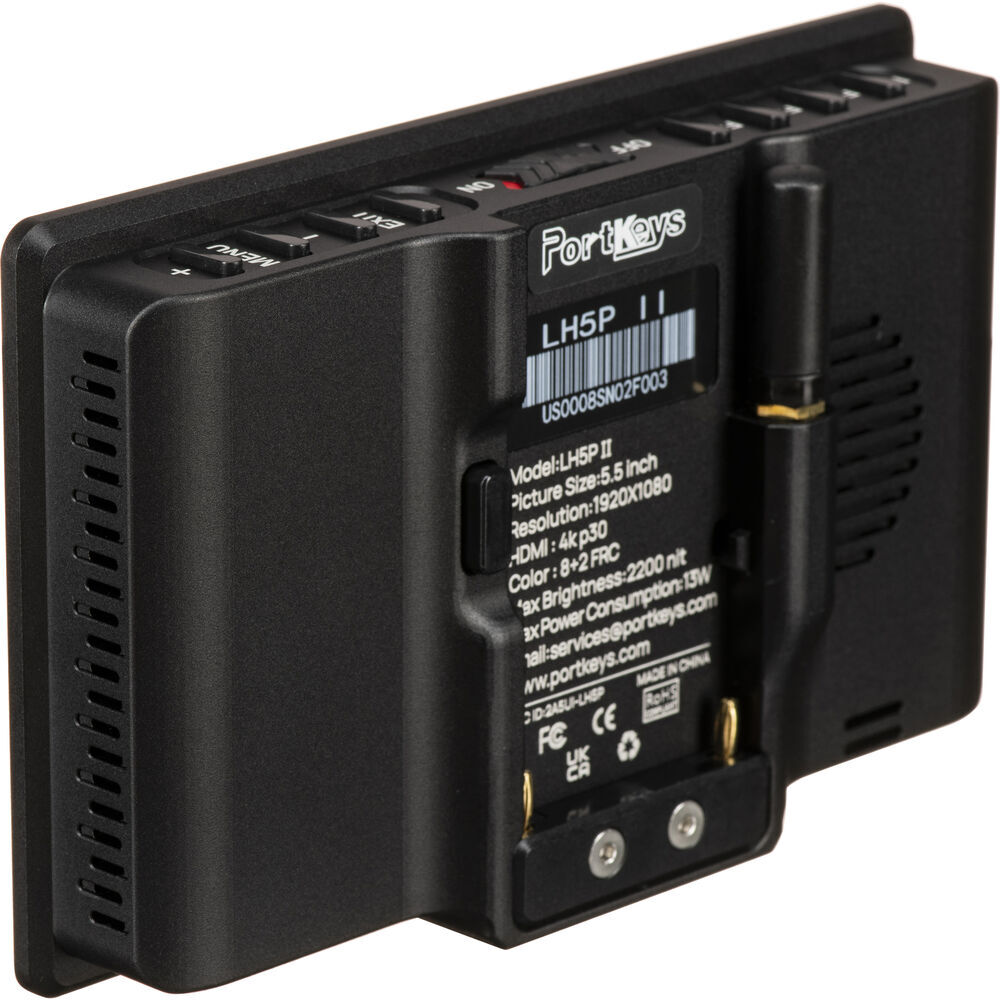

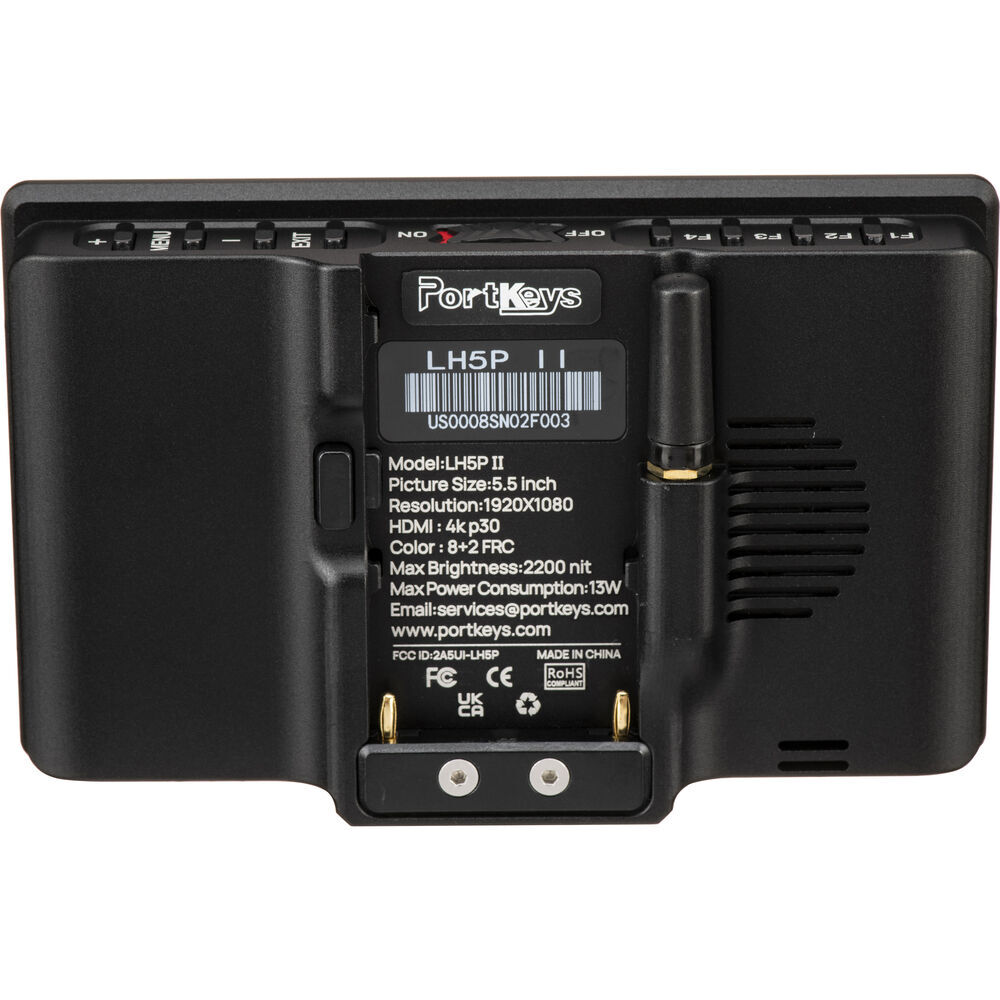

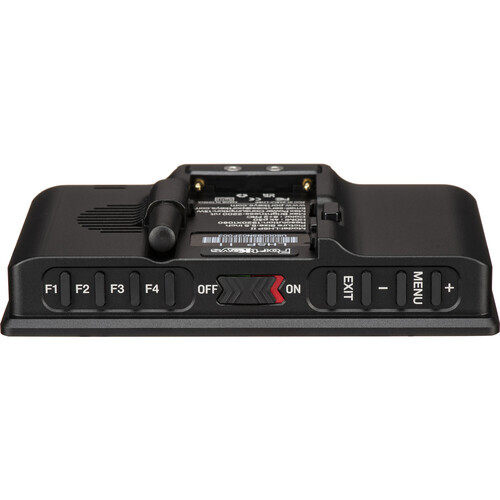

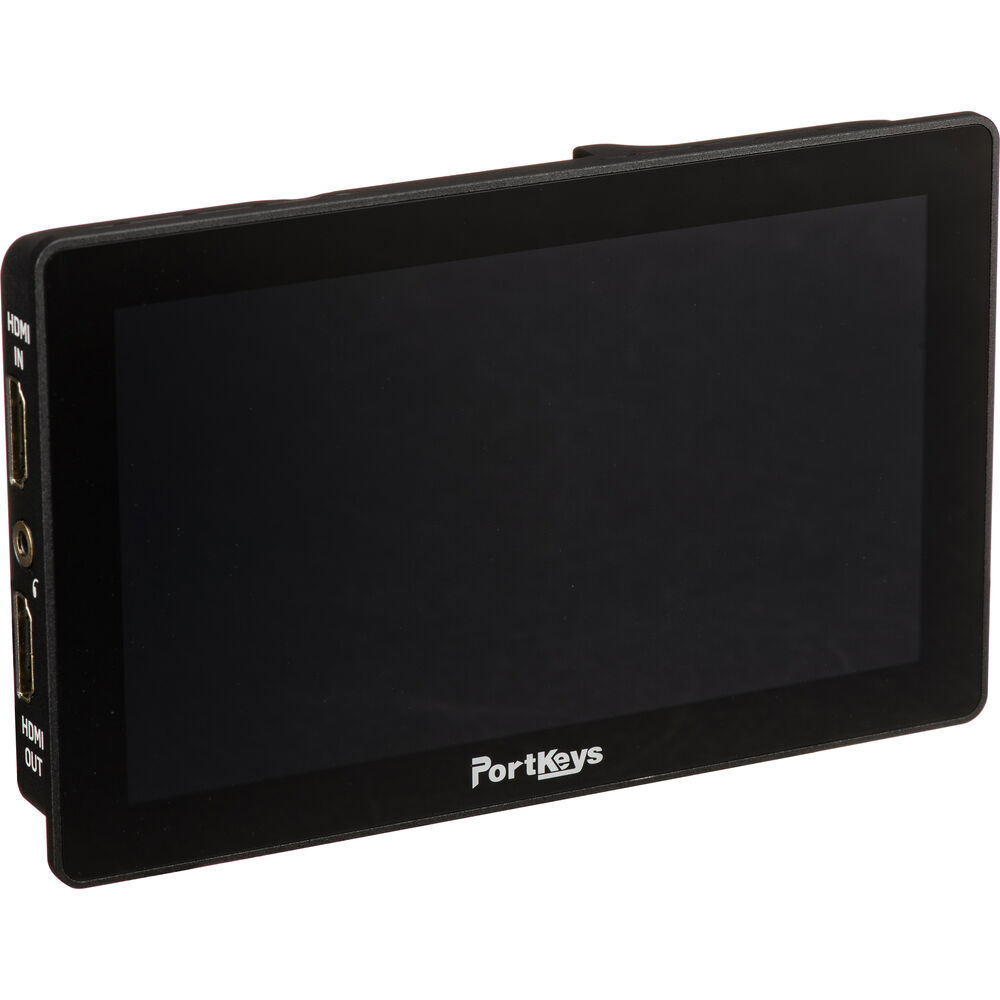

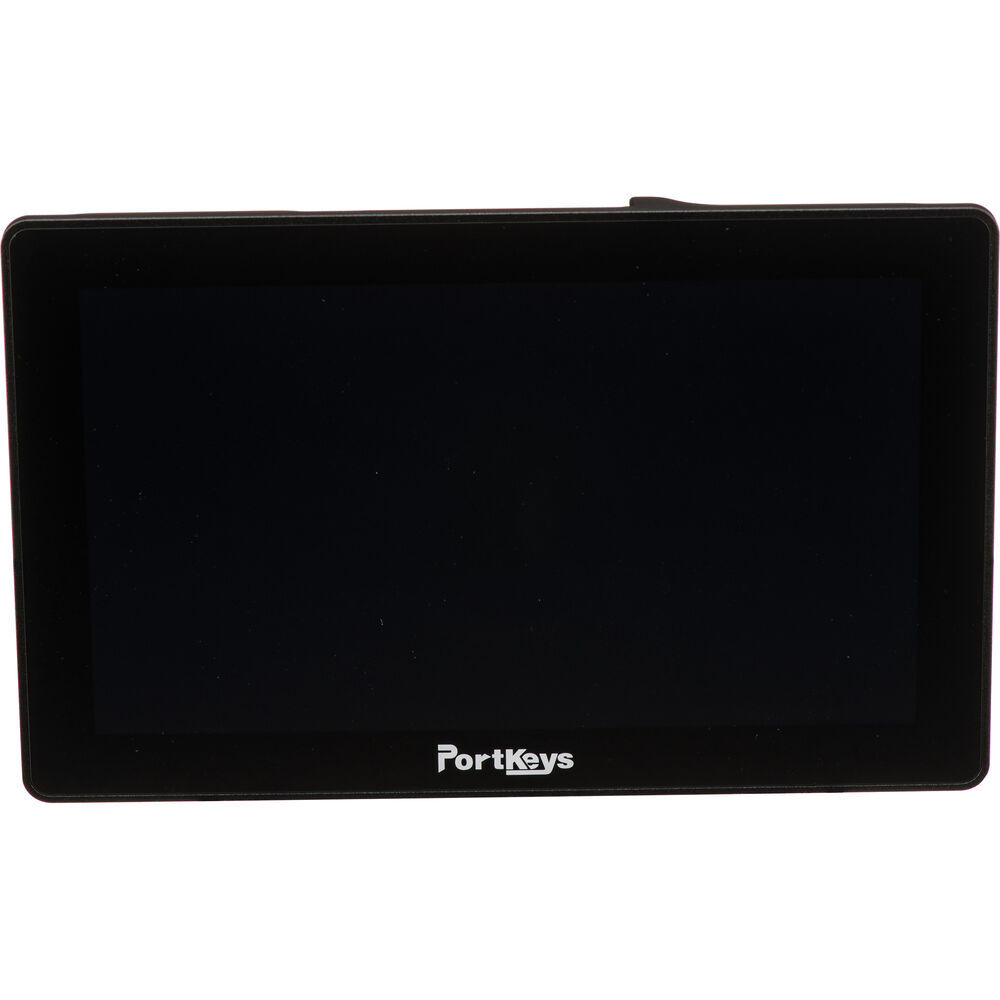

PORTKEYS LH5P II 5.5" Touchscreen Monitor with Camera Control for BMPCC/4K/6K/URSA Mini

$685.00
RRP $715.00
SAVE $30.00 (4%)
Sold Out

or 4 payments of $171.25 with Info



Need Extras?




Pick-up from the store - $0.00
Please wait for our phone call to confirm pick up details. Pick up address: Shop 2, 8-10 The Ave, Hurstville, NSW 2220.

Features

  • 5.5" HDMI 1920 x 1080 Touchscreen
  • BMPCC/4K/6K/URSA Mini Control
  • Up to DCI 4K24 Video Input Support
  • 2200 cd/m² Brightness, HDR Preview

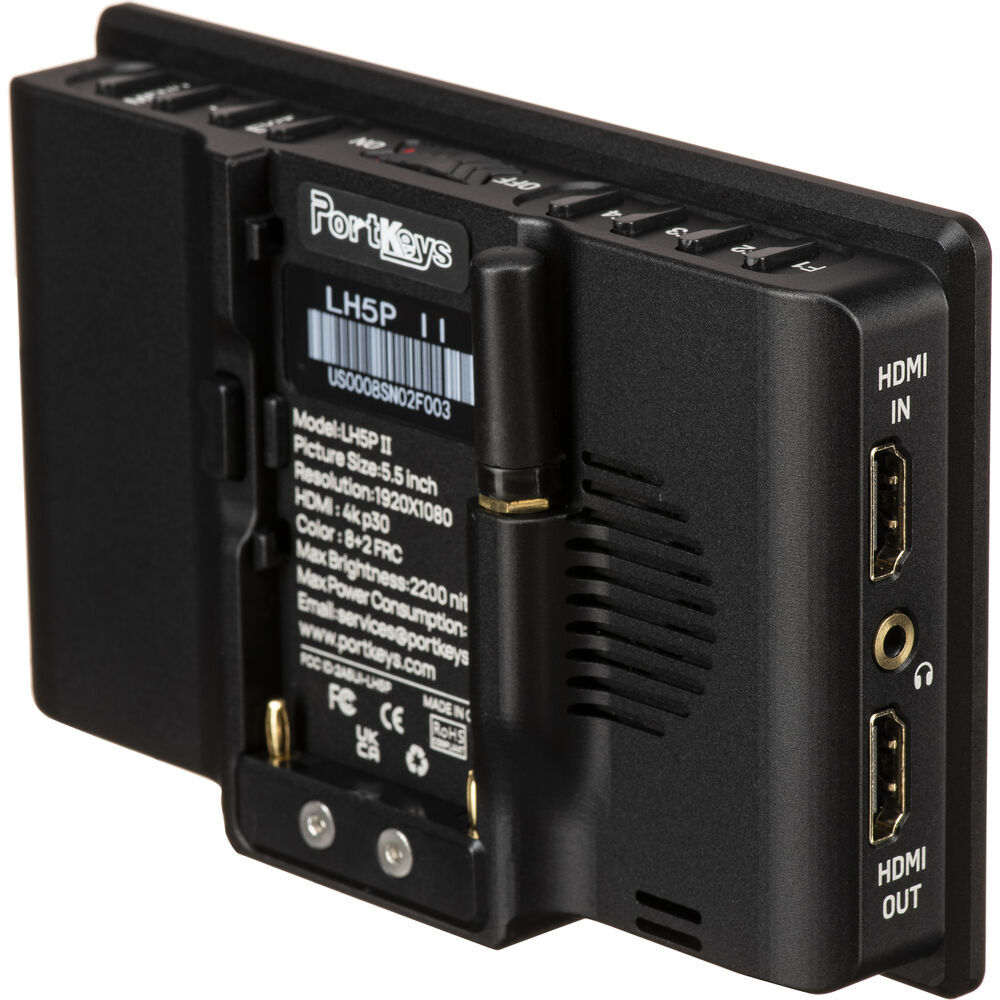

  • HDMI Input & Output, Headphone Jack
  • Integrated Bluetooth Module
  • Control Record, Shutter, Focus & More
  • Wired Tilta Nucleus-N/M Motor Control
  • 3D LUT Support, L-Series Battery Plate
  • Camera Control Cable Included

Add pro monitoring tools and control for select Blackmagic Design cameras to your camera rig with the LH5P II 5.5" Touchscreen Monitor from PORTKEYS. This bright, 5.5" on-camera touchscreen display offers 2200 cd/m² brightness with the ability to input and output up to DCI 4K24 or UHD 4K30 video via HDMI. Compatible with Blackmagic Pocket Cinema Camera, BMPCC 4K, BMPCC 6K, and URSA Mini cameras, this monitor features a built-in Bluetooth module that enables select camera functions and includes a control cable to connect your device to the monitor.

Camera Control Functions

  • Camera control via the integrated Bluetooth module and control cable
  • Control functions include iris, shutter, zoom, frame rate, and ISO
  • Set shortcut key F to control camera recording start/stop

Tilta Motor Control

Provides wired control for Tilta Nucleus-N/M lens motors

Hi-Bright 5.5" Touchscreen Monitor

5.5" LCD on-camera monitor features 2200 cd/m² and a 1000:1 contrast ratio for daylight visibility

DCI/UHD 4K Video

Supports HDMI input and output up to DCI 4K24 or UHD 4K30

Display Functions

  • 3D LUT support with custom LUTs via USB
  • Customized peaking, false color, luma waveform
  • Real-time eye focus
  • Anamorphic de-squeeze
  • Anamorphic lens calibration
  • Frame guides, crosshairs, grids, crop
  • Check field, zebra, luma histogram
  • RGB waveform, audio meters
  • HDR/HLG support



Specs

Display

Panel Type LCD
Display Size 5.5" / 14.0 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Viewing Angle Horizontal: 178°
Vertical: 178°
Touchscreen Yes
Maximum Brightness 2200 nits / cd/m2
Contrast Ratio 1000:1
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
HDR Compatibility Yes
Pixels Per Inch (ppi) 401 ppi
Color Gamut 100% Rec. 2020
85% DCI-P3
Image Controls Anamorphic De-Squeeze, Check Field, Color Temperature Selection, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, H/V Delay, Histogram, Image Flip, Screen Markers, Waveform, Zebra
Video I/O 1 x HDMI Input
1 x HDMI Output
Embedded Audio HDMI
Audio I/O 1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None

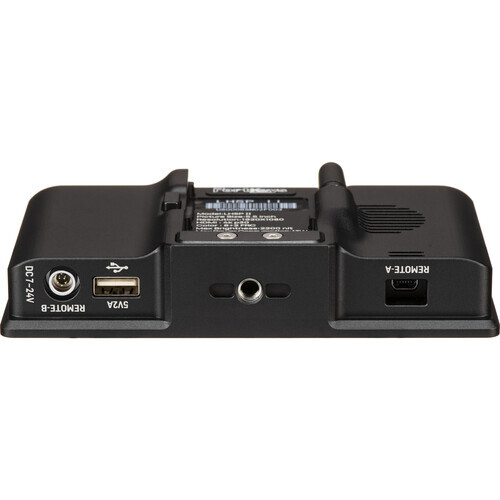

Power I/O 1 x Proprietary (24 VDC) Input/Output
Other I/O 1 x Mini-USB
1 x USB-A Input
Media/Memory Card Slot None
Wi-Fi None

Format Support

Video Format HDMI (8-Bit 4:4:4/4:2:2)
DCI 4K: 24
UHD 4K: 30/29.97/25/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480p: 60/59.94/50
480i: 60/59.94/50

Power

DC Input Power 7 to 24 VDC
Battery Type 1 x L-Series
Power Consumption 13 W (Maximum)
Mounting 1 x 1/4"-20 Female

Environmental

Certifications FCC Part 15 C
*as per Manufacturer
Operating Temperature 32 to 104°F / 0 to 40°C

General

Material of Construction Aluminum, Glass
Dimensions 5.7 x 3.5 x 1.22" / 144 x 90 x 30.88 mm
Weight 10.1 oz / 285 g

(LH5PII)

SKU LH5PII
Brand PortKeys
Shipping Weight 0.5000kg
Shipping Width 0.200m
Shipping Height 0.150m
Shipping Length 0.200m
Shipping Cubic 0.006000000m3
